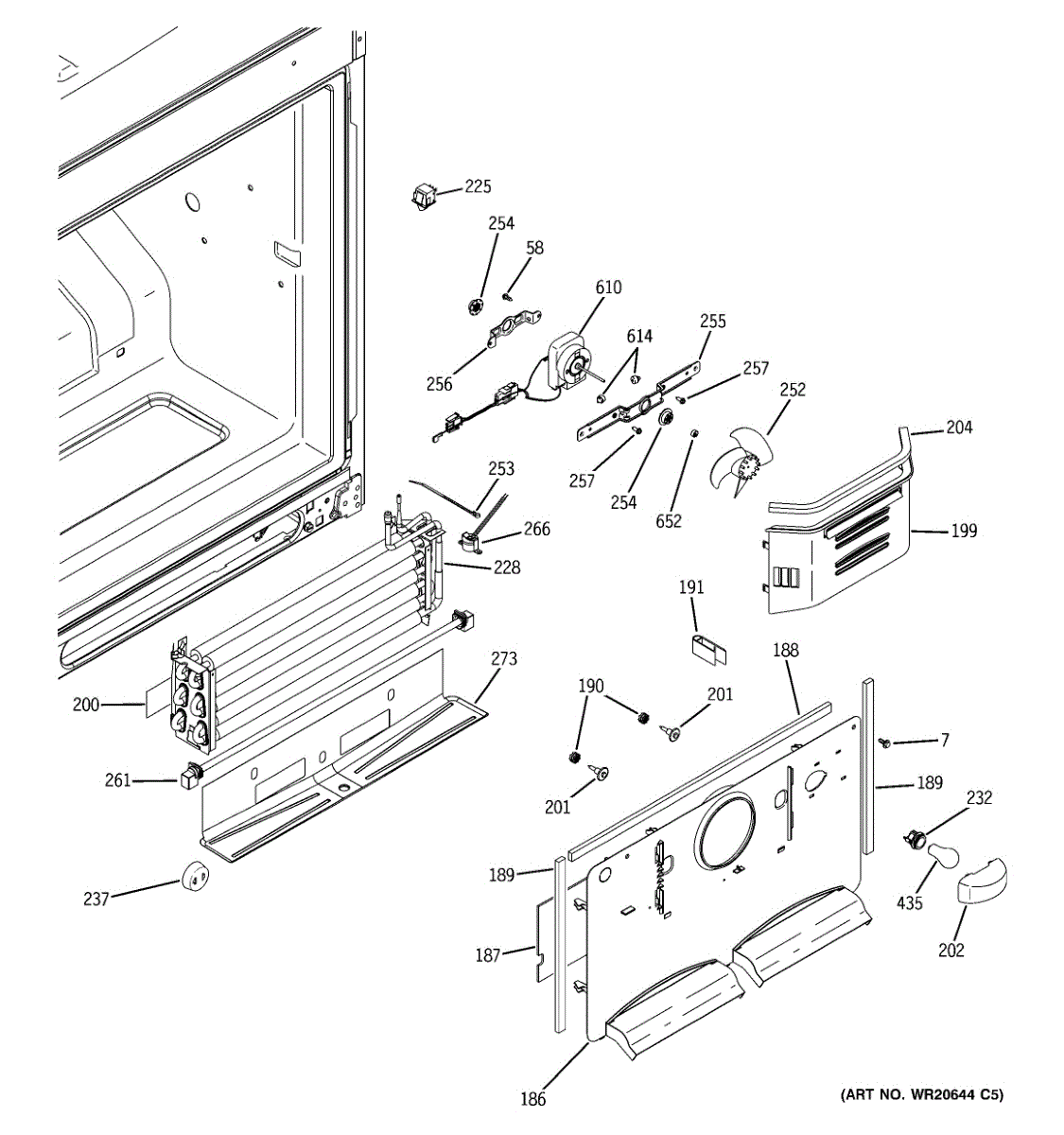

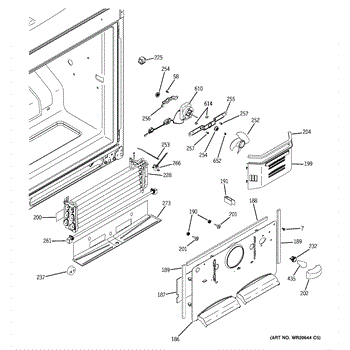

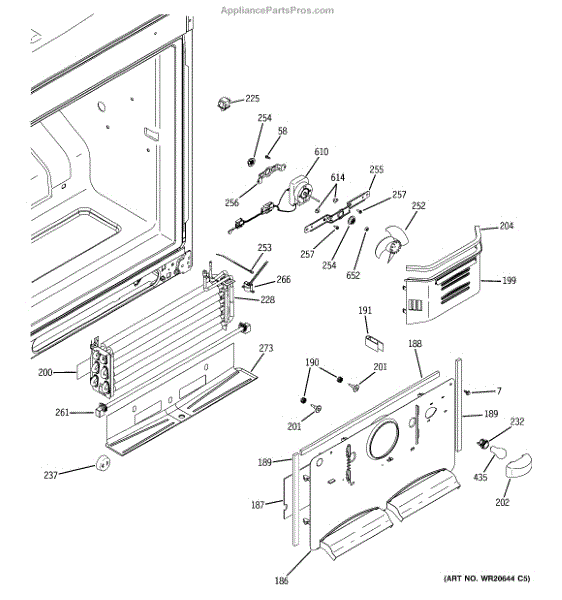

Parts for Ge GBE20ETEARCC: Freezer Section Parts

8-18 CA HX 1/2 S

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This self-adhesive foam strip replaces worn or missing foam used to seal gaps and reduce vibration in refrigerators and freezers. It helps improve insulation and quiet operation by filling small openings where air or moisture can pass. What it does:

• Provides a compressible seal to reduce air leaks that can cause frost buildup or uneven cooling
• Dampens vibration and rattling between panels or trim pieces
• Helps block dust and moisture from entering cabinet seams
• Can restore proper door and panel contact where original foam has deteriorated

• Unplug the appliance before starting any repair
• Clean and dry the mounting surface; remove backing and press strip firmly in place
• Trim to fit with scissors or utility knife as needed; avoid stretching the foam
• Only replace foam where original is missing or damaged; follow OEM placement for best seal

A self-adhesive foam strip that cushions gaps and seals edges to reduce air leaks, vibration, and moisture intrusion. Simple peel-and-stick design makes it a fast way to restore proper sealing and quiet operation. What it does

• Creates a soft seal along doors, panels or trim to help stop cold air loss and drafts.
• Dampens vibration and rattles caused by loose or worn mounting surfaces.
• Helps block dust and moisture from entering seams and crevices.
• Works where a thin, compressible filler is needed for a snug fit.

• Clean and dry the mounting surface thoroughly before installation for best adhesion.
• Measure and trim foam to fit; peel backing and press firmly to adhere along the entire length.
• Avoid stretching the foam during installation; allow adhesive to set before regular use.
• If adhesive residue remains on hands or surfaces, use a mild solvent per manufacturer guidance.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This tube clamp secures flexible water tubing to its fitting in refrigerators. It helps maintain a tight seal to prevent leaks and keeps lines from slipping off under normal operating pressure.

• Holds plastic or rubber tubing firmly on a barbed fitting or nipple
• Helps prevent drips and leaks at tube connection points
• Addresses loose or disconnected water lines
• Useful when tubing slips off or won't stay seated

• Disconnect power and shut off the water supply before servicing
• Position the clamp over the tube and fitting; compress with pliers and release to lock in place
• Ensure the clamp is centered and fully seated; tug-test the tube
• Restore water and power; check all connections for leaks

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This plug cover and gasket assembly provides the replacement cover and sealing gasket for the appliance electrical access area, restoring a secure fit and helping keep out moisture and debris. It's a direct-fit replacement designed to restore proper coverage. What it does:

• Covers and protects the appliance's electrical plug/access opening to prevent exposure to wiring and terminals
• Gasket creates a seal to help keep out moisture, dirt and cooking residues
• Restores a snug, stable fit where a cracked or missing cover allowed movement or gaps
• Helps reduce risk of corrosion or shorting from contaminants reaching components

• One plug cover and gasket assembly

• Always disconnect power before accessing electrical components
• Remove only the fasteners securing the old cover; note orientation of the gasket for correct reinstallation
• Inspect mounting area and wiring for damage before installing the new part
• Use basic hand tools;

The Evaporator Fan Blade is an OEM part for GE refrigerators. This fan blade is crucial for circulating air over the evaporator coils, which helps to maintain an even temperature throughout the refrigerator and ensures efficient cooling.

Common causes of a bad fan blade include regular wear and tear, damage from ice buildup or debris, and mechanical issues that cause the blade to crack or warp. A compromised fan blade can lead to poor air circulation, resulting in uneven cooling and potential frost buildup.

Symptoms of a bad evaporator fan blade include:

• Unusual noises coming from the freezer compartment
• Inconsistent temperatures within the refrigerator or freezer
• Frost buildup on the evaporator coils
• Reduced cooling efficiency

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. It is a small but essential component that helps to seal and insulate the area around the fan motor, preventing air leaks and maintaining optimal cooling efficiency.

Causes of a damaged or worn-out fan motor grommet can include prolonged use, exposure to extreme temperatures, or physical damage from improper handling or installation.

Symptoms of a bad fan motor grommet include:

• Reduced cooling performance
• Increased energy consumption
• Frost buildup in the freezer compartment
• Unusual noises coming from the fan area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This evaporator fan bracket secures the evaporator fan assembly behind the rear panel. A rigid, correct-fit mount preserves blade clearance and airflow across the evaporator coils for steady temperatures while minimizing vibration and noise.

• Holds the evaporator fan assembly firmly in position
• Maintains alignment and clearance to prevent fan rubbing and excess noise
• Supports proper airflow through the evaporator compartment for consistent cooling
• Replace if the bracket is cracked, warped, or loose; symptoms may include rattling, scraping sounds, or the fan contacting the shroud

• Disconnect power before servicing and use cut-resistant gloves
• Remove shelves/drawers and the rear evaporator cover to access the fan assembly
• Transfer the fan motor and existing hardware to the new bracket; ensure the blade spins freely without contact
• Avoid damaging the evaporator coils; reassemble panels and restore power to test

The Defrost Heater is an OEM part for GE refrigerators. This part melts away frost that accumulates on the evaporator coils during the cooling cycle. This process is vital for maintaining the efficiency of the refrigerator, ensuring that air can flow freely over the coils to keep the unit cooling effectively.

Causes of a bad defrost heater can include a faulty heater element, electrical issues preventing the heater from activating, or damage to the heater's wiring.

Symptoms of a bad Defrost Heater include:

• Frost buildup on the evaporator coils
• The refrigerator or freezer section is too warm
• The refrigerator is running constantly without cycling off
• Pools of water or ice on the floor of the freezer compartment

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This defrost thermostat is the temperature-sensing switch mounted on the freezer evaporator. It controls power to the defrost heater during the cycle to help prevent frost buildup and restore proper airflow and cooling performance.

• Monitors evaporator temperature and opens the heater circuit when the coil warms
• Helps stop heavy frost/ice accumulation on the evaporator and back wall
• Failure can cause poor cooling, weak airflow, or frost-covered coils
• If stuck open, may prevent the defrost heater from energizing at all

• Disconnect power to the refrigerator before service
• Access the evaporator behind the freezer's rear panel; locate the thermostat attached to the coil/tubing
• Install the new thermostat in the same location and orientation, ensuring firm contact with the evaporator surface
• Route and secure wires as original; keep clear of the fan and moving parts

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This evaporator fan motor assembly includes a jumper harness to match updated wiring. It circulates air across the evaporator and throughout the cabinet to maintain even temperatures and consistent cooling performance.

• Drives airflow across the evaporator coils to remove heat
• Distributes cold air between freezer and fresh food sections
• Helps reduce frost buildup and temperature swings
• Typical failure signs: weak or no airflow, warm compartments, or loud/squealing fan noise

• Disconnect power before servicing; wear cut-resistant gloves
• Transfer the existing fan blade, bracket, and grommets if not supplied
• Make tight, fully seated connections; use the jumper only if your harness requires it
• After reassembly, restore power and close the door switch to verify fan operation

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Compression Ring is an OEM part for GE refrigerators. It is designed to secure and seal connections within the refrigerator’s water and ice dispensing system, ensuring a leak-free operation. This small yet vital component helps maintain the integrity of the connections, preventing water leaks and ensuring the proper flow of water through the dispenser and ice maker.

Over time, the compression ring can wear out or become damaged due to regular use and the natural aging of materials. If the compression ring is compromised, it can lead to water leaks or poor water flow, which can affect the overall performance of the refrigerator’s water and ice dispensing functions.

Symptoms of a bad compression ring include:

• Water leaks around the dispenser or ice maker
• Reduced water flow or no water flow at all
• Drips or puddles forming inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
