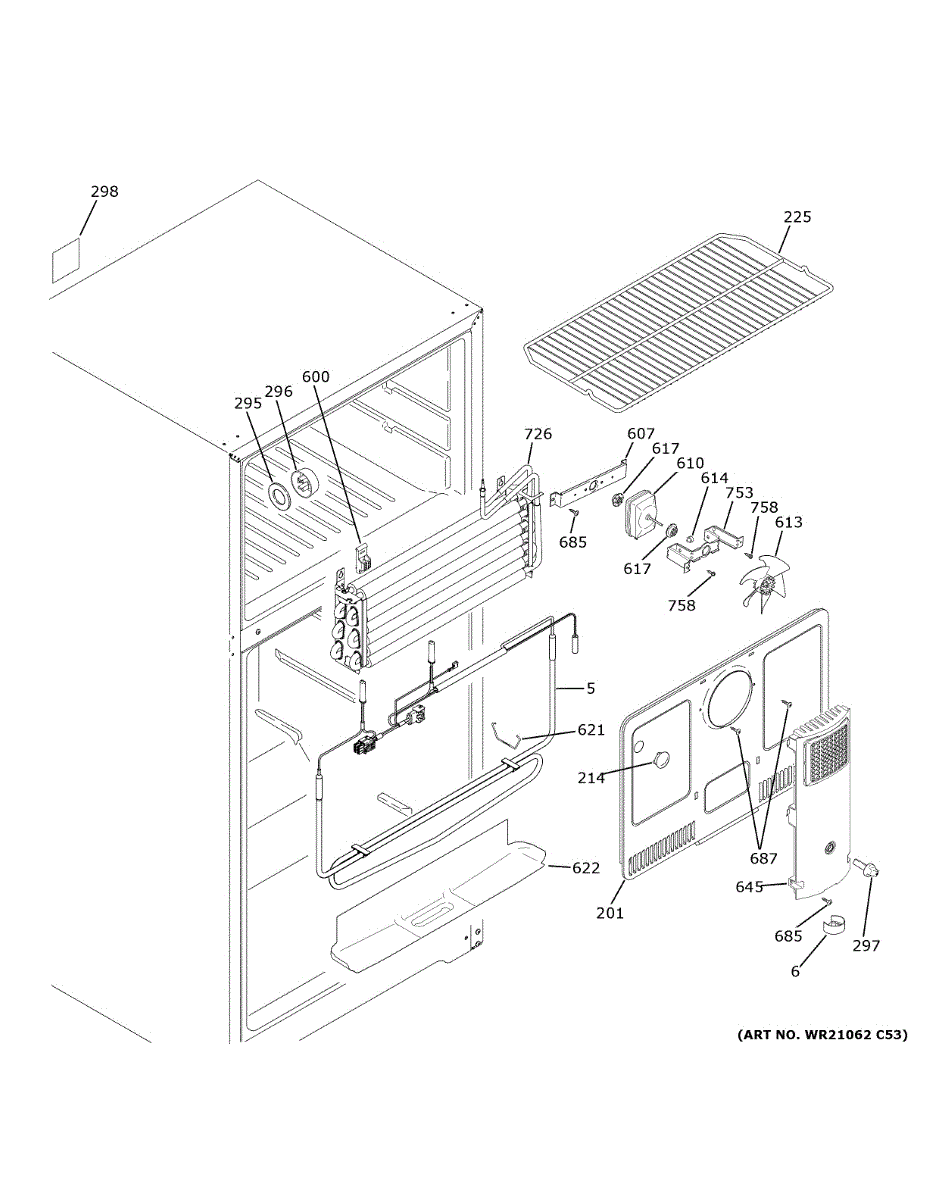

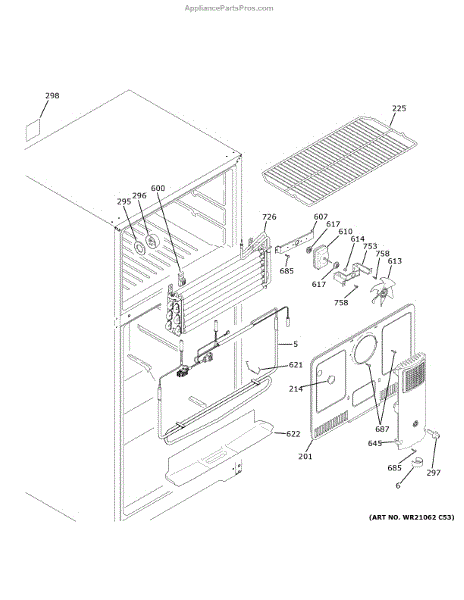

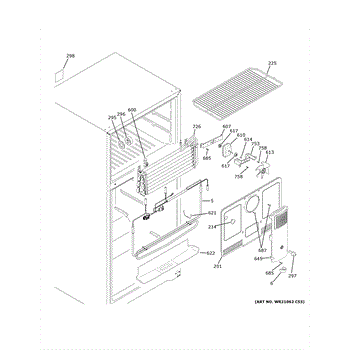

Parts for Ge GTS19KGNBRBB: Freezer Section Parts

The Defrost Heater Assembly is an OEM replacement part for GE refrigerators. This assembly is responsible for preventing the buildup of ice and frost on the evaporator coils by providing controlled heat during the defrost cycle. It helps prevent ice accumulation that can hinder the refrigerator's ability to cool properly.

A bad defrost heater assembly can occur due to electrical issues, component failure, or damage to the heating element. If you notice symptoms such as excessive frost or ice buildup in the freezer compartment, inconsistent cooling, or water leaking from the refrigerator, it may indicate a need to replace the defrost heater assembly.

Symptoms of a bad defrost heater assembly include:

• Excessive frost or ice buildup in the freezer compartment
• Inconsistent cooling
• Water leaking from the refrigerator

Restore your refrigerator by replacing the faulty defrost heater assembly with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This adjustable damper controls airflow between compartments to help maintain proper temperature balance in your refrigerator. Replaces a worn or stuck damper to restore adjustable venting and improve airflow management. What it does:

• Regulates the amount of cold air moving between freezer and fresh-food sections
• Helps correct uneven temperatures or limited cooling caused by a stuck or broken damper
• Allows user-adjustable vent position to increase or restrict airflow as needed
• Operates as a passive mechanical vent (no electronic control on the part itself)

• One adjustable damper assembly

• Disconnect power before starting work to avoid electrical shock
• Access may require removing interior trim or control housing—keep fasteners organized
• Handle the damper vane and housing carefully to avoid cracking plastic parts
• After installation, restore power and verify damper moves freely and airflow responds as expected

This is a replacement 19-inch glass shelf designed for freezer compartments to restore a sturdy, easy-to-clean storage surface and help keep frozen items organized. Ideal when the original shelf is damaged or missing. What it does:

• Provides a flat, stable surface for storing frozen foods and containers
• Easy-to-clean tempered glass resists stains and odors for better food hygiene
• Replaces cracked, chipped or shattered freezer shelves
• Restores proper storage layout when a shelf is missing or no longer sits securely

• Remove food from the shelf area and set items aside before installing
• Wear gloves and handle the glass carefully to avoid cuts or damage
• Slide the shelf into the existing frame or support rails until fully seated
• Follow OEM instructions for any support clips or trim pieces; do not force the glass into place

This fill tube port cover replaces the plastic trim that secures and protects the ice maker fill tube where it passes through the refrigerator liner, helping keep the fill tube aligned and reducing leaks or rattle noise. What it does:

• Secures the ice maker water fill tube in the cabinet wall to keep the tube properly positioned
• Helps prevent water spray or leaks at the fill tube entry point
• Reduces vibration and rattling caused by a loose or damaged port trim
• Restores a finished appearance around the fill tube opening

• One fill tube port cover

• Disconnect power to the refrigerator before starting any work
• Shut off the water supply and drain any residual water from the fill tube to avoid spills
• Usually installs with snap-fit tabs; gently pry out the old trim and press the new cover into place
• After installation, restore power and water, then observe one ice/ fill cycle to ensure proper operation

This is the evaporator fan blade that mounts on the freezer fan motor. It circulates cold air across the evaporator coils and throughout the compartments to maintain even, reliable temperatures. What it does:

• Moves air across the evaporator to cool and circulate airflow between freezer and fresh food sections
• Helps prevent warm spots and temperature swings inside the refrigerator
• Common failure signs include rattling/scraping noises from the freezer area
• Needed if the fan isn't moving air, the blade is cracked/loose, or cooling is weak despite the compressor running

• 1 evaporator fan blade

• Disconnect power before servicing; wear cut-resistant gloves around sharp sheet metal
• Remove shelves/drawers and the rear freezer panel to access the fan
• Pull the old blade straight off the motor shaft; transfer any clip/retainer if present
• Press the new blade fully onto the shaft; it spins freely without contacting the shroud before reassembly

The Lid Bumper is an OEM part for GE refrigerators. It is designed to provide cushioning and protection for the refrigerator lid, preventing damage and ensuring smooth, quiet closing.

Causes of a bad Lid Bumper can include deterioration over time due to frequent use, exposure to temperature variations, or damage from accidental impacts. A worn or damaged bumper may no longer provide adequate cushioning, leading to potential damage to the lid or the refrigerator itself.

Symptoms of a bad Lid Bumper include:

• The refrigerator lid closing too hard
• Unusual noises when closing the lid
• Visible wear or cracks on the bumper

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fan Motor Grommet is an OEM replacement part for GE refrigerators. This small but essential component serves as a seal and insulator around the area where the fan motor shaft protrudes from the appliance body.

Causes of needing to replace the fan motor grommet can include normal wear and tear over time, exposure to extreme temperatures or moisture, or physical damage due to impact or improper installation.

Symptoms of a faulty or missing grommet include:

• Air leaks or drafts around the fan motor area
• Condensation buildup or frost formation near the motor shaft
• Increased noise or vibration from the fan motor assembly
• Reduced cooling efficiency due to air leakage

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This 22-inch drain trough catches and channels defrost water away from the freezer compartment to the evaporator drain, helping prevent leaks and ice buildup. It is a direct-fit service part used in compatible GE refrigerators. What it does:

• Collects melted frost and directs water to the drain outlet to prevent pooling inside the freezer
• Helps reduce ice buildup around the evaporator and improves defrost drainage
• Restores the proper water flow path when a cracked or warped trough causes leaks or standing water

• One drain trough (22-inch)

• Inspect mounting tabs and surrounding seals for damage before installing; replace any broken clips or gaskets
• Handle carefully to avoid bending; install with refrigerator unplugged and evaporator access panel removed
• Clean the drain channel and defrost drain before reinstalling to ensure unobstructed flow

The Evaporator fan front bracket is an OEM replacement part for GE refrigerators. Located inside the freezer compartment, this bracket securely mounts and supports the evaporator fan assembly.

Causes of a bad front bracket include breakage from repeated fan motion, cracking from temperature fluctuations over many years, or loosening of mounting points.

Symptoms of a bad evaporator fan front bracket include:

• Abnormal rattling or vibrational noises coming from inside the refrigerator
• Reduced airflow circulation leading to ineffective cooling
• Potential shifting or misalignment of other evaporator components

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory screw secures brackets, panels, and internal components so assemblies stay tight and aligned. Replace a missing or damaged fastener to eliminate rattles, looseness, and misaligned parts. What it does:

• Fastens components, panels, hinges, or brackets to the appliance frame
• Helps maintain proper alignment and a solid, rattle-free fit
• Replaces stripped, rusted, or missing hardware
• Can address vibration noises and loose assemblies

• Includes 1 screw

• Unplug the appliance and shut off water before servicing
• Wear gloves; sheet-metal edges can be sharp
• Start threads by hand to avoid cross-threading; use the appropriate driver
• Tighten snugly—do not overtighten to prevent stripping
