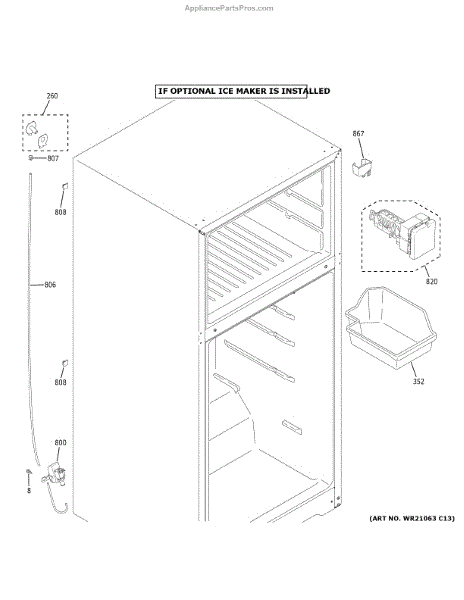

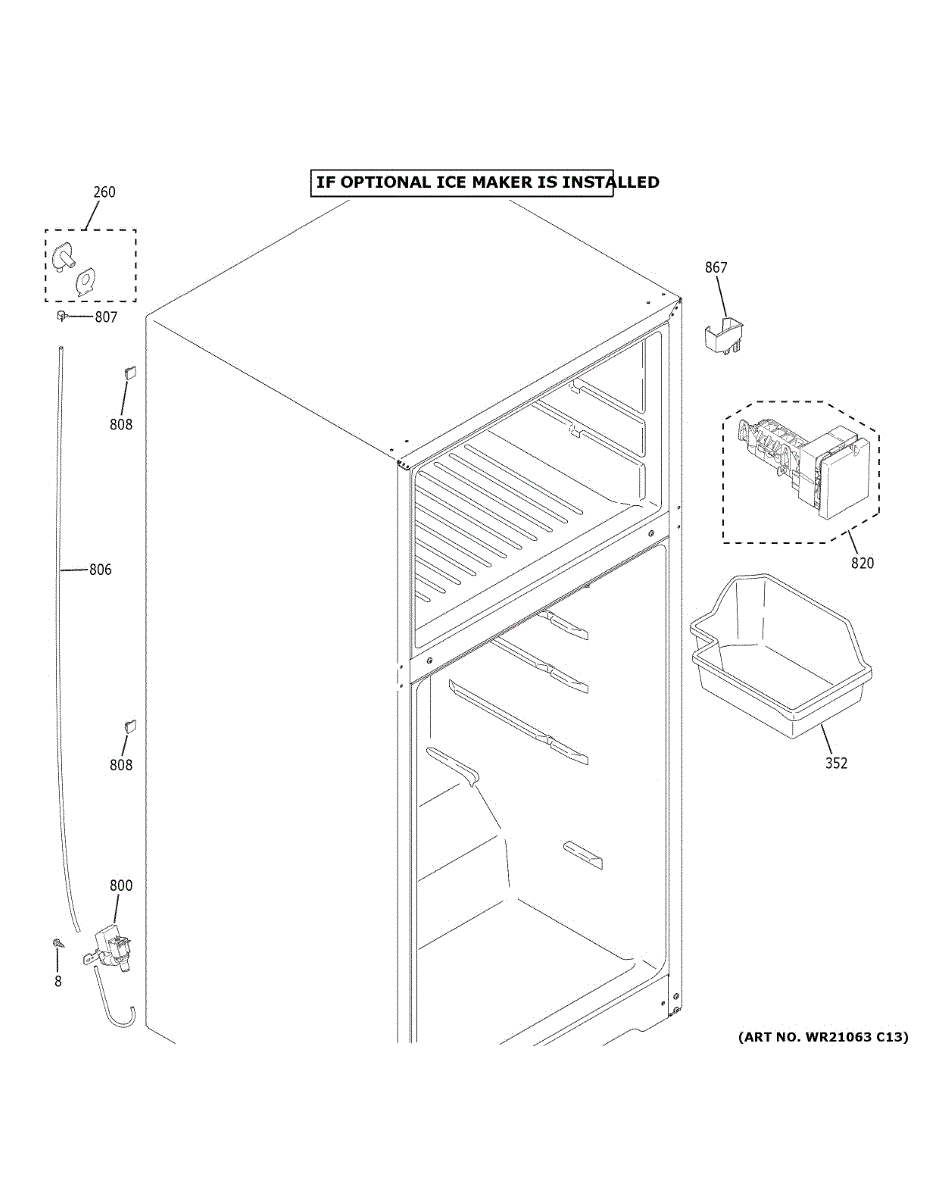

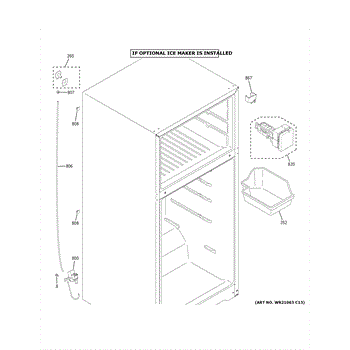

Parts for Ge GTS19KGNBRBB: Ice Maker Parts

Specs: 8-32 ca hxw 1/2

The Grommet Water Fill Assembly is an OEM component specifically designed for GE top-mount refrigerators. It is located at the back of the fresh food compartment and consists of the water inlet grommet that channels water from the external line.

During use, causes of failure can include mineral buildup on the filter over time inhibiting proper water flow. Deterioration of the inlet grommet seal may also occur.

Symptoms of a bad water fill assembly include:

• Slow or incomplete filling of the internal water tank
• Leaks occurring at the rear water inlet connection point
• Mineral deposits building up within the internal waterways

This OEM GE replacement ensures a secure seal and mesh filtration for clear, contaminant-free water going to the dispenser. It maintains proper filling and is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Bucket is an OEM part for GE refrigerators. It is a component that stores ice from the icemaker in the freezer compartment. The ice bucket allows for convenient access to ice on demand, fitting seamlessly within the refrigerator design.

Symptoms of a bad ice bucket include:

• Cracks or damage to the plastic material
• Inability to easily remove or insert the bucket
• Ice falling out of the bucket improperly
• Missing parts like the handle

Note: This is just the ice bucket. It does not include other ice maker components.

Replace your worn ice bucket before further issues arise like ice spilling in the freezer. This OEM GE part restores your refrigerator’s storage and access to ice. It is also compatible with Hotpoint, RCA, and Kenmore refrigerators.


The water valve is an OEM part for GE refrigerators. It is located behind the fresh food door and controls the flow of water to the ice maker and water dispenser features.

Symptoms of a bad water valve include:

• Leaks or drips from the valve area
• Failure of the ice maker or water dispenser to operate as expected
• Inability to regulate water flow or sensor controls

Causes of failure can be mineral buildup interfering with valve operation over time, crimps or kinks in supply line tubing, or worn-out seals and diaphragms within the valve mechanism.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Tube is an OEM replacement part for GE refrigerators. It is responsible for delivering water to the dispenser and ice maker, ensuring a steady flow of chilled water and ice cubes.

A bad water tube can occur due to wear and tear over time or damage caused by mishandling or accidents. If you notice symptoms such as water leaks, reduced water flow, or ice maker malfunctions, it may indicate a need to replace the water tube.

Symptoms of a bad water tube include:

• Water leaks or drips from the dispenser or ice maker
• Reduced water flow or weak water pressure
• Inconsistent ice production or ice cube quality

Restore your refrigerator by replacing the faulty water tube with this genuine OEM part.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This replacement clamp secures lines or components inside the refrigerator, keeping them properly routed and stable. Replacing a broken or missing clamp helps reduce vibration and prevents rubbing damage or leaks from loose tubing. What it does:

• Holds tubing or wiring harnesses securely in place inside the refrigerator
• Maintains correct routing and clearance to prevent chafing and wear
• Helps reduce vibration and rattling noises from unsecured lines
• Can help prevent drips or leaks when used to retain water tubing

• 1 clamp

• Unplug the refrigerator and, if working with water lines, shut off the water supply
• Note the original clamp orientation and routing; take a photo before removal
• Install the new clamp in the same location, securing lines without pinching or over-stressing them
• Restore power (and water if applicable) and check that lines are secure; inspect for leaks if used on water tubing

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

This ice maker fill cup directs water from the refrigerator fill tube into the ice maker mold so each cycle fills correctly. Replacing a damaged cup restores consistent ice production and helps prevent water spills. What it does:

• Channels water from the fill tube into the ice maker mold for proper tray filling.
• Prevents water from dripping into the freezer compartment when intact.
• A cracked, warped, or missing fill cup can cause underfilled ice cubes, overflowing molds, or water pooling in the freezer.
• Compatible with common top/front-mounted household ice makers that use a separate plastic fill cup.

• Disconnect power and shut off the water supply before starting work.
• Remove the ice bin or ice maker assembly as needed to access the fill cup.
• The cup typically snaps or slides into place; use gentle pressure and avoid forcing plastic tabs.
