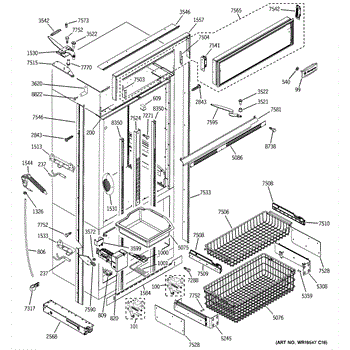

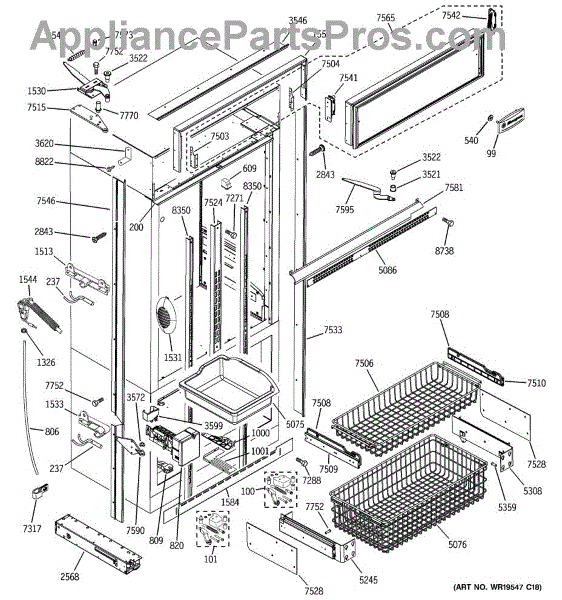

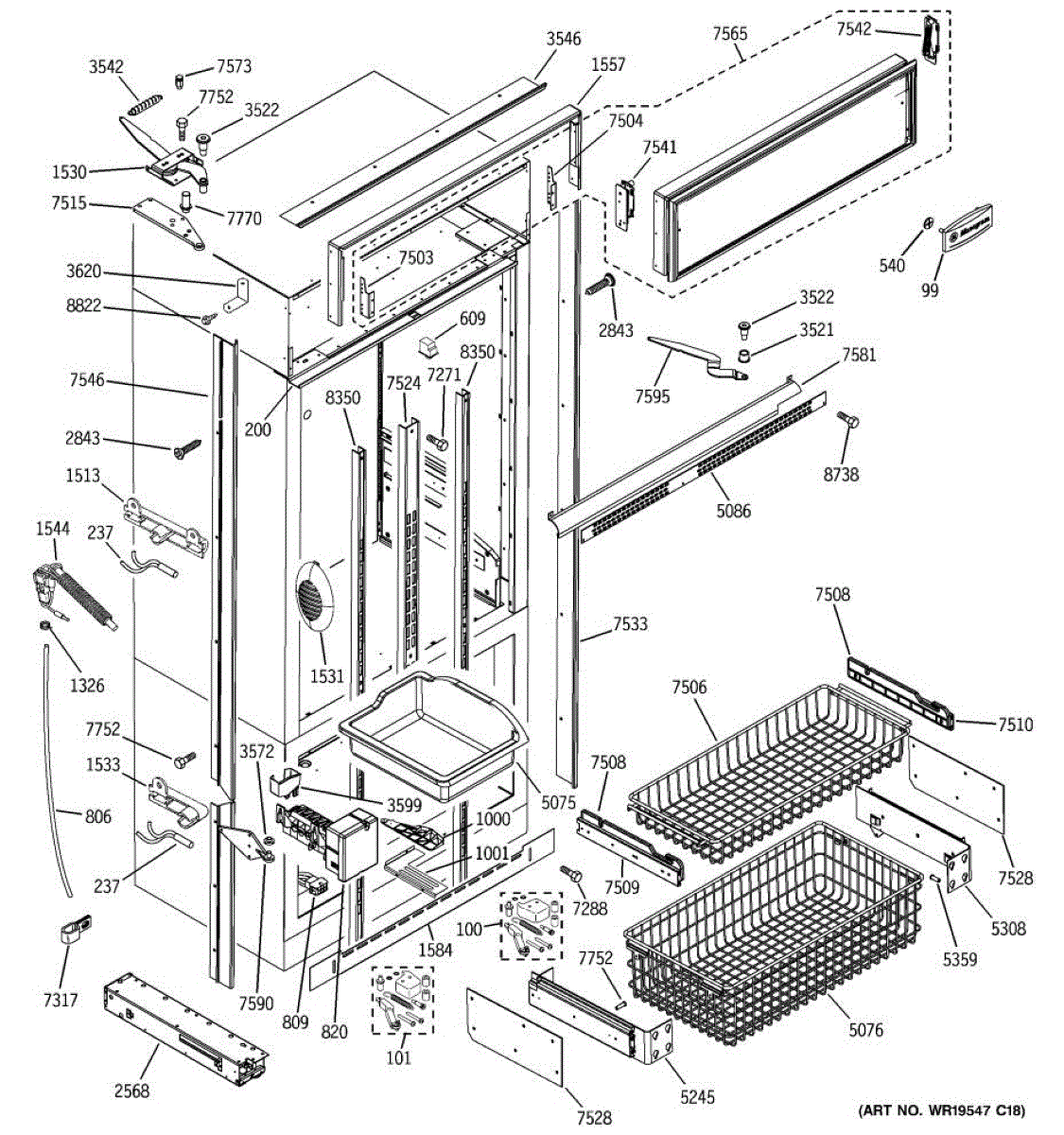

Parts for Ge ZICS360NXBLH: 03 - Freezer Section, Trim & Components Parts

This refrigerator water line is the plastic tubing that routes pressurized water through the appliance's water system. Replacing a cracked, brittle, or kinked line helps restore proper water flow and prevents leaks inside or around the unit.

• Carries water between the inlet valve and the refrigerator's water system components
• Helps maintain a sealed path for reliable flow to the dispenser and/or ice maker
• Replace if tubing is cracked, kinked, brittle, or leaking
• Common symptoms include puddling, dripping, reduced/No water at the dispenser, or ice maker not filling

• Disconnect power and shut off the water supply before servicing
• Note the original routing and clip locations; avoid sharp bends and kinks during installation
• Fully seat tubing into existing connectors/fittings on your model
• Turn water back on, check all connections for leaks, and purge air by dispensing water

This toe kick is the lower front grille panel that covers the base of the appliance for a finished appearance and protects internal components from dust and debris. It restores the original look and helps keep the cabinet area tidy. What it does:

• Replaces a cracked, dented or missing lower front grille to restore appearance
• Shields the compressor/vent area from kicked-up dust and small debris
• Helps direct airflow at the appliance base (maintains intended vent clearance)
• Matches factory fit and mounting points for a straightforward replacement

• Remove power to the appliance before starting any service
• Typically secures with a few clips or screws at the base; keep fasteners for reinstallation if reusable
• Handle edges carefully to avoid scratching finish; use a non-marring tool if prying

This left hand base channel is the lower cabinet support piece that helps secure and align the appliance's front base. It restores proper fit and stability at the cabinet bottom after damage or wear. What it does

• Provides structural support for the appliance's lower front cabinet, keeping panels aligned.
• Replaces a bent, cracked or missing base channel that causes gaps or misalignment.
• Helps prevent rubbing or binding between the cabinet and kickplate or floor.
• Restores correct mounting points for adjacent trim and hardware.

• Intended for the left/front lower cabinet area; verify orientation before installing.
• Basic hand tools required; support the appliance while removing and installing to avoid strain.
• Disconnect power and water (if applicable) and follow all safety precautions before beginning work.
• If mounting hardware is damaged or missing, replace fasteners with OEM-equivalent parts.

Size: 10-32 GXTT FLP.595 S

Spring should have GOLD color.

This corner key assembly secures and finishes a refrigerator door corner, restoring proper alignment and a clean appearance. It replaces a cracked, broken, or missing corner piece to help the door close evenly and look factory-original. What it does:

• Provides structural support at the door corner to maintain proper edge alignment
• Covers and protects the underlying corner area from damage and wear
• Helps reduce visible gaps or misalignment that can affect sealing
• Restores the cabinet's finished appearance after impact or deterioration

• One corner key assembly

• Disconnect power to the appliance before starting any repair
• Remove door or trim per manufacturer instructions to access the corner area
• Install with original fasteners or clips; do not force or over-torque plastic snaps
• If hinge or door alignment issues persist, inspect associated hinges and gaskets

This ice bucket is the removable plastic bin that collects and stores ice from the ice maker, keeping cubes contained and easy to access. It restores proper ice storage and makes removing or pouring ice simple. What it does:

• Holds and stores ice produced by the freezer ice maker so cubes stay contained and sanitary.
• Guides ice from the ice maker into the storage bin to prevent spills and jams.
• Allows easy removal for scooping, pouring, or cleaning when ice build-up occurs.
• Commonly replaced when the bucket is cracked, warped, missing, or no longer seats properly.

• One ice bucket.

• Unplug or disconnect power to the appliance before servicing the ice maker area.
• Slide the bucket into the freezer compartment aligning tabs or guides; do not force.
• Handle plastic tabs and mounting points carefully to avoid breakage.
• Inspect the ice maker assembly and chute for ice buildup or damage.

This freezer drawer slide is installed on refrigerators with bottom drawer freezers. The slide makes it possible to open the drawer without any jamming.If there is noticeable difficulty opening the slide-out freezer, or it is unable to be opened at all, the problem is likely with the slide rail. Inspect the length of the slide rail and if there are any broken pieces or missing screws, this is the culprit. If the damage is unable to be fixed by replacing a few screws, a replacement will need to be ordered. Begin the installation by removing the old pieces of slide rail. Prepare the screws for the new installation. Fasten the new slide rail to the refrigerator by inserting the screws in their proper mounting. To reinsert the freezer drawer, tip at an angle and insert into the slide rail.This freezer drawer slide rail is a genuine OEM replacement part and is sourced directly from GE. The product listed is only available individually and is not included with any other parts or the original appliance. This part Is compatible with GE appliances.

This freezer slide support assembly stabilizes and guides a freezer drawer so it opens and closes smoothly and stays level. Replacing a worn or broken support restores proper drawer alignment and prevents sagging or catching. What it does:

• Supports the freezer drawer or slide to maintain proper alignment and smooth movement
• Keeps the drawer level to prevent binding, sagging, or accidental dropping
• Replaces cracked, worn, or missing support pieces that cause uneven operation
• Works as a direct-fit mounting/guide for the drawer slide mechanism

• One freezer slide support assembly

• Disconnect power before starting and remove the freezer drawer to access the support
• Inspect mating slide and mounting tabs; replace any damaged clips or hardware
• Typically installs by snapping or securing into the existing slide track—retain fasteners if present

Size: 10-32 GXTT FLP.595 S

Size: 1/4 inch diameter.

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

This support mounts to the freezer wall and holds the upper basket in place. Replace a broken or missing support to restore proper alignment and smooth in-out movement of the basket and prevent sagging or jams.

• Provides side support for the upper freezer basket
• Keeps the basket level and aligned for easy access
• Replaces cracked or missing support that can cause the basket to drop, bind, or jam
• Helps eliminate wobble and uneven sliding when opening/closing

• Disconnect power to the refrigerator before servicing
• Empty and remove the upper freezer basket
• Release retaining tab(s) or remove fastener(s) and note the support's orientation
• Secure the new support, reinstall the basket, and verify smooth operation

Upper freezer slide liner replaces the plastic guide that supports and guides the upper freezer shelf, restoring proper shelf alignment and smooth sliding for easier access and safer storage. What it does:

• Guides and supports the upper freezer shelf along its track to prevent tipping or misalignment
• Keeps the shelf sliding smoothly so drawers and items move without catching
• Helps prevent shelf damage from uneven loading or cracked supports
• Replace when the liner is cracked, worn, or the shelf slides unevenly or binds

• Remove food and the affected shelf before replacing the liner for safe, clear access
• In many cases no tools are required—slide out the old liner from the track and snap the new liner into place
• Inspect mating track and adjacent clips for damage; replace damaged components to ensure proper fit

Freezer basket slide for the upper basket. This rail supports and guides the top freezer basket so it glides in and out smoothly. Replace a cracked or warped slide to restore proper movement and alignment.

• Supports and tracks the upper freezer basket along the cabinet wall
• Provides smooth sliding action for easier access to frozen items
• Replace when the slide is cracked, broken, or deformed
• Typical symptoms: basket binds or tilts, scrapes, pops out, or won't close fully

• Disconnect power to the refrigerator before servicing
• Remove the upper basket; release locking tabs or screws and lift out the damaged slide
• Position and secure the new slide as shown in your model's diagram; do not overtighten screws
• Reinstall the basket and verify smooth travel and proper door sealing

This left-hand link actuator moves a device linkage to restore proper mechanical motion in the appliance. Replacing a worn or broken actuator helps stop erratic movement and restores reliable operation at the affected linkage. What it does:

• Converts motor or lever movement into motion at the left-hand linkage
• Replaces a cracked, stuck or broken actuator that prevents proper linkage movement
• Can stop clicking, grinding or failed movement caused by a damaged link actuator
• Works where a left-side linkage needs an exact-fit actuator to restore function

• Disconnect power to the appliance before starting work
• Remove only the panels and fasteners necessary to access the actuator; label connectors if needed
• Handle plastic tabs and mounting points carefully to avoid breakage during removal and installation
• Reconnect wiring and test the mechanism through a full cycle before reassembling all panels

This 12-24, white screw secures panels and small appliance components. Replaces missing or damaged fasteners to restore a secure fit, reduce vibration and rattling, and help maintain proper alignment. What it does:

• Secures trim, panels, brackets and other small components.
• Replaces missing or worn fasteners that cause loose or rattling parts.
• Helps restore proper alignment of covers and access panels.
• Use when the original 12-24 screw is stripped, missing, or damaged.

• Disconnect power to the appliance before beginning any repair that exposes wiring or electrical components.
• Use the correct driver for the screw head to avoid stripping.
• Tighten until snug; avoid over-tightening which can damage threads or components.

This shear pin secures the washer agitator to the drive shaft and protects the transmission by designed failure when the agitator binds. It's a small, low-cost part that prevents costly gear or motor damage. What it does:

• Locks the agitator to the drive shaft so the washer can agitate and spin
• Designed to break (shear) if the agitator is jammed, preventing transmission or motor damage
• Commonly replaced when the agitator spins freely or the washer won't agitate
• Small part that restores proper mechanical coupling between agitator and drive

• One shear pin

• Disconnect power and water before starting any repair
• Access usually requires removing the agitator; follow your model's service instructions
• Verify shaft and agitator mating surfaces for wear or damage and replace if needed
