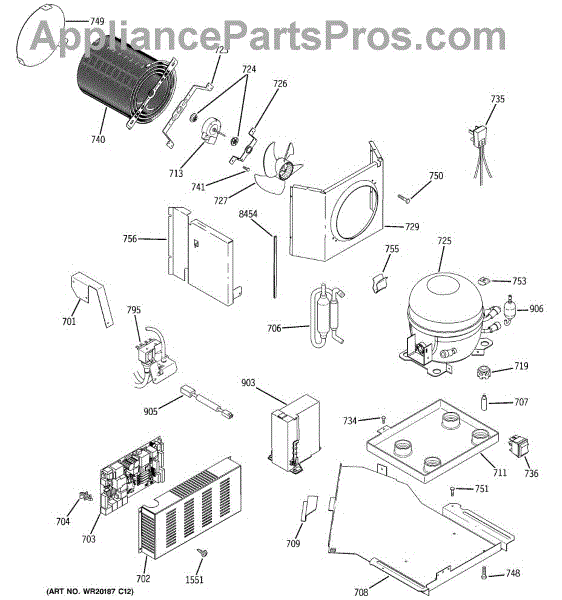

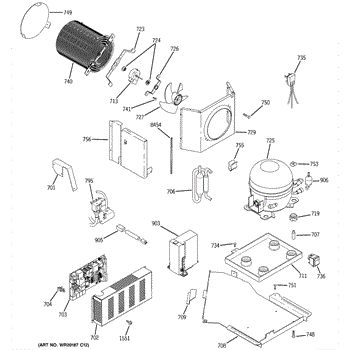

Parts for Ge ZICS360NXBLH: 05 - Sealed System & Mother Board Parts

This main board standoff provides a secure mounting point for the appliance control (main) board, keeping the board elevated and insulated to prevent shorts and vibration-related damage. Use it to restore proper board clearance and support. What it does:

• Secures the main control board to the chassis to keep connectors aligned and stable.
• Creates an insulated gap between the board and metal surfaces to reduce risk of electrical shorts.
• Reduces board movement and vibration that can cause intermittent electrical or connection issues.
• Commonly used when a board is loose, improperly seated, or rubbing against the cabinet.

• One main board standoff.

• Disconnect power before accessing internal parts to avoid shock or component damage.
• Handle the control board by its edges and avoid touching circuitry; use anti-static precautions if available.
• Install the standoff in the OEM mounting location and secure the board without over-tightening to prevent damage.
• If multiple standoffs are required, replace any missing or damaged mounts.

The R134 Drier is an OEM part for GE refrigerators. This component plays a critical role in the refrigeration system by removing moisture and contaminants from the refrigerant, ensuring efficient cooling and preventing damage to other parts of the system. It helps maintain the purity and effectiveness of the refrigerant as it cycles through the system.

You should replace the R134 drier if it becomes clogged or damaged. Common causes of a bad drier include wear and tear over time, exposure to moisture, or contamination from other failing components in the refrigeration system.

Symptoms of a bad R134 drier include:

• Reduced cooling efficiency
• Frost buildup on the evaporator coils
• Unusual noises from the refrigeration system
• Increased energy consumption
• Refrigerator not maintaining the set temperature

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Condenser Fan Motor is an OEM part for GE refrigerators. This fan motor circulates air in the fridge, helping to cool the compressor and condenser coils for better temperature control. It also evaporates extra water in the drain pan, stopping problems from water buildup.

Symptoms of a failing condenser fan motor include:

• The refrigerator running hotter than usual
• Loud noise or rattling sounds coming from the back of the refrigerator
• The refrigerator cycling on and off more frequently or for longer periods

Causes of condenser fan motor failure typically include wear and tear from continuous use, dust and debris accumulation obstructing fan movement, or electrical issues such as faulty wiring or capacitor problems.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: This is a (12-volt DC) fan motor. For the (115-volt AC) fan motor, order part number WR60X10220.

This condenser fan shroud directs cooling airflow across the condenser and keeps the condenser fan and motor securely positioned for reliable cooling performance. It helps maintain proper condenser airflow and protects fan components from contact. What it does:

• Guides airflow from the condenser fan to improve heat dissipation
• Holds the condenser fan motor and blade in the correct position
• Reduces the risk of fan-to-coil contact and related noise or damage
• Can help address symptoms like noisy fan operation, increased run time, or reduced cooling when damaged or missing

• Disconnect power to the appliance before beginning any work
• Handle carefully — edges and nearby sheet metal can be sharp
• Basic hand tools are typically required; follow OEM instructions for removal/installation

This master light switch kit replaces the main oven light switch assembly so the oven light turns on and off reliably. Designed for direct-fit replacement to restore normal oven lighting control. What it does:

• Replaces the oven's master light switch assembly that controls interior lighting
• Restores the ability to turn the oven/cabinet light on and off
• Helps eliminate flickering, intermittent operation, or complete light failure
• Works with existing wiring and mounting points for a straightforward swap

• One master light switch kit (assembly) as shown

• Disconnect power to the appliance before starting any work
• Basic hand tools required; follow OEM wiring and grounding instructions
• Verify proper operation after installation before returning appliance to service

This SCR (silicon controlled rectifier) controls high-current switching in the appliance's power circuit to enable reliable on/off control of heating or motor circuits. Designed for direct replacement of the original SCR component. What it does:

• Acts as a solid-state switch to control power to heating elements or motors when triggered by the appliance control board.
• Helps regulate current during start-up and run cycles to maintain proper operation of the appliance.
• Failures can cause symptoms such as no heat, intermittent operation, or the appliance not powering its load.
• Matches the OEM mounting and stud terminal configuration for proper electrical connection.

• One SCR component (8-32 stud) as pictured.

• Disconnect power to the appliance before servicing to avoid shock or damage.
• Use proper tools for the 8-32 stud terminals and ensure secure electrical and heatsink connections.
• Inspect mounting surfaces and replace any damaged hardware or thermal pads as needed for safe operation.

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Inverter Board is an OEM part for GE refrigerators, designed to control the compressor's speed. This sophisticated electronic component adjusts the compressor's power based on the cooling demand, enhancing the refrigerator's efficiency and overall performance. By modulating the compressor's operation, the inverter board plays a critical role in maintaining the desired temperature within the fridge and freezer compartments, ensuring your food is preserved under optimal conditions.

Causes for a Refrigerator Inverter Board to fail can include electrical surges that damage the board's components, wear and tear over time affecting its functionality, or issues with the refrigerator's cooling system that put additional strain on the inverter board.

Symptoms of a bad Refrigerator Inverter Board include:

• The refrigerator fails to cool properly
• Unusual noises coming from the refrigerator
• The fridge experiences frequent temperature fluctuations

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is a replacement edge trim piece that restores a clean, finished edge and helps protect cabinet or door surfaces from chips and wear. It improves the appearance and prevents edges from catching on seals or gaskets. What it does:

• Covers and protects exposed metal or plastic edges on appliance doors or panels
• Replaces cracked, split, or missing trim that can catch on clothing or seals
• Helps maintain a smooth sealing surface to reduce gaps or snags
• Restores finished appearance after damage or wear

• One edge trim piece as shown

• Remove any old adhesive or debris before installing for a secure fit
• Trim to length if required and press firmly into place; some installations use adhesive or snaps
• Wear gloves to avoid sharp edges during removal and installation
