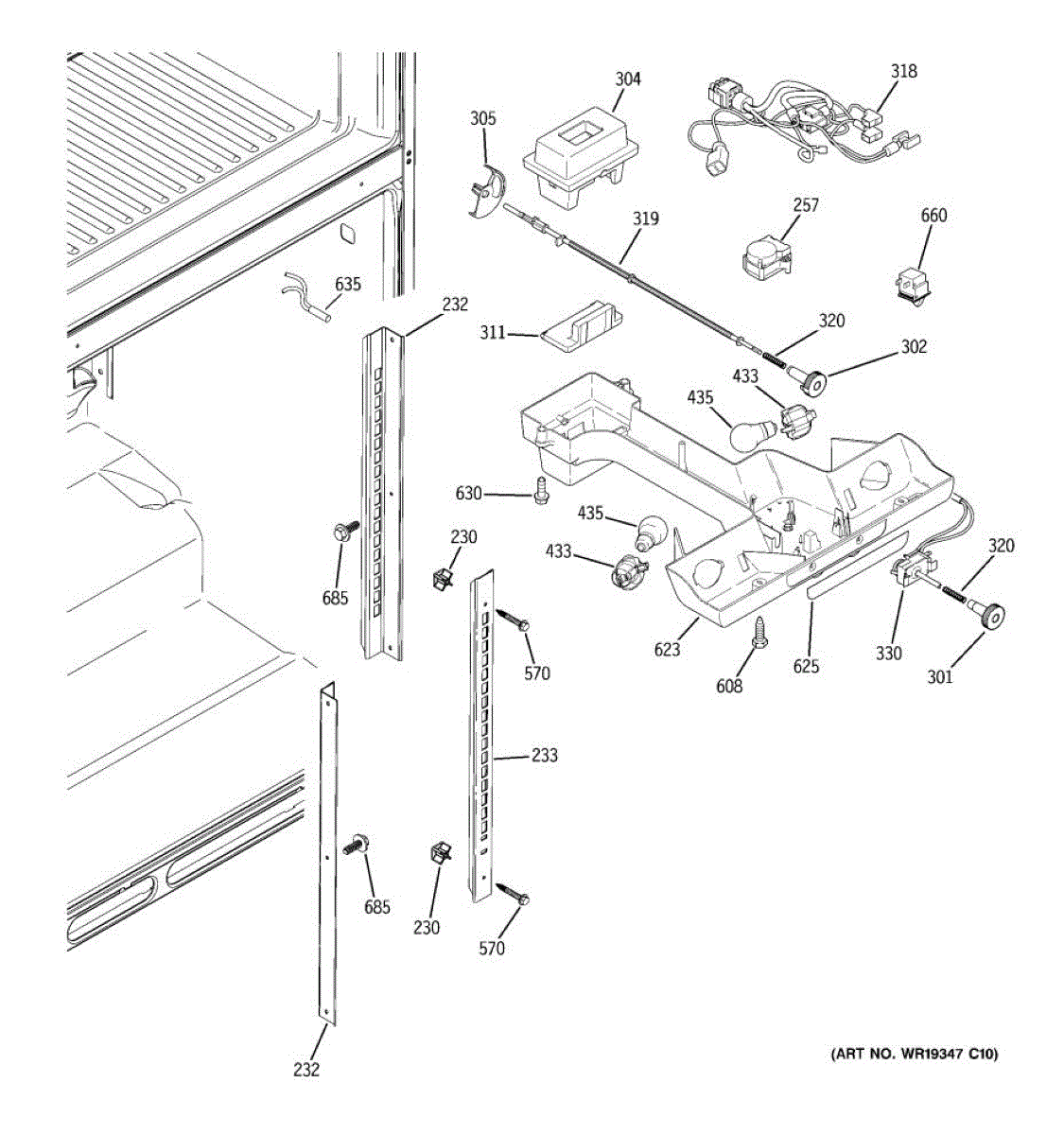

Parts for Ge GTS22ICSARBB: 05 - Fresh Food Section Parts

The defrost timer governs the automatic defrost cycle, periodically switching the refrigerator from cooling to defrost. Replacing a failed timer restores reliable defrosting to limit frost buildup and help maintain steady, consistent temperatures. What it does:

• Advances the system through run and defrost periods at set intervals
• Sends power to the defrost heater during defrost, then returns the unit to cooling
• A failed timer may cause heavy frost on the evaporator, poor cooling, or continuous running
• A timer that does not advance or is stuck can leave the refrigerator in defrost or prevent defrost entirely

• 1 defrost timer

• Disconnect power before servicing
• Access location varies by model
• Photograph wire positions; move wires one at a time to the matching terminals on the new timer
• Transfer any mounting bracket, secure the timer, and restore power to verify operation

This block foam control regulates foam buildup in the appliance chassis, helping manage moisture and detergent residue so the unit runs more reliably and avoids sensor/valve interference. It's a direct-replacement service part. What it does:

• Provides a mounting and control surface to limit foam buildup in the dispenser/chassis area
• Helps prevent foam from reaching sensors, valves, or other components that can cause erratic operation
• Used when repeated foam-related issues, soap oversudsing, or dispenser leakage affect performance
• Matches OEM form and fit to restore the original foam-management function

• One block foam control

• Refer to your service manual for exact removal and replacement steps for safety and proper routing
• Disconnect power before servicing to avoid electrical shock or accidental startup
• Handle carefully to avoid damage to mounting tabs or adjacent components
• Inspect nearby seals, hoses, and dispensers while replacing this part and replace if worn

This shaft damper cushions and stabilizes a refrigerator/freezer door hinge to help the door close smoothly and reduce slamming. A simple replacement can restore consistent, quiet door movement and alignment. What it does:

• Dampens hinge movement so the door closes more gently and evenly
• Reduces hinge noise and sudden door drops or slamming
• Helps maintain proper door alignment and seal for consistent cooling
• Common symptom: door feels loose, slams, or doesn't close smoothly

• Disconnect power (unplug appliance) before beginning any repair
• Use appropriate hand tools; support the door or hinge while removing/installing the damper
• Handle hinge hardware carefully to avoid misalignment; test door operation after installation

This is a push-on spring knob used to operate a range or cooktop control shaft, restoring a secure grip and reliable control feel. Fits common GE control stems to replace a worn, cracked, or missing knob. What it does

• Replaces a damaged or missing control knob so you can safely set burner or oven heat levels.
• Provides a firm, spring-loaded fit to help the knob stay centered and prevent slipping.
• Restores tactile feedback for precise temperature or setting selection.
• Helps eliminate spinning or play caused by worn original knobs.

• One spring knob

• Push the knob straight onto the control shaft until it fully seats; no tools typically required.
• Disconnect power or gas supply and follow appliance safety instructions before servicing nearby components.
• If the control shaft is damaged or the knob does not secure properly, stop and inspect the control assembly; do not force the knob.

This refrigerator temperature control thermostat regulates cooling by sensing the compartment temperature and switching the compressor on and off. Replacing a worn control restores consistent temperatures and proper cooling cycles. What it does

• Senses fresh food compartment temperature and responds to your dial setting
• Opens/closes electrical contacts to start and stop the cooling system
• Maintains target temperature within the control's range
• Common symptoms: refrigerator too warm or too cold, runs constantly, won't start cooling, temperature doesn't change with the knob

• Includes 1 temperature control thermostat

• Disconnect power before servicing; wear appropriate gloves
• Access the control in the fresh food control housing; remove the cover and knob as needed
• Note wire positions; transfer wires and any bracket exactly as found
• Carefully route the sensing tube in the original path without kinking; set to a mid setting and allow 24 hours for temperatures to stabilize

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Bulb (40W) is an OEM component for GE refrigerators. As an essential task lamp, it illuminates the interior of the refrigerator and freezer compartments.

All light bulbs will eventually burn out with consistent use over many years. Vibration during compressor cycles can also potentially disrupt bulb filaments faster.

Symptoms of a burnt out refrigerator light bulb include:

• Dim or no light illuminating inside refrigerator shelves
• Shadows and dark spots making it difficult to find items
• Higher utility costs from leaving the door open to see inside

This bulb is also compatible with refrigerators from brands like Hotpoint, RCA, and some Kenmore models.

This silicon controlled rectifier (SCR) is an electrical control component used to regulate power in appliance circuits, helping control heating and motor circuits for reliable operation. What it does:

• Acts as a semiconductor switch to control current flow in a circuit
• Enables precise switching of power to heating elements or motors
• Can prevent uncontrolled power delivery when functioning correctly
• Faulty SCRs may cause intermittent operation, no power to a circuit, or erratic heating/motor behavior

• Disconnect all power before servicing; risk of shock or damage
• Handle as an electrostatic-sensitive device; avoid touching leads or terminals directly
• Verify mounting orientation and secure all connections per appliance wiring diagrams

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.
