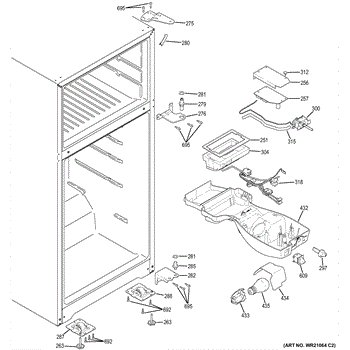

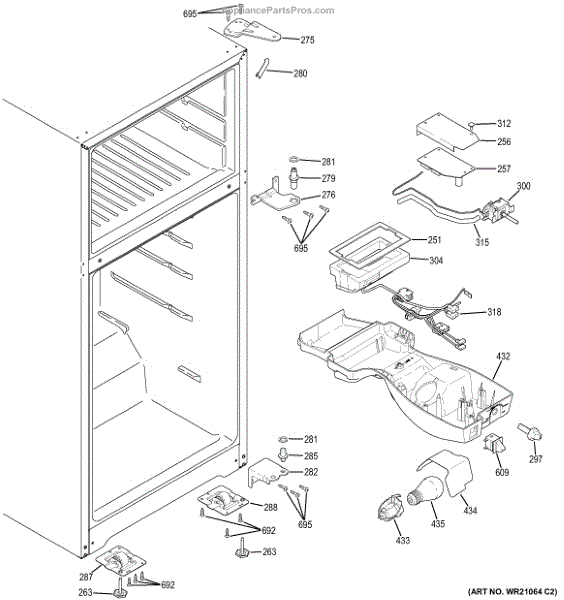

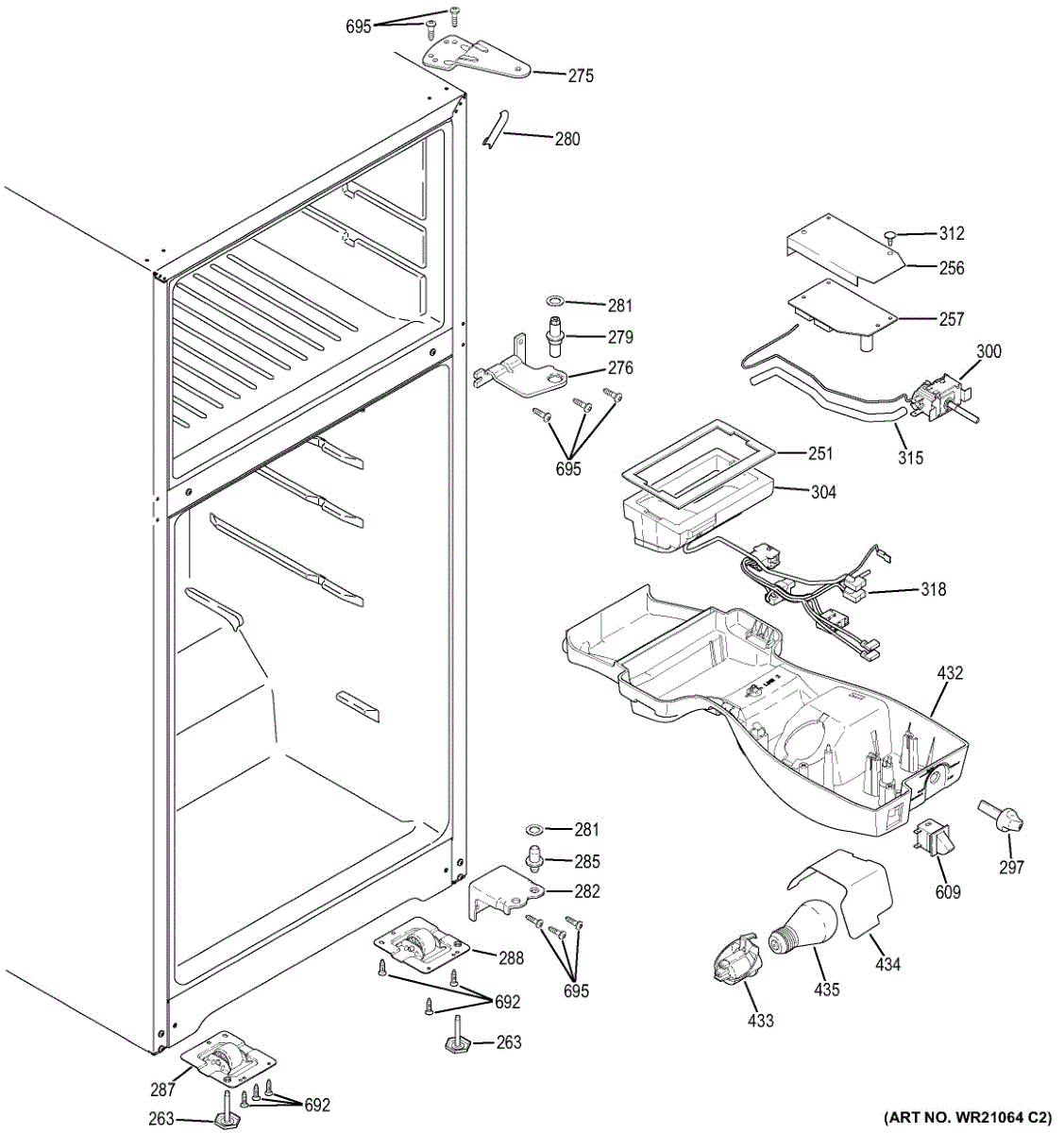

Parts for Ge GTE16DTHBRBB: Fresh Food Section Parts

This gasket supply foam is a replacement foam seal strip used to restore a refrigerator door or cabinet seal cushion for a tighter fit and improved temperature control. It helps reduce drafts and keeps fresh food fresher. What it does:

• Replaces worn or compressed foam that can allow air leaks around the door or compartment
• Restores the gasket's shape and cushioning to improve door sealing performance
• Helps reduce humidity build-up and cycling from frequent compressor starts
• Addresses symptoms such as visible gaps, cold loss, frost buildup, or higher energy use

• Remove old foam and any adhesive residue before installing the new strip
• Use appropriate gasket adhesive and follow manufacturer instructions if required
• Work with the appliance unplugged or power turned off; keep fingers clear of pinch points

The Defrost Control Board is an OEM part for GE refrigerators. This component manages the defrost cycle, ensuring that the refrigerator and freezer compartments remain frost-free and maintain optimal cooling performance.

Causes of a bad defrost control board can include electrical surges, component failure due to wear over time, or damage from moisture exposure. A faulty board can lead to inefficient defrost cycles or prevent the defrost process from occurring altogether.

Symptoms of a bad Defrost Control Board include:

• Frost buildup in the freezer
• Refrigerator or freezer not cooling properly
• Frequent cycling of the defrost heater
• Water leaks inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This top hinge and pin assembly secures and guides a refrigerator door so it opens and closes smoothly. Replacing a worn hinge restores proper door alignment and helps the door seal correctly. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing
• Replaces a bent, worn, or broken hinge that can cause a sagging or misaligned door
• Helps stop rubbing, squeaking, or noisy door movement caused by a damaged hinge
• Restores correct door positioning to improve gasket sealing and cold retention

• Disconnect power and remove all items from the door before starting work.
• Support the door (have a second person if needed) while removing and installing the hinge to prevent injury or damage.
• Use basic hand tools; follow the refrigerator manufacturer's service instructions for proper alignment and torque.

This center hinge supports and pivots the refrigerator door at the middle of the cabinet. Replacing a bent or worn hinge restores smooth door movement and a reliable seal to help maintain proper temperatures.

• Supports door weight and provides the center pivot for opening and closing
• Helps maintain door alignment for even gasket contact
• Wear or damage can cause sagging, rubbing, squeaks, or doors that won't close/seal
• Visible bending, looseness, or a damaged hinge bracket/pin indicates replacement is needed

• Disconnect power and remove items from the door to reduce weight
• Support the door and have a second person assist; note the order of any spacers/washers
• Remove mounting screws, replace the hinge, and reinstall while keeping the door square
• Verify the door swings freely and the gasket seals evenly; adjust alignment as needed

This center hinge pin is the pivot shaft for the door at the middle hinge on select refrigerators. Replacing a worn or bent pin restores proper door alignment and smooth movement to help the door close and seal correctly.

• Serves as the door's pivot on the center hinge
• Maintains correct door height and alignment
• Helps the door open and close smoothly without binding
• Common symptoms: door sagging or rubbing, squeaking, wobbling, or not closing fully/popping open

• Unplug the refrigerator and remove items from the door to reduce weight
• Support the door before removing the center hinge bracket fasteners
• Install the new pin on the center hinge; reuse original spacers/bushings in their original order
• Reassemble, then check door alignment and gasket contact; adjust the hinge as needed per your model

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom hinge supports the refrigerator door at the lower pivot point, keeping it aligned so it opens smoothly and seals correctly. Replace a worn hinge to restore proper closure and help maintain an airtight door seal.

• Provides the lower pivot and support for the door
• Helps maintain alignment for consistent gasket contact and smooth swing
• Wear or damage can cause door sagging, rubbing, or incomplete closure
• Misalignment can lead to air leaks and temperature fluctuations
• Clicking, grinding, or loose movement near the hinge may indicate wear

• Unplug the refrigerator; turn off water to the dispenser/ice maker
• Remove door bins/contents and support the door to prevent strain on wiring or tubing
• Remove the lower hinge cover, note shim/spacer locations, and transfer them to the new hinge
• Reinstall hardware, align the door, and ensure the gasket seals evenly all around

The Bottom Hinge Pin is an OEM replacement part for GE refrigerators. It facilitates the smooth and secure opening and closing of the refrigerator door. Positioned at the base of the door, this hinge pin ensures that the door is firmly attached, allowing it to swing open or closed with ease.

Causes of a bad Bottom Hinge Pin include wear and tear from regular use, corrosion, or mechanical damage that affects its structural integrity.

Symptoms of a bad Bottom Hinge Pin include:

• The refrigerator door not aligning properly
• Difficulty in opening or closing the door
• Unusual noises during the door’s operation
• Visible wear or damage to the hinge pin

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control knob fits onto the refrigerator's control shaft so you can turn and set temperature or other settings. Replace a cracked, stripped, or missing knob to restore smooth operation and reliable adjustments.

• Connects to the control shaft to adjust temperature or feature settings
• Provides a secure, correct fit to prevent slipping or free-spinning
• Restores the ability to set and read the desired level
• Common symptoms: broken/cracked knob, knob won't stay on, spins freely, can't change settings

• Disconnect power to the refrigerator before servicing
• Pull the old knob straight off; gently wiggle if needed—avoid prying on the panel
• Align the flat/D-shaped opening with the control shaft and press on until fully seated
• Turn the control to verify smooth operation and proper alignment with markings

This temperature control thermostat regulates cabinet temperature by cycling the cooling system on and off. Replacing a faulty control restores consistent cooling performance and responsive temperature adjustments, helping protect food and prevent excessive run time.

• Senses internal temperature via a capillary sensor and opens/closes electrical contacts to power the cooling system
• Provides an adjustable setpoint through the temperature dial
• Helps maintain stable, consistent temperatures and proper cooling cycles
• Common failure symptoms: too warm or too cold, runs constantly or won't run, temperature drifts, knob unresponsive or clicking

• Disconnect power before servicing
• Photograph wire positions and dial orientation; transfer wires one at a time
• Route the capillary sensor in the original path; avoid kinks or sharp bends
• Reassemble, restore power, and allow temperatures to stabilize before final adjustment

This foam gasket seals and cushions the supply nozzle to help prevent leaks and reduce vibration where the nozzle meets the appliance. It's a small, soft replacement part used to restore a proper seal and fit. What it does:

• Seals the nozzle connection to help stop drips or slow leaks around the nozzle area
• Cushions and stabilizes the nozzle to reduce rattling or vibration noise
• Restores correct spacing and alignment for reliable fluid flow
• Used when foam is compressed, split, or missing and no longer provides a seal

• One nozzle supply foam gasket

• Disconnect power and shut off water supply before replacing
• Remove surrounding trim or components as needed to access the nozzle area
• Clean mating surfaces and seat the foam squarely for a proper seal
• No special tools required; handle gently to avoid tearing the foam

A small canoe-shaped mounting clip used to secure tubes, wiring or small components inside the appliance, keeping lines routed and preventing rubbing or vibration for quieter, safer operation. What it does

• Secures tubing, wiring harnesses or small components to cabinet walls or frames.
• Keeps lines properly routed to prevent rubbing, chafing or pinching.
• Reduces vibration and rattling from loose parts.
• Helps maintain proper clearances that can prevent intermittent electrical contact or line wear.

• Disconnect power and shut off water before servicing.
• Verify exact clip location and orientation before removing the old clip.
• Snap into the original mounting hole or slot; do not force or bend mounting surfaces.
• Replace any damaged mounting posts or surrounding hardware to ensure a secure fit.

This vinyl sleeve fits over a rod, tube, or wire in the refrigerator to protect and cushion contact points. It reduces wear and vibration and helps keep components aligned for smooth, reliable operation.

• Provides a protective barrier at contact points to prevent abrasion or marring
• Helps maintain spacing and alignment for a snug, proper fit
• Cushions to damp vibration and reduce rattles or squeaks
• Replace if the sleeve is missing, cracked, hardened, or if components feel loose or make noise

• Disconnect power; turn off the water supply if working near water lines
• Note the sleeve's original location and orientation; take a photo for reference
• Remove the old sleeve and any debris; slide the new sleeve into the same position
• Check clearance and resecure related parts before restoring power

This control housing is the outer console housing that secures and protects the appliance's control components, providing a clean interface and helping keep electronics and switches properly positioned. It restores the exterior fit and finish where the original housing is cracked, broken, or missing. What it does

• Holds and shields control switches, displays, and wiring from damage and dust
• Keeps control components aligned for reliable button and knob operation
• Prevents loose panels or rattling at the control area
• Helps restore original appearance when the control console is cracked or worn

• One control housing

• Always disconnect power before starting any repair to avoid electric shock
• Minor trim or bezel removal may be required; keep screws and fasteners for reassembly
• Handle plastic clips carefully to avoid breakage during installation
• If controls or wiring are removed, note their positions or take a photo for correct reassembly

The Light Socket is an OEM part for GE refrigerators. It is responsible for holding the refrigerator's light bulb and ensuring it receives power to illuminate the interior when the door is opened.

You should replace the light socket if it becomes faulty. Causes of a bad light socket can include wear and tear from regular use, electrical issues such as short circuits or power surges, and corrosion from moisture exposure.

Symptoms of a bad light socket include:

• The refrigerator light not turning on when the door is opened
• Flickering or intermittent light operation
• Visible damage or corrosion on the socket
• The light bulb not fitting securely or falling out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Light Switch is an OEM part for GE refrigerators. It controls the refrigerator's interior light, turning it on when the door is opened and off when the door is closed. This ensures energy efficiency and convenience, illuminating the refrigerator's interior for easy visibility while searching for items.

Causes of a bad light switch include mechanical wear from constant use, damage from an impact, or electrical issues.

Symptoms of a bad Light Switch include:

• The interior light does not turn on when the refrigerator door is opened
• The light stays on when the door is closed, potentially leading to overheating or melted plastic components in the light housing area
• Intermittent functioning of the light, indicating a loose or damaged switch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This silicon controlled rectifier (SCR) is an electrical switching device used on appliances to regulate power to heating elements and motors. It restores reliable power flow for consistent operation when the original SCR fails. What it does:

• Controls and switches current to heating elements or motors for temperature and power regulation
• Prevents uncontrolled power delivery that can cause erratic heating or cycling
• Common symptom: appliance won't heat or heats inconsistently
• Common symptom: appliance displays erratic temperature control or intermittent operation

• One silicon controlled rectifier (SCR) unit

• Disconnect all power at the breaker before accessing or replacing the SCR
• Handle the part carefully; avoid contact with conductive terminals and observe ESD precautions
• Use the original mounting hardware and torque to OEM specifications where applicable

This genuine fastener secures appliance components such as panels and brackets. Replacing a missing or stripped screw restores proper fit and helps reduce vibration or rattling. Features 12-24 threads and an approximate 0.785-inch length. What it does:

• Fastens panels, brackets, covers, and other hardware points in the appliance
• Helps maintain proper alignment and a tight fit of components
• Replaces damaged, stripped, or missing hardware
• Common symptoms include loose or rattling parts and hardware that won't tighten

• One screw

• Disconnect power before servicing; shut off water supply if working near water components
• Start the screw by hand to avoid cross-threading; replace one-for-one in the original location
• Use the correct driver bit for the head style; tighten snugly without overtightening into plastic or thin metal
