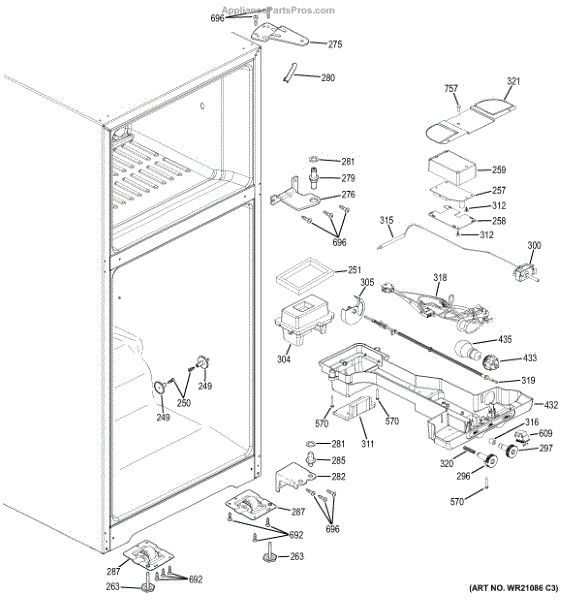

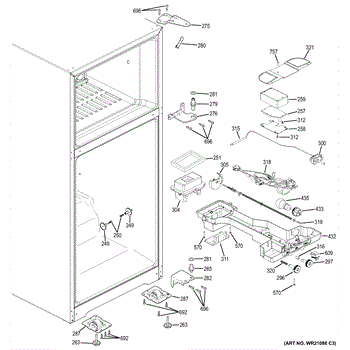

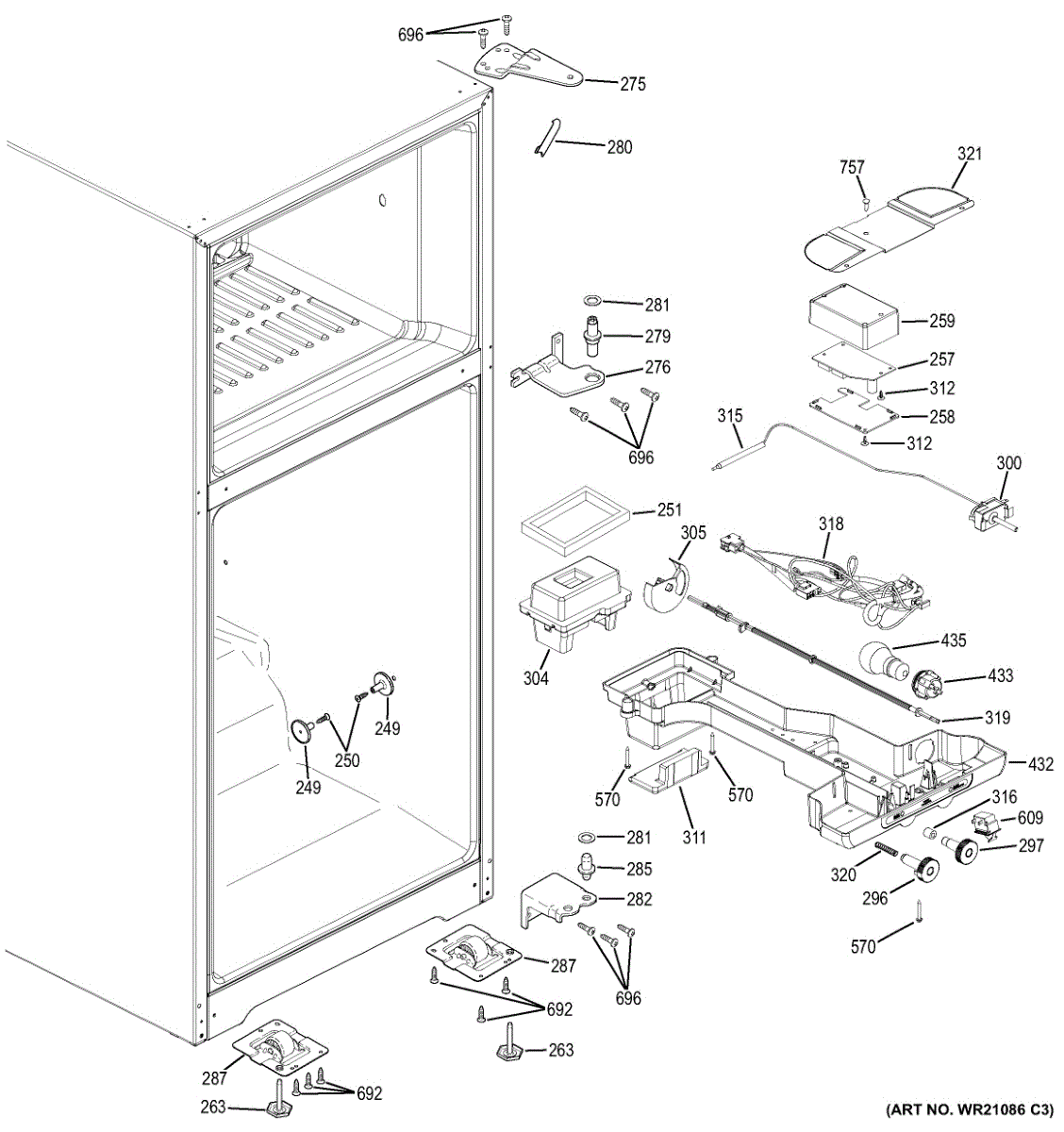

Parts for Ge GTE18ETHERBB: Fresh Food Section Parts

This replacement screw fastens appliance panels, brackets, and trim. The 8-18 thread with 1-3/4-inch length provides reliable bite in sheet metal or plastic, restoring a secure fit when an original fastener is missing or damaged.

• Secures panels, brackets, and trim to the cabinet or frame
• Replaces lost, stripped, or corroded fasteners
• Helps address loose or rattling panels, minor gaps, or misalignment
• Appropriate for sheet-metal applications that require ~1-3/4-inch reach

• Disconnect power before servicing; wear cut-resistant gloves
• Support the panel or part being fastened and use the correct driver for the screw head
• Start threads by hand to avoid cross-threading; do not overtighten into plastic or thin metal
• Repair or replace the anchor before installing

The Defrost Control Board is an OEM part for GE refrigerators. This component manages the defrost cycle, ensuring that the refrigerator and freezer compartments remain frost-free and maintain optimal cooling performance.

Causes of a bad defrost control board can include electrical surges, component failure due to wear over time, or damage from moisture exposure. A faulty board can lead to inefficient defrost cycles or prevent the defrost process from occurring altogether.

Symptoms of a bad Defrost Control Board include:

• Frost buildup in the freezer
• Refrigerator or freezer not cooling properly
• Frequent cycling of the defrost heater
• Water leaks inside the refrigerator

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This EDC top enclosure is the top housing piece that covers and protects the oven/range electronic control (EDC) and related wiring. It keeps the control area secure and helps prevent spills or debris from reaching the electronics. What it does

• Covers and protects the electronic control assembly and wiring from spills, grease, and physical damage
• Provides the mounting surface and alignment for control components and user interface parts
• Helps maintain a neat, finished appearance for the control panel area
• Common symptom: cracked, warped, missing, or damaged housing that exposes controls or allows moisture in

• One EDC top enclosure housing

• Always disconnect power to the appliance before starting any repair
• Handle control electronics carefully; avoid touching circuit board components or connectors
• Use basic hand tools to remove the existing housing; note screw locations for reassembly
• If screws or clips are damaged or missing, replace them to ensure a secure fit

This leveling leg supports and stabilizes the refrigerator cabinet. Adjusting it keeps the unit level so doors align and seal correctly, helping reduce vibration and noise for smoother, more reliable performance.

• Threads into the base to support and level the appliance
• Allows height adjustment for proper door alignment and gasket contact
• Helps reduce rocking, vibration, and rattling noises
• Resolve issues like doors not closing fully, uneven gaps, or a wobbly cabinet

• Disconnect power and move the appliance carefully to access the leg
• Use a helper and protect flooring; tip the unit slightly and support it securely
• Unthread the old leg; hand-thread the new leg, then adjust as needed with a wrench
• Level front-to-back and side-to-side; avoid cross-threading or overtightening

This top hinge and pin assembly secures and guides a refrigerator door so it opens and closes smoothly. Replacing a worn hinge restores proper door alignment and helps the door seal correctly. What it does

• Supports the top of the refrigerator door and provides the pivot point for opening and closing
• Replaces a bent, worn, or broken hinge that can cause a sagging or misaligned door
• Helps stop rubbing, squeaking, or noisy door movement caused by a damaged hinge
• Restores correct door positioning to improve gasket sealing and cold retention

• Disconnect power and remove all items from the door before starting work.
• Support the door (have a second person if needed) while removing and installing the hinge to prevent injury or damage.
• Use basic hand tools; follow the refrigerator manufacturer's service instructions for proper alignment and torque.

This center hinge supports and pivots the refrigerator door at the middle of the cabinet. Replacing a bent or worn hinge restores smooth door movement and a reliable seal to help maintain proper temperatures.

• Supports door weight and provides the center pivot for opening and closing
• Helps maintain door alignment for even gasket contact
• Wear or damage can cause sagging, rubbing, squeaks, or doors that won't close/seal
• Visible bending, looseness, or a damaged hinge bracket/pin indicates replacement is needed

• Disconnect power and remove items from the door to reduce weight
• Support the door and have a second person assist; note the order of any spacers/washers
• Remove mounting screws, replace the hinge, and reinstall while keeping the door square
• Verify the door swings freely and the gasket seals evenly; adjust alignment as needed

This center hinge pin is the pivot shaft for the door at the middle hinge on select refrigerators. Replacing a worn or bent pin restores proper door alignment and smooth movement to help the door close and seal correctly.

• Serves as the door's pivot on the center hinge
• Maintains correct door height and alignment
• Helps the door open and close smoothly without binding
• Common symptoms: door sagging or rubbing, squeaking, wobbling, or not closing fully/popping open

• Unplug the refrigerator and remove items from the door to reduce weight
• Support the door before removing the center hinge bracket fasteners
• Install the new pin on the center hinge; reuse original spacers/bushings in their original order
• Reassemble, then check door alignment and gasket contact; adjust the hinge as needed per your model

The Hinge Washer is an OEM replacement part for GE refrigerators. It is located on the hinge between the refrigerator door and cabinet. The refrigerator door hinge washer works to evenly distribute weight and reduce stress and friction, enabling smooth and durable door operation.

Causes of a bad hinge washer are generally normal wear and tear. However, damage may also occur from unusually heavy loads being placed on the door, or accidents that impact the door and hinge assembly.

Symptoms of a bad refrigerator door hinge washer include:

• Increased resistance when opening or closing the door
• Excessive noise from the hinge area
• Visible wear marks on the hinge
• Over time and with heavy use, the washer can break down, resulting in improper balance and alignment of the door.

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bottom hinge supports the refrigerator door at the lower pivot point, keeping it aligned so it opens smoothly and seals correctly. Replace a worn hinge to restore proper closure and help maintain an airtight door seal.

• Provides the lower pivot and support for the door
• Helps maintain alignment for consistent gasket contact and smooth swing
• Wear or damage can cause door sagging, rubbing, or incomplete closure
• Misalignment can lead to air leaks and temperature fluctuations
• Clicking, grinding, or loose movement near the hinge may indicate wear

• Unplug the refrigerator; turn off water to the dispenser/ice maker
• Remove door bins/contents and support the door to prevent strain on wiring or tubing
• Remove the lower hinge cover, note shim/spacer locations, and transfer them to the new hinge
• Reinstall hardware, align the door, and ensure the gasket seals evenly all around

The Bottom Hinge Pin is an OEM replacement part for GE refrigerators. It facilitates the smooth and secure opening and closing of the refrigerator door. Positioned at the base of the door, this hinge pin ensures that the door is firmly attached, allowing it to swing open or closed with ease.

Causes of a bad Bottom Hinge Pin include wear and tear from regular use, corrosion, or mechanical damage that affects its structural integrity.

Symptoms of a bad Bottom Hinge Pin include:

• The refrigerator door not aligning properly
• Difficulty in opening or closing the door
• Unusual noises during the door’s operation
• Visible wear or damage to the hinge pin

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This thumb control knob replaces a worn or broken temperature control knob on compatible refrigerators, restoring a secure grip for easy temperature adjustments. It gives a direct, user-friendly way to change settings without slipping or excessive force. What it does

• Fits onto the refrigerator temperature/thermostat control shaft to allow manual adjustment
• Provides a better grip when the original knob is cracked, stripped, or missing
• Helps resolve symptoms like a knob that spins without turning the control or is difficult to turn
• Restores precise, tactile control for setting the fridge/freezer temperature

• One thumb control knob

• Simple push-on installation; align knob with the control shaft and press firmly until seated
• Power to the appliance does not usually need to be disconnected for knob replacement, but follow appliance manual guidance
• Handle parts carefully to avoid breaking plastic components

Restore accurate cooling with this refrigerator temperature control thermostat. The cold control senses compartment temperature and opens or closes the circuit to cycle the cooling system, helping maintain your selected setting when the original control becomes unreliable.

• Monitors refrigerator air temperature via a sensing bulb
• Opens/closes electrical contacts to cycle the cooling system
• Maintains the temperature you select with the control knob
• Common symptoms of a failing control: temperatures too warm or too cold, refrigerator runs constantly or won't start, no response to knob adjustments

• Disconnect power to the refrigerator before servicing
• Access the control housing and note wire locations and the exact routing/placement of the sensing bulb
• Transfer any mounting hardware and the control knob from the old part; install the new thermostat
• Route and secure the sensing bulb exactly as original—do not kink the capillary; restore power, set to a mid setting, and allow temperatures to stabilize before fine-tuning

This nozzle control foam is a soft sealing pad that fits around the refrigerator dispenser nozzle to help cushion the nozzle and maintain a tight seal at the dispenser opening. It keeps the dispenser area neater and helps reduce splashes and drafts. What it does:

• Seals the gap around the dispenser nozzle to limit water drips and air infiltration
• Cushions and stabilizes the nozzle to reduce movement and wear
• Helps keep the dispenser opening cleaner by blocking debris entry
• Can reduce minor splatter and improve dispenser appearance

• Disconnect power and shut off the water supply before servicing the dispenser area
• Remove the dispenser bezel or outer trim to access the nozzle per your model's service instructions
• Press the foam into the nozzle cavity until it seats evenly; do not stretch or tear the foam
• Use only manufacturer-approved fasteners or clips; avoid adhesives unless your service manual specifies

This wheel damper is the drawer glide component that helps control smooth, steady opening and closing of refrigerator drawers and prevents sudden drops or jams. It replaces a worn or broken damper to restore stable drawer movement. What it does:

• Dampens and slows drawer motion to reduce slamming and abrupt drops
• Supports the drawer wheel/track for smoother sliding action
• Helps correct sticking, uneven travel, or noisy drawer operation
• Restores proper engagement between drawer and cabinet glide

• One wheel damper

• Unplug the appliance or shut off power before beginning any repair
• Remove the drawer to access the damper; reinstall carefully to align with the wheel/track
• Use basic hand tools; avoid forcing components to prevent damage

A small canoe-shaped mounting clip used to secure tubes, wiring or small components inside the appliance, keeping lines routed and preventing rubbing or vibration for quieter, safer operation. What it does

• Secures tubing, wiring harnesses or small components to cabinet walls or frames.
• Keeps lines properly routed to prevent rubbing, chafing or pinching.
• Reduces vibration and rattling from loose parts.
• Helps maintain proper clearances that can prevent intermittent electrical contact or line wear.

• Disconnect power and shut off water before servicing.
• Verify exact clip location and orientation before removing the old clip.
• Snap into the original mounting hole or slot; do not force or bend mounting surfaces.
• Replace any damaged mounting posts or surrounding hardware to ensure a secure fit.

This control module wiring harness connects the refrigerator's main control board to internal components, restoring reliable signal and power paths so controls, displays and related functions can operate correctly. What it does:

• Provides the factory wiring interface between the main control module and components such as sensors, lights, and user controls
• Restores proper electrical connections when a damaged or broken harness interrupts signals
• Commonly linked to symptoms like unresponsive control panel/display, intermittent operation, or nonworking lights/dispenser
• Helps eliminate intermittent faults caused by loose, corroded, or damaged connector wires

• Always disconnect power to the appliance before starting work to avoid shock or damage
• Inspect connectors and wiring routing; replace if frayed, corroded, or pinched
• Match connector shapes and pin counts exactly; do not force connectors—align and seat fully
• Observe basic ESD precautions and handle boards by edges

This shaft damper cushions and stabilizes a refrigerator/freezer door hinge to help the door close smoothly and reduce slamming. A simple replacement can restore consistent, quiet door movement and alignment. What it does:

• Dampens hinge movement so the door closes more gently and evenly
• Reduces hinge noise and sudden door drops or slamming
• Helps maintain proper door alignment and seal for consistent cooling
• Common symptom: door feels loose, slams, or doesn't close smoothly

• Disconnect power (unplug appliance) before beginning any repair
• Use appropriate hand tools; support the door or hinge while removing/installing the damper
• Handle hinge hardware carefully to avoid misalignment; test door operation after installation

This is a push-on spring knob used to operate a range or cooktop control shaft, restoring a secure grip and reliable control feel. Fits common GE control stems to replace a worn, cracked, or missing knob. What it does

• Replaces a damaged or missing control knob so you can safely set burner or oven heat levels.
• Provides a firm, spring-loaded fit to help the knob stay centered and prevent slipping.
• Restores tactile feedback for precise temperature or setting selection.
• Helps eliminate spinning or play caused by worn original knobs.

• One spring knob

• Push the knob straight onto the control shaft until it fully seats; no tools typically required.
• Disconnect power or gas supply and follow appliance safety instructions before servicing nearby components.
• If the control shaft is damaged or the knob does not secure properly, stop and inspect the control assembly; do not force the knob.

The Light Switch is an OEM replacement part for GE refrigerators. It controls the interior light, turning it on when the refrigerator door is opened and off when the door is closed. This ensures proper illumination for visibility when accessing the refrigerator's contents.

A malfunctioning light switch can result from wear and tear, electrical issues, or damage caused by repeated use. Over time, the internal mechanism may fail, or the housing can crack, leading to improper operation.

Symptoms of a bad light switch include:

• Interior light not turning on when the door is opened
• Light staying on even when the door is closed
• Flickering or inconsistent light operation
• Difficulty pressing or releasing the switch

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a #8-32 hex-washer-head screw used to secure panels and components in compatible appliances. It provides a reliable fastener option for repairs where the original 8-32 screw has become stripped or lost. What it does:

• Fastens panels, brackets, and small components using a #8-32 threaded connection
• Hex washer head offers a wider bearing surface to resist pull-through
• Works where a short 1/2 in. length screw is required for proper engagement
• Commonly used in appliance assemblies and internal mounting applications

• Use the correct #2 Phillips or appropriate hex driver/socket to avoid stripping the head
• Do not overtighten; snug to secure parts without deforming components
• Turn off power and follow appliance safety guidelines before accessing internal areas
• Replace with an identical size and thread type if original screw shows evidence of thread damage.

This genuine fastener secures appliance components such as panels and brackets. Replacing a missing or stripped screw restores proper fit and helps reduce vibration or rattling. Features 12-24 threads and an approximate 0.785-inch length. What it does:

• Fastens panels, brackets, covers, and other hardware points in the appliance
• Helps maintain proper alignment and a tight fit of components
• Replaces damaged, stripped, or missing hardware
• Common symptoms include loose or rattling parts and hardware that won't tighten

• One screw

• Disconnect power before servicing; shut off water supply if working near water components
• Start the screw by hand to avoid cross-threading; replace one-for-one in the original location
• Use the correct driver bit for the head style; tighten snugly without overtightening into plastic or thin metal
