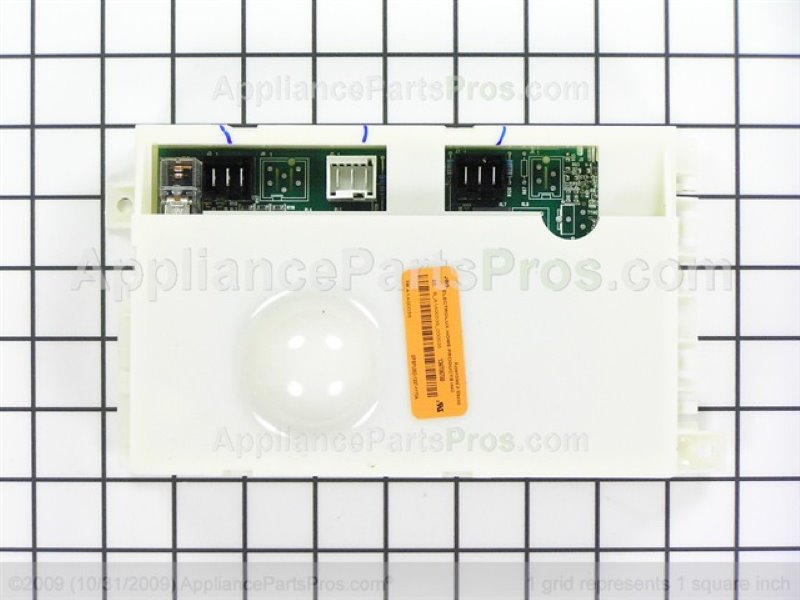

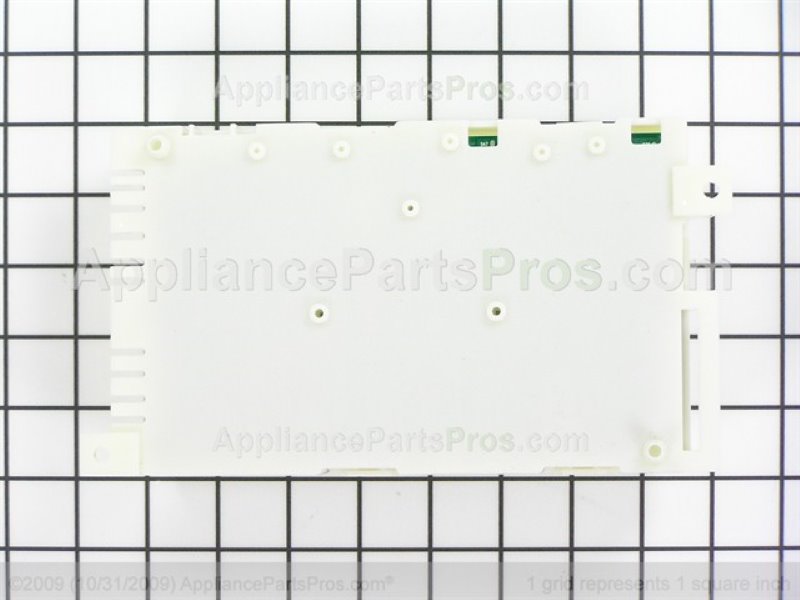

Frigidaire 809160308 Control Board (Electronic) OEM Part

Product Details

Genuine Frigidaire part. Frigidaire brands include Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, Kenmore, and others. See all items in Dryer Control Board.
Electrolux also makes various appliance models for Sears / Kenmore

Cross Reference Information

Part Number 809160308 replaces AP5948945, 134706700, 3453239, 7134706700, PS9865101.

Description

This electronic control board is the machine's brain, directing power and timing for each selected cycle. Replacing it restores responsive controls and reliable operation.

• Directs power to motors, valves, heaters, pumps, and fans per cycle selection
• Interprets inputs from sensors and switches to adjust operation
• Stores and executes timing/logic and manages error routines
• Failure symptoms include unresponsive controls/display, won't start, stops mid-cycle, cycle won't advance, intermittent operation, or error codes

What's included: 1 electronic control board. Install notes:

• Disconnect power at the breaker before servicing; verify zero voltage.
• Use ESD protection and handle the board by the edges only.
• Photograph/label wiring and transfer connectors one by one to the new board.
• Mount securely in the existing bracket/enclosure, restore power, and run a test; for any model-specific resets.
