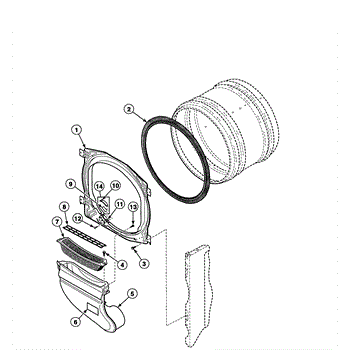

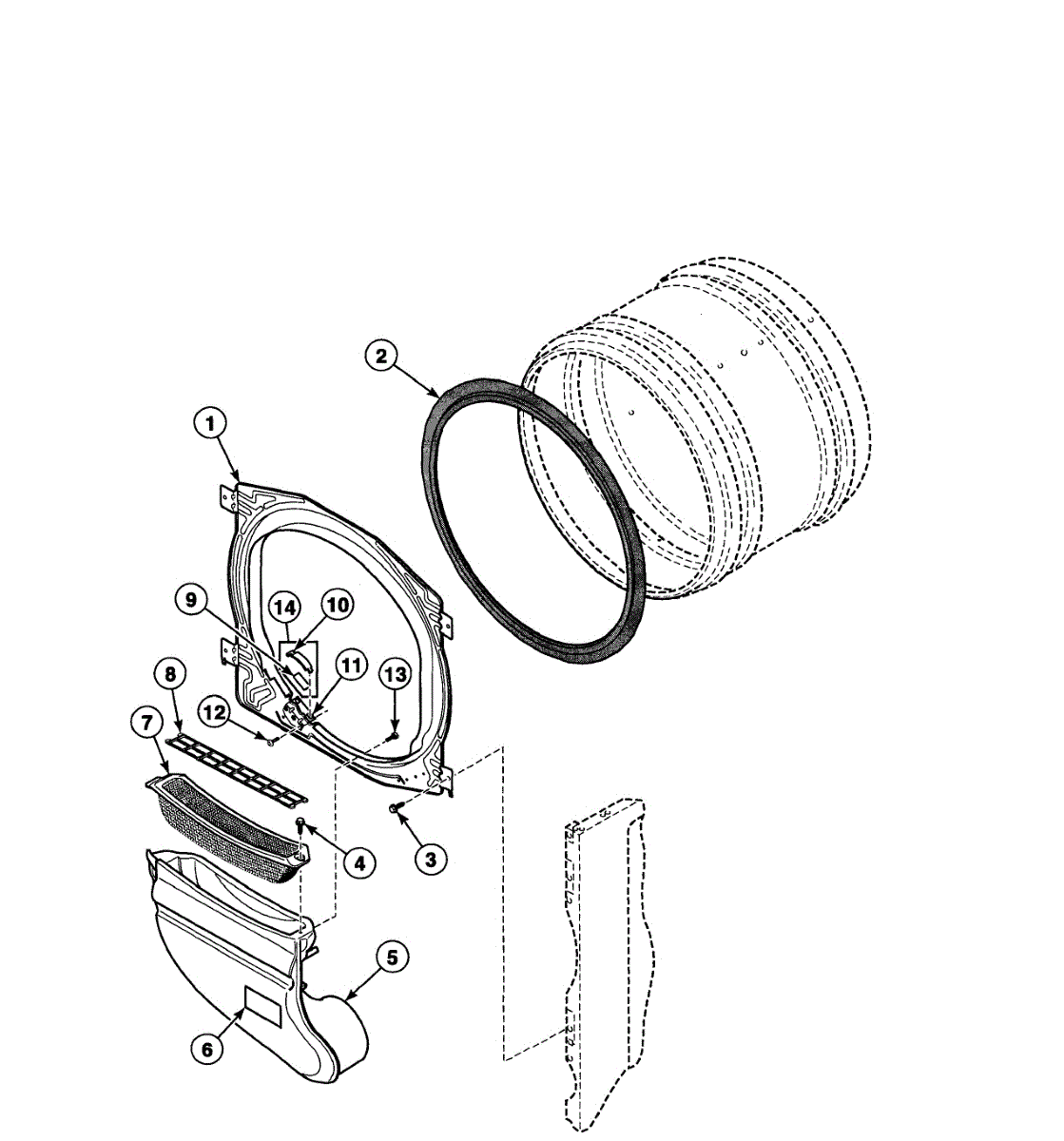

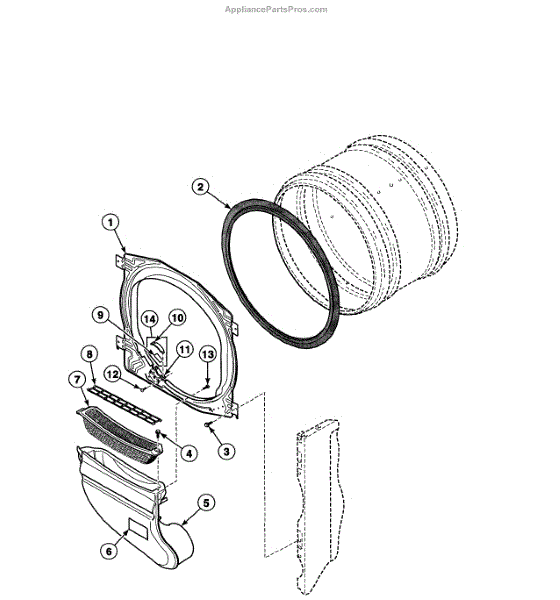

Parts for Speed Queen FEU17AWF1702: Front Bulkhead Parts

This front bulkhead assembly forms the dryer's front drum support and air seal. Replacing a worn or damaged bulkhead restores smooth drum rotation, reduces noise, and helps maintain proper airflow for consistent drying performance.

• Supports and aligns the drum at the front to prevent rubbing and scraping
• Helps seal the lint/air path so heat stays in the drum and exhaust flows correctly
• Air leaks at the front bulkhead can contribute to long dry times or lint in the cabinet

• Disconnect power and gas supply and allow the dryer to cool before servicing
• Remove the front panel/door assembly; support the drum before detaching the old bulkhead
• Transfer any model-specific components from the original bulkhead and ensure seals/glides are correctly positioned
• After installation, rotate the drum by hand to verify clearances, then reassemble and test

A clear silicone adhesive/sealant used to bond and seal appliance trim and components, helping restore watertight and stable assemblies. Supplies a durable, flexible hold for small repairs where factory adhesive is specified. What it does:

• Bonds trim, panels, and small plastic or metal parts to prevent movement and leaks
• Seals gaps to reduce water intrusion around housings and door areas
• Provides a flexible, durable hold that resists vibration and temperature changes
• Useful for reattaching trim, tabs, and molded parts when original adhesive has failed

• One (1) clear 3 oz tube of DOW 737 adhesive

• Use in a well-ventilated area; wear gloves and eye protection to avoid skin/eye contact
• Surface must be clean, dry, and free of oils or old adhesive for best adhesion
• Apply as a thin, even bead; allow recommended cure time before reassembling or using appliance
• Follow any OEM repair instructions and local disposal guidance for adhesive containers

This seal kit restores a proper water-tight barrier in the washer's drive area to prevent leaks and protect bearings and motor components on 1992-and-newer units.

• Seals the drive shaft/tub interface to stop water migration
• Helps prevent bearing and motor damage from moisture
• Common leak symptoms: water under the washer, rust streaks at center post, noisy spin from moisture intrusion
• May also address oil/water contamination around the transmission area

• Disconnect power and water; move the washer to a stable, level work area
• Removal of agitator, inner tub, and drive components is typically required
• Inspect shaft and mating surfaces; clean and lightly lubricate as specified by service literature
• Use proper drivers/press tools; do not hammer seals into place

This Rulon 488 cylinder glide supports the front edge of the dryer drum at the bulkhead. Replacing a worn glide restores smooth, quiet rotation and helps eliminate scraping or squealing from the front of the drum.

• Provides a durable, low-friction surface between the drum rim and front bulkhead
• Supports the drum to minimize drag and wear for quieter operation
• Worn glide may cause scraping/squealing noises or a dragging drum
• Visible flat spots, grooves, or excessive wear on the glide indicate replacement

• Disconnect power and shut off gas supply before servicing
• Access the front bulkhead and support the drum to relieve load on the glide
• Remove the worn glide and clean the mounting area; install the new glide in the same position/orientation per factory fasteners
• Rotate the drum by hand to inspect felt seals and any additional glides and replace if worn

The Glide Kit is an OEM replacement part for Speed Queen dryers. Designed for models manufactured in 1992 and later, this kit ensures the drum rotates smoothly during operation. It includes glide components that reduce friction between the drum and the dryer frame, allowing efficient and quiet performance.

Symptoms of a bad Glide Kit include:

• Squeaking or grinding noises during dryer operation
• Visible wear or damage to the glides upon inspection
• The drum becoming difficult to turn or feeling misaligned

Causes of a failing Glide Kit can include natural wear and tear over extended use, overloading the dryer, or improper alignment of the drum, which increases stress on the glides.

This OEM Speed Queen part is also compatible with Alliance laundry equipment.
