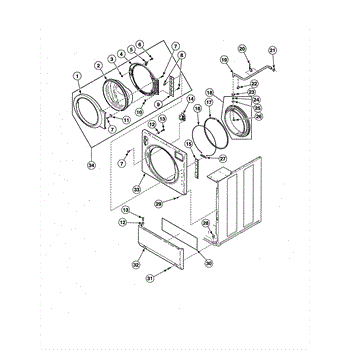

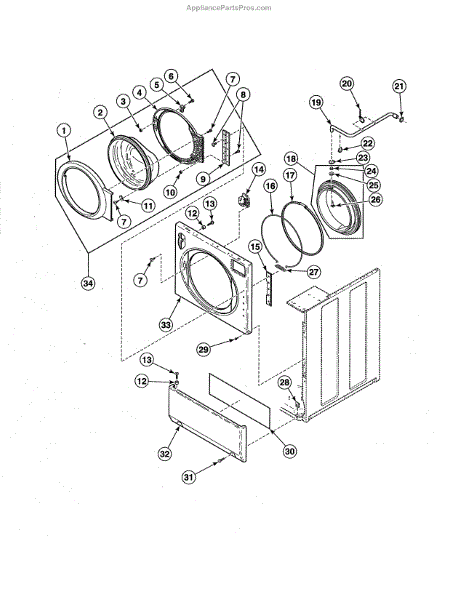

Parts for Alliance CTSA9AWN: Front Panel / Door / Door Seal Parts

This outer bezel assembly with hinge replaces the front trim and hinge assembly that surrounds and supports the appliance door/lid, restoring proper fit and appearance. Durable replacement that helps stabilize door movement and alignment. What it does:

• Replaces damaged or warped outer bezel to restore a correct door/lid fit and finish
• Provides the hinge mounting so the door opens and closes securely
• Helps stop rubbing, binding, or visible gaps caused by a broken bezel or hinge
• Restores the factory appearance of the appliance's front trim

• Disconnect power and follow all safety precautions before starting repair
• High-level removal/installation requires opening the cabinet or front panel; keep fasteners and trim organized
• Inspect surrounding trim, latch, and hinge mounting points for damage and reuse original hardware unless replacement hardware is specified

This replacement porcelain touch-up paint restores small chips, scratches and worn spots on enamel-coated appliance surfaces to help improve appearance and slow surface corrosion. Easy to apply for spot repairs. What it does:

• Covers small chips, scratches and scuffs on porcelain/enamel surfaces
• Helps protect exposed metal from moisture that can lead to surface rust
• Matches factory finish color on compatible porcelain-coated panels (spot repairs only)
• Useful for finishing edges around dings and improving visual appearance

• One bottle of porcelain touch-up paint

• Clean and dry the repair area thoroughly; remove loose paint and rust before applying
• Test paint in an inconspicuous spot to confirm color match and adhesion
• Apply sparingly with a fine brush or applicator; allow recommended drying time between coats
• Keep away from open flame; store and dispose of per local regulations; keep out of reach of children

The Inner Door Bezel is an OEM replacement part for Speed Queen washing machines. It is a white plastic panel that mounts to the inside of the washer door providing structure and rigidity. The bezel acts as a backbone for attaching other door components like the door gasket, switches, insulation, and more.

Symptoms of a bad inner door bezel include:

• loose door components
• missing or damaged mounting tabs
• cracks along seams or corners
• uneven gaps around the door opening.

Causes of failure can be wear and tear from opening and closing the door thousands of times, exposure to cleaning chemicals or solvents over time, or physical damage from accidents.

This hex head machine screw fastens appliance panels and components, restoring secure assembly and stopping movement or vibration. It's a simple replacement when original screws are lost or worn. What it does:

• Secures panels, brackets, and internal components to prevent rattling or misalignment
• Replaces missing or damaged screw heads that keep parts firmly attached
• Restores proper fit where stripped or corroded fasteners allow play
• Helps maintain safe operation by keeping covers and guards in place

• Disconnect power and water before working on the appliance
• Use the matching hex driver or socket to avoid rounding the head
• Replace like-for-like; tighten until snug but avoid over-torquing
• If threads are damaged, inspect mating part and replace as needed

This is a stainless-steel #8 x 1/2" Torx screw used to secure panels and components on Speed Queen appliances. Stainless construction resists corrosion for reliable fastened connections in laundry equipment. What it does

• Secures console, trim, panels, and internal brackets where a #8 x 1/2" Torx fastener is specified.
• Replaces missing or damaged screws that can cause loose panels, rattling, or misaligned components.
• Stainless-steel construction helps prevent rust in wet or humid laundry environments.
• Small, common fastener for service and reassembly after repairs.

• One stainless-steel #8 x 1/2" Torx screw.

• Use the correct Torx driver size to avoid stripping the screw head.
• Tighten finger-tight then snug; avoid over-torquing which can strip threads or crack plastic.
• Disconnect power (and water if applicable) before working on appliance internals to reduce shock or injury risk.

A durable door hinge that secures the appliance door to the cabinet and provides a smooth pivot for opening and closing. Replacing a worn hinge restores alignment to reduce sagging, rubbing, and poor latching. What it does:

• Provides a secure pivot point so the door opens and closes smoothly.
• Restores correct door alignment to prevent sagging, scraping, or uneven gaps.
• Helps the door latch and seal properly for safe, reliable operation.
• Reduces noise and binding caused by worn or bent hinge hardware.

• Disconnect power (and water supply for washers) before starting any repair.
• Support or remove the door to prevent dropping; use appropriate hand tools.
• Tighten mounting fasteners to firm engagement, then check door swing and latch operation.

A replacement self-tapping pan-head screw sized 10 x 5/8 in for securing appliance panels, trim and small assemblies. Restores proper fastening where original screws are missing, stripped or corroded. What it does

• Cuts its own mating thread in sheet metal or plastic for secure fastening
• Commonly used to attach control panels, trim pieces and small brackets
• Helps stop rattles, loose panels and misaligned trim when original fasteners fail
• Corrosion-resistant finish resists rust in typical laundry appliance environments

• Use the correctly sized screwdriver or driver bit to avoid stripping the head
• Start in a pilot hole if material is brittle or if reinstalling into worn threads
• Do not over-torque; stop when the head seats flush to avoid cracking or stripping
• Disconnect power and follow appliance-specific safety procedures before working

This door latch assembly secures the appliance door and contains the switch that signals the control when the door is closed, helping the machine start and run safely. It replaces a worn or failed latch to restore proper door closure and switch operation. What it does

• Secures the door in the closed position so the appliance can operate.
• Houses the door switch that tells the control the door is closed and safe to run.
• Commonly replaces a latch that is broken, loose, or not catching.
• Can resolve symptoms like a unit that won't start, won't complete cycles, or shows a door or door-lock fault.

• One complete door latch/switch assembly.

• Disconnect power (unplug or switch off breaker) before starting any work.
• Basic disassembly of the appliance door or front panel is usually required; keep fasteners and parts organized.
• Test door operation and that the control recognizes a closed door before reassembling fully.

This large hose clamp secures flexible washing machine hoses and sealed door boots to prevent leaks and keep connections tight. Durable metal construction helps maintain a reliable seal at hose fittings. What it does:

• Clamps flexible hoses or bellows to fittings, sealing water or drain connections
• Keeps door boot or drain hose from slipping off and causing leaks
• Stops dripping or puddles caused by loose or missing clamps
• Works where a wider-band, heavy-duty clamp is required for a secure fit

• Disconnect power and turn off the water supply before servicing the appliance
• Loosen and remove the old clamp with a screwdriver or nut driver; position the new clamp and tighten securely
• Replace corroded or damaged clamps rather than reusing to ensure a proper seal

This replacement door boot is the flexible rubber seal that fits between the washer door and tub, keeping the wash chamber watertight and helping the door close snugly. Restores a proper seal and reduces leaks and odors. What it does

• Seals the door-to-tub gap to prevent water from escaping during wash cycles.
• Maintains a tight fit so the door closes evenly and the latch engages correctly.
• Helps reduce trapped moisture that can cause mildew, odors, or visible residue.
• Worn, torn, or distorted boots may cause visible leaks, puddling, or poor door closure.

• Disconnect power and water supply before starting any repair.
• Remove the outer door trim and/or retaining clamp carefully to avoid damaging the new boot.
• Inspect and clean the door frame and tub lip before installing the new boot to ensure a proper seal.
• After installation, run a short rinse cycle to check for leaks and correct seating.

This wire clamp ring secures a flexible seal or hose connection to its mating surface, helping maintain a tight, leak-resistant fit. Replacing a fatigued clamp restores proper retention and helps prevent leaks or slippage during appliance operation.

• Clamps around a gasket/boot or hose to hold it securely in place
• Helps maintain a reliable seal between components to reduce leaks
• Replaces rusted, bent, stretched, or broken clamp rings
• Common symptoms: leaks at a connection, loose or slipping seal/hose, visible damage or a missing clamp

• Disconnect power and water supply before servicing
• Wear gloves; nearby edges and panels can be sharp
• Note the ring's original position; ensure the seal/boot or hose is fully seated before reinstalling
• Seat the ring evenly all the way around without pinching or twisting the seal

This hex washer-head screw secures panels and components in commercial washers and dryers, providing a low-profile, vibration-resistant fastener that helps keep assemblies tight and aligned during operation. What it does:

• Fastens sheet metal and plastic parts where a wide bearing surface is needed
• Hex washer head spreads load to reduce pull-through on soft materials
• Self-tapping thread cuts into mating material for a secure fit without a nut
• Commonly used where vibration and repeated motion can loosen standard screws

• Use the correct size driver or socket to avoid stripping the head
• Start the screw straight and apply steady pressure while driving to ensure proper thread engagement
• Tighten until snug — avoid over-torquing which can strip threads or crack panels
• Disconnect power and follow all safety precautions before servicing appliance

This front panel replaces a damaged or worn control-console trim to restore the washer/dryer's appearance and protect the controls. It gives the machine a finished look and keeps buttons and switches secure from debris. What it does:

• Covers and protects the control area from impact, dirt, and moisture
• Restores proper mounting and alignment for control knobs and switches
• Resolves symptoms like cracked, bent, or missing front trim and loose controls
• Improves the appliance's appearance when the original panel is scratched or broken

• Disconnect power and water before beginning any work
• Remove control knobs and mounting screws to detach the old panel; retain hardware
• Align the panel tabs and screw holes, then secure with factory screws without over-tightening
• If trim clips are broken, replace them to ensure a secure fit.
