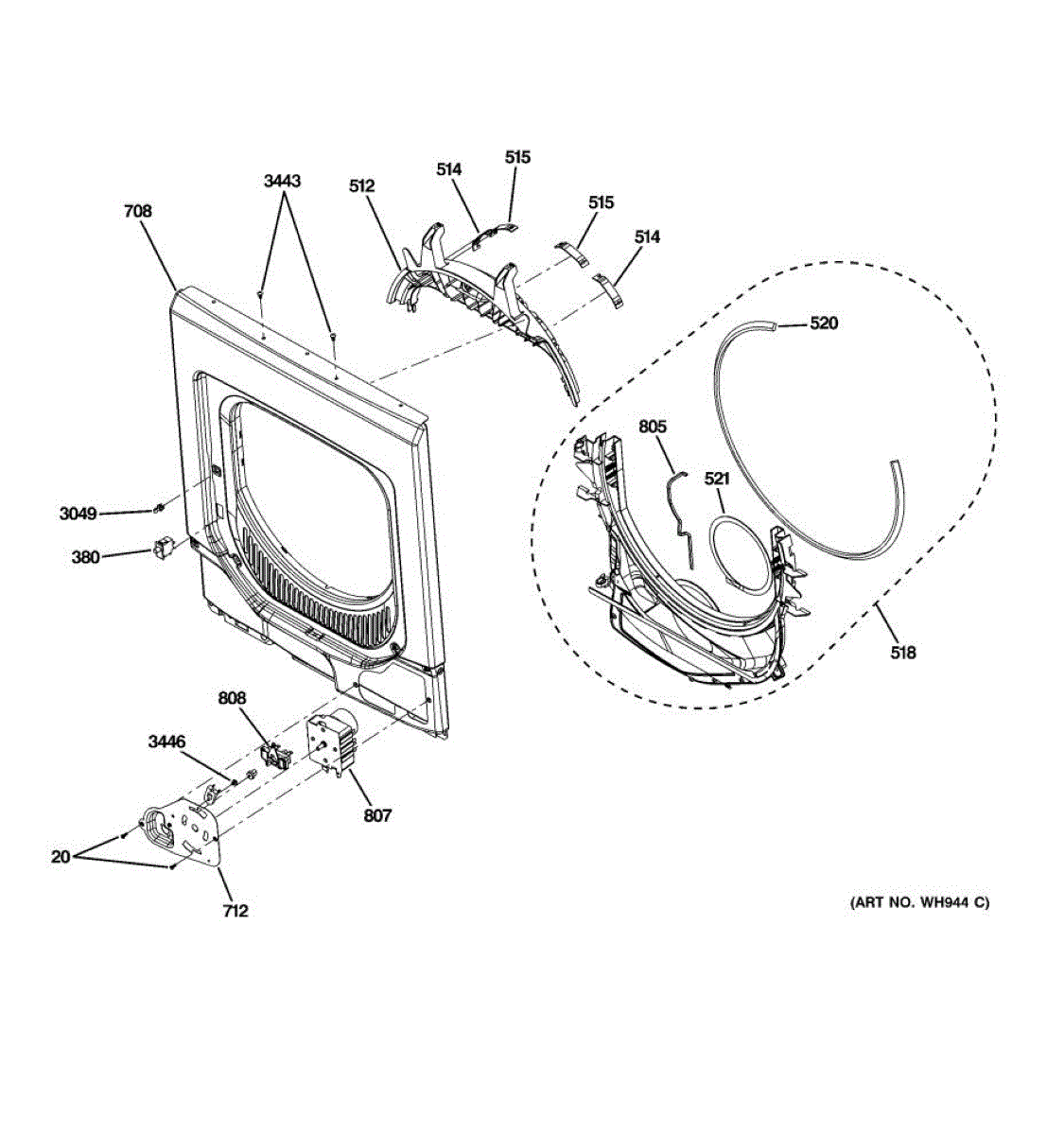

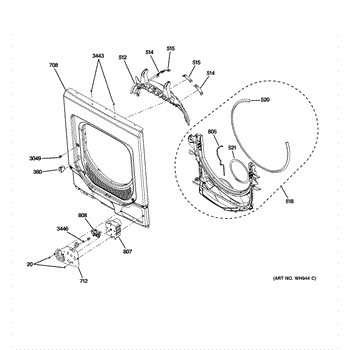

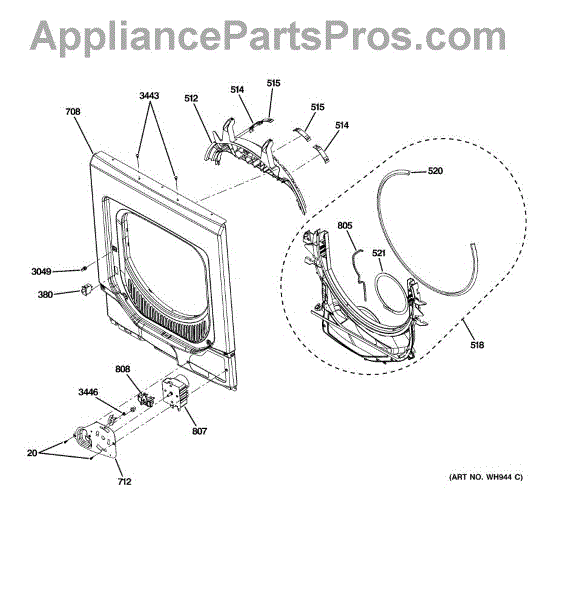

Parts for Ge GTUP240EM3WW: 05 - Front Panel Parts

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

The Door Switch is an OEM part for GE dryers, designed to ensure the dryer does not operate when the door is open. This safety feature is crucial for preventing accidents and ensuring the appliance operates efficiently and safely. The switch signals the dryer's control system about the status of the door—if it's open or closed—thereby allowing or preventing the start of a drying cycle.

Causes of damage to the door switch often include mechanical wear from repeated use, accidental damage from loading or unloading, or electrical issues such as short circuits.

Symptoms of a bad Door Switch include:

• The dryer not starting when the door is closed
• The dryer continuing to run when the door is opened
• Unusual noises or the dryer stopping mid-cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Top Bearing is an OEM part for GE electric dryers. Located near the top of the drum assembly, it further supports rotational movement during tumbling.

Symptoms of a faulty top bearing include:

• Emergence of grinding or scraping noises from the upper drum area
• Resistance or lack of responsiveness to smooth drum spinning
• Potential impacts to interconnected spinning components

As a bearing used repeatedly over time, standard wear from lint and dust accumulation affects function. Impacts can also compromise integrity on occasion.

Causes typically include normal wear and tear from prolonged rotational cycles. Heavy loads may accelerate deterioration too by adding strain.

This genuine GE replacement bearing restores reliable support at the top of spinning cycles. Compatible with some Hotpoint, RCA, and select Kenmore dryers too, it extends equipment life through dependable bearing operation once installed.

The Dryer Bearing Slide (2-Pack) is an OEM replacement part for GE dryers. These slides are installed on the front panel of the dryer and support the drum as it rotates. They help reduce friction and wear, ensuring smooth and quiet operation during drying cycles. This pack includes two bearing slides, which are commonly used together in the dryer assembly.

Over time, bearing slides can wear down due to regular use, heat, and friction. When they become worn or damaged, the drum may no longer rotate smoothly, which can affect the dryer's performance and increase noise levels.

Symptoms of bad dryer bearing slides include:

• A loud squeaking or scraping noise during operation
• Difficulty rotating the drum manually
• Clothes taking longer to dry due to improper drum movement
• Visible wear or thinning on the existing slides

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bearing Slide Assembly is an OEM component for GE electric clothes dryers. As an integral part of the dryer tumbler system, this assembly includes the bearing slides that allow smooth rotation of the tumbler drum during drying cycles.

Symptoms of faulty bearing slides include:

• Abnormal vibrations or shaking of the dryer cabinet
• Noisy operation that gets louder over time
• Rubbing or grinding sounds coming from inside the machine
• Reduced tumbler movement or inability to manually turn the drum

Causes involve general wear of plastic bearing surfaces from years of drum rotation as well as potential damage or misalignment from excess stress on the slides.

This GE OEM replacement helps maintain balanced tumbler movement. Compatible with Hotpoint, RCA, and some Kenmore dryers using the bearing slide assembly design.

This exhaust gasket seals the dryer's exhaust duct connection to contain airflow and keep lint out of the cabinet. A tight seal helps maintain drying performance and efficiency while reducing warm, moist air leakage behind the unit.

• Seals the joint between the exhaust duct and outlet/blower housing to prevent air and lint leaks
• Helps maintain proper airflow for consistent drying results
• Wear or damage can cause longer dry times and warm, humid air or lint behind the dryer
• Visible tears, flattening, or missing sections indicate the gasket should be replaced

• Disconnect power; turn off gas supply for gas models before servicing
• Pull the dryer forward, disconnect the vent, and remove panel(s) as needed to access the exhaust connection
• Remove the old gasket and residue; clean mating surfaces; seat the new gasket evenly
• Reassemble, reconnect the vent, ensure the external vent is clear, and check for air leaks

This control support is the mounting bracket that secures the appliance control assembly, keeping the control panel stable and aligned for reliable operation. Replaces a worn or broken support to restore proper panel fit and reduce vibration. What it does:

• Holds the control board/panel in place to prevent sagging or misalignment
• Keeps control knobs and buttons properly positioned for accurate use
• Reduces vibration and rattling that can affect button/knob response
• Can prevent intermittent contact caused by a loose or damaged support

• One control support bracket

• Disconnect power (unplug the appliance or shut off the breaker) before starting any work
• Access usually requires removing the control panel or back panel; keep fasteners organized
• Install with original mounting screws; inspect surrounding clips and hardware for wear

The Timer is an OEM part for GE electric dryers. It serves as the critical control module that monitors and regulates dryer cycle times during functions like regular, wrinkle guard, fluff and more.

Causes of a bad timer include failure of internal electronic components or wiring connections due to prolonged exposure to heat and vibration inside the dryer cylinder. Mechanical wear of buttons or dials used to program cycles may occur as well over time.

Symptoms of a bad Timer include:

• Inability to set or change desired drying times accurately
• Premature stopping or starting of cycles without user input
• Faulty time or status display windows during use
• Complete shut down requiring manual override or reset

The GE OEM part is also compatible with Hotpoint, RCA and select Kenmore models.

The Door Strike is an OEM part for GE dryers. This component is crucial for ensuring that the dryer door latches properly when closed. It interacts with the door catch mechanism to secure the door during operation, preventing it from opening unexpectedly, which ensures the dryer operates safely and efficiently.

Symptoms of a failing Door Strike include:

• The dryer door not staying closed during a cycle
• Difficulty in closing the dryer door or getting it to latch properly
• The dryer not starting because the door switch is not engaged
• Visible damage or wear on the door strike

Causes of a bad door strike can include wear and tear from regular use, physical damage from slamming the door or mishandling, and misalignment caused by repeated opening and closing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: If the door catch is also needed, use part number WE1M1011.
