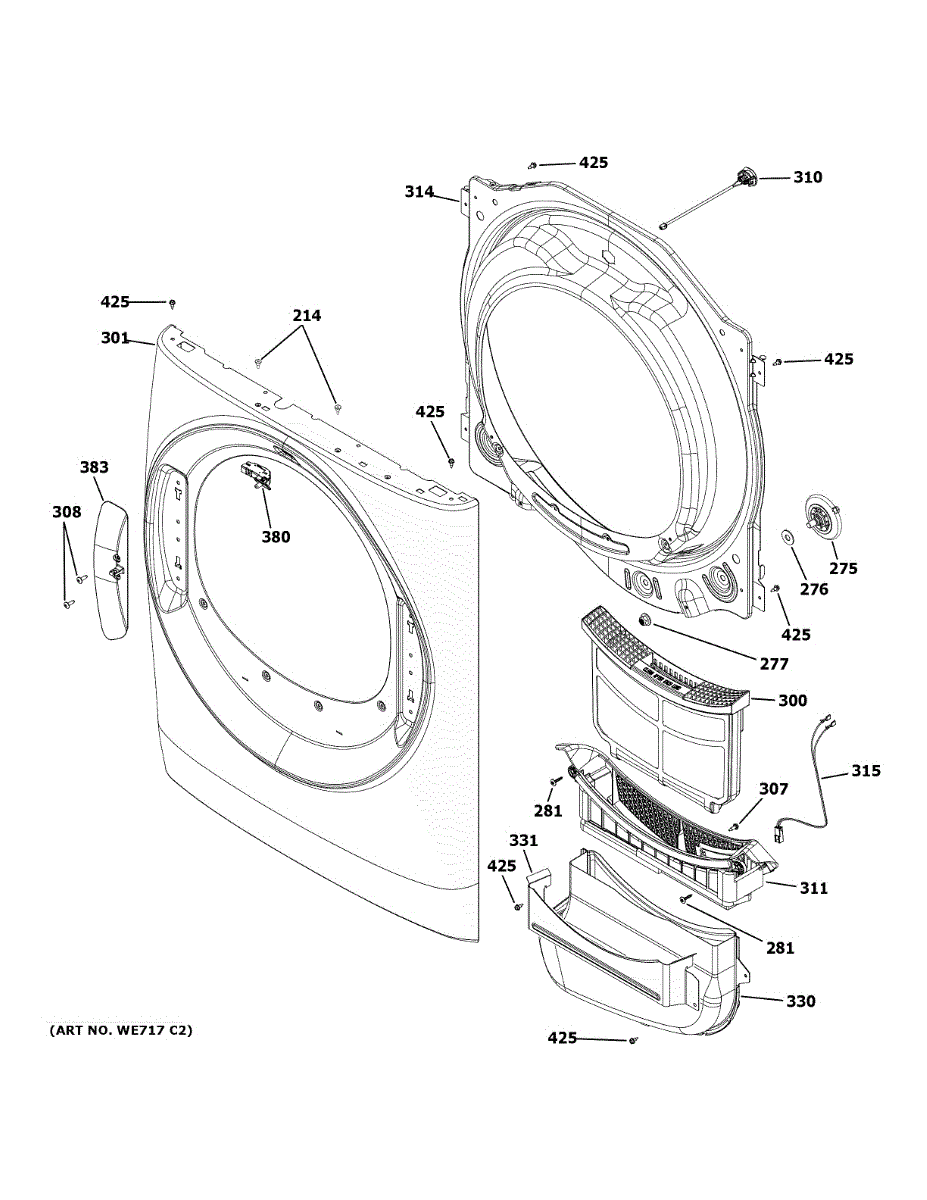

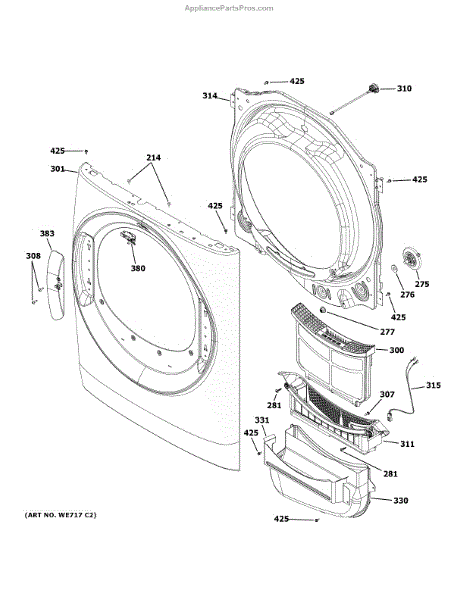

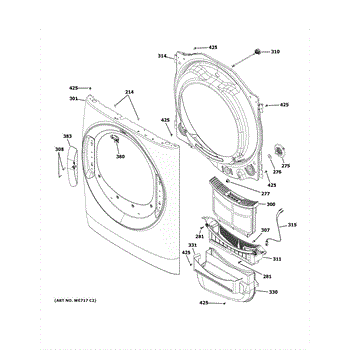

Parts for Ge GFD55ESMN1DG: Front Panel Parts

Drum roller assembly with axle and clips that supports the dryer drum and allows smooth rotation. Replace if worn, cracked, or causing loud noises.

Steel flat washer distributes fastener load and protects surfaces from wear. Replace when worn, corroded, or during repairs. Confirm fit with model.

This pulley nut secures the washer's drive pulley to the shaft to keep the belt aligned and power transfer reliable. Replacing a worn or missing nut restores stable spin performance and helps prevent belt slippage and noise.

• Locks the drive pulley to the shaft for proper belt alignment and consistent power transfer
• A loose or stripped nut can cause pulley wobble, belt squeal, slippage, or the belt coming off
• Replace if the original nut is damaged, missing, or will not stay tight after adjustment

• Disconnect power and water supply; safely tip or elevate the washer for bottom access
• Remove the drive belt; hold the pulley while loosening the nut (verify thread direction—do not force)
• Hand-start the new nut to avoid cross-threading; tighten securely per service information and confirm pulley runs true
• Reinstall the belt, verify alignment, and rotate by hand before restoring power

This stainless steel machine screw secures appliance components and trim for a reliable, corrosion-resistant hold. Use it when replacing lost or damaged fasteners to restore proper fit and reduce noise or misalignment. What it does:

• Fastens panels, brackets, and small assemblies where a #8-28 threaded screw is required
• Provides a rust-resistant connection for wet or humid appliance areas
• Helps stop rattling, loose trim, or misaligned parts caused by missing or stripped screws

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread carefully by hand to avoid cross-threading; tighten until snug—do not overtighten
• Keep removed screws organized to ensure correct reassembly

Screens lint and debris from the dryer air stream. Replace when damaged, cracked, or no longer filtering properly. Verify fit using your model number.

8-18 x 9/16-inch hex washer head screw secures panels, brackets, and trim in appliances. Replace missing, damaged, or stripped screws for proper fit.

This machine screw secures panels, brackets, and internal components in compatible washers. Replacing a missing or stripped fastener restores a tight fit to help reduce vibration and keep parts properly aligned.

• 10-32 thread; 5/8-inch length; Torx T25 drive
• Fastens components and panels to resist loosening from vibration
• Replaces lost, corroded, or stripped screws
• Helps address loose or rattling panels, misalignment, or hardware that won't tighten

• Unplug the appliance and turn off water supply before servicing
• Use a T25 Torx driver; start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten
• Repair or replace the bracket/panel for a secure hold

Covers and protects the drum opening while maintaining proper airflow. Replace if cracked, broken, or allowing lint buildup. Verify fit with your model.

Fix dryer drum rubbing, scraping, or loud operation with this front drum support assembly. Centers and supports the drum for smooth, quiet rotation.

This sensor rod harness connects a temperature sensor to the appliance wiring, restoring proper signal transmission for accurate temperature monitoring and control. It's a direct-fit replacement when the original harness is damaged or intermittent. What it does:

• Provides the electrical connection between the sensor rod and the control board to transmit temperature readings.
• Replaces frayed, burned, or broken wiring that can cause intermittent or no temperature readings.
• Helps resolve symptoms such as erratic temperature control, long heating/cooling cycles, or fault codes related to sensor circuits.
• Maintains secure, insulated connections to prevent shorting or open circuits.

• One sensor rod harness.

• Disconnect power to the appliance before beginning any repair to avoid electric shock.
• Access may require removing panels or components; handle sensors and wiring gently to avoid damage.
• Verify connector orientation and secure clips fully; do not force connectors.

This door switch senses when the dryer door is closed so the cycle can start, and cuts power when the door opens. Replacing a faulty switch restores safe operation and consistent start/stop behavior tied to the door. What it does:

• Detects door open/closed position to enable or interrupt the motor and heater
• Stops drum rotation and heating when the door is opened
• On many models, also controls the interior drum light
• Common symptoms: dryer won't start, drum doesn't stop when door opens, interior light stays on/off incorrectly, intermittent starting

• 1 door switch

• Disconnect power before servicing
• Access the switch behind the door opening (remove the top or front panel as required by the model)
• Note wire positions; transfer connectors to the new switch and secure it in the bracket
• Reassemble and test that the dryer starts only with the door closed and stops when opened

Color: Dark Slate

The Door Strike is an OEM part for GE dryers. Positioned on the dryer frame, it securely latches the door closed during cycles. Its magnets align perfectly with the door when shut to create an air-tight barrier, enhancing energy efficiency.

Causes of failure can be normal wear, misalignment stress, or accidental damage. Over time, strikes lose effectiveness at preventing air/moisture exchange.

Symptoms of a bad door strike include:

• Excess warm air entering the dryer chamber
• The door not fully closing or latching tight
• Clothing not drying completely within expected cycles
• Buildup of lint around the door seal area

This GE part is also compatible with some Hotpoint, RCA, and Kenmore models.


Size: 8 - 18 ab.
