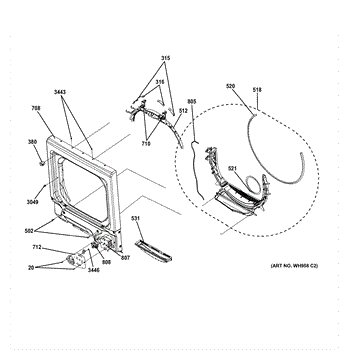

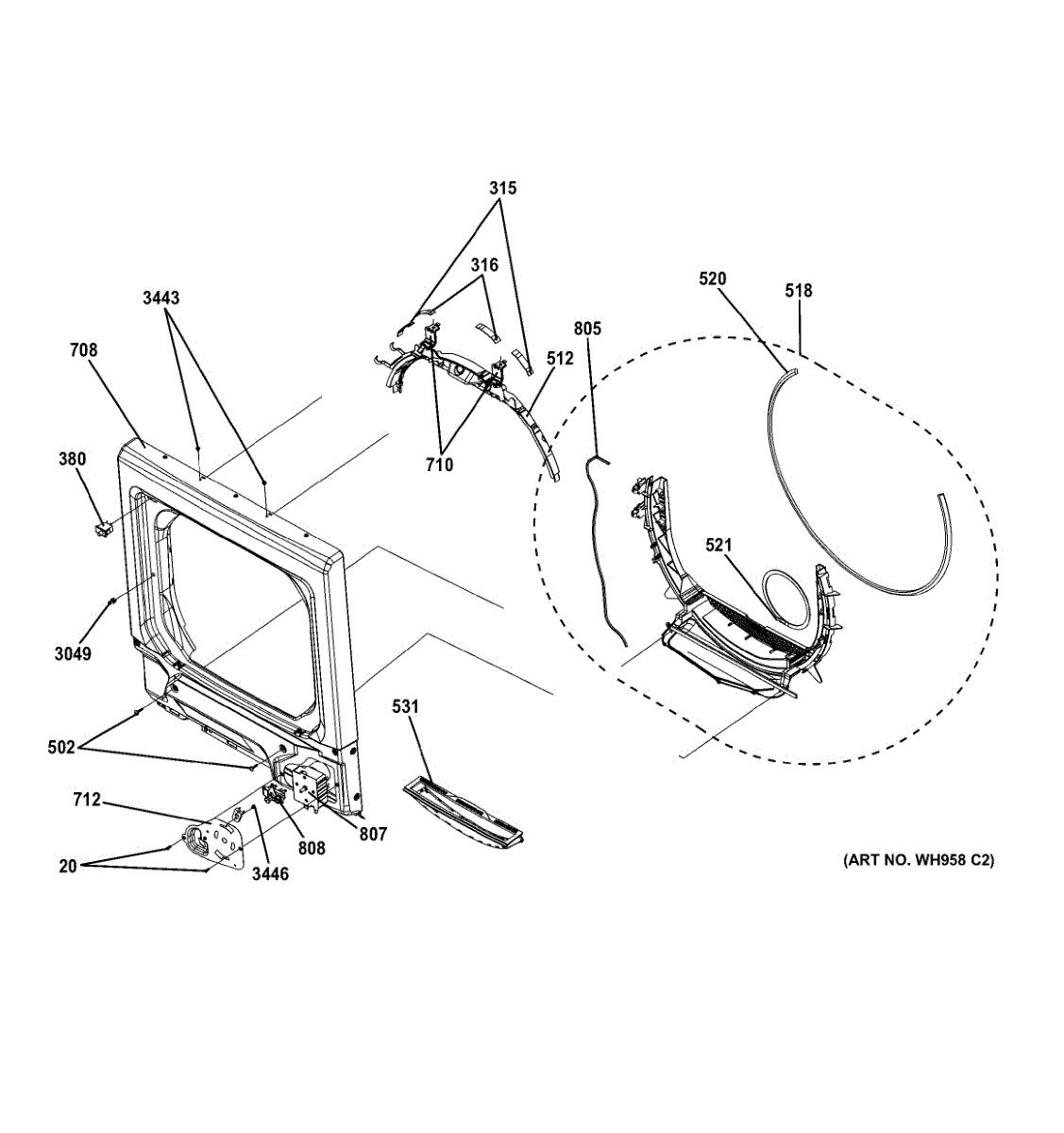

Parts for Kenmore 266.1532513 (2661532513, 266 1532513): Front Panel Parts

This replacement screw secures dryer panels and assemblies, helping prevent vibration and keeping components properly aligned. Use it to replace missing or stripped hardware and restore a solid, factory-tight fit during reassembly.

• Secures panels, brackets, and internal assemblies in the dryer cabinet
• Replaces lost, damaged, or stripped factory screw
• Helps reduce vibration and rattling caused by loose hardware
• Supports proper alignment of parts and a tight fit
• Symptoms can include loose or shifting panels, rattling noises, or gaps

• Disconnect power before servicing; for gas dryers, also shut off the gas supply if moving the unit.
• Match screw length and location to the original during reassembly.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Use the correct driver for your screw head style as used on your model.

The Dryer Bearing Slide (2-Pack) is an OEM replacement part for GE dryers. These slides are installed on the front panel of the dryer and support the drum as it rotates. They help reduce friction and wear, ensuring smooth and quiet operation during drying cycles. This pack includes two bearing slides, which are commonly used together in the dryer assembly.

Over time, bearing slides can wear down due to regular use, heat, and friction. When they become worn or damaged, the drum may no longer rotate smoothly, which can affect the dryer's performance and increase noise levels.

Symptoms of bad dryer bearing slides include:

• A loud squeaking or scraping noise during operation
• Difficulty rotating the drum manually
• Clothes taking longer to dry due to improper drum movement
• Visible wear or thinning on the existing slides

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bearing Slide Assembly is an OEM component for GE electric clothes dryers. As an integral part of the dryer tumbler system, this assembly includes the bearing slides that allow smooth rotation of the tumbler drum during drying cycles.

Symptoms of faulty bearing slides include:

• Abnormal vibrations or shaking of the dryer cabinet
• Noisy operation that gets louder over time
• Rubbing or grinding sounds coming from inside the machine
• Reduced tumbler movement or inability to manually turn the drum

Causes involve general wear of plastic bearing surfaces from years of drum rotation as well as potential damage or misalignment from excess stress on the slides.

This GE OEM replacement helps maintain balanced tumbler movement. Compatible with Hotpoint, RCA, and some Kenmore dryers using the bearing slide assembly design.

The Door Switch is an OEM part for GE dryers, designed to ensure the dryer does not operate when the door is open. This safety feature is crucial for preventing accidents and ensuring the appliance operates efficiently and safely. The switch signals the dryer's control system about the status of the door—if it's open or closed—thereby allowing or preventing the start of a drying cycle.

Causes of damage to the door switch often include mechanical wear from repeated use, accidental damage from loading or unloading, or electrical issues such as short circuits.

Symptoms of a bad Door Switch include:

• The dryer not starting when the door is closed
• The dryer continuing to run when the door is opened
• Unusual noises or the dryer stopping mid-cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance panels and internal components per your model's hardware list. Replace lost or stripped screws to keep assemblies tight, reduce vibration and rattles, and maintain proper alignment.

• Fastens brackets, covers, and sheet-metal panels as specified in the parts diagram
• Restores proper fit when an original screw is missing, stripped, or damaged
• Helps eliminate rattling or vibration from loose hardware
• Keeps components safely in place during operation

• Disconnect power to the appliance before servicing
• Match length, head style, and thread to the original; install in the same location/quantity
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten, especially into plastic or thin sheet metal

The Top Bearing is an OEM replacement part for GE dryers. It is responsible for supporting the weight of the dryer drum and allowing it to rotate smoothly during the drying cycle. This bearing is located at the top of the drum and helps to maintain proper alignment and balance.

Causes of a bad top bearing can include regular wear and tear from continuous use, excessive friction due to lack of lubrication, or damage from foreign objects or overloading the dryer.

Symptoms of a bad Top Bearing include:

• Unusual squeaking, squealing, or grinding noises during operation
• Excessive vibration or shaking of the dryer drum
• Difficulty in rotating the drum manually
• Visible signs of damage or wear on the bearing itself

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This trap duct and felt kit restores the dryer's front airflow path and drum seal. Replacing a damaged duct or worn felt helps maintain proper airflow, improve drying performance, and reduce lint leaks and noise. What it does:

• Routes exhaust air through the lint filter housing to the blower
• Seals the drum front to prevent air leaks and reduce fabric snagging
• Helps address long dry times, lint escaping into the cabinet, and scraping/squealing from a worn front seal
• Replaces cracked, warped, or melted lint trap duct components

• One trap duct and one felt seal

• Disconnect power; shut off gas supply for gas dryers before servicing
• Remove top/front panels to access the lint filter housing and front bulkhead; support the drum as needed
• Clean mating surfaces; install the felt with the soft pile facing the drum to form a continuous, even seal
• Reuse original fasteners/hardware; the lint filter seats fully and the drum turns freely before testing

The Lower Drum Felt seal is an OEM replacement part for GE dryers. The Lower drum felt seal is responsible for creating a seal between the drum and the front panel of the dryer.

This part fixes the following symptoms:

• Air leaking from the dryer drum
• Reduced dryer efficiency and increased energy costs
• Clothes becoming caught in the gap between the drum and front panel
• Potential damage or snags to clothes or the dryer

Causes of a bad Lower Drum Felt Seal can range from normal wear and tear, which degrades the felt material over time, to excessive load sizes that strain the drum and seal. Additionally, over time, the seal can become compressed or damaged, leading to a less effective seal and the potential for heat loss and inefficiency in the drying process.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This exhaust gasket seals the dryer's exhaust duct connection to contain airflow and keep lint out of the cabinet. A tight seal helps maintain drying performance and efficiency while reducing warm, moist air leakage behind the unit.

• Seals the joint between the exhaust duct and outlet/blower housing to prevent air and lint leaks
• Helps maintain proper airflow for consistent drying results
• Wear or damage can cause longer dry times and warm, humid air or lint behind the dryer
• Visible tears, flattening, or missing sections indicate the gasket should be replaced

• Disconnect power; turn off gas supply for gas models before servicing
• Pull the dryer forward, disconnect the vent, and remove panel(s) as needed to access the exhaust connection
• Remove the old gasket and residue; clean mating surfaces; seat the new gasket evenly
• Reassemble, reconnect the vent, ensure the external vent is clear, and check for air leaks

The Filter Lint is an OEM replacement part for GE dryers. Located inside the dryer cabinet behind the lint screen, the lint filter traps microscopic fabric dust and residue. It plays a supportive role in protecting internal components from lint buildup.

Causes for lint filter replacement may be an excessively loaded filter obstructing airflow. Regular cleaning helps prolong the life of this consumable part.

Symptoms include:

• Slow or incomplete drying times even on high heat settings
• Reduced air venting due to a clogged lint filter
• Muffled operation from restricted airflow passageways
• Fabric dust accumulating in undesirable areas inside the dryer

Compatible GE branded models include profiles, Café, and Kenmore dryers as well.

This front panel is the replacement trim that covers and protects the appliance's control area, restoring a clean appearance and proper access to buttons and the display. Use it when the original panel is cracked, warped, or cosmetically worn. What it does:

• Covers and protects the control board and button area from spills, grease, and wear
• Provides the opening and surface for buttons, touchpads, and the display to operate correctly
• Restores the appliance's original appearance when the front panel is damaged or discolored
• Helps keep internal components sealed from everyday contaminants

• Always disconnect power (unplug or switch off breaker) before starting any repair
• Basic installation typically requires removing the outer cabinet or access screws to reach the control area
• Handle the panel carefully to avoid scratching or cracking; use gentle, even pressure when seating into clips or screw locations

The Front Drum Support is an OEM part for GE dryers. It supports the front of the dryer drum, allowing it to rotate smoothly during the drying cycle. This support helps maintain the drum's position and alignment, ensuring efficient and quiet operation.

You should replace the front drum support if it becomes worn out or damaged. Causes of a bad drum support can include regular wear and tear from continuous use, overloading the dryer, or debris causing friction and damage.

Symptoms of a bad front drum support include:

• Unusual noises such as squeaking or grinding during operation
• The drum not rotating smoothly or becoming misaligned
• Clothes taking longer to dry or uneven drying
• Visible wear or damage to the support structure

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control support is the mounting bracket that secures the appliance control assembly, keeping the control panel stable and aligned for reliable operation. Replaces a worn or broken support to restore proper panel fit and reduce vibration. What it does:

• Holds the control board/panel in place to prevent sagging or misalignment
• Keeps control knobs and buttons properly positioned for accurate use
• Reduces vibration and rattling that can affect button/knob response
• Can prevent intermittent contact caused by a loose or damaged support

• One control support bracket

• Disconnect power (unplug the appliance or shut off the breaker) before starting any work
• Access usually requires removing the control panel or back panel; keep fasteners organized
• Install with original mounting screws; inspect surrounding clips and hardware for wear

The Timer is an OEM part for GE electric dryers. It serves as the critical control module that monitors and regulates dryer cycle times during functions like regular, wrinkle guard, fluff and more.

Causes of a bad timer include failure of internal electronic components or wiring connections due to prolonged exposure to heat and vibration inside the dryer cylinder. Mechanical wear of buttons or dials used to program cycles may occur as well over time.

Symptoms of a bad Timer include:

• Inability to set or change desired drying times accurately
• Premature stopping or starting of cycles without user input
• Faulty time or status display windows during use
• Complete shut down requiring manual override or reset

The GE OEM part is also compatible with Hotpoint, RCA and select Kenmore models.

The Dryer Push-to-Start Switch is an OEM replacement part for GE dryers. This component is responsible for initiating the drying cycle when pressed, serving as the primary control for starting the dryer's operation.

Symptoms of needing to replace the push-to-start switch include:

• The dryer failing to start or begin the cycle when the switch is pressed
• Intermittent or inconsistent starting issues
• Visible damage or deterioration of the switch itself

Causes of a faulty push-to-start switch can include mechanical wear and tear over time, electrical malfunctions, or physical damage due to impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore dryer models.

The Door Strike is an OEM part for GE dryers. This component is crucial for ensuring that the dryer door latches properly when closed. It interacts with the door catch mechanism to secure the door during operation, preventing it from opening unexpectedly, which ensures the dryer operates safely and efficiently.

Symptoms of a failing Door Strike include:

• The dryer door not staying closed during a cycle
• Difficulty in closing the dryer door or getting it to latch properly
• The dryer not starting because the door switch is not engaged
• Visible damage or wear on the door strike

Causes of a bad door strike can include wear and tear from regular use, physical damage from slamming the door or mishandling, and misalignment caused by repeated opening and closing.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Note: If the door catch is also needed, use part number WE1M1011.

A replacement screw used to secure panels and components in compatible GE appliances. Replacing missing or damaged screws restores secure mounting, reduces rattling, and helps keep parts aligned during normal operation. What it does:

• Fastens panels, trim, brackets, or small appliance components to maintain proper alignment and fit.
• Keeps internal parts secured to reduce vibration, rattling, or movement during use.
• Replaces stripped, rusted, or missing hardware that can cause loose or misaligned panels.
• Small, non-electrical part — does not affect electrical circuits or controls.

• Disconnect power and unplug the appliance before accessing internal parts.
• Use the properly sized screwdriver to avoid stripping the head; hand-start threads to prevent cross-threading.
• Tighten securely but avoid over-torquing; overtightening can strip threads or damage plastic components.
• Keep track of small parts and hardware; replace any damaged or mismatched screws with the correct OEM part.
