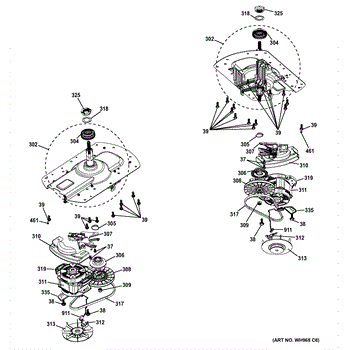

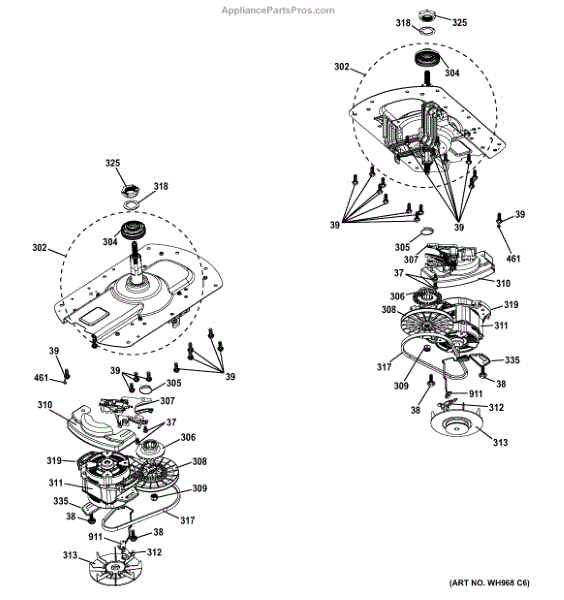

Parts for Kenmore 266.1532513 (2661532513, 266 1532513): Motor & Drive Assembly Parts

This 1/4-20 Taptite hex washer-head screw secures panels and internal components in your appliance. Its thread-forming design creates a tight, vibration-resistant hold in untapped metal to keep assemblies aligned when a fastener is missing or stripped.

• Fastens brackets, panels, and hardware to the cabinet/frame
• Taptite design forms threads in pre-punched, untapped holes for a secure fit
• Replaces missing, stripped, or rusted screws
• Helps reduce vibration and rattling from loose mounts

• Unplug the appliance; if servicing a washer, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the appropriate nut driver or socket until snug—do not overtighten

This 5/16-18 hex screw secures appliance panels and components with a common coarse thread. Durable fastening for repairs where the original hex screw has stripped, broken, or gone missing — restores proper fit and alignment. What it does:

• Fastens panels, brackets, and assemblies that use a 5/16-18 hex fastener
• Replaces missing or damaged screws that cause loose or rattling parts
• Helps re-establish secure mechanical connections after disassembly
• Matches OEM thread form and head style for correct seating and torque

• Use the correct hex socket or wrench to avoid rounding the head
• Tighten to secure fit; avoid over-torquing which can strip threads or damage parts
• Check mating threads for damage before installation; replace if worn
• Handle sharp threads carefully and wear gloves if needed

This is a hex pan thread screw used to secure appliance panels and components. It replaces missing or damaged fasteners to restore proper fit and reduce vibration or rattling. What it does

• Secures panels, brackets, or components to the appliance frame
• Restores tight fit where a worn or missing screw caused loose panels or rattling
• Provides a hex head drive for easy tightening with the correct socket or bit
• Matches OEM fastening points when replacing the original screw

• One hex pan thread screw

• Use the correct hex socket or driver to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power or follow appliance safety procedures before servicing
• Keep removed hardware organized to confirm correct replacement

This transmission and support assembly drives the wash and spin cycles while supporting the inner tub. Replacing a worn unit can restore proper agitation/spin and reduce noise or vibration from a failing gearcase or support shaft.

• Transfers motor power to agitate and spin the basket
• Supports and centers the inner tub through the drive shaft/support
• Failures may cause no-spin/no-agitate, loud grinding/rumbling, slipping, or oil spotting under the washer
• Can contribute to wobble, scraping from the center, or a burning smell during cycles

• Disconnect power and water supply before servicing; wear appropriate PPE
• Access varies by model; remove agitator/impeller and inner tub, then detach drive components
• The assembly is heavy—support the tub/frame and use proper lifting techniques
• After reassembly, run a test cycle to check for leaks/noise

The Tub Seal is an OEM part for GE washing machines. It is a critical component responsible for sealing the gap between the outer tub and the inner wash basket, preventing water leaks and ensuring proper containment during the wash cycle.

Causes of a faulty Tub Seal include wear and tear over time, exposure to excessive heat or chemicals, or physical damage from sharp objects or improper installation.

Symptoms of a bad Tub Seal include:

• Water leaking from the washing machine during cycles
• Excessive moisture or dampness around the tub area
• Mold or mildew buildup due to leaks
• Vibrations or noise from an improperly sealed tub

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This shifter spring helps engage and return the transmission shifter mechanism in select top-load washers, allowing smooth changes between agitation and spin for reliable wash performance.

• Maintains proper tension on the shift mechanism between agitate and spin
• A worn or broken spring can cause no spin, no agitate, or loud shifting noises
• May also lead to intermittent shifting or incomplete cycles
• Restores consistent mechanical engagement of the drive system

• Unplug the washer and shut off water supply before servicing
• Access is typically from the cabinet/rear; support the tub to prevent movement
• Note spring orientation and attachment points before removal
• Use needle-nose pliers or a spring tool; replace any severely worn mating parts

This shifter hub connects the drive system to the agitator/spin mechanism in the washer, allowing the machine to shift between wash and spin modes reliably for proper cleaning and water extraction.

• Transfers motor/gearcase motion to the basket during spin and to the agitator/wash plate during wash
• Worn or cracked hub can cause no spin, weak/erratic spin, grinding or clicking noises, or poor wash performance
• Designed to fit the original drive components for dependable shifting between cycles

• Unplug washer and turn off water supply before servicing
• Access is typically from the bottom; remove drive components as needed to reach the hub
• Inspect mating parts (splines, clutch/shifter, belt, pulley) for wear and replace if damaged
• Tighten fasteners to spec and verify smooth basket engagement by hand before reassembly

This fork support actuator assembly mounts in the washer's drive mechanism and supports the shift fork that changes between wash/agitate and spin. Replacing a worn assembly restores dependable shifting and helps resolve no-agitate, no-spin, and grinding complaints. What it does:

• Supports and guides the mode-shifter fork within the drive system
• Enables proper engagement of agitation and spin functions
• Helps maintain alignment to reduce mis-shifts and noise
• Can cause: won't agitate, won't spin, loud clicking/grinding, intermittent shifting

• 1 fork support actuator assembly

• Disconnect power and shut off water supply before service
• Access location varies by model
• Note linkage orientation before removal; transfer any reusable clips/screws
• After installation, run a test cycle to ensure proper mode changes

This transmission pulley mounts on the washer's transmission shaft and is driven by the belt to power agitation and spin. Replacing a worn pulley restores smooth belt tracking, reduces noise, and helps the tub move correctly.

• Mounts on the transmission shaft and transfers motor power through the drive belt
• Enables proper tub movement during agitate and spin cycles
• Wear or damage can cause squealing or grinding noises, or a burning rubber smell
• May lead to poor/no spin or agitation, or the drive belt slipping off

• Disconnect power and wear gloves; safely tip or raise the washer for bottom access
• Remove the drive belt, then the pulley's retaining hardware; install the new pulley and secure hardware
• Reinstall the belt with correct routing; replace a worn belt at the same time
• Spin the pulley by hand to ensure free movement and alignment before testing

This pulley nut secures the washing machine's drive pulley to its shaft, helping keep the belt aligned so the basket can agitate and spin smoothly. Replacing a worn or missing nut helps prevent pulley wobble and belt issues. What it does:

• Fastens the drive pulley securely to the shaft
• Helps maintain proper belt tracking and drive engagement
• A loose, stripped, or missing nut may cause rattling or scraping noises, belt slippage or the belt coming off, and intermittent or no spin/agitation

• One pulley nut

• Disconnect power and water; wear appropriate PPE
• Access the drive pulley from the rear or bottom per the service instructions
• Support the pulley while loosening/tightening the nut to avoid stressing the shaft
• Pulley seating and belt alignment before reassembly and test run

This replacement kit combines the washer's drive motor with a protective tub shield. It restores agitation and spin performance and helps guard the new motor from splash-related moisture so your washer runs reliably through complete cycles. What it does:

• Provides the mechanical power for the washer's agitation and spin functions
• Tub shield deflects water and debris away from the motor area to reduce moisture exposure
• Helps with symptoms such as no spin or no agitation, a motor that only hums, or a burning odor from the motor area
• Useful when the original motor was damaged by leaks or corrosion

• One drive motor and one tub shield

• Disconnect power and water supply before servicing; wear gloves and eye protection
• Access the motor from the underside/front depending on the model; support the washer securely if tilting
• Move wiring connectors one at a time and transfer any brackets or pulley/belt components as configured on your unit
• Seat the tub shield properly, ensure wires are clear of moving parts, then run a test cycle to check operation and for leaks

This pulley set screw secures the washer's drive pulley to its shaft. Replacing a stripped or missing fastener restores a solid pulley connection to help prevent belt slippage, noise, and spin or agitation issues. What it does:

• Locks the pulley to the shaft to prevent sliding or wobbling
• Helps maintain belt alignment and power transfer
• Can help when the pulley feels loose, the belt squeals or slips, or spin/agitation is weak or intermittent
• Replaces a damaged, stripped, or missing pulley set screw

• 1 set screw

• Disconnect power and turn off water before servicing
• Access the drive system; remove the belt if needed to reach the pulley
• Align the pulley with the flat on the shaft, then install and tighten the set screw with the correct hex/Allen key—do not overtighten
• Reassemble and test

This 3L-profile drive belt transfers motor power to the appliance's pulley system so driven components operate as designed. Replacing a worn or slipping belt restores reliable motion and helps eliminate squealing or burning-rubber odors.

• Transfers motor rotation to the drive system via the pulleys
• Enables proper movement of driven components
• A stretched or glazed belt can slip, causing weak or no motion
• Common signs include squealing/chirping sounds, a hot or burnt-rubber smell, or visible cracks/glazing on the belt

• Disconnect power (and water, if applicable) before servicing; wear gloves
• Access the belt from the bottom or rear by removing the appropriate panel(s)
• Note belt routing; remove the worn belt and install the new belt around motor and drive pulleys
• Rotate the large pulley by hand to seat the belt and verify alignment before reassembly and testing

The Grommet is an OEM part for GE washing machines. Found around openings or connection points, it provides a resilient seal to prevent vibration noises and water entry.

Causes of a bad grommet include cracks, tears, or compression from extended use that eliminates the noise-dampening function.

Symptoms of a bad grommet include:

• Loud buzzing or knocking sounds heard through walls/cabinet during use
• Water stains or damage detected inside the washer's surrounding areas
• Gaps visible where the grommet no longer properly seals an opening

This OEM GE replacement grommet is also compatible with some Hotpoint, RCA, and Kenmore models. Prevent noise complaints and leaks by relying on quality grommets. Replace yours today for smoother operation and protection against water damage.

The Nut Hub is an OEM replacement part for GE top-load washing machines. This component plays an integral role during the spin cycle, transmitting rotational force from the motor to the tub for the removal of water from clothes. The Nut Hub connects directly to the drive shaft and incorporates several mounting points to securely join additional drum parts.

Causes of a bad Nut Hub can include cracks, fractures, or stripped threads due to overloading or excessive strain during spinning. Loose or ineffective connections between the Nut Hub and other components impair power transmission.

Symptoms of a bad Nut Hub include:

• Vibrations or shaking during the spin cycle
• Noisy or grinding sounds
• Incomplete water removal, resulting in soggy clothes
• Failure of the tub to rotate

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This motor bracket secures the appliance motor to the housing so the motor stays aligned and stable during operation, helping maintain proper drive function and reduce vibration. What it does

• Provides a secure mounting point for the motor to keep correct alignment with belts or shafts
• Reduces motor movement and vibration that can cause noise or wear
• Helps maintain proper drive geometry to support consistent operation
• Commonly replaced when the original bracket is cracked, bent, or broken

• One motor bracket

• Disconnect power before starting any repair to avoid electrical shock
• Inspect mounting hardware and surrounding components; replace any damaged fasteners
• Tighten fasteners to the manufacturer's specification and verify motor alignment before testing

Size: 8-32 t. Includes 12 screws.

This speed sensor detects rotational speed and sends that signal to the appliance control so the machine can time cycles and monitor operation. Replacing a failed sensor restores accurate speed feedback for reliable cycle control. What it does:

• Senses rotation and provides an electrical speed signal to the control board
• Helps the appliance maintain correct spin or drum speed during cycles
• Resolves symptoms such as erratic spin behavior, unexpected cycle interruptions, or speed-related error codes
• Works as the control's feedback device for automated timing and safety functions

• Disconnect power before servicing to avoid electric shock
• Handle the sensor and wiring harness carefully; avoid pinching or stretching the connector
• Verify connector seating and secure any mounting screws per the service manual
