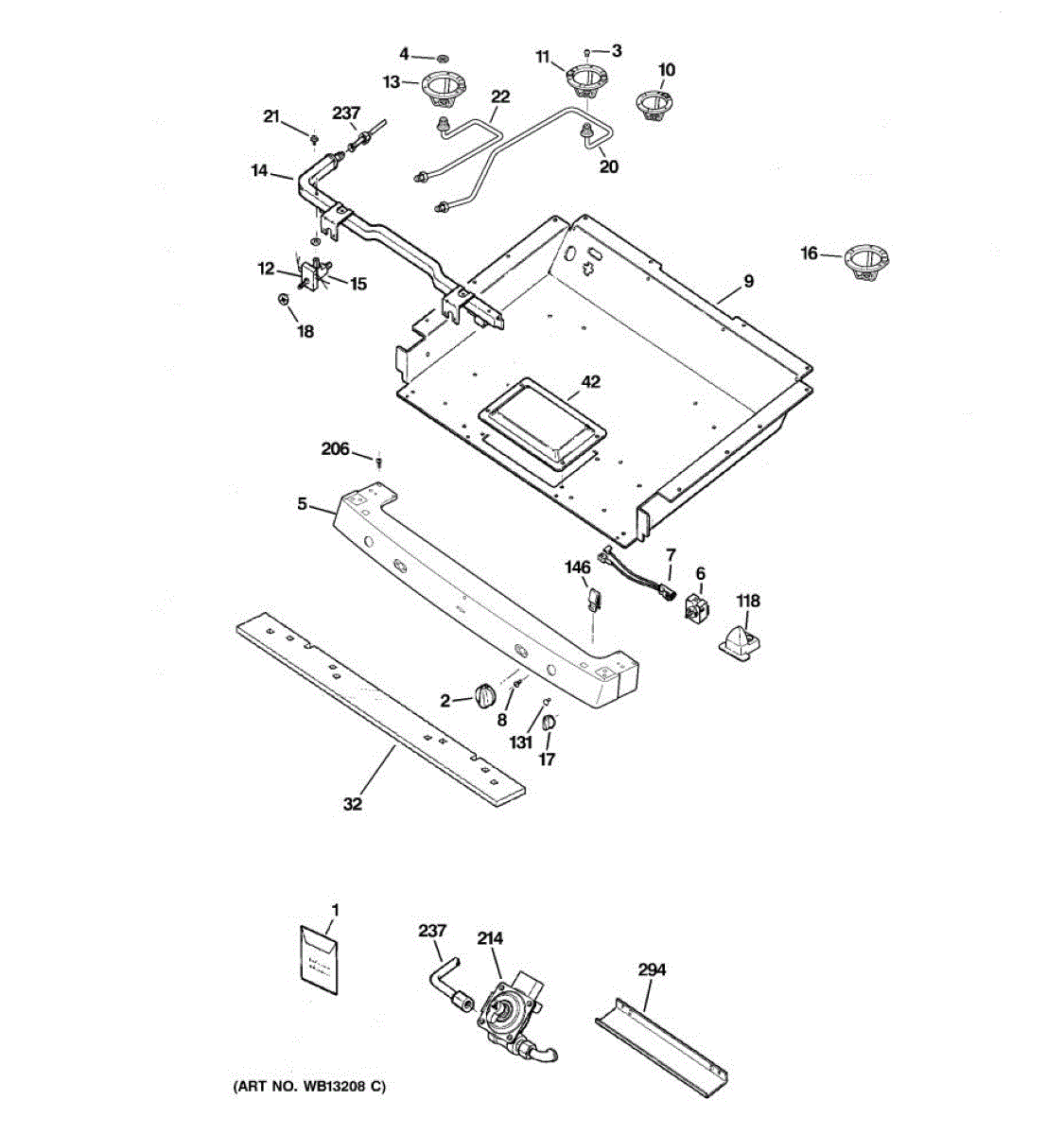

Parts for Ge J2B915CEH2CC: 01 - Gas & Burner Parts

Color: Biscuit. For black order WB03K10135. For white WB03K10137.

Gas burner orifice spud for range cooktop conversion between LP and natural gas. Replace when converting fuel types or if missing or damaged.

This LP gas orifice connector regulates the proper gas flow rate for liquid propane fuel in your range burners. It ensures the correct air-to-gas mixture for efficient combustion and proper flame characteristics. Replace when converting from natural gas to propane or when flames are yellow, too large, or won't stay lit.

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

This range surface burner igniter switch controls the gas valve and ignition system for individual burners. It opens the gas valve when turned and activates the igniter to light the burner. Replace if a burner won't light, continues clicking without igniting, or gas flows without ignition.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Fix a burner that won't light, leaks gas, or has a broken control stem. This gas valve regulates flow to one cooktop burner. Moderate DIY repair.

Secures the cooktop to the range frame. Replace this bracket if it's bent, broken, or missing to restore proper alignment and eliminate rattling.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

The rear surface burner orifice holder positions and secures the gas orifice that controls fuel flow to the back burner. Located beneath the cooktop surface at the rear burner position, it needs replacement when the burner flame is uneven, won't light properly, or produces yellow flames instead of blue.

This rear burner orifice controls gas flow to the back surface burner on gas ranges. It precisely meters the amount of gas entering the burner for proper flame size and heat output. Replace it if the rear burner flame is too high, too low, or burns with a yellow color instead of blue.

Secures the burner valve assembly to your gas range. Replace this mounting screw if worn, missing, or stripped to restore proper valve alignment and support.

This holder secures the gas orifice in proper position for your range's front surface burner. It ensures correct gas flow and flame pattern for even heating. If the front burner produces uneven flames, won't light properly, or has poor heat distribution, this orifice holder may need replacement.

This orifice holder secures the gas orifice that controls fuel flow to your range's surface burner. It threads into the burner assembly and ensures proper gas flow for consistent flame control. Replace if the burner flame is uneven, too large or small, or the holder is damaged and doesn't secure the orifice properly.

Insulation pad for gas range burner box. Replaces worn, damaged, or missing heat insulation. Installs inside the burner box compartment for protection.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

Covers the control panel lamp opening to diffuse light and protect from debris. Replace if broken, cracked, or missing to restore clear indicator visibility.

Size: 10-32 GXTT FLP.595 S

This part has been discontinued and is no longer available.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
