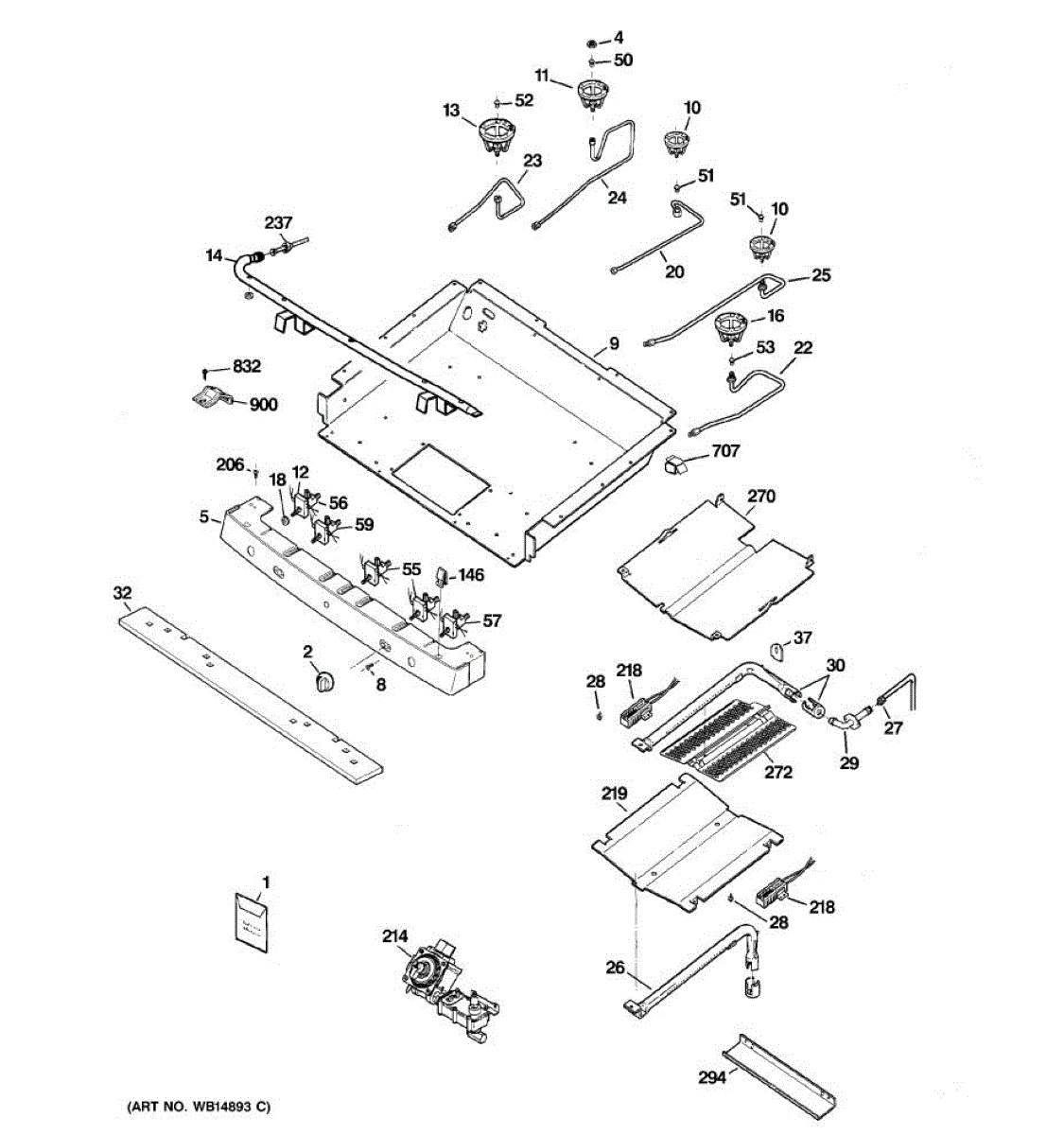

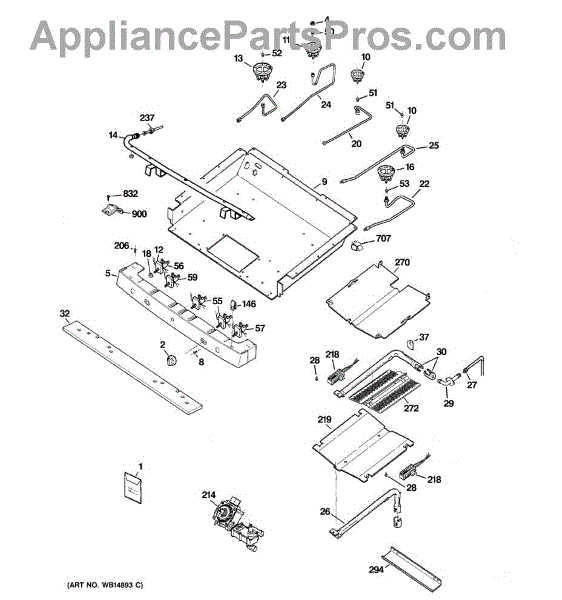

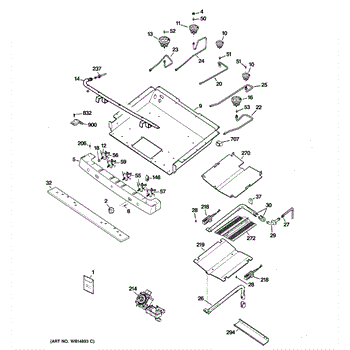

Parts for Ge JGB400SEP4SS: 01 - Gas & Burner Parts

The Burner Knob Kit is an OEM part for GE ranges. It includes replacement knobs for the 5 stainless steel knobs, allowing users to control the heat levels for cooking. These knobs fit onto the control shafts and provide a user-friendly interface for adjusting burner settings.

You should replace the burner knob kit if the knobs become damaged, worn out, or lost. Causes of a bad burner knob kit can include frequent use, exposure to high heat, or accidental impacts that cause the knobs to crack or break.

Symptoms of a bad burner knob kit include:

• Difficulty turning the burner knobs
• Knobs that are loose or fall off
• Cracks or visible wear on the knobs
• Inaccurate heat level settings

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

This Range Cooktop Bracket secures the main top to the appliance frame for a tight, stable fit. Replacing a bent or missing bracket can correct a loose, misaligned, or rattling cooktop and help it sit flush.

• Secures the main cooktop to the chassis to prevent lifting or shifting during use
• Helps maintain proper alignment and a flush fit with surrounding trim
• Common symptoms include a loose or uneven cooktop, rattling, or visible gaps
• Useful when the original hold-down bracket is bent, missing, or damaged

• Disconnect power; for gas ranges, shut off the gas supply before servicing.
• Support the cooktop while replacing the bracket; beware of sharp edges.
• Reuse manufacturer-specified fasteners where applicable and tighten securely without overtightening.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This is an orifice holder, sometimes referred to as a surface burner orifice holder. This part allows the gas to reach the burner so that the stove works for cooking on the stovetop. This part is compatible only with gas ranges.The user will need to replace this part if the orifice holder is bent, broken, or missing. It's possible the holder is damaged if the gas is not consistent or if the gas will not turn on at all. Always make sure to turn off the gas supply and double check that the oven is completely off before starting this repair. The user will need some tools for this repair including a screwdriver, a mounting screw, and sealing putty to make sure there is an airtight fit. This is an OEM part sourced directly from the manufacturer. It is sold individually. This part is compatible with machines from manufacturers like General Electric.

This Bake Burner Assembly is an OEM part for GE ovens and ranges. The bake burner assembly includes both the igniter and the burner tube. It is responsible for producing the flame that heats the air inside the oven cavity during baking and broiling.

Causes of a bad bake burner can include wear and tear from frequent use, clogging or blockage of gas ports, or damage from exposure to high temperatures and spills.

Symptoms of a bad bake burner include:

• Uneven baking or cooking results
• The oven not heating up properly or taking too long to reach the desired temperature
• Visible damage or corrosion on the burner
• The oven emitting unusual smells or noises during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner supply tube delivers gas from the range manifold to an individual surface burner, restoring proper fuel flow so burners ignite and produce an even flame. Direct replacement for the corresponding OEM supply line. What it does:

• Channels gas from the manifold to a specific surface burner for normal operation
• Helps restore ignition when a burner won't light or has a weak/uneven flame
• Replaces corroded, cracked or bent tubing that can restrict gas flow
• Designed to match the original routing and connection points for proper fit

• Turn off the appliance gas supply and electrical power before beginning any work.
• Confirm the correct tube orientation and secure fittings to the manifold and burner assembly.
• After installation, check all connections for leaks with a soapy-water solution or approved leak detector; do not use an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

Medium LP orifice

LP gas. SM .63mm

This LP orifice spud meters gas to a range burner when using liquid propane. Replacing a worn or incorrect jet helps restore proper flame size and clean combustion during LP setup or conversion.

• Meters LP gas to the burner for correct flame height and color
• Helps resolve large yellow flames, soot, and poor simmering caused by an incorrect/blocked spud
• Supports safe operation when converting from natural gas to LP per the manufacturer's instructions
• Can improve ignition and flame stability when the original jet is damaged or clogged

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Remove the existing spud with the correct wrench and install the replacement snugly—do not overtighten
• Perform any required air-shutter/burner adjustments per the service instructions
• After installation, leak-check with a soapy water solution; LP conversions should comply with local codes

This 270° burner valve controls gas flow to a single surface burner, restoring reliable flame adjustment and ignition on compatible gas ranges. Designed as a direct replacement to regain proper low-to-high flame control. What it does:

• Regulates gas flow to one surface burner for precise flame control across the full 270° rotation.
• Works with the control knob to adjust flame from low to high for cooking needs.
• Commonly replaces valves that cause a burner not to light, produce a weak or uneven flame, or not respond to the knob.
• Matches OEM function and mounting style for direct replacement where specified.

• Turn off the appliance power and shut off the gas supply before servicing.
• Check all gas fittings for tightness and test for leaks after installation using an approved leak-test method.
• Do not modify the valve or gas connections; follow OEM service instructions and local codes for gas appliances.

This surface burner valve regulates gas flow to a high-output surface burner on your range or cooktop. Replacing a worn valve restores smooth flame control and helps ensure consistent heating when you turn the burner knob.

• Controls and meters gas to the designated surface burner
• Symptoms include hard-to-turn knob, erratic flame, flame that won't adjust, or burner not lighting due to no gas flow
• Located behind the burner knob; connects between the manifold and burner tubing
• Designed for a high-capacity burner position with a 270-rotation valve

• Disconnect power and shut off gas supply before servicing
• Label or photograph hose/tube and wire positions for accurate reassembly
• Check for leaks with a non-corrosive leak-detection solution after reconnecting gas
• Recalibrate/center the knob on the valve stem and verify proper flame adjustment on LOW and HIGH

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This valve control assembly manages gas flow to the burner(s) and lets the control knob(s) start and precisely adjust the flame. Replace a worn or leaking valve assembly to restore smooth, safe flame control. What it does:

• Routes and regulates gas flow to the connected burner(s)
• Provides positive shutoff when the control is in the OFF position
• Helps address weak or no flame due to restricted flow
• Can resolve gas odor from the valve/manifold area
• Correct knobs that are hard to turn, bind, or won't fully shut off

• 1 valve control assembly

• Disconnect power and shut off the gas supply before servicing
• Remove control knobs/panels to access the assembly; note orientation and transfer any fittings as configured on your unit
• Apply approved thread sealant on NPT connections if required; tighten fittings securely without overtightening
• Leak-test all connections with soapy water or an approved detector before use; verify proper burner operation after reassembly

This is a replacement igniter glowbar. This is a genuine OEM part made by General Electric and has been sourced directly from the manufacturer. This part is intended to replace defective or burnt-out igniter glowbars in a variety of gas powered oven and stove models. A glowbar igniter works to electrically ignite the gas source on a stove or range. A defective glowbar will prevent the burner from lighting and emitting a flame. Always make sure that the stove is entirely disconnected from power and gas before starting any repair work. Proper tools are required to replace this part. Please ensure the appropriate safety precautions are followed when attempting to fix any appliances. For more accurate information on how and where to install this igniter glowbar, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this igniter glowbar is suitable for use on several different models of gas-powered ovens, stoves, and ranges manufactured by General Electric and Hotpoint. This is a genuine part made of high-quality, durable materials and is sold individually.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
