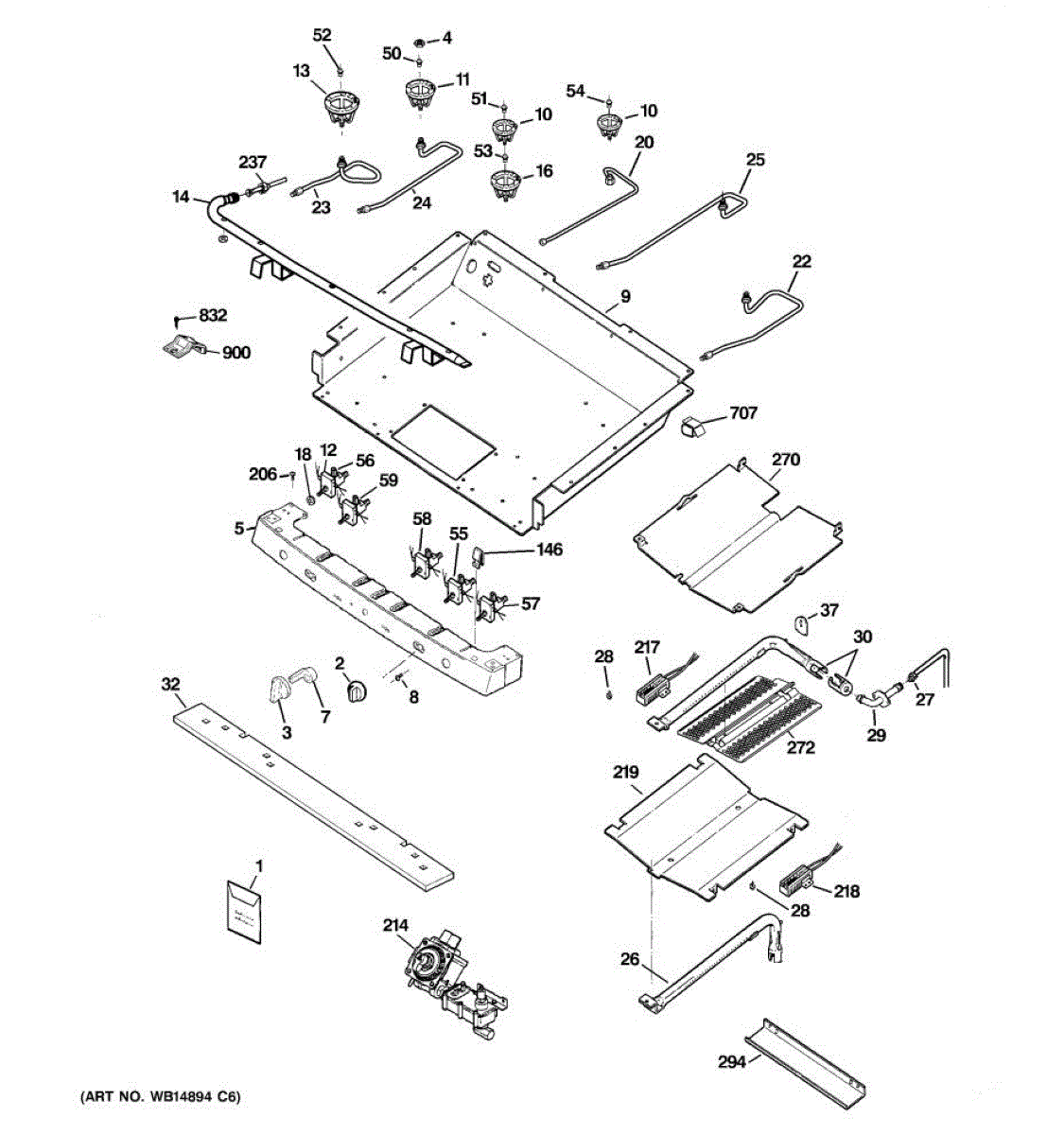

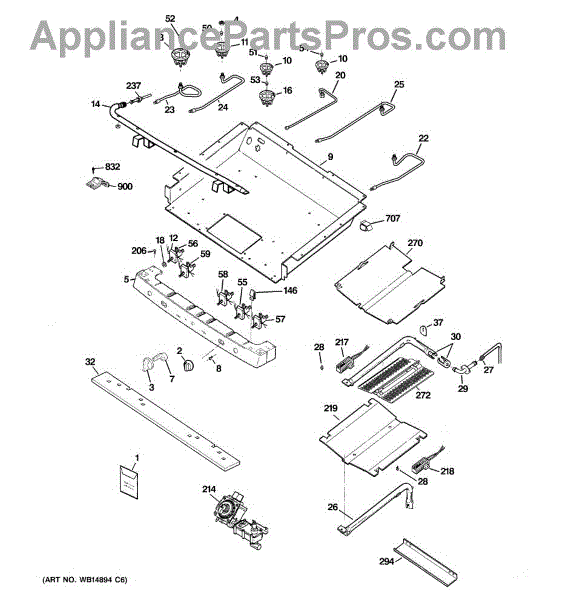

Parts for Ge JGB605SET1SS: 01 - Gas & Burner Parts

Parts for Ge JGB605SET1SS: 01 - Gas & Burner Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Ge
Part Number: WB64X10005

Secures rubber feet to range grates. Replace when feet become loose or detached to prevent grate movement. Verify fit with your range model number.

More
$102.33

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1
Product photo
By: Ge
Part Number: WB02T10111

Stainless steel cleaner for gas ranges and cooktops. Restores shine and removes fingerprints, smudges, and streaks from exterior surfaces.

More
$20.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
1
Product photo
4.6 (5)
By: Ge
Part Number: WB2K101
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

2
Product photo
By: Ge
Part Number: WB03K10317
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
Product photo
By: Ge
Part Number: WB03K10318
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

4
Product photo
By: Ge
Part Number: WB01K10037

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

More
$7.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
Product photo
By: Ge
Part Number: WB01K10002

Size: 8 - 32 inch.

More
$33.52

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
By: Ge
Part Number: WB63K10190

Burner box for gas ranges. Installs beneath the cooktop to house burner components. Replace if cracked, warped, rusted, or damaged from heat exposure.

More
$82.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
10
Product photo
By: Ge
Part Number: WB02K10360

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

  • Provides mounting support for specific under-top components, per model design
  • Helps maintain proper alignment and stability of cooktop parts
  • Replace when visibly bent, cracked, or corroded
What's included: One small cooktop bracket. Install notes:
  • Disconnect power; for gas models, also shut off gas and allow the unit to cool
  • Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
  • Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
  • Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

More
$13.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
11
Product photo
By: Ge
Part Number: WB02K10361

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

More
$17.30

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
12
Product photo
4.5 (2)
By: Ge
Part Number: WB24K10077
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

13
Product photo
4.0 (1)
By: Ge
Part Number: WB02K10362

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

14
By: Ge
Part Number: WB28K10583
$31.21

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
5.0 (1)
By: Ge
Part Number: WB02K10363

Secures the cooktop to the range frame, preventing shifting or rocking. Replace if your bracket is cracked, bent, worn, or missing for stable alignment.

More
$17.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
18
Product photo
By: Ge
Part Number: WB2K24

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

More
$35.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
20
Product photo
5.0 (1)
By: Ge
Part Number: WB28K10289
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

22
Product photo
5.0 (1)
By: Ge
Part Number: WB28K10812

This is an authentic OEM orifice holder sourced directly from the manufacturer for use on gas stoves. The orifice holder is located on the stovetop and supplies the gas to the burner base for cooking. If this part becomes bent or damaged or is missing from the stove, it should be replaced. If the orifice holder is damaged, the flame that is cooking the food may not receive a steady supply of gas, and the cooking temperature will be affected.Disconnect the power from the gas stove and shut off the gas supply. Take the grates and burner caps off the stoves. Remove the burner bases so that there is access to the top panel of the stove. Remove the screws holding the top panel in place and take the top panel off. Set the screws aside. Loosen the electrode bracket and take the orifice holder off the stove. Install the new orifice holder and tighten the mounting screw. Replace the parts removed during the repair and reconnect the gas and power.This orifice holder is a metal part that is sold individually. It is designed for use in gas ranges manufactured by General Electric.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

23
Product photo
5.0 (1)
By: Ge
Part Number: WB28K10813
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

24
By: Ge
Part Number: WB28K10815
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

25
By: Ge
Part Number: WB28K10817

Fix weak flames or ignition issues on your rear right burner. This orifice holder secures the gas orifice for proper positioning and reliable performance.

More
$22.59

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
Best Seller
Product photo
4.7 (26)
By: Ge
Part Number: WB16K10035

Fix an oven that won't heat, takes too long to preheat, or makes a whoosh sound when lighting. This bake burner assembly includes the igniter. DIY repair.

More
$173.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
27
Product photo
By: Ge
Part Number: WB28K10168

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

More
$23.81

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
28
Best Seller
Product photo
4.8 (18)
By: Ge
Part Number: WB1X1293

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

More
$11.34

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
29
Product photo
5.0 (1)
By: Ge
Part Number: WB28K10310
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

30
By: Ge
Part Number: WB16K10067
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

32
By: Ge
Part Number: WB35K10026

Insulation pad for gas range burner box. Replaces worn, damaged, or missing heat insulation. Installs inside the burner box compartment for protection.

More
$28.34

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
37
Product photo
5.0 (1)
By: Ge
Part Number: WB34K14

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

More
$15.59

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
50
Product photo
4.5 (2)
By: Ge
Part Number: WB28K10215

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

More
$20.62

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
51
Product photo
4.6 (5)
By: Ge
Part Number: WB28K10031

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

More
$22.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
52
Product photo
4.5 (2)
By: Ge
Part Number: WB28K10214

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

53
Product photo
By: Ge
Part Number: WB28K10839

This LP gas orifice connector regulates the proper gas flow rate for liquid propane fuel in your range burners. It ensures the correct air-to-gas mixture for efficient combustion and proper flame characteristics. Replace when converting from natural gas to propane or when flames are yellow, too large, or won't stay lit.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

54
Product photo
By: Ge
Part Number: WB28K10288

Liquid propane orifice spud for cooktop and range burners. Regulates gas flow for proper flame. Replace if damaged, worn, or converting from natural gas.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

55
Product photo
4.0 (2)
By: Ge
Part Number: WB21K10113

This 270° burner valve controls gas flow to a single surface burner, restoring reliable flame adjustment and ignition on compatible gas ranges. Designed as a direct replacement to regain proper low-to-high flame control. What it does:

  • Regulates gas flow to one surface burner for precise flame control across the full 270° rotation.
  • Works with the control knob to adjust flame from low to high for cooking needs.
  • Commonly replaces valves that cause a burner not to light, produce a weak or uneven flame, or not respond to the knob.
  • Matches OEM function and mounting style for direct replacement where specified.
What's included: One replacement burner valve (270°) assembly. Install notes:
  • Turn off the appliance power and shut off the gas supply before servicing.
  • Check all gas fittings for tightness and test for leaks after installation using an approved leak-test method.
  • Do not modify the valve or gas connections; follow OEM service instructions and local codes for gas appliances.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

56
Product photo
4.2 (4)
By: Ge
Part Number: WB21K10122
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

57
Product photo
4.5 (2)
By: Ge
Part Number: WB21K10117

Burner won't turn off or leaks gas when off? This top burner valve regulates gas flow to your range burner. DIY-friendly repair restores flame control.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

58
Product photo
By: Ge
Part Number: WB21K10114
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

59
Product photo
3.5 (2)
By: Ge
Part Number: WB21K10112
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

146
Product photo
5.0 (1)
By: Ge
Part Number: WB2K52
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

206
Product photo
5.0 (1)
By: Ge
Part Number: WB01K10091

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

More
$19.40

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
214
Product photo
4.0 (4)
By: Ge
Part Number: WB19K10043

Gas valve control assembly for ranges. Manages gas flow to burners and allows precise flame adjustment. Replace if worn, leaking, or damaged to restore control.

More
$254.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
217
Best Seller
Product photo
4.9 (748)
By: Ge
Part Number: WB13K21

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

  • The oven not heating up at all.
  • The oven taking longer than normal to heat.
  • Gas smell in the oven due to gas being released without ignition.
  • A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

More
$57.50

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
218
Best Seller
Product photo
5.0 (5)
By: Ge
Part Number: WB13X25261

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

More
$77.59

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
219
Product photo
5.0 (6)
By: Ge
Part Number: WB49K10037
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

237
Product photo
5.0 (1)
By: Ge
Part Number: WB28X24772

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

More
$51.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
270
By: Ge
Part Number: WB49K10025

Burner deflector guard for gas ranges. Installs around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

More
$73.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
272
By: Ge
Part Number: WB34X20303

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

  • Shields the oven top and components from direct broiler heat to prevent damage and discoloration
  • Helps maintain more even broiling by directing heat where food is placed
  • Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
  • Restores proper clearance between the burner and oven liner for safe operation
What's included:
  • One broil shield
Install notes:
  • Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
  • Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
  • Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

More
$10.28

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
294
By: Ge
Part Number: WB63K10054
$17.04

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
707
By: Ge
Part Number: WB02K10267

Secures and routes wiring in your range. Replace if loose, broken, or wiring is exposed. Verify fit with your model number before ordering.

More
$9.37

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
832
5.0 (1)
By: Ge
Part Number: WB01K10080

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
900
By: Ge
Part Number: WB02K10297

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.

More
$5.20

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
  • 5,000+ Repair Videos 5,000+ Repair Videos
  • Same-Day Shipping Same-Day Shipping
  • 365 Day Return Policy! 365 Day Return Policy!
  • Repair ForumFree Tech Support!
  • Top Quality Store on Google
