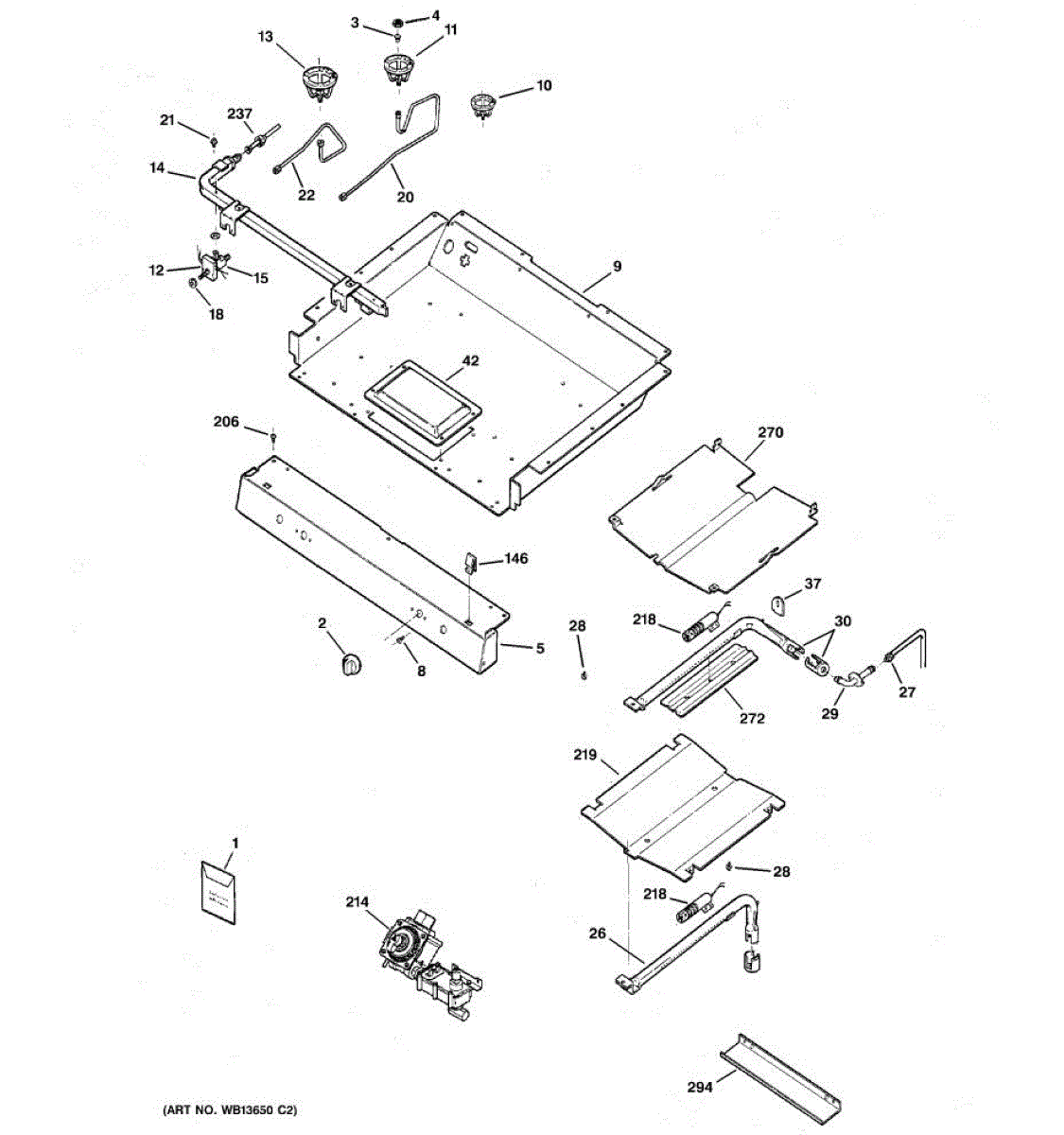

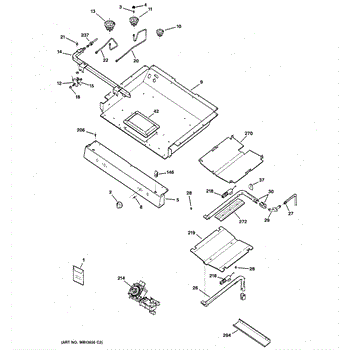

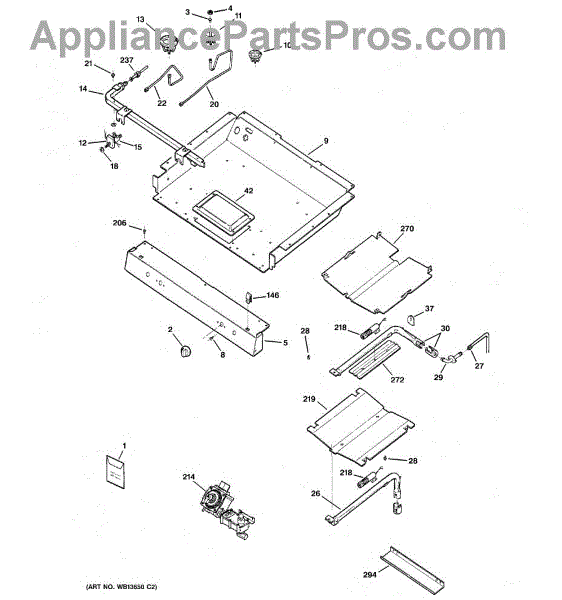

Parts for Ge JGBP33CEL2CC: 01 - Gas & Burner Parts

Color: Bisque

LP Gas. LG .99mm

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

LP gas. SM .63mm

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Color: Bisque

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This rotary switch replaces a worn or failed control selector to restore reliable function selection. It provides a direct, mechanical interface for choosing settings so controls respond properly when the knob is turned. What it does:

• Routes user input from the control knob to the appliance's control circuits
• Restores reliable selection when a knob won't change settings or clicks without engaging
• Stops intermittent or no-response behavior caused by worn switch contacts
• Supports normal operation of the affected control bank or function

• Disconnect power (unplug or switch off breaker) before starting any work
• Label or photograph wiring before removal to ensure correct reconnection
• Access may require removing a control panel or trim; keep fasteners and small parts organized
• After installation, restore power and verify all functions operate as expected

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This rear orifice holder mounts beneath the cooktop to route gas from the valve to the rear surface burner. It positions the orifice correctly for reliable ignition and a stable, even flame at the rear burner.

• Channels gas from the valve through the orifice to the rear surface burner
• Aligns and supports the orifice spud for proper flame shape and height
• Helps address delayed ignition, weak/uneven or yellow flames at the rear burner
• A damaged or loose holder can contribute to clicking without lighting or a gas odor near the burner

• Shut off gas supply and power; allow the cooktop to cool before servicing
• Remove grates, burner caps/heads, and lift or release the cooktop to access the manifold area
• Detach the old holder from the valve and mounting points; note orientation and transfer the existing orifice spud to the new holder
• Reassemble, restore gas, and check all connections for leaks with a soapy-water solution; verify proper ignition and flame

The Rear Orifice Holder is an OEM part for GE gas ranges. This part holds the orifice that regulates the flow of gas to the rear burner, ensuring proper gas distribution and efficient burner operation.

Causes of a bad orifice holder can include wear and tear from regular use, corrosion from exposure to cooking residues, or physical damage.

Symptoms of a bad rear orifice holder include:

• The rear burner not lighting or staying lit
• Uneven or weak flame on the rear burner
• Gas odors around the burner area
• Visible damage or corrosion on the holder

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Front Orifice Holder is an OEM part for GE gas ranges and cooktops. This part holds the gas orifice in place at the front burner. This part is essential for the proper delivery and distribution of gas to the burner, facilitating precise flame control and consistent cooking performance.

Causes for issues with the orifice holder often involve normal wear and tear, exposure to high temperatures and cooking spills, or physical damage during cleaning or maintenance activities.

Symptoms of a malfunctioning Front Orifice Holder include:

• Inconsistent flame size or shape at the burner
• Difficulty igniting the burner or experiencing uneven heating
• Signs of damage or corrosion on the holder itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This burner supply tube delivers gas from the range manifold to an individual surface burner, restoring proper fuel flow so burners ignite and produce an even flame. Direct replacement for the corresponding OEM supply line. What it does:

• Channels gas from the manifold to a specific surface burner for normal operation
• Helps restore ignition when a burner won't light or has a weak/uneven flame
• Replaces corroded, cracked or bent tubing that can restrict gas flow
• Designed to match the original routing and connection points for proper fit

• Turn off the appliance gas supply and electrical power before beginning any work.
• Confirm the correct tube orientation and secure fittings to the manifold and burner assembly.
• After installation, check all connections for leaks with a soapy-water solution or approved leak detector; do not use an open flame.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

Size: 10-32 GXTT FLP.595 S

This valve control assembly regulates gas flow to a single surface burner as you turn the knob, enabling smooth flame adjustment and reliable shutoff on gas ranges and cooktops when the original valve is worn or sticking. What it does:

• Meters gas to the surface burner in response to knob position
• Helps ensure consistent ignition and a stable flame across settings
• Restores precise simmer-to-boil control
• Typical symptoms: burner won't light, flame won't adjust or goes out on low, knob is hard to turn or won't shut off cleanly

• One valve control assembly

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove the knob and access panel/cooktop to reach the manifold
• Note valve orientation; transfer the existing orifice hood and/or spark switch if equipped
• After reassembly, check all connections with an approved leak-detection solution before restoring service

The Round Style Oven or Broiler Igniter is an OEM replacement part for GE gas ranges and cooktops. It has a round design and is responsible for reliably igniting the gas burners with each use.  Range: 2.5 to 3.0 amps.

Causes of a bad igniter can include wear and tear from repeated heating and cooling cycles, damage or defects in the electrical components, or issues arising from long-term exposure to high heat.

Symptoms of a bad igniter include:

• Difficulty starting or unreliable ignition of gas burners
• Burners failing to ignite with the press of the control knob
• Intermittent ignition problems
• Clicking sounds but no ignition

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
