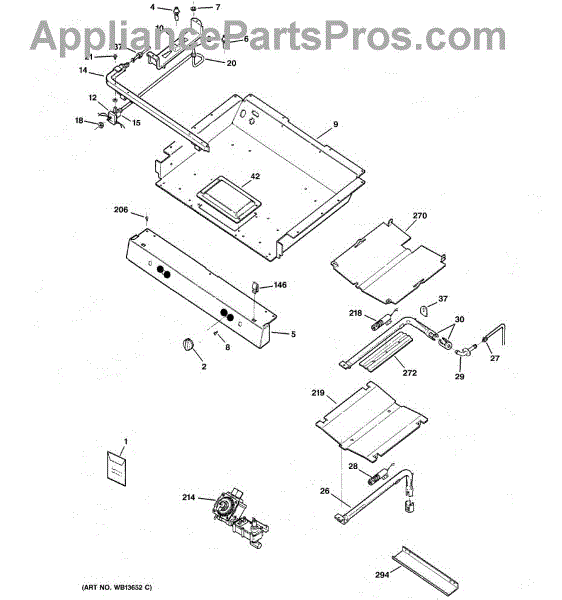

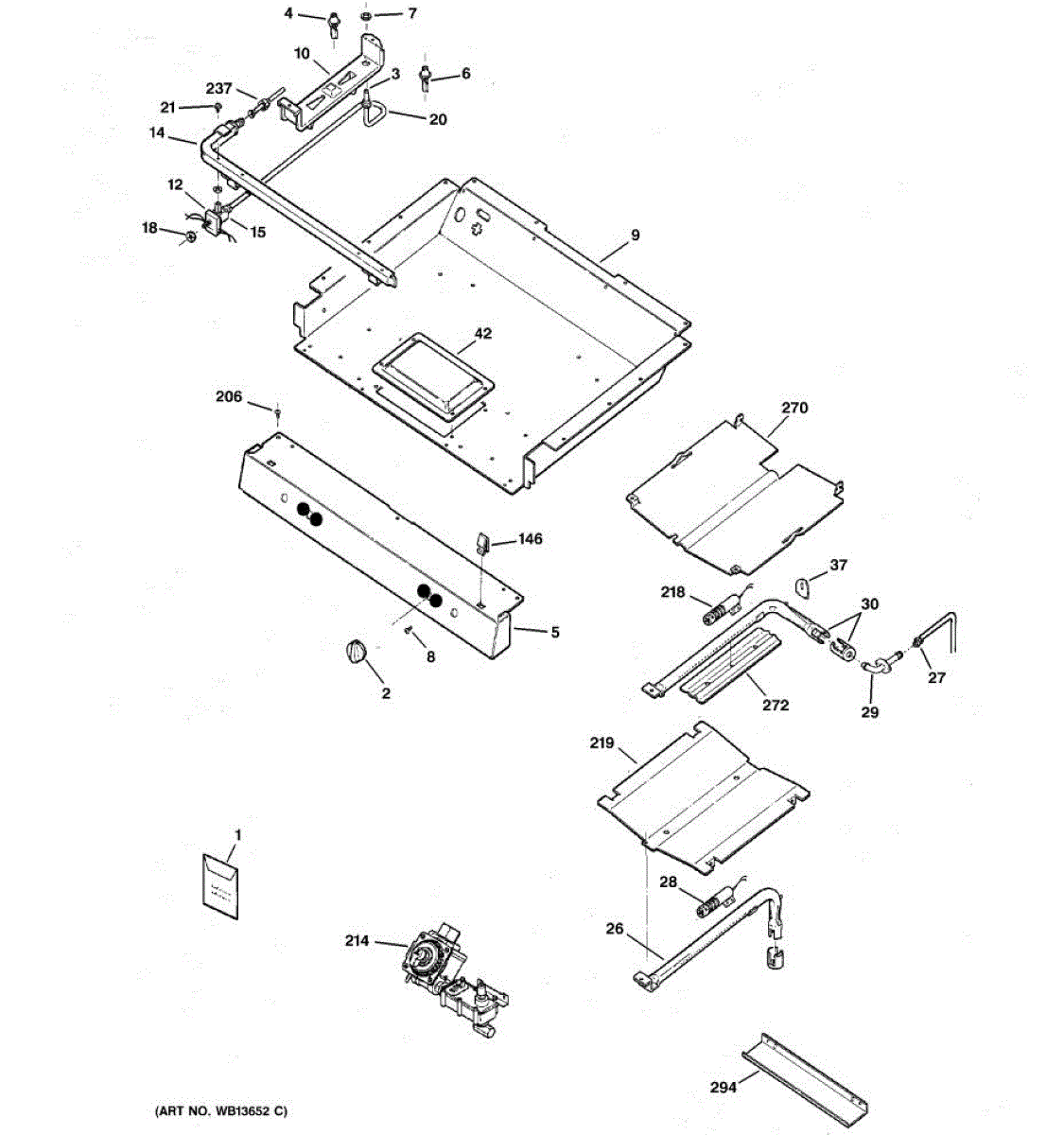

Parts for Ge JGBP35GXM2WW: 01 - Gas & Burner Parts

Color: White

This manifold panel is the front trim piece that covers and supports the cooktop manifold and controls, restoring the appliance's finished appearance and helping protect internal components from spills and debris. What it does:

• Replaces a cracked, bent, or visibly damaged front manifold trim
• Restores proper alignment and fit of the cooktop front and control area
• Helps protect valves, orifices and internal components from grease and spills
• Improves appearance when the original panel is scratched, dented, or corroded

• Designed for drop-in replacement; follow your model's service manual for disassembly order
• Disconnect power and gas supply before starting work
• Handle edges carefully and support the panel during removal to avoid scratching surrounding surfaces

Size: 8 - 32 inch.

Orifice bracket that mounts on your range burner assembly. Replace if the original bracket is cracked, bent, or missing to properly secure the orifice.

Secures and positions the gas orifice in your range burner assembly. Replace if bracket is bent, cracked, or missing to properly mount the orifice.

This range surface burner igniter switch controls the gas valve and ignition system for individual burners. It opens the gas valve when turned and activates the igniter to light the burner. Replace if a burner won't light, continues clicking without igniting, or gas flows without ignition.

Manifold pipe for gas ranges. Distributes gas to burners. Replace if cracked, corroded, or leaking. Connects gas supply to burner valves.

If your range burner won't light, stays on, or has weak flames, the top burner valve may be faulty. This valve controls gas flow to the burner head.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Fix an oven that won't heat, takes too long to preheat, or makes a whoosh sound when lighting. This bake burner assembly includes the igniter. DIY repair.

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

Size: 10-32 GXTT FLP.595 S

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Manifold supply tube for gas ranges. Delivers gas from the main supply line to the burner manifold. Replace if cracked, damaged, or leaking.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
