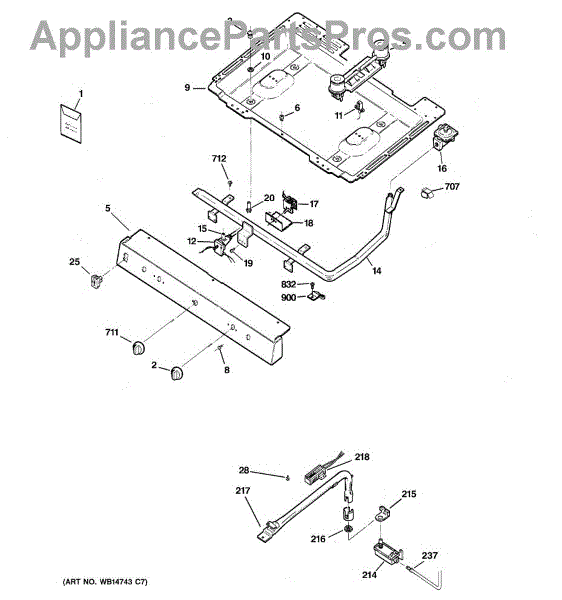

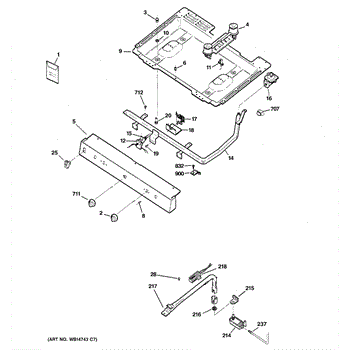

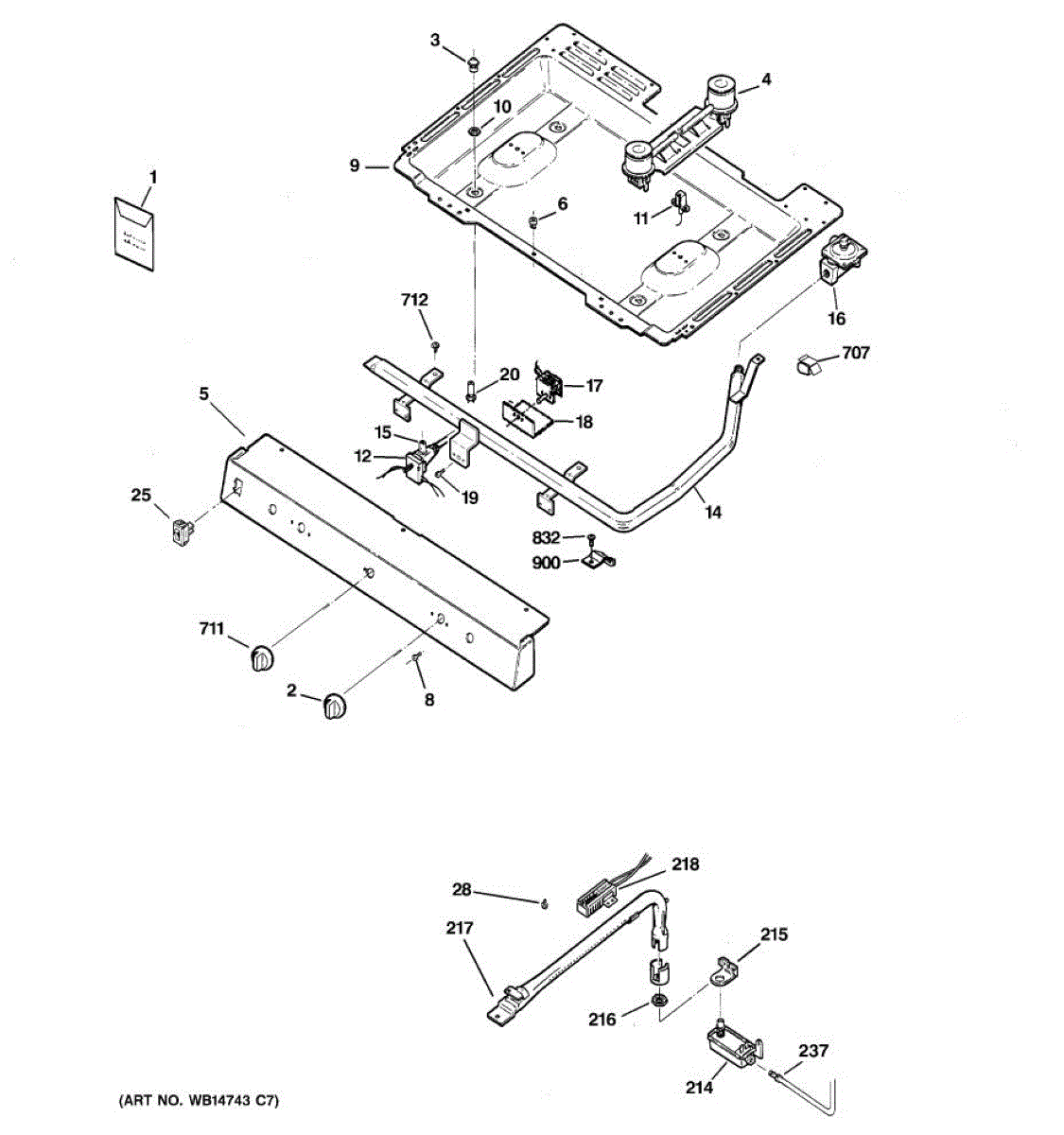

Parts for Ge JGBS07SET3SA: 01 - Gas & Burner Parts

The Mini Valve Knob is an OEM replacement part for GE ovens and ranges. This small but crucial component allows users to control the oven's gas flow or temperature settings with precision. The knob fits onto the valve stem and provides a user-friendly interface for adjusting cooking settings.

You should replace the mini valve knob if it becomes worn, cracked, or damaged. Causes of a bad valve knob can include regular use, physical damage from accidental impacts, or exposure to high temperatures that can cause the plastic to degrade.

Symptoms of a bad Mini Valve Knob include:

• The knob not turning smoothly or becoming stuck
• Cracks or breaks in the knob
• Difficulty in adjusting the gas flow or temperature settings
• The knob slipping or not fitting securely on the valve stem

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Natural gas orifice spud.

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

The Double Burner Kit is an OEM part for GE gas ranges. This kit includes the necessary components to replace the double burner, which is crucial for efficient cooking on GE gas stoves. The double burner provides two separate flame sources, allowing for versatile cooking options with different heat levels.

Causes of a bad double burner can include normal wear and tear, clogs from food debris, exposure to high temperatures, or physical damage. These issues can hinder the burner's performance and safety.

Symptoms of a bad double burner include:

• Uneven or weak flames
• One or both burners not igniting
• Difficulty in adjusting the flame size
• Noticeable gas odor when the burner is off

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This part has been discontinued and is no longer available.

Size: 8 - 32 inch.

This surface burner spark electrode creates the electric arc that lights the gas at the burner. Replacing a worn electrode restores consistent, reliable ignition.

• Generates a high-voltage spark at the burner head to ignite gas
• Helps ensure quick, repeatable lighting when the knob is turned to Lite
• Common symptoms: burner won't light, intermittent or weak spark, delayed ignition, lights only with a match
• If other burners spark normally, the affected burner's electrode is a common culprit

• Disconnect power and shut off gas before servicing
• Handle the ceramic insulator carefully to avoid cracking
• Match the new electrode's tip position and gap to the original; transfer mounting hardware as needed
• Route the ignition wire away from heat/sharp edges, ensure a firm connection, then reassemble and test ignition

This harness burner box is the electrical ignition harness assembly that routes power and signals to the range/stove burner valves and igniters, restoring reliable spark and control at the burner module. What it does

• Routes ignition and valve control wiring between the cooktop control module and individual burner valves/igniters.
• Enables spark ignition and proper valve response so burners light when controls call for flame.
• Commonly replaces worn or damaged harnesses that cause intermittent ignition, no-spark, or unresponsive valves.
• Keeps wiring organized and secured inside the burner box to prevent chafing or shorts.

• One harness burner box assembly as shown.

• Disconnect electrical power and shut off gas supply before starting work.
• Handle connectors carefully; match wire connectors and routing to the original harness during replacement.
• Inspect surrounding terminals and components for heat or corrosion damage and replace if needed.

This round gas valve controls flow to a surface burner, providing smooth flame adjustment and reliable shutoff. Replace a worn valve to restore precise burner control and safe operation on your gas range or cooktop.

• Regulates gas to the burner as the control knob turns, from low simmer to full flame
• Common symptoms: burner won't light though the igniter sparks, flame won't adjust or shut off, gas odor near the knob, or a stiff/stripped valve stem
• Services one burner position; multiple valves are used on many gas ranges/cooktops
• Installs in the burner manifold/orifice holder location specified by the manufacturer

• Disconnect power and shut off the gas supply before servicing
• Note stem orientation; transfer fittings/brackets from the original valve as needed and use approved thread sealant where specified
• After installation, leak-test all joints with an approved solution before restoring gas
• Verify proper ignition and flame adjustment on the burner after replacement

This gas pressure regulator reduces and stabilizes the supply gas to the appliance's manifold, helping ensure steady burner flames and safe, consistent heating. Replacing a faulty regulator can restore reliable ignition and oven performance.

• Reduces incoming line pressure to the specified manifold pressure for proper burner operation
• Maintains consistent flame height and heat output across burners
• Helps address flame surging or fluctuation when other gas appliances in the home turn on

• Turn off gas supply and power before servicing; installation by a qualified person is recommended
• Follow the flow-direction arrow on the body and ensure proper mounting orientation
• Use approved pipe thread sealant on NPT threads only; do not use sealant on flare connections
• After installation, leak-test all joints with a non-corrosive solution and verify burner operation/manifold pressure per the service manual

The Oven Thermostat is an OEM part for GE ovens. This thermostat is a component in regulating the oven's heat, turning the heat on and off to maintain the desired temperature setting. With its precise calibration and durable construction, the oven thermostat is essential for achieving consistent cooking outcomes and preventing overheating, which could lead to burnt or undercooked food.

Causes of a bad oven thermostat include prolonged use, which can affect its sensitivity, and exposure to extreme temperatures, which may impact its accuracy.

Symptoms of a bad Oven Thermostat include:

• The oven not reaching the set temperature
• Oven temperature fluctuating too widely from the desired setting
• Food not cooking evenly or within expected time frames

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This is a replacement mounting screw for the refrigerator/freezer thermostat assembly. It secures the thermostat to the cabinet so temperature sensing and control remain stable and reliable. What it does:

• Secures the thermostat housing or bracket to the appliance cabinet
• Keeps the thermostat properly positioned for accurate temperature sensing
• Common fix when a loose, missing, or stripped thermostat fastener causes rattling or poor contact
• Small hardware part used during thermostat replacement or reassembly

• One thermostat mounting screw

• Turn off power to the appliance before starting any repair
• Use appropriate screwdriver and do not overtighten to avoid stripping the housing or threads
• If original hole or threads are damaged, inspect bracket or cabinet and replace as needed

Location: Right rear.

Location: Left rear.

Location: Right front.

Location: Left front.

Color: Black

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This GE Oven Safety Valve is an OEM replacement part for GE ranges. The part's primary function is to prevent gas from releasing until the igniter has received enough voltage to ignite it safely. Not allowing any gas to exit before ignition helps avoid potential safety hazards from uncombusted gas.

Causes for failure could include wear and corrosion over many years of use. Repeated heating and cooling stresses may cause cracking or breaking in the valve's delicate regulating components. Mineral deposits or dirt buildup may also obstruct proper opening and closing.

Symptoms of a faulty safety valve would include:

• gas releasing or leaking even when the igniter is not lit
• the oven or burners not lighting at all when the valve is engaged

This GE OEM part is also compatible with Hotpoint, RCA and select Kenmore models.


This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This tube routes water from the refrigerator's water valve to the dispenser or ice system, restoring proper water flow and stopping leaks when a cracked or clogged supply tube is the issue. Easy direct replacement for affected lines. What it does

• Carries water from the valve to the dispenser or ice maker so the appliance can fill and dispense properly.
• Commonly replaced when you see leaks at fittings, a puddle under the fridge, or a visibly cracked or split tube.
• Can restore normal water flow when the line is pinched, kinked, or partially obstructed.
• Works with factory fittings and clamps used on the valve-to-ice maker/dispenser connection.

• Turn off the refrigerator's water supply and unplug the appliance before starting; drain remaining water from the line.
• Inspect fittings for damage; loosen or remove existing clamps/fittings to swap the tube, then secure new tube and clamps to prevent leaks.
• After installation, restore water and power, check all connections for leaks, and run the dispenser/ice maker briefly to confirm proper flow.
