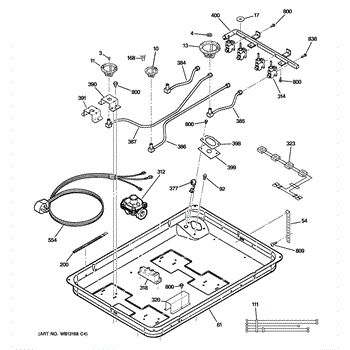

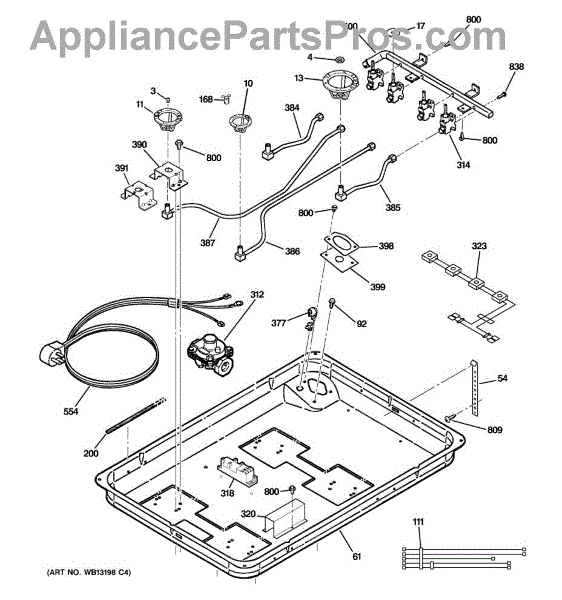

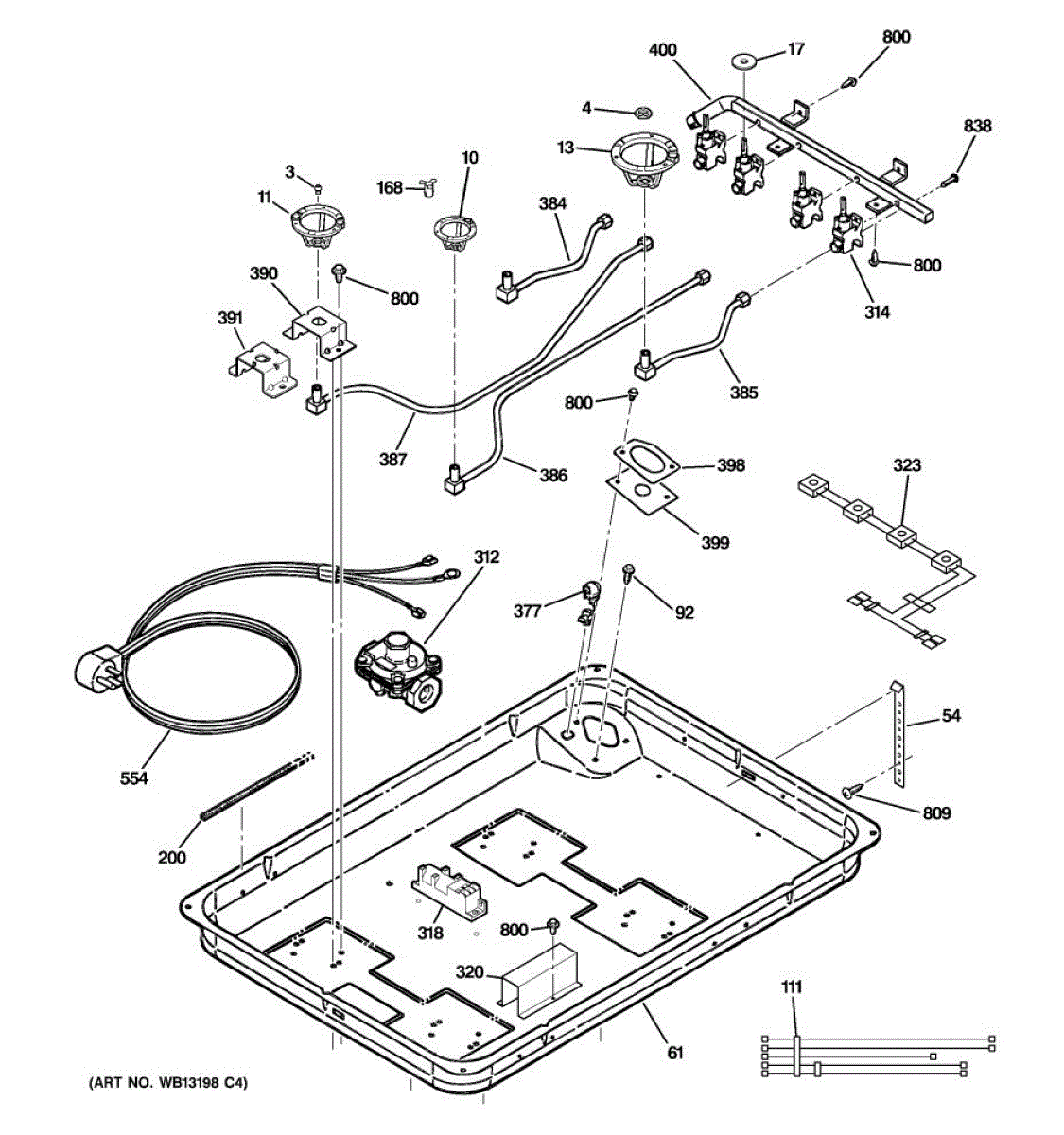

Parts for Ge JGP337CEJ2CC: 01 - Gas & Burner Parts

Natural gas. Med 1.50mm

Burner orifice spud for gas range conversion between natural gas and LP. Replace broken, missing, or incorrect size orifices when converting fuel type.

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Secures the ignition electrode on gas range burners. Replace if burners won't spark, igniter clicks continuously, or clip is corroded or loose. Confirm fit with your model number.

A safety valve that regulates natural gas pressure flowing to the range's burners and oven, ensuring proper flame characteristics and safe operation. Replace when burners won't light, flames are irregular in size or color, or you detect gas odors during operation.

9.5K Btu NAT gas, 9.1K Btu LP gas

5K Btu

12K Btu NAT gas, 10K Btu LP gas

The Spark Module is an OEM replacement part for GE gas ranges. It is responsible for generating electric sparks to ignite the gas burners on the cooktop. The spark module produces consecutive sparks when a surface burner knob is turned on, which ignite the gas mixture and allows the burner flame to ignite safely and consistently.

Causes of a bad spark module can include faulty electrodes, worn internal components that hamper sparking, or damage due to moisture intrusion or power surges over time.

Symptoms of a bad spark module include:

• Burners that will not ignite or only intermittently ignite
• Flashback or burning above the burner head
• The smell of gas when turning burners on

This GE replacement part is also compatible with models from Hotpoint, RCA, and certain Kenmore gas ranges.

Gas tube assembly for the left rear burner on your cooktop. Replaces cracked, damaged, or leaking tubes. Essential structural component for safe operation.

Metal bracket that secures the gas orifice in place on your cooktop. Replace if bent, broken, or missing to properly mount the orifice assembly.

Mounting screw hardware for ranges and cooktops. Replace missing, stripped, or corroded screws used to secure panels, brackets, or components.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Secures the burner valve assembly to your gas range. Replace this mounting screw if worn, missing, or stripped to restore proper valve alignment and support.
