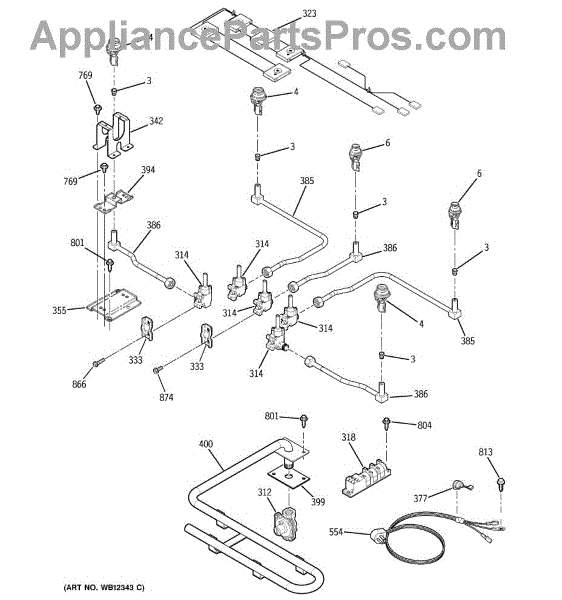

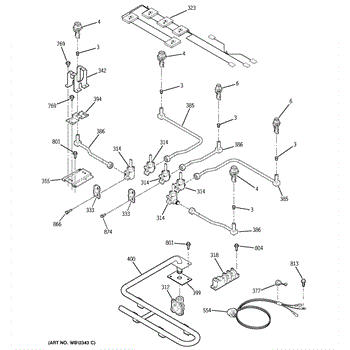

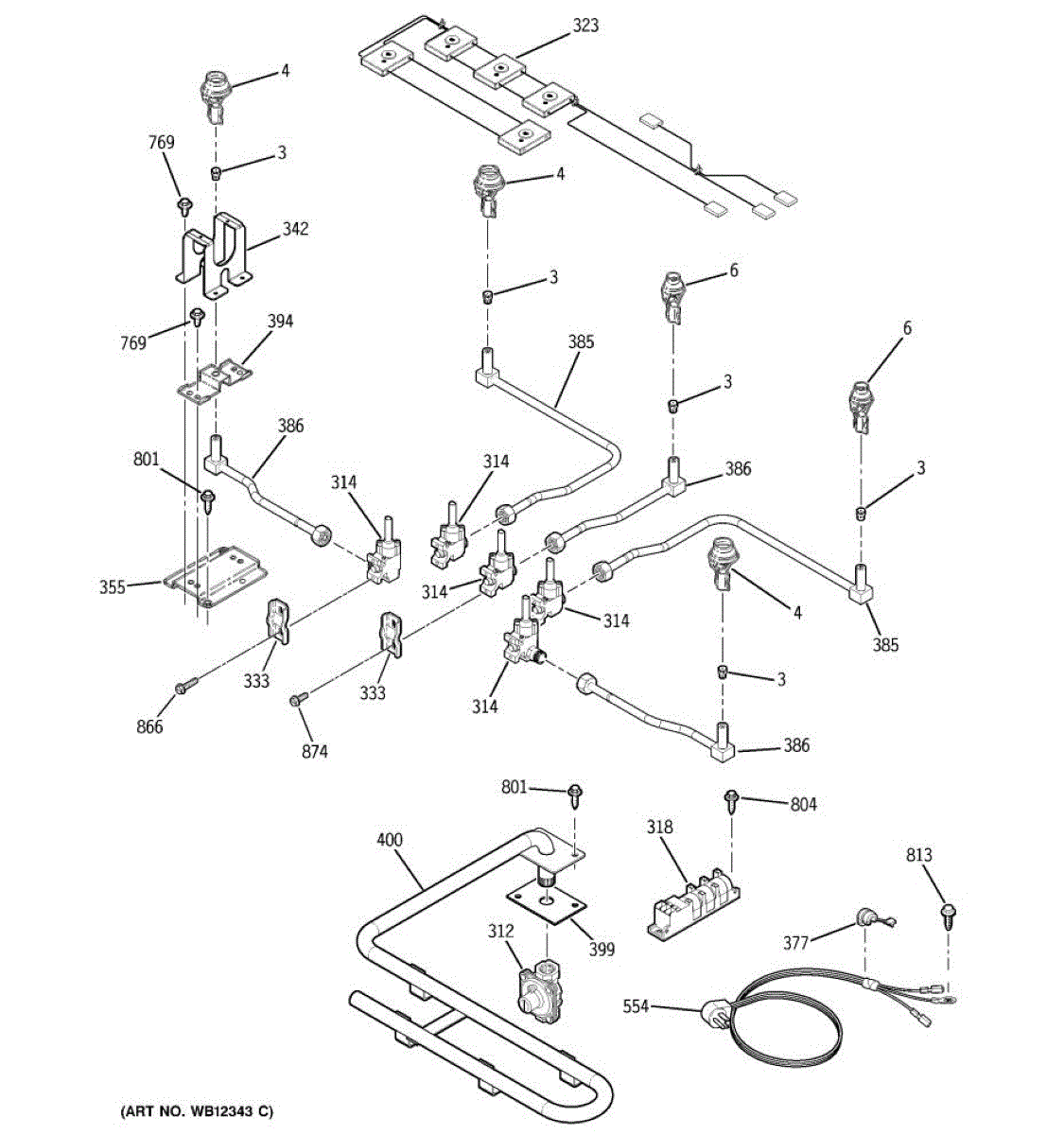

Parts for Ge JGP636BED1BB: 02 - Gas Burner Parts

This threaded gas orifice controls the flow rate of gas to individual burners on your gas range. It ensures the correct gas-to-air mixture for proper flame size and cooking performance. Replace this orifice if burners produce yellow flames, won't stay lit, or burn too high or too low.

This small brass fitting controls the gas flow rate to your range burner for natural gas connections. It ensures proper flame size and heating performance for medium-output burners. Replace this part if your burner flame is too large, too small, or burns with a yellow color instead of blue.

Gas pressure regulator for cooktops and ranges. Installs on the gas supply line to control flow to burners. Replace if cracked, leaking, or missing.

The Spark Module is an OEM part for GE cooktops. Located within the cooktop's control unit, this module is responsible for generating electric sparks to ignite the burners. Consisting of electronic components and wiring, the spark module works with other systems to reliably and safely light the gas or electric burners.

Symptoms of a bad spark module include:

• Burners not lighting or lighting intermittently
• Repeated flashing of the burner indicator lights
• Clicking or buzzing sounds coming from the control unit

Causes of a failed spark module can be exposure to moisture, dust or debris accumulating inside the control unit over time as well as mechanical or electrical degradation of the ignition components.

This genuine OEM GE replacement part is also compatible with some Kenmore cooktop models that use GE's control systems.

Secures gas valve connections on your cooktop. Replace if loose, cracked, or causing gas leaks. Verify fit with your model number before ordering.

Right angle

Gas tube assembly for cooktop burner systems. Connects gas supply lines to burner manifold. Replace if cracked, damaged, or leaking during inspection.

Replace your cooktop manifold gasket seal to prevent gas leaks and ensure safe burner operation. Signs include gas odor or uneven flames. Verify fit.

This pipe manifold routes gas from the main supply to the range or oven burners so the appliance can ignite and maintain a steady flame. It replaces a damaged or leaking manifold to restore safe gas flow. What it does:

• Delivers gas from the supply line to the burner valves and ports
• Helps ensure even burner ignition and stable flame performance
• Commonly replaced when the manifold is cracked, corroded, or leaking
• Can resolve issues such as gas odor near the appliance or burners failing to light

• One pipe manifold assembly

• Turn off the gas supply and disconnect power before servicing
• Use proper gas fittings and a leak test after installation
• Installation may require disassembly of the cooktop/oven top and valve connections

Replacement power cord for cooktops. Connects your cooktop to the electrical outlet. Replace if cord is frayed, damaged, or missing for safe operation.

These GE screws are a 12-pack of OEM replacement parts responsible for securing and fastening various components and panels in a GE range or oven. These screws are designed with a hexagonal head, which allows for the use of a compatible wrench or socket for tightening. They are commonly used to attach sheet metal panels, brackets, and other parts within the appliance, ensuring that these components remain securely in place during operation.

This part fixes the following symptoms:

• Loose or wobbly parts or panels within the appliance's interior or exterior
• Panels or components falling out of place, creating gaps or exposing internal parts
• Unusual noises or rattling sounds during the appliance's operation

The GE screws can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

ST10-16 X 7/16"

Replacement mounting screw secures panels, brackets, and components in place. Needed when original fasteners are missing, stripped, or damaged.

Replacement mounting screw secures panels, brackets, and controls on ranges and ovens. Needed when original screws are missing, stripped, or damaged.

Replacement mounting screw for securing panels, trim, and brackets on ranges. Needed when original screws are missing, stripped, or damaged during repairs.
