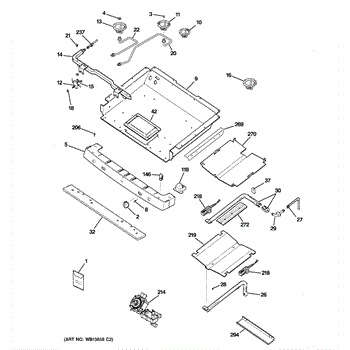

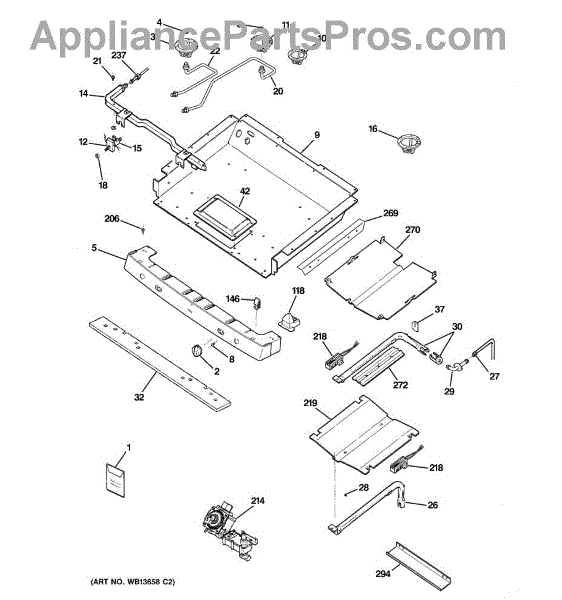

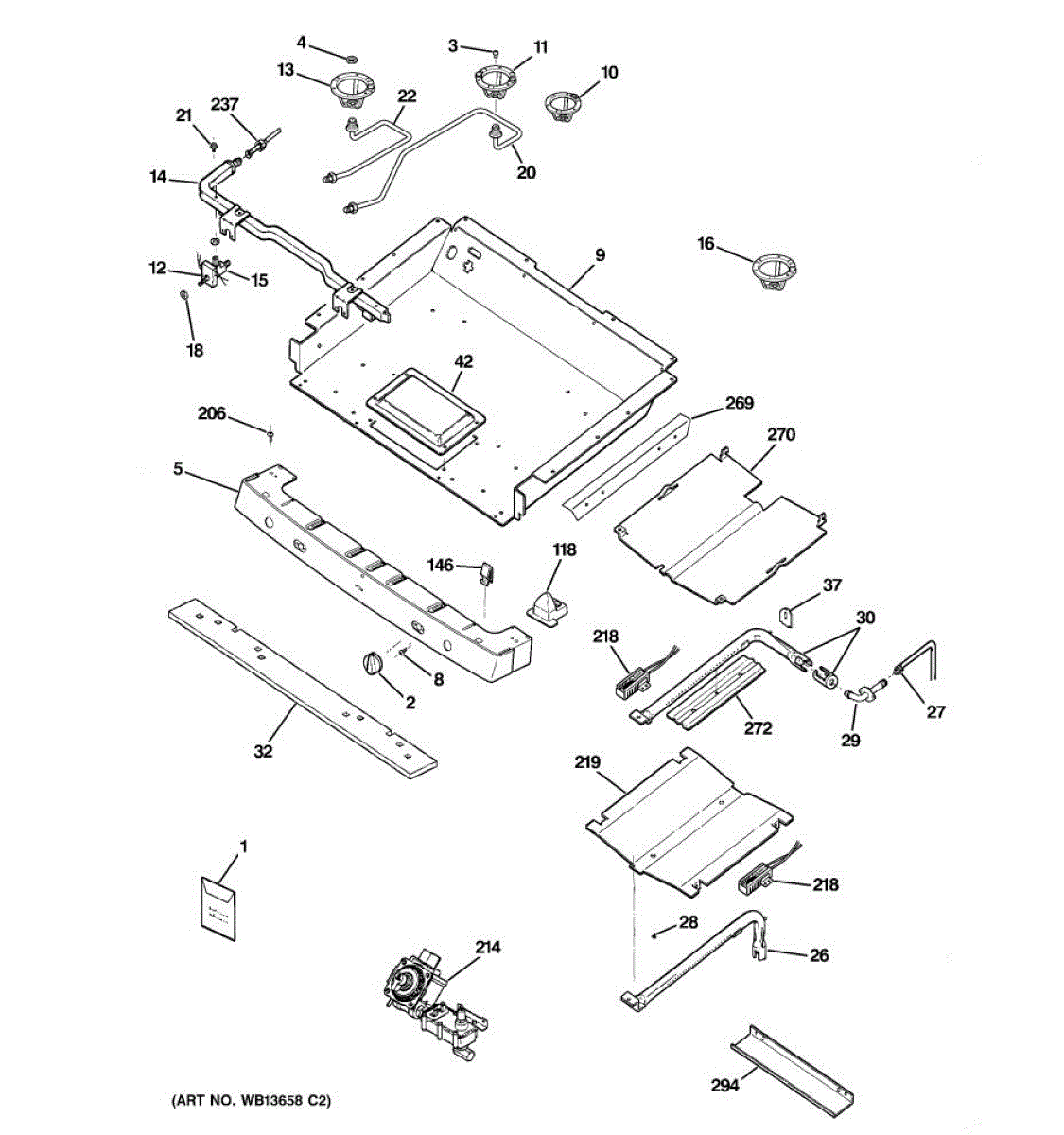

Parts for Ge PGB900SEM2SS: 01 - Gas & Burner Parts

Stainless steel cleaner for gas ranges and cooktops. Restores shine and removes fingerprints, smudges, and streaks from exterior surfaces.

Replace cracked, melted, or peeling burner control knobs on your range. This plastic knob installs on the control shaft to adjust heat settings.

This LP gas orifice connector regulates the proper gas flow rate for liquid propane fuel in your range burners. It ensures the correct air-to-gas mixture for efficient combustion and proper flame characteristics. Replace when converting from natural gas to propane or when flames are yellow, too large, or won't stay lit.

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

LP gas burner orifice spud for gas ranges and cooktops. Needed when converting fuel type or replacing a cracked, missing, or incorrect size orifice spud.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This range surface burner igniter switch controls the gas valve and ignition system for individual burners. It opens the gas valve when turned and activates the igniter to light the burner. Replace if a burner won't light, continues clicking without igniting, or gas flows without ignition.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Secures the cooktop to the range frame. Replace this bracket if it's bent, broken, or missing to restore proper alignment and eliminate rattling.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

The rear surface burner orifice holder positions and secures the gas orifice that controls fuel flow to the back burner. Located beneath the cooktop surface at the rear burner position, it needs replacement when the burner flame is uneven, won't light properly, or produces yellow flames instead of blue.

This rear burner orifice controls gas flow to the back surface burner on gas ranges. It precisely meters the amount of gas entering the burner for proper flame size and heat output. Replace it if the rear burner flame is too high, too low, or burns with a yellow color instead of blue.

This holder secures the gas orifice in proper position for your range's front surface burner. It ensures correct gas flow and flame pattern for even heating. If the front burner produces uneven flames, won't light properly, or has poor heat distribution, this orifice holder may need replacement.

This orifice holder secures the gas orifice that controls fuel flow to your range's surface burner. It threads into the burner assembly and ensures proper gas flow for consistent flame control. Replace if the burner flame is uneven, too large or small, or the holder is damaged and doesn't secure the orifice properly.

Fix an oven that won't heat, takes too long to preheat, or makes a whoosh sound when lighting. This bake burner assembly includes the igniter. DIY repair.

Delivers gas from the manifold to your range's surface burner. Replace this tube if it's cracked, leaking, corroded, or damaged to restore safe gas flow.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Insulation pad for gas range burner box. Replaces worn, damaged, or missing heat insulation. Installs inside the burner box compartment for protection.

Protective shield that covers the oven igniter. Replace if cracked, broken, or missing to shield the igniter from spills, drips, and falling debris.

Replace your damaged or missing range burner box cover. This protective housing installs over the burner assembly. Ideal for cracked or broken covers.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Replaces a cracked, leaking, or faulty oven gas valve and pressure regulator assembly. Installs in the oven burner control system on gas ranges.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Carries gas from the pressure regulator to the burner valve manifold on your gas range. Replace if the tube is damaged, cracked, or leaking to restore safe fuel flow.

Broil shield for gas ranges. Mounts inside the oven cavity to protect components from direct heat. Replace if cracked, warped, or damaged.

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available
