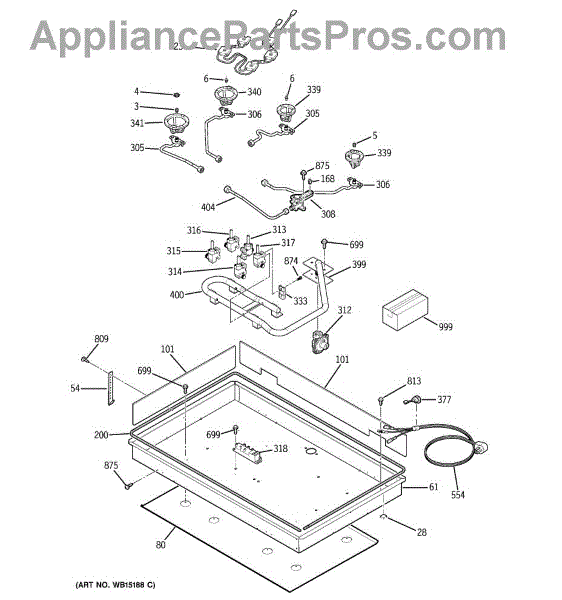

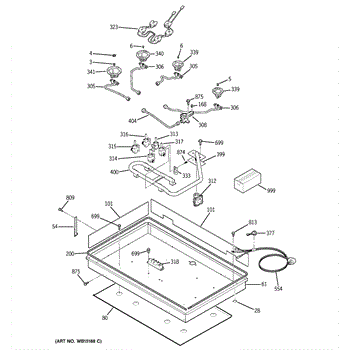

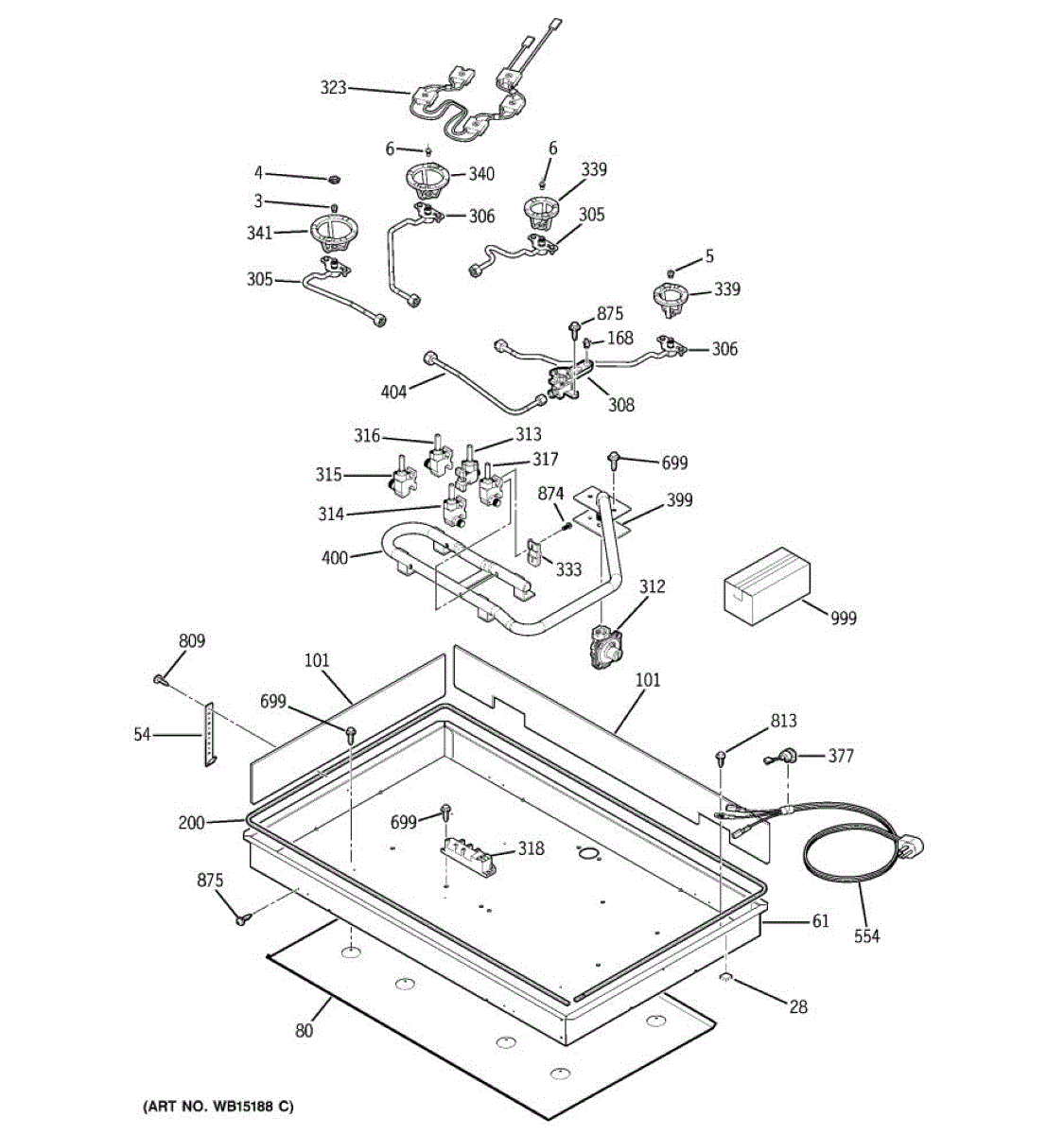

Parts for Ge PGP966SET1SS: 02 - Gas & Burner Parts

Liquid propane. High altitude. Main burner

Medium LP orifice

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This orifice spud directs natural gas from the valve to the burner, restoring proper flame shape and more consistent heat on compatible gas ranges and cooktops. Replace when the burner flame is weak or uneven. What it does:

• Channels natural gas into the burner orifice to create a steady, correct flame.
• Replaces a worn, clogged, or damaged spud that can cause low, sputtering, or uneven flames.
• Helps restore reliable ignition and more consistent cooking temperatures.
• Designed specifically for natural gas (NG) systems — do not interchange with LP parts.

• Turn off the appliance power and shut off the gas supply before beginning work.
• After installation, check all connections for leaks and test each burner for proper flame and ignition.

Liquid propane

This LP orifice spud meters gas to a range burner when using liquid propane. Replacing a worn or incorrect jet helps restore proper flame size and clean combustion during LP setup or conversion.

• Meters LP gas to the burner for correct flame height and color
• Helps resolve large yellow flames, soot, and poor simmering caused by an incorrect/blocked spud
• Supports safe operation when converting from natural gas to LP per the manufacturer's instructions
• Can improve ignition and flame stability when the original jet is damaged or clogged

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Remove the existing spud with the correct wrench and install the replacement snugly—do not overtighten
• Perform any required air-shutter/burner adjustments per the service instructions
• After installation, leak-check with a soapy water solution; LP conversions should comply with local codes

LP gas. SM .63mm

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

The Electrode Clip is an OEM part for GE gas ranges. This part secures the electrode, which provides the ignition spark that lights the burners.

Causes of a bad Electrode Clip can include corrosion, physical damage from impact or mishandling, or loosening over time due to heat exposure and repeated use.

Symptoms of a bad Electrode Clip include:

• Failure of the burners or oven to ignite
• Intermittent or inconsistent ignition
• Visible damage or deterioration of the clip itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This center tube assembly directs gas to the center burner so the range heats evenly and reliably. Replacing a damaged or clogged tube restores proper burner performance and consistent cooking results. What it does:

• Routes gas from the manifold to the center burner for correct flame distribution
• Helps maintain an even, stable flame across the center burner
• Can resolve weak, uneven, or inconsistent center-burner ignition
• Prevents blockage-related performance issues that affect cooking

• Shut off gas supply and power to the appliance before starting work
• Inspect mating connections and gaskets; replace seals if damaged
• After installation, perform a gas-leak test and verify proper ignition and flame

This right-rear tube assembly routes and secures the appliance's tubing at the rear of the cabinet, restoring a proper sealed connection and reliable flow where the original tube is damaged or leaking. What it does

• Replaces the right-rear tubing assembly that routes fluid at the back of the appliance.
• Restores a sealed connection to stop leaks and prevent water damage.
• Re-establishes correct routing to avoid kinks or strain on adjacent fittings.
• Supports proper operation of linked components by maintaining a secure fluid path.

• One tube assembly (right rear) as shown

• Disconnect power and turn off the water supply before beginning work.
• Inspect and clean mating fittings; replace damaged clips or fasteners as needed.
• Ensure tubing is routed without kinks and fittings are tightened to manufacturer torque recommendations.
• After installation, restore water and power, then check all connections for leaks.

This rear light tube assembly replaces a broken or burnt refrigerator interior lamp to restore even illumination in the rear compartment. Designed to fit the OEM lamp housing and connect to the existing socket for straightforward replacement. What it does:

• Provides rear compartment lighting so you can see food and controls clearly.
• Replaces cracked, chipped, or non-lighting tubes that cause dim or no illumination.
• Works with the factory lamp housing and wiring to restore proper light output.
• Helps resolve flickering or intermittent rear lighting when tube or filament has failed.

• One rear light tube assembly

• Disconnect power before starting any work.
• Handle glass tube carefully; wear gloves and eye protection to avoid cuts.
• Remove light cover or housing per your model's instructions to access the tube.
• Reinstall cover and restore power; test the light before finishing reassembly.

18K

The Pressure Regulator is an OEM part for GE ranges. This part controls and maintains the appropriate gas pressure flowing to the burners, ensuring consistent and safe operation of the stove.

Causes of a bad pressure regulator can include wear and tear over time, exposure to high temperatures, or contamination from dirt and debris.

Symptoms of a bad pressure regulator include:

• Inconsistent or fluctuating burner flames
• Burners not igniting
• The smell of gas around the range
• Reduced cooking efficiency

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Spark Module is an OEM part for GE cooktops. Located within the cooktop's control unit, this module is responsible for generating electric sparks to ignite the burners. Consisting of electronic components and wiring, the spark module works with other systems to reliably and safely light the gas or electric burners.

Symptoms of a bad spark module include:

• Burners not lighting or lighting intermittently
• Repeated flashing of the burner indicator lights
• Clicking or buzzing sounds coming from the control unit

Causes of a failed spark module can be exposure to moisture, dust or debris accumulating inside the control unit over time as well as mechanical or electrical degradation of the ignition components.

This genuine OEM GE replacement part is also compatible with some Kenmore cooktop models that use GE's control systems.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

Right angle

This seal manifold is the molded gasket that seals the connection between the manifold and valve assembly, preventing leaks and ensuring proper flow. It restores a watertight/gas-tight seal where the manifold meets the control valves. What it does

• Seals the joint between the manifold and valve assembly to prevent fluid or gas leaks.
• Helps maintain correct pressure and flow through the manifold and valves.
• Addresses symptoms such as visible leaks, strong odors, or intermittent flow/operation around the manifold area.
• Restores reliable sealing after manifold or valve service or when the original seal is damaged.

• Before you start, disconnect power and shut off water or gas supply as applicable to the appliance.
• Replace only with the matching OEM part and ensure mating surfaces are clean and dry for a proper seal.
• Tighten manifold fasteners evenly to the manufacturer's guidance to avoid distortion (follow OEM torque/sequence if available).

ST10-16 X 7/16"

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

Package of 12

Black. 8-18 AB HXW 3/8

This burner wire harness connects the range/oven ignition system components so the burner safely receives the correct spark or hot-surface signal. It replaces a damaged or worn harness to restore reliable ignition performance. What it does:

• Routes electrical connections from the igniter/spark module to the burner assembly
• Enables ignition sparks or hot-surface signals to reach the burner for reliable lighting
• Can stop symptoms such as burners failing to light, erratic or intermittent ignition, or continuous clicking
• Helps prevent loose or shorted wiring that can cause ignition faults

• Disconnect electrical power and shut off gas supply before starting any repair
• Label or photograph original wiring locations to ensure correct reconnection
• Route the harness clear of direct heat and moving parts; secure with original clips or ties
