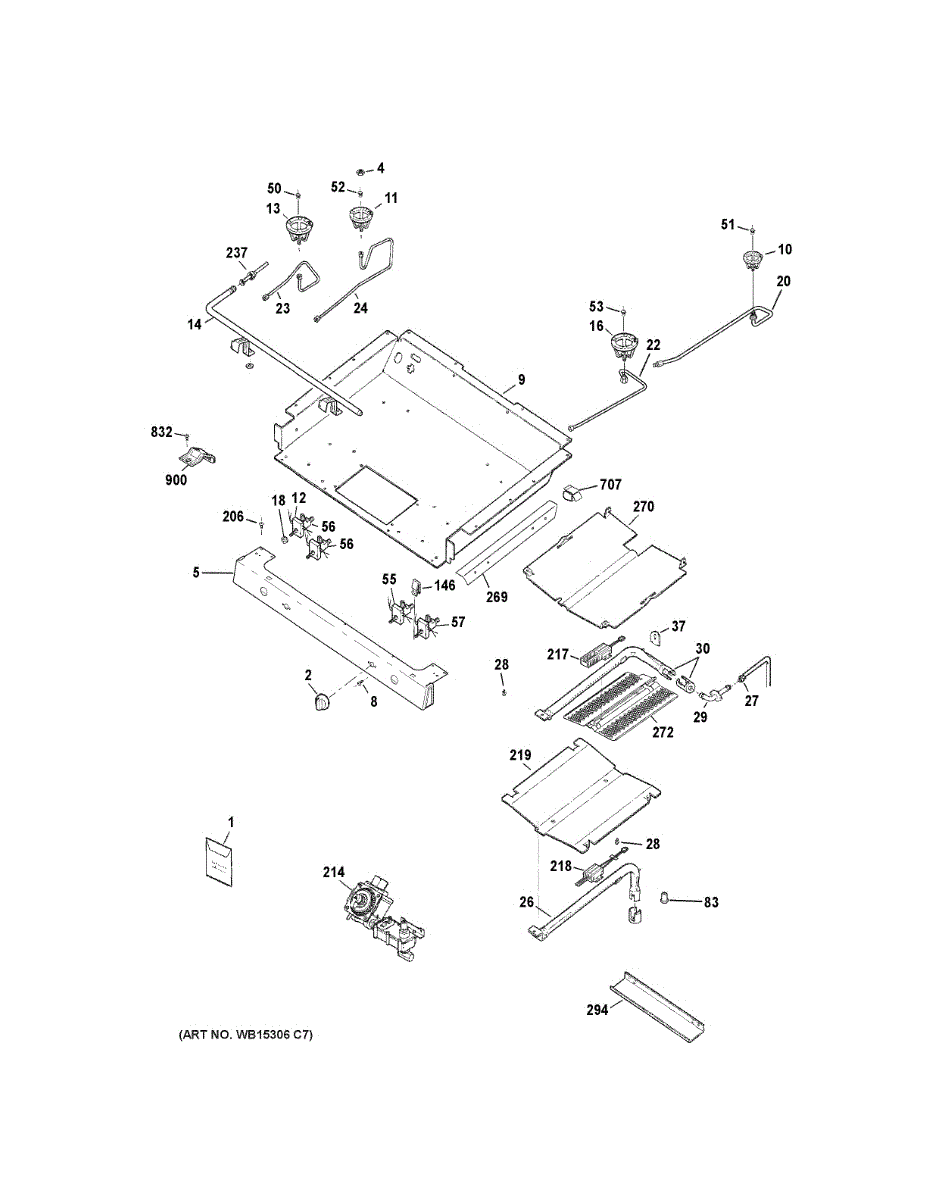

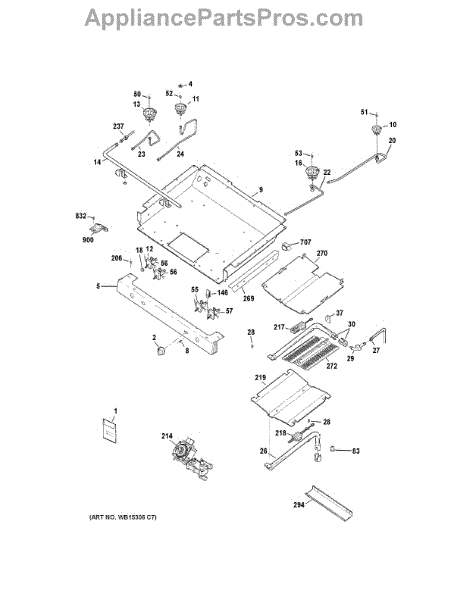

Parts for Ge JGB640DEF2BB: Gas Burner Parts

Replace a cracked, broken, or missing burner knob on your range cooktop. This control knob attaches to the valve stem for smooth heat adjustment.

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

Size: 8 - 32 inch.

Burner box for gas ranges. Installs beneath the cooktop to house burner components. Replace if cracked, warped, rusted, or damaged from heat exposure.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

If your gas range burners won't click or ignite, this switch harness connects the knobs to the spark ignition system. Restores reliable lighting.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Secures the cooktop to the range frame, preventing shifting or rocking. Replace if your bracket is cracked, bent, worn, or missing for stable alignment.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

Fix uneven flames or weak burner heat with this range orifice holder assembly. Regulates gas flow to burners. Moderate DIY repair in 30-45 minutes.

Fix uneven flames or burner ignition issues with this gas range bake burner tube. Delivers gas from valve to burner for proper heating and baking.

Restores proper gas flow when burners won't light or flame is weak. This supply tube connects the valve to the burner for reliable ignition and heat.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

Fix uneven browning or weak broiling with this oven broil burner. Restores high-temperature top-down cooking for proper searing and browning.

This cover ignitor protects the oven or range ignitor assembly and helps keep the ignitor clear of drips and debris for reliable ignition. It's a simple replacement that restores the ignitor's protective shield. What it does

• Protects the ignitor element from spills, grease, and debris that can interfere with ignition
• Helps maintain consistent ignition by shielding the ignitor from direct contact
• Commonly used when the original cover is cracked, warped, or missing
• Can resolve ignition issues caused by physical damage or buildup on the ignitor area

• One cover ignitor

• Disconnect power (and gas supply on gas appliances) before starting any repair
• Handle the ignitor assembly carefully; avoid touching the ceramic or ignitor tip
• Use basic hand tools; ensure the cover seats properly without forcing or cracking it
• After installation, restore power/gas and test the burner or oven according to the appliance manual

This small threaded component controls gas flow to LP gas burners and is located within the burner assembly. Replace when burners produce yellow flames, won't ignite properly, or have uneven flame patterns.

Weak or uneven flames on your gas range? A clogged or damaged orifice spud restricts gas flow to the burner. Simple replacement restores proper flame size.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

Weak or uneven flames on LP gas? This range burner orifice spud meters propane flow for steady, consistent flames. Restores proper gas delivery.

This surface burner control valve regulates gas flow from the manifold to a cooktop burner. The 270-degree rotation provides smooth flame adjustment. Replace a worn valve to restore reliable ignition and precise, consistent flame control. What it does:

• Meters gas to one surface burner as you turn the knob (270-degree sweep)
• Supports proper ignition and steady flame across low-to-high settings
• Common fix for a burner that won't light or has weak/inconsistent flame
• Helps when the control knob is stiff, binds, or won't align cleanly at Off

• One surface burner valve (270-degree rotation style)

• Disconnect power and shut off the gas supply before servicing
• Access the manifold; note valve orientation and stem position before removal
• Transfer the burner orifice/spud and any mounting hardware from the original valve; use an approved gas-rated thread sealant where specified
• After reassembly, leak-test all connections with a soap-and-water solution and verify proper burner operation

• This is the 270-degree rotation style; match rotation style and stem/shaft type to your original valve for correct knob alignment and flame control

Replace a faulty range burner valve if your burner won't ignite, has weak flames, or won't turn off. Moderate DIY repair in about 1 hour with basic tools.

Weak or uneven oven flame? This oven orifice spud secures the gas orifice and directs proper gas flow to the burner for consistent heating.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Fix an oven that won't heat or takes too long to reach temperature. This igniter glowbar opens the gas valve to ignite the burner. DIY-friendly repair.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

Manifold supply tube for gas ranges. Delivers gas from the main supply line to the burner manifold. Replace if cracked, damaged, or leaking.

Burner deflector guard for gas ranges. Installs around burner assembly to direct heat and protect components. Replace if cracked, warped, or missing.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available

Secures and routes wiring in your range. Replace if loose, broken, or wiring is exposed. Verify fit with your model number before ordering.

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.
