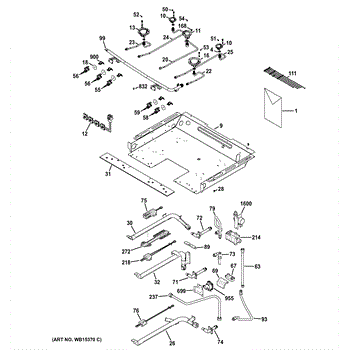

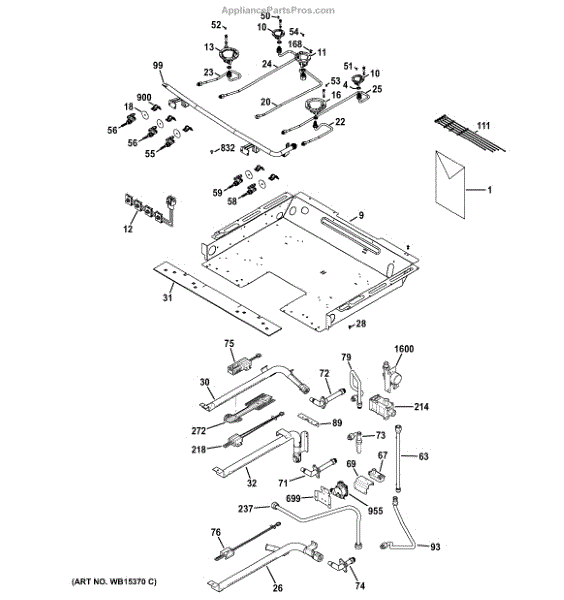

Parts for Ge JGB850DEF2BB: Gas & Burner Parts

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

This cooktop bracket secures the cooktop to the range frame, helping keep the surface stable and aligned for safe use. It replaces a worn or damaged support bracket to restore a snug, even fit. What it does:

• Anchors the cooktop to the range cabinet/frame to prevent shifting or rocking
• Helps maintain a flush, even cooktop surface for proper operation
• Can stop gaps that let debris fall between the cooktop and counter
• Useful when a loose, wobbly, or uneven cooktop is observed

• One cooktop mounting bracket

• Turn off power at the breaker and disconnect the appliance before starting work
• Access may require lifting the cooktop or removing trim—use proper support and a helper if needed
• Tighten mounting fasteners securely but avoid over-torquing to prevent damage

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This is an authentic OEM orifice holder sourced directly from the manufacturer for use on gas stoves. The orifice holder is located on the stovetop and supplies the gas to the burner base for cooking. If this part becomes bent or damaged or is missing from the stove, it should be replaced. If the orifice holder is damaged, the flame that is cooking the food may not receive a steady supply of gas, and the cooking temperature will be affected.Disconnect the power from the gas stove and shut off the gas supply. Take the grates and burner caps off the stoves. Remove the burner bases so that there is access to the top panel of the stove. Remove the screws holding the top panel in place and take the top panel off. Set the screws aside. Loosen the electrode bracket and take the orifice holder off the stove. Install the new orifice holder and tighten the mounting screw. Replace the parts removed during the repair and reconnect the gas and power.This orifice holder is a metal part that is sold individually. It is designed for use in gas ranges manufactured by General Electric.

This orifice holder secures the burner orifice at the left-rear cooktop burner to ensure correct gas flow for stable ignition and consistent flame. It replaces a worn or damaged holder to restore burner operation and flame control. What it does:

• Holds the burner orifice in the correct position for proper gas delivery to the left-rear burner
• Helps maintain a steady, even flame and reliable ignition
• Can resolve symptoms like weak or uneven flame or a burner that fails to light reliably
• Works with the corresponding burner assembly to keep gas flow aligned and secured

• One orifice holder

• Turn off gas supply and power to the appliance before servicing
• Tighten and position the holder per the appliance's service instructions; use correct orifice size and orientation
• Check for gas leaks and proper burner operation after installation

This orifice holder secures the burner orifice for the right-rear cooktop burner, keeping the gas orifice aligned for consistent ignition and flame. It helps restore proper burner performance when the holder is damaged or missing. What it does:

• Holds and positions the gas orifice for the right-rear burner so fuel flows through the correct opening
• Helps maintain a steady, even flame and reliable ignition at the right-rear burner
• Commonly replaced when the burner won't light, has weak or uneven flames, or when the holder is cracked or corroded
• Designed to mate with the burner tube and orifice for proper gas flow

• Turn off gas supply and power to the appliance before beginning any service
• Remove burner cap and assembly to access the orifice holder; use appropriate hand tools and avoid overtightening
• Inspect the orifice and any sealing gaskets for damage; replace damaged orifices or gaskets as needed

This bake burner is the oven's heat source for baking cycles, replacing a worn or damaged burner to restore consistent bake performance and even cooking results. Designed to match OEM fit and function. What it does:

• Provides the main heat for the oven's bake mode so food cooks through and browns properly
• Helps maintain even temperature distribution across the oven cavity
• Common replacement for symptoms like weak or no bake heat, uneven baking, or burner that won't ignite reliably
• Works with the oven's ignition and gas supply to deliver steady flame when functioning correctly

• Turn off power and shut off the gas supply before starting any repair
• Follow OEM service instructions; verify correct burner alignment and secure mounting before restoring gas and power
• Use caution handling sharp edges and hot surfaces; allow the appliance to fully cool before servicing

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bake burner is the oven's gas burner assembly that produces the controlled flame for baking and roasting. It restores proper oven heat so food cooks evenly and the oven reaches set temperatures. What it does:

• Provides the primary gas flame for the oven bake function
• Enables even heat distribution across the oven cavity for consistent baking
• Works with the oven burner tube and igniter to light and maintain a steady flame
• Commonly replaced when the oven won't heat, has weak flame, or bakes unevenly

• Disconnect power to the appliance and shut off the gas supply before servicing
• Inspect and replace any damaged gaskets or mounting hardware; follow OEM alignment for proper ignition
• After installation, check for proper ignition and stable flame; perform a leak test on gas fittings

Medium LP orifice

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This surface burner valve regulates gas flow to a single cooktop burner for smooth, precise flame control. Replacing a worn valve can restore reliable ignition and adjustment on the affected burner while maintaining safe operation.

• Regulates and meters gas from the manifold to one surface burner
• Works with the control knob to provide simmer-to-high flame settings
• Common failure symptoms include: burner won't ignite, weak or unstable flame, gas odor near the knob/valve area, or a knob that is hard to turn
• Labeled "270" per GE specification to match the correct valve style/position used in select models

• Disconnect power and shut off the gas supply before servicing
• Access the manifold; note the valve's position and orientation before removal
• Reassemble and check all connections for leaks using an approved leak-detection solution
• If the burner still won't light, also inspect the burner orifice, igniter, and spark system

The Valve and Burner Assembly is an OEM part for GE gas ranges. As the central mechanism delivering gas fuel to each burner, it works to control flames precisely while maintaining consistent heat levels.

Causes of a bad valve and burner assembly include failure of internal valves, cracks in manifolds allowing gas leaks, or blockages restricting proper fuel flow.

Symptoms of a bad valve burner include:

• Inability to ignite or extinguish burners properly
• Burners that produce unstable or excessively large/small flames
• Difficulty maintaining the desired heat setting
• Repeated sensor errors or shutdowns

This GE replacement assembly ensures your range's stove-top functions safely and dependably by accurately metering gas movement. It is also compatible with Hotpoint, RCA, and Kenmore models. Install yours today before minor issues require costly repairs.


The Valve Burner is an OEM part for GE gas ranges. It delivers gas to the cooktop through a valve system. This burner distributes gas evenly across its surface to provide consistent heating for pots and pans.

Causes can be wear over time, defects, dirt/debris buildup affecting the valve mechanism, or damage from mishandling.

Symptoms of a bad valve burner include:

• Uneven or abnormal flames when lit
• Inability to control burner flames and temperatures
• Burner making clicking/hissing noises
• No gas flow or faulty ignition

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Valve is an OEM replacement part for GE gas ranges. Located beneath each burner head, this valve regulates gas flow to its associated burner for consistent temperature control.

Causes of faulty valves often relate to corrosion or debris accumulation from gas vapors over time. Physical damage from impacts or misuse could also restrict proper valve function.

Symptoms include:

•  Burners failing to ignite or heat properly
•  Inability to adjust temperatures across burner settings
•  Abnormally loud noises or small flame projects during use

This genuine GE part is compatible with Hotpoint, RCA, and select Kenmore range models as well.

The Safety Valve is an OEM part for GE gas ranges. It automatically shuts off the gas supply if excess pressure is detected, serving as an essential safety component.

Causes of failure could be debris lodged in the valve opening, worn sealing edges from repeated exposure to extreme temperatures, or damage from impact over time.

Symptoms of a bad safety valve are:

• Inability to ignite or light the oven burners
• Continuous gas leaks even when oven is off
• Responsiveness issues when adjusting knob valves

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This 90° elbow assembly redirects airflow or fluid between two hose or duct sections, restoring proper routing and fit. It's a direct-fit replacement designed to snap or seal into existing appliance connections for reliable operation. What it does:

• Provides a secure 90° turn to route air or liquid through a hose or duct without kinking
• Restores proper ventilation or drainage where a damaged or cracked elbow causes leaks or poor flow
• Helps eliminate symptoms like reduced airflow, visible leaks, or loose hose connections
• Matches OEM form to maintain fit and alignment with adjoining components

• Verify the elbow matches the original part before installing; check orientation and connection type
• Clean mating surfaces and inspect hose/clamps for wear; replace clamps if they no longer secure
• Hand-start fasteners or clips, then tighten securely; avoid over-tightening plastic fittings
• Disconnect power and/or water and follow appliance safety instructions before working on the unit

A 90° elbow assembly that redirects a fluid or discharge line at a right angle to restore proper routing and a secure connection. Simple replacement for worn, cracked, or damaged elbow fittings. What it does

• Redirects flow between two hoses or fittings at a 90° angle to enable correct line routing
• Provides a sealed connection to help prevent leaks where a straight connection won't fit
• Restores proper flow path to eliminate kinks or pressure loss caused by a damaged elbow
• Common symptom: visible leak, moisture or pooling near the elbow fitting
• Common symptom: poor or restricted flow where the line changes direction

• One 90° elbow assembly

• Turn off power and shut off the appliance water supply before starting any repair
• Inspect mating hoses and seals; replace worn clamps or gaskets for a reliable seal
• Hand-tighten then snug fittings; avoid over-tightening plastic fittings to prevent cracking
• After installation, restore water/power and check thoroughly for leaks during a test run

This oven glow-bar igniter lights the gas bake or broil burner by heating and drawing current to open the safety valve. Replacing a weak or failed igniter restores reliable ignition, faster preheat, and consistent baking performance.

• Provides ignition for the oven's bake or broil burner
• Heats and draws proper current to open the gas safety valve
• Common symptoms: igniter glows but no flame, no glow/no heat, very long preheat, intermittent ignition
• Helps restore full flame and stable oven temperatures

• Disconnect electrical power and shut off gas before servicing
• Handle the igniter element carefully; avoid touching the tip and ceramic with bare hands
• Save and transfer any mounting hardware from the original part as needed
• After installation, restore gas and power, verify ignition, and check disturbed connections for leaks

This glow bar igniter lights the gas in your oven so it can heat properly. Replace it if your oven won't ignite or takes too long to reach the set temperature.

• Heats and glows to ignite the oven burner
• Common symptoms: no bake/broil heat, very long preheat, or igniter glows but the burner never lights
• Used for bake or broil on many models

• Disconnect power and shut off gas before servicing
• Handle by the ceramic base; avoid touching the igniter element with bare hands
• Transfer any mounting bracket or shield from the original part if your model uses them; route wires away from heat
• After installation, observe the first ignition to confirm proper operation

This L-shaped support bracket stabilizes and secures appliance panels or components, restoring proper alignment and reducing vibration. Built to match OEM fit so repair keeps the original mounting geometry. What it does:

• Provides a secure mounting point for panels, trim, or internal components
• Helps stop sagging, misalignment, or rattling caused by a broken or missing bracket
• Restores correct spacing and support for adjoining parts after a repair
• Fits where original L-style supports were used in the appliance cabinet or chassis

• High-level guide only: restore bracket to original location using existing screw holes or fasteners
• Use the same hardware or OEM replacements; tighten fasteners snugly but avoid over-torquing
• Disconnect power to the appliance before accessing internal panels or performing the repair

The Dual Safety Valve is an OEM part for GE gas ranges. As a critical safety component, it works to automatically shut off the flow of gas in the event of a flame outage, leak, or backdraft.

Symptoms of a bad safety valve include:

• Inability to ignite or light one or more gas burners
• Gas smells detected but all control knobs are off
• Repeated unwanted shutting off of burners
• Difficulty achieving or maintaining desired heat levels

Causes can be jammed or stuck valve components due to dirt or corrosion, cracks in valve material from repeated heating cycles, or loose internal mechanisms. This OEM replacement ensures your appliance operates safely by properly regulating gas flow.

This GE part is also compatible with Hotpoint, RCA, and Kenmore gas rangers. Replace yours today to restore performance and protect your home and family from gas leaks or other hazards.


The Igniter Glowbar is an OEM part for GE ovens. It is responsible for igniting the gas to start the burner, ensuring efficient and safe operation of the oven. This component heats up to a high temperature to ignite the gas, enabling the oven to reach and maintain the desired cooking temperature.

Over time, the igniter glowbar can wear out or fail due to repeated heating and cooling cycles, exposure to food spills, or electrical issues. Causes of a bad igniter glowbar include filament breakage, electrical component failure, or contamination from debris.

Symptoms of a bad igniter glowbar include:

• The oven not heating up
• The burner not igniting
• A noticeable delay in ignition
• The igniter not glowing when the oven is turned on

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed
