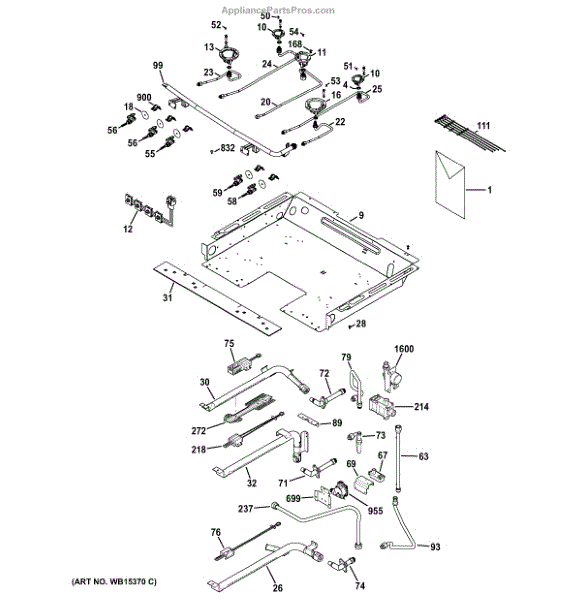

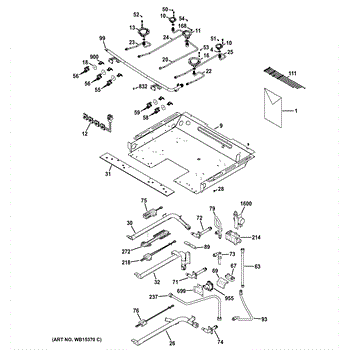

Parts for Ge JGB850EEF2ES: Gas & Burner Parts

Replacement fastener nut for gas ranges and cooktops. Secures panels and internal components. Needed when original nut is missing, stripped, or worn.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This metal bracket mounts beneath a cooktop surface burner and holds the orifice and burner base in position. It ensures proper alignment of the burner assembly for safe and efficient gas flow. Replace this bracket if it is bent, corroded, or broken, which can cause the burner to sit unevenly or not ignite properly.

Replace your range switch harness when burners won't ignite, temperature controls fail, or oven won't turn on. Connects control switches to main wiring.

Secures the cooktop surface to the range chassis for stable alignment. Replace if bracket is bent, broken, or missing to eliminate looseness and gaps.

Secures the cooktop to the range frame, preventing shifting or rocking. Replace if your bracket is cracked, bent, worn, or missing for stable alignment.

Protective cover that slips over the gas valve shaft to shield valve components from spills, food debris, and moisture. Replace if cracked or missing.

This is an authentic OEM orifice holder sourced directly from the manufacturer for use on gas stoves. The orifice holder is located on the stovetop and supplies the gas to the burner base for cooking. If this part becomes bent or damaged or is missing from the stove, it should be replaced. If the orifice holder is damaged, the flame that is cooking the food may not receive a steady supply of gas, and the cooking temperature will be affected.Disconnect the power from the gas stove and shut off the gas supply. Take the grates and burner caps off the stoves. Remove the burner bases so that there is access to the top panel of the stove. Remove the screws holding the top panel in place and take the top panel off. Set the screws aside. Loosen the electrode bracket and take the orifice holder off the stove. Install the new orifice holder and tighten the mounting screw. Replace the parts removed during the repair and reconnect the gas and power.This orifice holder is a metal part that is sold individually. It is designed for use in gas ranges manufactured by General Electric.

Fix weak flames or uneven heating on your gas range. This burner orifice holder secures the gas orifice for stable ignition and proper flame control.

Right rear burner won't ignite or flame is uneven? This range orifice holder secures the gas orifice for proper alignment and consistent flame performance.

Oven not heating evenly or baking too slowly? This bake burner restores consistent heat for proper baking. Direct replacement for the main heat source.

Secures the igniter to the burner assembly in gas ranges and ovens. Replace if stripped, missing, or damaged during igniter replacement or repair.

If your broiler won't heat or heats unevenly, the broil burner may need replacement. This gas range part restores proper broiling. Moderate DIY repair.

Insulation pad for gas range burner box. Replaces worn, damaged, or missing heat insulation. Installs inside the burner box compartment for protection.

Oven not heating or cooking unevenly? This bake burner assembly restores proper heat distribution so food cooks evenly and your oven reaches set temps.

LP gas orifice spud for converting gas range burners from natural gas to propane. Replace if missing, damaged, or switching fuel types on cooktop.

Weak or uneven flames on your gas range? A clogged or damaged orifice spud restricts gas flow to the burner. Simple replacement restores proper flame size.

Fix uneven flames or weak burner heat with this range burner orifice spud. Controls gas flow to each burner. Simple DIY repair in 15-20 minutes.

Burner orifice spud regulates gas flow to the burner on your range or cooktop. Replace if missing, damaged, or when converting between LP and natural gas.

Burner won't light or flame won't adjust? This surface burner valve regulates gas flow to restore precise flame control on your gas range cooktop.

Fix a burner that won't ignite or produce gas with this surface burner valve. Controls gas flow to individual burners on your gas range or cooktop.

Gas burner won't light or heats unevenly? This burner valve controls gas flow to your cooktop. Moderate DIY repair requiring stovetop disassembly.

Burner won't ignite or flame is uneven? This surface burner valve regulates gas flow to each burner for precise temperature control on your gas range.

Gas won't shut off or burner stays on? This safety valve controls gas flow and prevents dangerous pressure buildup in your range. Direct replacement part.

Replace your range's 90° elbow assembly to restore proper airflow routing between hose sections. Install when connections leak or don't fit securely. Verify fit with your model number before ordering.

90-degree elbow assembly for gas ranges. Connects gas supply lines at right angles. Replace if cracked, corroded, or leaking to ensure proper fitment.

90° elbow assembly redirects fluid or discharge lines at a right angle on your gas range. Replace if cracked, broken, or worn to restore secure connections.

Oven won't heat or takes forever to preheat? This igniter lights the gas burner by opening the safety valve. Moderate DIY repair restores reliable ignition.

Oven won't heat or takes too long to preheat? This glow bar igniter lights the gas burner. Common fix for no bake heat or igniter glows but gas won't ignite.

This L-shaped support bracket stabilizes and secures appliance panels or components, restoring proper alignment and reducing vibration. Built to match OEM fit so repair keeps the original mounting geometry. What it does:

• Provides a secure mounting point for panels, trim, or internal components
• Helps stop sagging, misalignment, or rattling caused by a broken or missing bracket
• Restores correct spacing and support for adjoining parts after a repair
• Fits where original L-style supports were used in the appliance cabinet or chassis

• High-level guide only: restore bracket to original location using existing screw holes or fasteners
• Use the same hardware or OEM replacements; tighten fasteners snugly but avoid over-torquing
• Disconnect power to the appliance before accessing internal panels or performing the repair

Lower bake supply tube for gas ranges. Delivers gas to the lower bake burner. Replace if cracked, damaged, or leaking to restore safe oven operation.

Fix burners that won't light or stay lit with this dual safety valve. Automatically shuts off gas flow during flame outages or leaks on gas ranges.

If your gas oven won't heat or ignite, the igniter may be broken or weak. This part glows to ignite gas. Moderate difficulty repair in 30-45 minutes.

This broil shield protects the oven interior above the broiler, helping direct heat and shielding the oven cavity from intense broiling temperatures for safer, more consistent broiling results. Durable metal construction resists warping. What it does:

• Shields the oven top and components from direct broiler heat to prevent damage and discoloration
• Helps maintain more even broiling by directing heat where food is placed
• Reduces the risk of flare-ups reaching wiring or insulation behind the oven liner
• Restores proper clearance between the burner and oven liner for safe operation

• One broil shield

• Disconnect power (and gas, if applicable) and allow the oven to cool completely before starting
• Remove oven racks and access the broiler area to unfasten and replace the shield using basic hand tools
• Inspect mounting tabs and surrounding liner; replace any damaged clips or screws as needed

Secures the thermostat assembly to your gas range or oven frame. Replace this mounting screw if it's stripped, missing, or damaged during repairs.

Secures the gas valve assembly to the frame of your range. Replace this bracket if it's bent, broken, or missing to properly mount the valve components.

Range burner won't ignite or gas won't flow? The valve lockout controls gas flow to burners. This safety component replacement takes 30-45 minutes.
