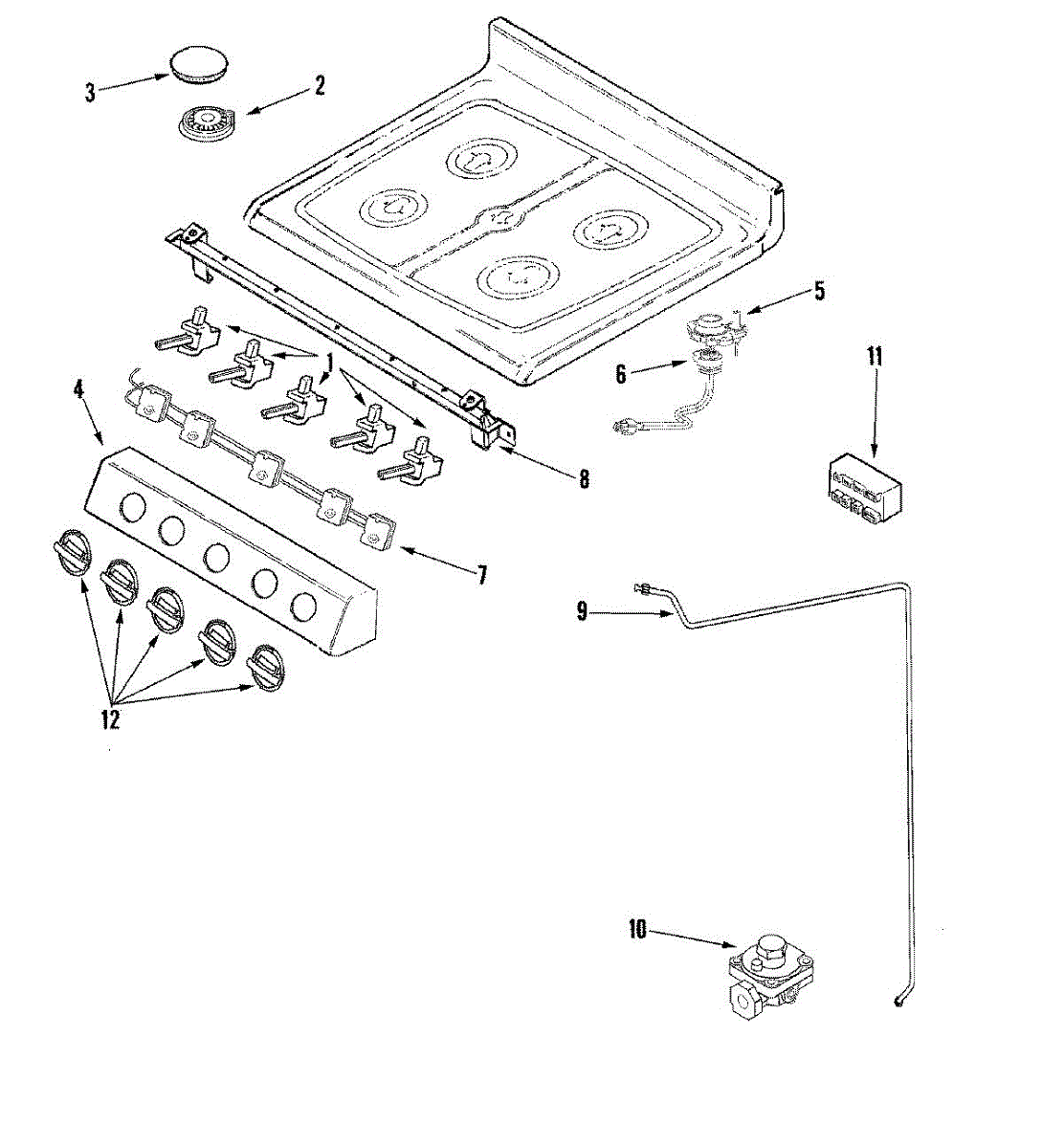

Parts for Jenn-Air JDR8880RDB: 05 - Gas Controls Parts

This replacement burner valve controls gas flow to a single cooktop burner, restoring proper ignition and flame adjustment for safe cooking performance. What it does:

• Regulates gas flow to the burner so the flame can be adjusted from low to high
• Replaces a worn or damaged valve that causes a weak or uneven flame
• Can fix burners that will not light reliably or that sputter during operation
• Interfaces with the range's gas manifold and burner orifice for normal operation

• Turn off the appliance power and gas supply before starting work
• Use proper tools and follow OEM instructions
• Check all gas connections for leaks after installation using a leak-detection solution

This gas valve controls fuel flow to the range/oven burner, restoring reliable ignition and heat control. Precision operation helps maintain even cooking and safe burner performance when the valve is faulty. What it does:

• Regulates gas flow to the burner assembly so the oven/range heats correctly
• Works with the appliance's safety and ignition systems to enable reliable lighting
• Commonly replaced for symptoms like no heat, intermittent ignition, or gas smell during operation
• Designed as a direct-fit valve for compatible Whirlpool-built ranges using Copreci 16k valves

• Turn off gas supply and disconnect power before attempting service
• Follow the appliance service manual for proper valve removal and gas line reconnection
• Check all fittings for leaks after installation and before returning the appliance to service

This is a replacement thermostat mounting screw that secures the temperature control sensor for reliable positioning and consistent temperature sensing. A simple, low-cost fix when the existing screw is missing, stripped, or damaged. What it does:

• Secures the thermostat or temperature sensor to the appliance housing or bracket
• Keeps the thermostat sensor in correct contact/position for accurate temperature readings
• Prevents the sensor from shifting, which can cause temperature fluctuations or inconsistent operation
• Replaces stripped, corroded, or missing mounting hardware

• Disconnect power to the appliance before starting any repair to avoid electric shock
• Use the correct screwdriver and match thread engagement; do not force or cross-thread the screw
• Tighten snugly but avoid overtightening to prevent damage to the thermostat or housing
• After installation, restore power and verify proper temperature control and operation

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Black

Color: Black. Size: Large.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

This top burner igniter is a genuine Whirlpool part, sold individually. This top burner igniter can be used as a replacement part in a gas range. This part fits into the surface burner orifice holder to connect to the spark module such that the gas can be turned on to heat up the burner.A top burner igniter might have to be replaced at some point in the lifespan of a gas range. A top burner igniter can be subject to damage if the connection between the igniter and the spark module is severed or is malfunctioning. The primary symptom of a malfunctioning top burner igniter is a gas burner that will not start or ignite properly. If this occurs, the top burner igniter should be removed and replaced with this genuine OEM replacement part before using that burner of the gas range again.This is an OEM part sourced directly from the manufacturer. This top burner igniter is compatible with the following appliance brands: Whirlpool, Amana, Jenn Air, KitchenAid, Ikea, and Maytag.

This orifice holder secures the burner orifice to the gas manifold so the burner stays aligned and maintains proper gas flow. It helps keep burner assembly components positioned for consistent ignition and flame performance. What it does:

• Holds the burner orifice in place on the manifold to prevent misalignment
• Keeps the orifice correctly positioned for steady gas flow and stable flames
• Can address symptoms like uneven flame, intermittent ignition, or poor burner performance when the orifice is loose
• Works as a direct replacement part for the factory-mounted orifice support

• Turn off gas supply and electrical power before servicing any gas appliance
• Inspect surrounding gaskets and fittings; replace damaged parts as needed
• Tighten to manufacturer torque specs and check for gas leaks after installation

This switch harness links the five valve-mounted ignition switches to the spark system so the surface burners light when you turn a knob. Replacing a damaged harness restores consistent, reliable ignition across all burners.

• Provides the electrical path from the valve/knob-activated switches to the spark module to ignite the burners
• Failure can cause no click/spark on one or more surface burners
• Stuck or shorted switches may cause constant clicking even with knobs off
• Intermittent ignition or burners lighting only when the knob is positioned just right
• Visual clues include cracked switch bodies, brittle insulation, or burned/broken wires

• Disconnect power and shut off gas supply before servicing
• Remove grates and knobs; lift the cooktop or top panel to access the valve switches
• Note wire routing and valve order; seat each switch on its valve stem and connect leads securely away from heat
• Restore power and test each burner for proper spark before reassembly

This gas regulator controls fuel pressure to the oven/range burner assembly to help maintain steady ignition and cooking performance. Replaces a worn or faulty regulator to restore correct gas flow and stable flames. What it does:

• Regulates incoming gas pressure to the appliance's valve/jet system for consistent burner operation
• Helps prevent weak or inconsistent flames, delayed ignition, or burners that won't light
• Supports safe, steady fuel delivery under normal operating conditions
• Works as the direct replacement for the OEM regulator assembly

• One regulator

• Turn off the gas supply and electricity to the appliance before servicing
• Use appropriate fittings and gas-rated thread sealant; check all connections for leaks after installation
• Do not modify the regulator or use parts that aren't approved for your appliance

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Top Burner Control Knob is an OEM part for Whirlpool ranges and cooktops. This part is crucial for the precise control of the heat output from the burners, allowing users to adjust the flame or element temperature accurately. It fits directly onto the stem of the burner switch, providing a tactile interface for easy operation.

Causes of a bad Top Burner Control Knob can include cracking, melting, or fading from exposure to heat or aggressive cleaning, as well as internal damage that can prevent the knob from engaging with the burner switch correctly.

Symptoms of a bad Top Burner Control Knob include:

• Difficulty in turning the knob or a lack of resistance which indicates a failure to engage with the burner switch.
• Visible damage such as cracks, warping, or melting that interferes with function.
• Faded or worn labels that make it difficult to see the settings.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
