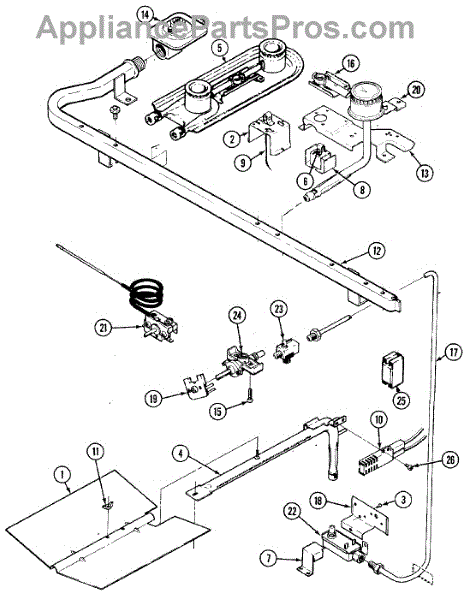

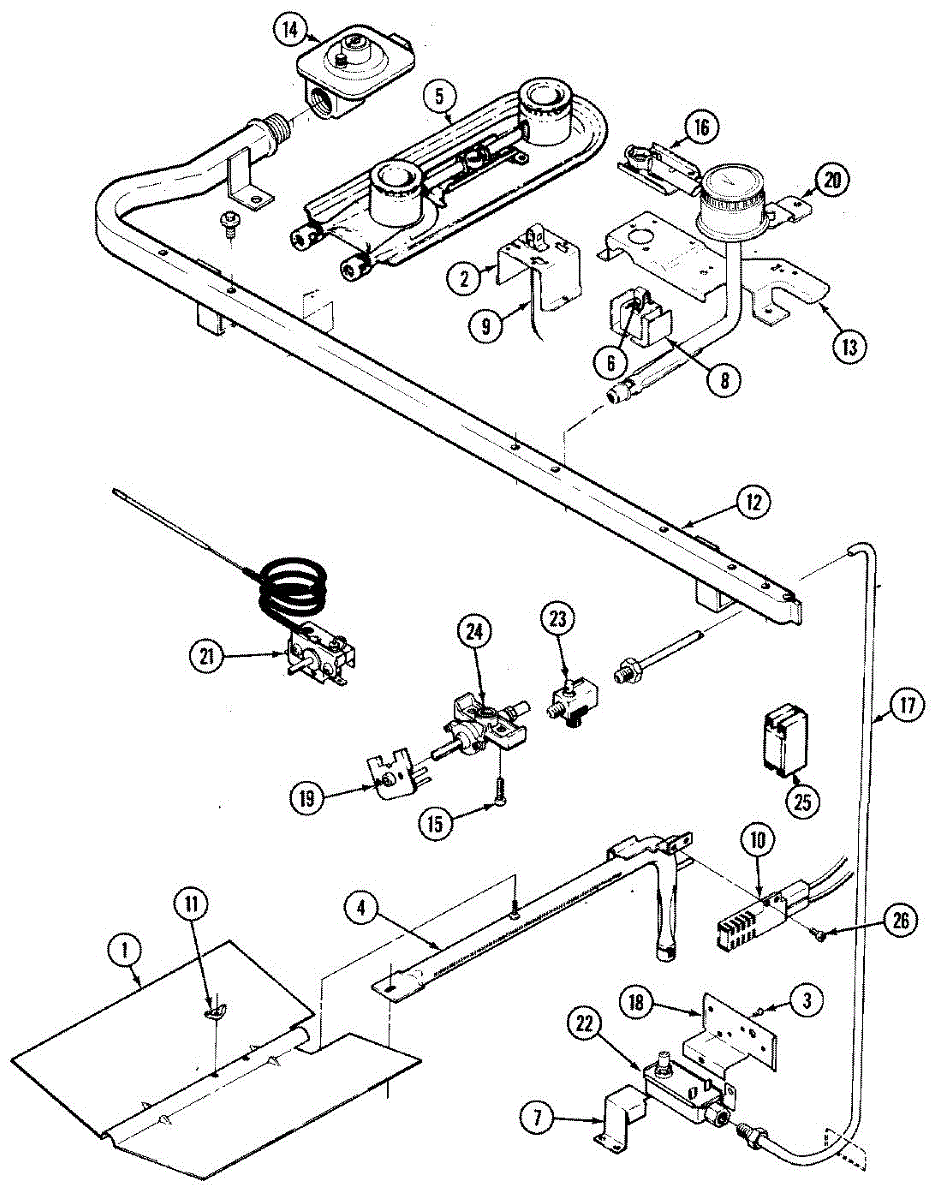

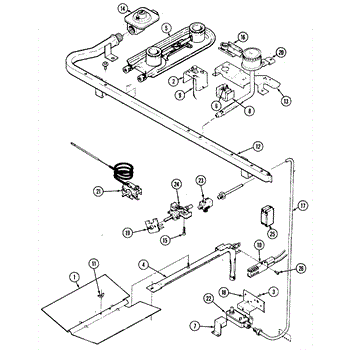

Parts for Magic Chef 4251WRA: 04 - Gas Controls Parts

Size: 10-24X5/16-NI

This part has been discontinued by the manufacturer and is no longer available.

The Flat Style Oven Igniter Kit is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, facilitating the start of the heating process. This igniter is crucial for ensuring your oven heats up quickly and efficiently, providing the necessary flame for cooking and baking.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up or taking a long time to reach the desired temperature.
• A noticeable gas smell when the oven is turned on, indicating the gas is not igniting.
• The igniter glowing without producing a flame, which can point to a lack of adequate temperature to ignite the gas.

Causes of a bad oven igniter can include the wear and breakdown of the igniter element over time, a faulty electrical connection, or a disruption in the gas supply.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud

This surface burner igniter switch mounts on the gas valve shaft and signals the spark module to ignite when you turn the knob. Replacing a worn or stuck switch restores consistent clicking and dependable lighting of the cooktop burners.

• Closes the ignition circuit as the knob is turned from OFF, triggering spark at the surface burners
• Typical symptoms: no spark/click at a burner, intermittent ignition, or continuous clicking when knobs are off
• Fits over the valve stem and connects to the spark harness

• Disconnect electrical power and shut off gas before servicing
• Remove the knob and access the control panel/top to reach the valve switch
• Note wire positions; transfer connectors one at a time and align the switch correctly on the valve shaft
• Test for proper spark at each burner before reassembly

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

Size: 10-24X5/16-NI
