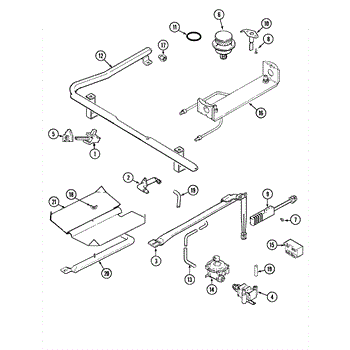

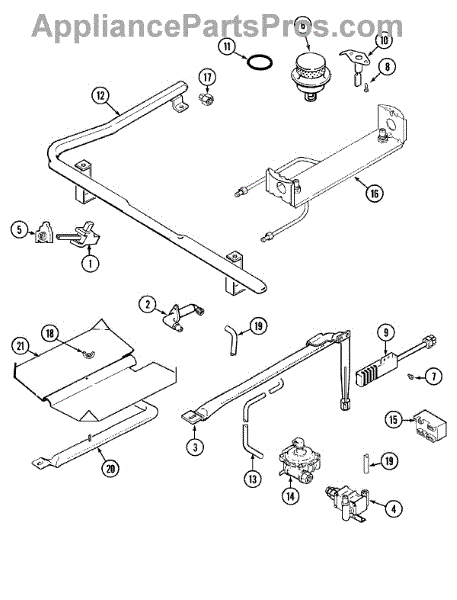

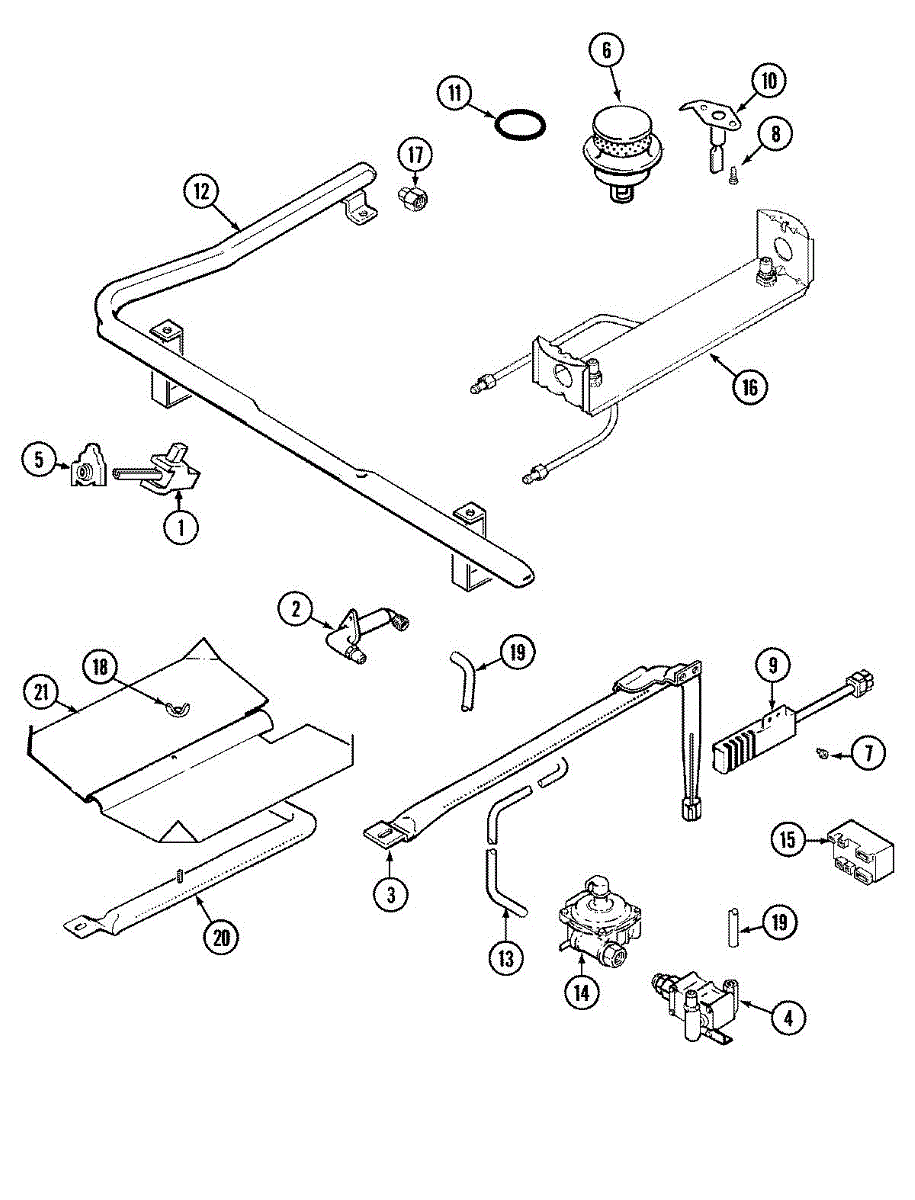

Parts for Magic Chef CGR3765ADC: 04 - Gas Controls Parts

This oven gas valve controls the flow of gas to the oven burner. When functioning properly, it allows the burner to ignite and maintain a steady flame for consistent preheating and baking performance.

• Opens and closes to supply gas to the oven burner as commanded by the control system
• Helps ensure gas only flows when ignition is called for
• Common symptoms include no heat/no flame, slow preheat, or temperature not reaching set point
• May also present as intermittent heat or a weak/irregular burner flame

• Disconnect power and shut off the gas supply before servicing
• Verify igniter condition/current; a weak igniter can mimic a failed valve
• Transfer any required fittings or brackets from the original valve
• Use gas-rated thread sealant on threaded joints; leak-test all connections and run a test cycle to proper ignition

This igniter switch operates the burner lighter so the cooktop sparks and lights a gas burner when you press the lighter control. Replacing a faulty switch restores consistent ignition and reliable burner starting. What it does:

• Sends the ignition spark to the burner when the lighter/push-button is pressed.
• Replaces a worn, sticky, or unresponsive lighter switch that prevents consistent sparking.
• Common symptoms it can address: no spark from the lighter, intermittent sparking, or a button that fails to activate ignition.
• Interfaces with the existing lighter mechanism and wiring to restore normal ignition function.

• Disconnect power (unplug) and shut off the gas supply before starting any work.
• Access typically requires removing the cooktop or control panel; use appropriate hand tools and keep track of fasteners.
• Avoid touching electrical contacts and confirm wiring matches the original during reassembly.

This sealed surface burner is a direct-fit replacement for a damaged or worn black cooking element, restoring reliable heat while keeping spills out of the appliance interior for easier cleaning and safer use. What it does:

• Heats cookware for baking, boiling and frying on electric ranges; replaces elements that fail to heat
• Sealed design helps prevent spills and debris from entering the cooktop cavity for cleaner operation
• Use when a burner heats intermittently, won't heat at all, shows visible damage, or produces arcing
• Fits the original mounting and electrical connector for straightforward replacement

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• Remove the cooktop or access panel as required and keep track of screws and fasteners
• Inspect and align the element's connector; do not force connections—replace damaged wiring or terminals

Size: 10-24 x 3/8 inch.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

The Flat Style Oven Igniter Kit is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, facilitating the start of the heating process. This igniter is crucial for ensuring your oven heats up quickly and efficiently, providing the necessary flame for cooking and baking.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up or taking a long time to reach the desired temperature.
• A noticeable gas smell when the oven is turned on, indicating the gas is not igniting.
• The igniter glowing without producing a flame, which can point to a lack of adequate temperature to ignite the gas.

Causes of a bad oven igniter can include the wear and breakdown of the igniter element over time, a faulty electrical connection, or a disruption in the gas supply.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part has been discontinued and is no longer available. This gasket is no longer needed.

This pressure regulator controls incoming water pressure to the appliance's water/ice system, helping maintain steady flow for proper dispenser and ice maker operation. Replaces a worn or failing regulator to restore correct water delivery. What it does:

• Reduces and stabilizes incoming household water pressure for the appliance's water valve/ice maker
• Helps prevent overfilling, leaking, erratic dispenser flow, or poor ice production caused by excessive pressure
• Works with the water inlet system to ensure consistent fill cycles and reliable dispensing
• Compatible with models that use WP74006429 as the factory regulator

• One pressure regulator

• Shut off water supply and unplug the appliance before replacing the regulator
• Inspect fittings and tubing for damage; replace any worn connectors or seals
• Tighten fittings securely and check carefully for leaks after restoring water and power

The Spark Module Kit is an OEM part for Whirlpool ranges. It is responsible for generating the spark needed to ignite the gas burners on the cooktop. The spark module sends electrical signals to the igniters, creating the spark that lights the gas for cooking.

Over time, the spark module can fail due to electrical issues, exposure to moisture, or normal wear and tear. When the spark module becomes faulty, it can lead to various problems with igniting the burners.

Symptoms of a bad spark module include:

• Burners not lighting or taking a long time to light
• No clicking sound when turning the burner knob
• Burners only lighting intermittently
• Visible sparks or arcing from the module

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

NOTE: This part is only compatible with serial numbers starting with 21 and up on model 8351VV.

Surface burner tube assembly with orifices, left side.

Surface burner tube assembly with orifices, right side.

This wing nut is a hand-tightening fastener used to secure small appliance components for easy tool-free adjustment or removal. It offers a simple replacement when the original nut is lost, stripped, or broken. What it does:

• Secures panels, brackets, or components that require occasional removal or adjustment
• Allows tool-free tightening and loosening with built-in wings for finger grip
• Restores proper fit where a missing or damaged nut causes rattling, looseness, or instability
• Designed for repeated hand-operation without specialized tools

• Disconnect power to the appliance before performing any work to avoid shock or injury
• Thread by hand until snug; avoid overtightening to prevent stripping threads or cracking surrounding parts
• Inspect mating threads and replace if damaged to ensure secure fastening
• Use appropriate size and thread type—do not force a mismatched nut onto the stud
