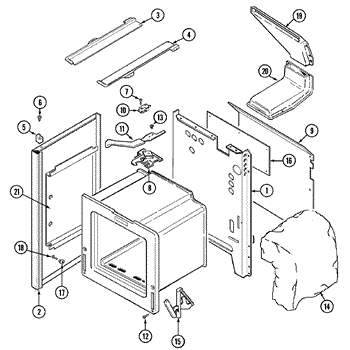

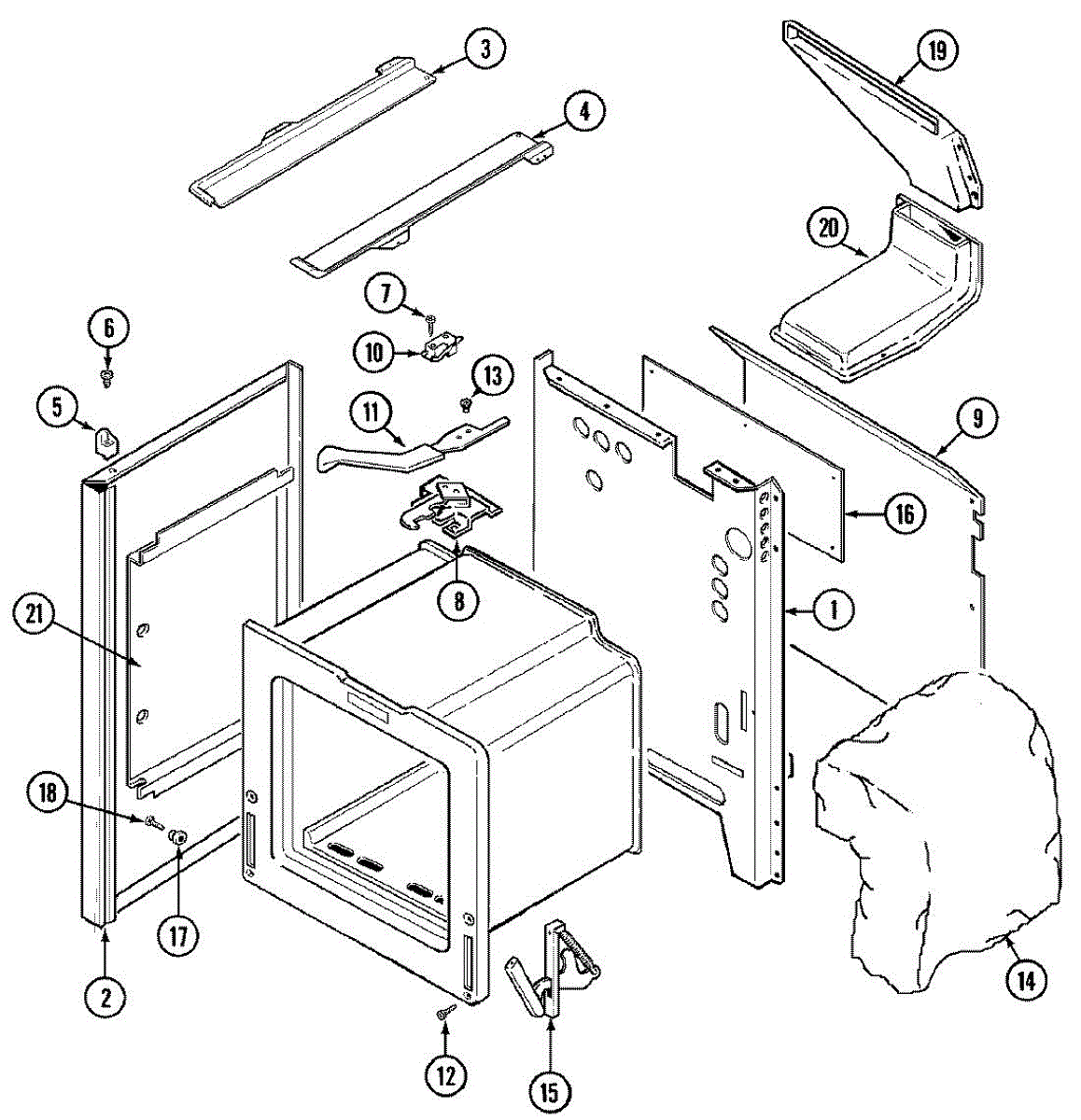

Parts for Magic Chef CGR3765ADC: 01 - Body Parts

This burner box is the oven's metal housing that holds and positions the bake/broil burners and channels gas flames for proper heating. Replacing a damaged box restores safe flame direction and consistent oven operation. What it does

• Supports and secures the bake and broil burners inside the oven cavity
• Directs burner flames and helps ensure even heat distribution
• Helps prevent flame impingement on surrounding components
• Commonly replaced for visible corrosion, warping, or blistered metal that affects flame pattern

• One burner box (oven burner housing) as shown

• Turn off and disconnect power and gas supply before starting work
• Follow OEM service manual for removal and reinstallation steps; handle gaskets and mounting screws carefully
• After installation, check for proper burner alignment and test for gas leaks with a soap solution

Left hand side

Right hand side

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Size: 10-24X5/16-NI

Size: 10-24X5/16-NI

The Oven Door Hinge is an OEM part for Whirlpool ranges. It is essential for the smooth operation and stability of the oven door, allowing it to open and close properly. This hinge supports the weight of the door and ensures it stays securely in place during use.

Causes of a bad oven door hinge can include wear and tear from frequent use, rust or corrosion, and damage from accidental force or misalignment.

Symptoms of a bad oven door hinge include:

• The oven door not closing completely or evenly
• Difficulty in opening or closing the door
• The door feels loose or makes unusual noises when moved

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Lower

This spacer secures and maintains proper spacing between adjacent appliance components to prevent rubbing and misalignment, helping restore smooth, stable operation after wear or replacement. What it does:

• Positions and cushions parts to prevent metal-on-metal contact and reduce noise or vibration
• Keeps components aligned for proper fit and function after panel or assembly reinstallation
• Helps maintain clearance for moving parts to avoid abrasion and premature wear
• Useful when replacing worn fasteners, clips, or assemblies that rely on precise spacing

• Disconnect power (unplug or switch off circuit breaker) before beginning any repair
• Handle small parts carefully and retain any associated fasteners; compare new part to old for orientation
• Use basic hand tools as required; avoid forcing parts into place to prevent damage

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
