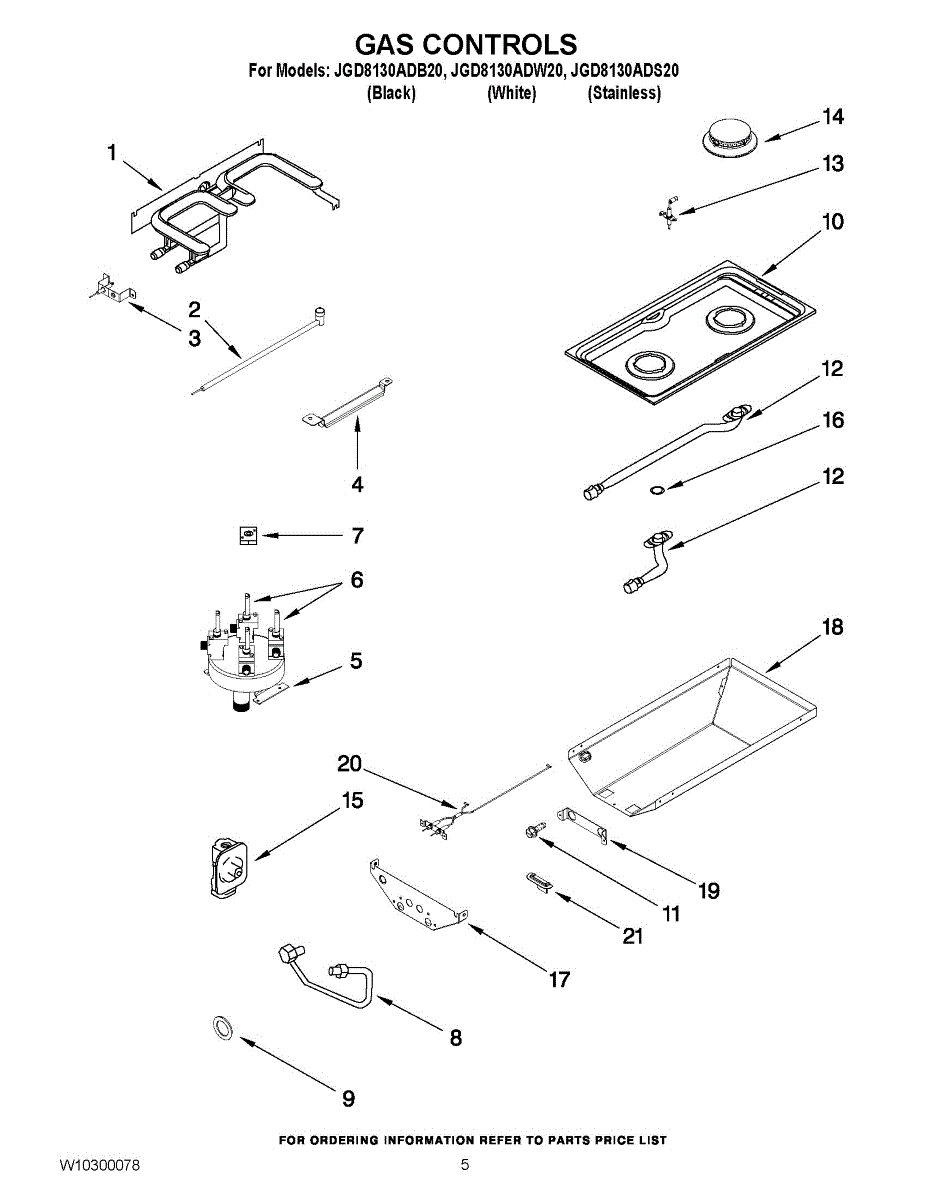

Parts for Maytag JGD8130ADB20: 04 - Gas Controls Parts

Fix continuous clicking and burners that won't light. This spark electrode generates the arc that ignites gas burners. Simple DIY repair for most users.

Fix burners that won't light or click continuously. This spark igniter ground assembly restores reliable ignition on gas ranges. Basic repair.

Replace your cooktop's gas manifold if it's cracked, damaged, or leaking. This pipe component distributes gas from the supply line to the burners.

Fixes burner knob that won't turn, push down, or ignite. This gas valve controls flame height and regulates gas flow to one surface burner on your cooktop.

Burner won't light or flame sputters? This gas valve controls flow to restore reliable ignition. Moderate DIY repair—requires manifold access.

This double valve switch assembly controls two valve circuits to manage water flow and valve operation in compatible appliances. It replaces a failed switch to restore proper valve control and appliance function. What it does:

• Acts as the electrical switching assembly for two valve solenoids or circuits
• Allows the appliance control board to open and close water valves as needed
• Commonly linked to symptoms like no fill, continuous fill, or intermittent valve operation
• Helps stop erratic or unresponsive valve behavior when the original switch fails

• One double valve switch assembly

• Disconnect power (and water, if applicable) before beginning any repair
• Verify power is off with a meter and document wire locations or take photos before disconnecting
• Handle connectors carefully; ensure proper seating and secure mounting during reassembly

This is a single spark ignition switch used on gas ranges and cooktops. It detects when a burner control knob is turned and sends a signal to the spark module to ignite the gas. Replace this switch if a burner will not spark when the knob is turned, or if the igniter clicks continuously even when the burner is not in use.

Fixes weak flames or yellow burner flames on your cooktop. This venturi tube mixes air with gas for proper combustion. Moderately easy DIY repair.

Fix weak flames or yellow burner flames on your cooktop with this gas venturi mixer tube. Connects gas valve to burner for proper air-fuel mixing.

Venturi tube mixes gas and air for proper burner combustion on your cooktop. Replace if flames are yellow, uneven, or weak. Confirm fit with your model number.

This is the replacement cooktop, also called the main top, for sealed-burner gas units. It forms the cooking surface around the burners to contain spills, restore appearance, and keep grates and burner parts seated securely for safe, even heating.

• Forms the main cooking surface and supports burner heads/caps and grates
• Sealed-burner design helps keep spills on top, protecting components below
• Maintains proper burner alignment and flame pattern
• Common symptoms: cracks, chips, dents, rust, or warping; wobbly grates or gaps around burner openings

• Disconnect power and shut off the gas supply before servicing
• Remove grates, burner caps, and the screws securing burner heads; lift off the old top
• Transfer/reconnect igniters and wiring as equipped; avoid pinching wires during reassembly
• Restore gas and power, verify ignition on all burners, and check for leaks

Weak or uneven burner flame? This venturi tube channels the gas-air mixture from valve to burner for proper ignition. Straightforward replacement.

Fix a burner that won't stay lit or has a weak yellow flame. This venturi tube mixes air with gas for proper combustion. Easy 15-minute repair.

Sealed burner assembly that supplies a protected gas flame for a gas range, restoring consistent heat and helping keep spills and debris out of the burner box. Designed as a direct-replacement assembly for affected burners. What it does

• Provides the sealed gas flame source used for cooking on a gas cooktop
• Restores even heat distribution when a burner is warped, damaged, or not producing a steady flame
• Helps prevent spills and food debris from entering the burner cavity, reducing corrosion and ignition problems
• Symptom linkage: commonly replaced for uneven heating, weak or irregular flame, visible burner damage, or excessive soot

• Includes 1 sealed burner assembly

• Turn off the gas supply and electricity to the appliance before starting any service
• Follow model-specific disassembly steps (lift or remove cooktop/grates as required); do not force fittings or gas connections
• If you smell gas, shut off the gas supply immediately

• WP3403M075-29 — confirm this matches your original part before ordering

Four liquid propane burner orifices for converting cooktop from natural gas to LP. Replaces missing or incorrect orifice jets during fuel conversion.

Four liquid propane burner orifices for converting cooktop from natural gas to LP. Replaces missing or incorrect orifice jets during fuel conversion.
