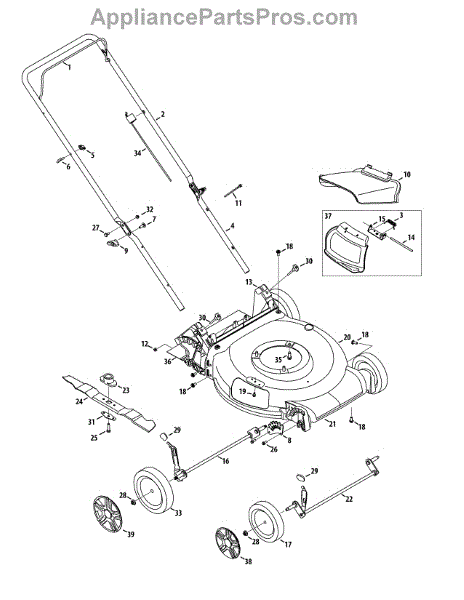

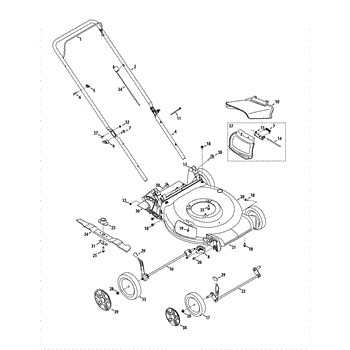

Parts for Mtd 11A-A0S5706 / 2014: General Assembly Parts

This is a genuine replacement bail bar that is designed for walk-behind lawn mowers. The bail bar is installed on the upper handle. The bar is engaged before the starter rope is pulled, allowing the engine to operate. This bar is responsible for stopping the mower's operation when released. Due to the repetitive motion and exposure to the elements, this bar can become worn or damaged and require a replacement. This part is also known as the blade control because it controls the engine power and blade rotation simultaneously. If the bail bar is broken or damaged, the engine and blade will not be able to stay engaged. A replacement will be necessary to continue using the mower. This OEM replacement bail bar is manufactured by MTD and designed to serve as an identical part replacement as what came with the machine. This metal handle is durable and sold as an individual unit. Additional parts and hardware will require a separate purchase. The part can be used with more than 150 models of lawn mowers from MTD, Bolens, Huskee, Yard Machines, and Yard Man. Always watch for pinch injuries when replacing pressure-held parts like this bail bar and wear gloves for hand protection.

This is a genuine replacement lower handle part. The lower handle is used on push lawn mowers. This handle connects the upper handle to the mower. This part should be replaced when there is damage to the bolt holes or if it is bent. It is not easily worn, and therefore does not have to be replaced often.To replace this part, a 7/16th inch wrench or a 9/16th inch socket wrench is needed. Remove the upper shoulder bolt to detach the upper handle. Remove the lower handle and place the new replacement part. Bolt the upper handle to the lower handle. On occasion, the bolt connecting the handles may need replacement if worn. Any new bolts will need to be purchased separately. Otherwise, previous bolts used on the worn lower handle can be reused. If the part is bent, replacement may require a mallet to dislodge or remove the damaged part. This is a genuine MTD replacement part. This part is compatible with most lawn mowers. This part is sold separately.

This is a knob handle that is used on various types of lawn and garden equipment. It is responsible for helping to make adjustments to the upper handle of the lawnmower or other machine. If the knob handle no longer works, is broken, or falls off, adjustments can no longer be made to the equipment. If this situation occurs, the knob handle will need to be replaced.Take a look at the knob handle and determine if it has been damaged. It could have cracks, broken areas, or excessive scratches that make it hard or impossible to use. If the knob handle is not present, this also necessitates a replacement. The part is easy to replace and requires no tools to install. Simply remove the old handle and place the new one in the same location.This is an authentic OEM replacement knob handle that is directly sourced from the manufacturer. It is sold as an individual component. The knob handle is used on lawnmowers, snowblowers, string trimmers, leaf blowers, wood chippers, and edgers. It fits various models offered by MasterCut, Yard-Man, Bolens, Montgomery Wards, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, Ryobi, Cub Cadet, and Craftsman.

A rope guide eyebolt is an important piece of hardware designed for use with pieces of outdoor lawn and garden power equipment that have small engines, such as lawn mowers. It is compatible with products by brands such as Craftsman, Bolens, Husky, Yard Machines, Yard Man, MTD, and Troy-Bilt.The rope guide eyebolt part plays a valuable role in making the lawn mower easier to operate. The metal rope guide eyebolt is to be mounted to the side rail of the handle, which then keeps it secured with a handle knob. The rope guide eyebolt keeps the starter rope on the upper handle for ease of access. The purpose of all of this is simply to keep the rope out of the way while operating. The replacement or repair process of the rope guide eyebolt should be straightforward, but the user replacing the part should always be sure to wear gloves during any assembly, replacement, or installation processes.The user should also refer to the owner's manual of their equipment and any guiding diagrams that clarify the placement location. This part is made out of metal. This rope guide eyebolt is an original OEM part sourced directly from the manufacturer, MTD. It is sold individually.

This is a genuine replacement part designed for select lawn mowers and snowblowers. The carriage screw is responsible for securing various components on lawn tractors and snowblowers and has multiple locations and applications on different models. There is a square piece under the head that will fit into a square hole to secure the screw so that the nut can be tightened. This screw can become damaged over time or the threads can wear down with regular use. In some cases, these small screws are lost in the process of performing other repairs. A replacement with this genuine OEM carriage screw can get equipment back in working order. This OEM replacement screw is manufactured to exact standards by MTD. It can be used on hundreds of lawn mowers and snowblowers, including those from MTD, Craftsman, Yard Man, Troy-Bilt, Bolens, Yard Machines, Husky, and Cub Cadet. Since this part has multiple applications, users should refer to parts diagrams for exact location and replacement procedure. This durable screw is made of high-quality metal and sold as an individual unit. Those who need more than one will have to purchase multiple quantities.

This is a height adjustment plate that is used on lawnmowers by a variety of manufacturers. It is made of durable metal and is an integral part of the mower. It ensures the mower wheels can be raised or lowered to create the desired cutting height for the blades. Over time, the height adjustment plate on a lawnmower can wear out or become damaged and will need to be replaced.When the height adjustment plate needs to be replaced, a pair of pliers and a wrench will be required. Place the lawnmower on a stable surface and disconnect the spark plug wire. Take out the bolts on the front end before removing the plate. There will be additional bolts to remove to take off the height adjustment place. The front axle can be pried out of the clips using a screwdriver. Fasten on the new adjustment plate and reassemble the other components.This is an authentic OEM replacement part that is sourced directly from the manufacturer. It is sold as an individual component. The height adjustment plate is compatible with lawnmowers manufactured by MasterCut, Yard-Man, Bolens, Huskee, MTD, Yard Machines, Murray, Troy-Bilt, and Craftsman.

A wing knob is an essential but often overlooked piece of equipment used on many gasoline-powered lawn tools. On snowblowers, this versatile connector is used to adjust the exit chute. The knob handle is easily gripped and made of durable plastic, so when wearing mittens or thick gloves, one can still grasp and turn the wing knob. On many lawn mowers, the wing knob is used to secure and adjust the handle to the mower or, with mowers that have folding handles, to lower and store the handle for ease of transporting the mower. While it does not seem that one would ever need to replace a wing knob, these fasteners may be lost when mowers are moved from one lawn to another or when the mowers are being stored until the next growing season. On rare occasions, the threads in a wing knob can be stripped if they are not turned tightly enough when first fastened after unbending mower handles. These devices are inexpensive and virtually universal, so it is wise to keep an extra wing knob on hand in case one becomes lost. The wing knobs fit Yard-Man, Troy-Bilt, Craftsman, Bolens, and Yard Machine mowers and snowblowers. Made of durable plastic, these OEM knobs are genuine manufactured replacement parts that perfectly match the originals.

A side discharge chute is engineered to move the debris away from the machine's underside. This is because grass that is not only long and thick but also moist can get trapped and clog the deck and the blades. When this happens, you will have to stop to clear the accumulated clippings periodically. To mitigate clogging and maximize cutting, using a side discharge chute is ideal. When a side discharge chute is installed, but clogging still occurs, there might be a problem with the chute itself. It can be torn or already loose. Luckily, installing a brand-new side discharge chute is easy and will take less than 5 minutes. Start the installation by removing the spark plug. The engine should be cool to the touch. Then, lift and hold the mulch cover up. Take the brand-new side discharge chute and hook the tabs on to the hinge pins. Then, release the mulch cover. MTD manufactures this brand-new side discharge chute. It is an original replacement with Craftsman, MTD, Murray, Yard-Man, Yard Machines, Bolens, Huskee, and Mastercut lawnmowers. It comes in solid plastic material with a black finish. This side chute is sold individually.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This chute deflector bracket is a genuine MTD part, sold individually. This chute deflector bracket can be used as a replacement part for a lawn mower. The purpose of the chute deflector bracket is to secure the placement of the chute deflector, which protects the operator of the lawn mower from flying external materials flung up by the appliance, including dirt, debris, and pebbles. The chute deflector bracket might have to be replaced in the event that it can no longer serve its vital function of maintaining the secure placement of the chute deflector of a lawn mower. This could occur if the component is coming loose. If this is the case, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This chute deflector bracket is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This wheel assembly is created for a variety of lawnmowers and attaches to the front of the machine. The wheel is made from a durable plastic material and connects to the front axle assembly. It is a required part for moving the lawnmower around the yard. The wheel can sometimes become broken or experience damage which results in the need to replace it. Pushing it over large items or bumping into things can cause damage.A visual inspection of each of the front wheels on a lawnmower will provide information about whether it needs to be replaced or not. If the wheel is broken or has a large amount of damage, it will need to be removed and replaced. Taking off the wheel and replacing it with a new one may require a variety of tools including a wrench set, a screwdriver, and a socket set. This wheel assembly is made for lawnmowers created by Bolens, Craftsman, Murray, Huskee, MasterCut, MTD, Yard-Man, and Yard Machines. It is a genuine OEM replacement part that is sourced directly from the manufacturer. It comes with a single wheel assembly.

This replacement part is a screw. This is a genuine replacement part made by MTD. A screw is a small part but important to the overall workings of many appliances. Screws work with other small pieces such as nuts and washers to keep parts in place and secure during use.A new screw might be needed if the current one is missing or damaged. This can be caused by normal wear and tear or an isolated incident. Screws endure friction over time and can become worn down.This part is sold individually and is sourced directly from the manufacturer. This is a genuine OEM replacement part.

This blade adapter is made to attach a lawn mower cutting blade to the drive shaft of a push mower. Though it is made of sturdy metal and is tightly fastened to the mower's drive, the adapter and blade may wear and loosen over time. This can present a dangerous situation as well as poor cutting performance for the blade. Also, each adapter has a small insert tab that fits into the blade attachment. This tab, called a “key,” is actually a shear pin. Should the blade strike a solid object, the key will sheer off, preventing the blade from coming loose or suffering irreparable damage. The solution to either of these problems is to replace the blade adapter. The blade itself should be closely examined to make sure it fits the new adapter with no wobble or slack. To replace the blade adapter, turn the mower on its side with the air filter on top. Use a ratchet to remove the bolt that attaches the blade and adapter to the drive shaft. Make certain to fit the new adapter key into the keyway on the shaft. Always use a replacement part like this one, that is OEM certified to be identical to the original. This blade adapter is compatible with Ryobi, Yard Machines, Yard Man, Huskee, Cub Cadet, Troy-Bilt, MTD, and Bolens mowers.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.

This replacement part is a hex bolt. It is a genuine replacement part made by MTD. Hex bolts are named because they are shaped like a hexagon and are different from the regular circle-shaped bolts. These parts are able to hold other parts secure and in place so that everything can operate as needed. A new hex bolt might be needed if the current ones are damaged in any way. It is possible that these bolts become stripped or lodged in place over time due to normal wear and tear and should be replaced. The repair should be fairly easy, only requiring a screwdriver or pliers if the previous part is stuck. Be sure the engine is completely powered down before beginning this repair. This bolt is sold individually. Be sure to purchase the correct amount as many appliances require more than one. This is a genuine OEM replacement part sourced directly from the manufacturer.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

This is a shoulder screw that is used to secure the handles of yard equipment. Typically, this screw is used with a matching wing nut, which is sold separately. Many different varieties of push lawn mowers have handles that fold downward for ease of storage. This is one of the locations on a mower where one will find shoulder bolts and the point at which these bolts are most likely wear out. While they are made of durable machined metal, shoulder bolts receive a great deal of wear, particularly from the handles being raised and lowered each time the mower is used. When pushing down on the mower to clear wet grass clippings or to make sharp turns with the mower, the entire weight of the mower is put on the two shoulder screws where they intersect. Since the metal of the handles can turn at that juncture, extra shearing action is put on the shoulder bolts, which can wear out. It is actually advantageous that the bolts wear out since otherwise, the handles themselves would warp and break apart. These OEM genuine replacement parts fit a number of different lawn and garden machines, including many made by Cub Cadets, Husky, Troy-Bilt, Craftsman, Yard-Man, Bolens, MTD, and Yard-Machines.

This flange lock nut is a metal component used in many types of lawn and garden equipment. It is the part that attaches to the rear wheel to keep it steady on any kind of terrain. It can also be used on handles and chutes for some equipment. The nut size is 3/8 and it has a thread size of 16. Most flange lock nuts will last for years. In some cases, the silicone ring inside the nut will wear down when it is loosened and tightened. When this happens, the flange lock nut will start to move around. It can start as minor slippage but often gets worse over time. It will need to be replaced but this is a simple task. Regardless of what equipment it is attached to, it simply needs to be unscrewed. Take off the old nut and replace it with the new one. This flange lock nut is an authentic OEM product that is sourced directly from the manufacturer. It is sold individually. The lock nut is made for use with lawnmowers, wood chippers, and edgers manufactured by MasterCut, Yard-Man, Bolens, Craftsman, Cub Cadet, Murray, Troy-Bilt, Yard Machines, MTD, and Huskee.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This is a replacement wheel. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged or faulty wheel on a variety of lawnmower models. This particular part is an 8 x 1.8 rear wheel Wheels can easily become damaged or broken with regular equipment use. When worn out, a wheel should be replaced in order to continue using the lawnmower safely. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this wheel, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this wheel is suitable for use on several different lawnmower models manufactured by MTD, Bolen, Yard Man, Husky, and Yard Machines. This is a genuine part made of high-quality, durable materials and is sold individually.

This control cable is a mower part that works with the control handle or lever bar that engages the wheels. It is also known as choke cable, brake cable, choke control, and control assembly cable. The inner wire total length is 53 inches, and the cable casing or conduit length is 40 inches. The control cable can stretch over time and it will result in a mower that moves forward slower than usual. A cable that's too corroded won't be capable of moving the drive lever. A broken or cut cable won't make the mower move. Here is a manufacturer-approved replacement control cable that's easy to install. A genuine OEM replacement part, this control cable is made to fit specific models of walk-behind mowers from Bolens, Ryobi, MTD, Troy-Bilt, and Yard-Man. It is sold individually.

Designed for comfortable mowing, this trail shield attaches to walk-behind lawnmowers. It secures to the back of the deck on the lawnmower and prevents grass and other debris from reaching the person using the mower. This trail shield is made of durable plastic but can become damaged use. If it is broken, it will not be able to keep grass from collecting behind the mower deck, so it will need to be replaced.To replace the part with a new shield, put the lawnmower on a stable surface and ensure it is powered off. On the original trail shield, find the metal clasps that hold it secure. Unclasp each of these and remove the trail shield from the lawnmower. The new replacement part can be attached and the lawnmower will operate correctly.This trail shield is an authentic OEM replacement part that is directly sourced from the manufacturer. It is an individual component and does not come with hardware. The part is compatible with lawnmowers by MasterCut, Craftsman, Yard-Man, Cub Cadet, Bolens, Troy-Bilt, Huskee, Murray, MTC, and Yard Machines.

This is a genuine replacement for select walk-behind push lawn mowers. The hinged mulch cover is designed to replace the clippings chute that allows discharge so that the grass is more finely mulched in the machine. This part includes a metal hinge, which can break or snap over time. The plastic itself can also become damaged by debris or impacts, or simply crack due to age. Replacing the mulch cover with a genuine OEM model like this can be the ideal solution. If the cover is not replaced, the mulching feature will not be able to be used. This OEM replacement mulching cover is compatible with lawn mowers from MTD, Yard Machines, Yard Man, Troy-Bilt, Cub Cadet, Bolens, and Husky. This product includes the metal bracket and spring that are required for installation and securing the cover, sold as a single assembly. This hinged mulching cover can be used with 150+ lawn mowers from the brands listed above. No tools are required for this part replacement but it is important to be careful of pinch injuries when working with parts like this spring-hinged cover.
