Parts for Oem-Attachments 19A70001799 / 2009: General Assembly Parts

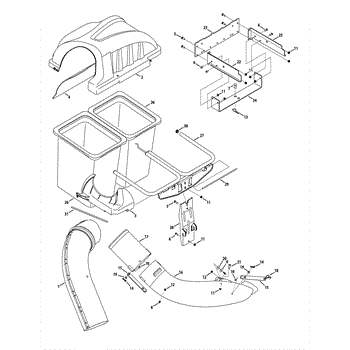

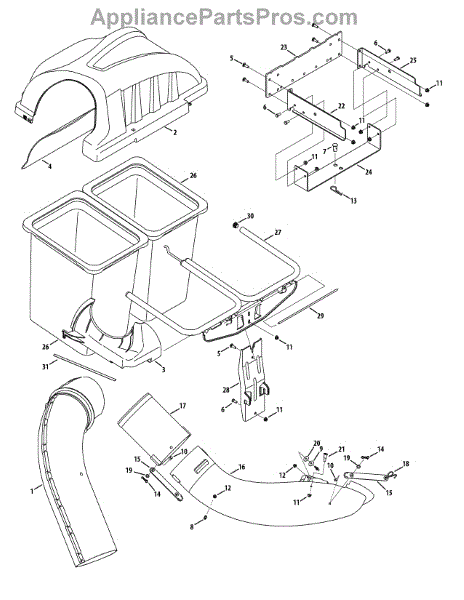

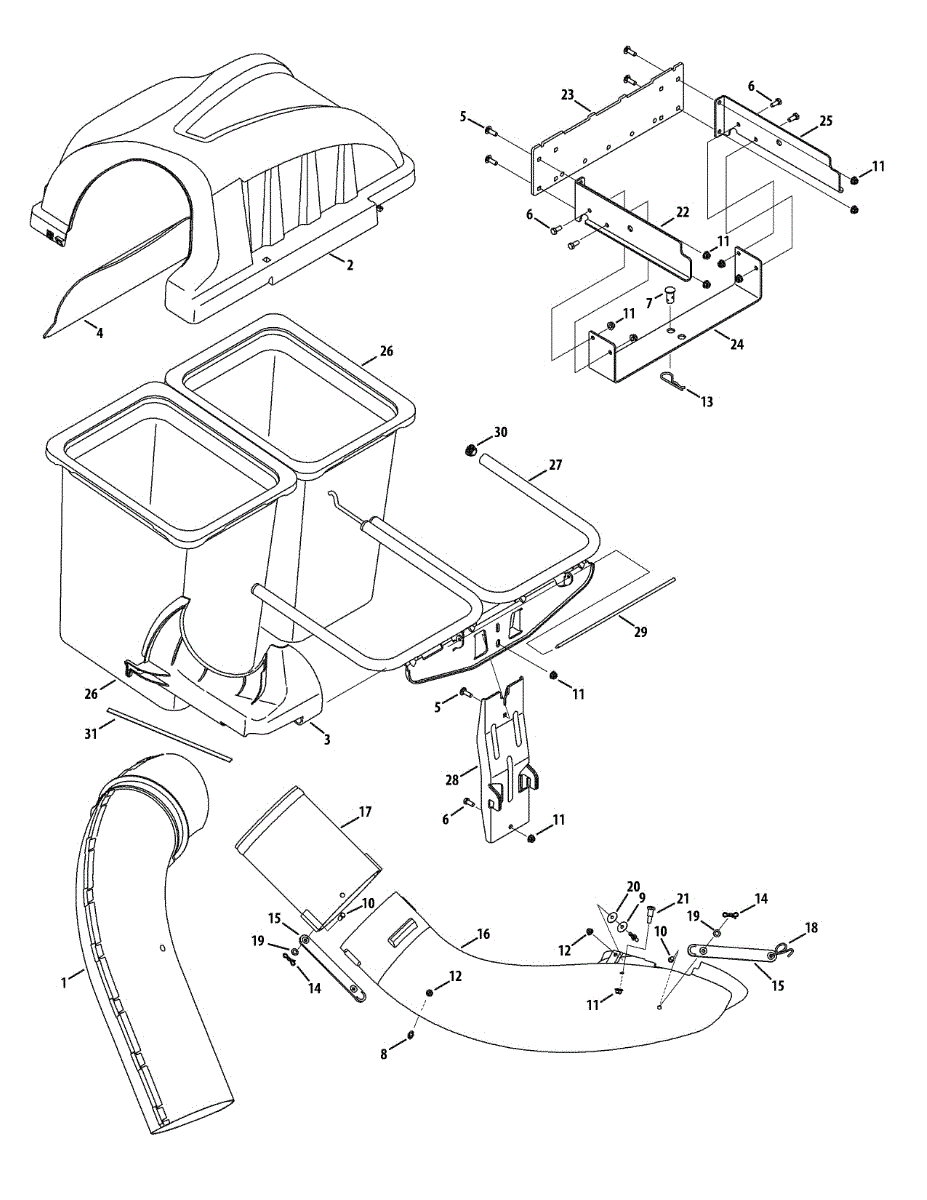

General Assembly
(24919) Twin Rear Bagger

Parts for Oem-Attachments 19A70001799 / 2009: General Assembly Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Mtd
Part Number: 931-04291A

Upper chute assembly for riding lawn mower bagging systems. Guides cut grass from deck to collection bag. Replace if cracked, broken, or damaged.

More
$207.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
2
By: Mtd
Part Number: 931-04292
$151.68

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
Product photo
By: Mtd
Part Number: 731-06497

This is the upper chute support bracket used on a lawn tractor bagger attachment. It provides structural support to hold the upper discharge chute in the correct position so grass clippings are directed into the collection bag. Replace this bracket if it is bent, broken, or missing, causing the chute to sag or disconnect during mowing.

More
$41.73

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
4
Product photo
By: Mtd
Part Number: 731-06504

Replace your grass catcher bagger cover screen when damaged or clogged to restore proper airflow and clipping collection. Verify fit with your model number.

More
$20.25

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
5
Product photo
By: Mtd
Part Number: 710-0276

Carriage bolt fastener for lawn and garden equipment. Replaces worn, stripped, or missing bolts that secure deck components and attachments.

More
$4.55

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
6
Product photo
By: Mtd
Part Number: 710-3008

This is a hex screw used on a variety of types of lawn and garden equipment. On large machinery, it is often used to mount the gas tank. On smaller items, it tends to be used to clamp the housing together. It can secure items like plastic, metal, brick, and wood together. It measures 5/16-18 x .75 inches and is made of durable metal. In some cases, the screw can become damaged, broken, or stripped, which means it needs to be replaced.A visual inspection will indicate whether the screw is damaged. If it needs to be replaced, a hex wrench can be used to remove it from the equipment. Afterward, the replacement hex screw can be installed with the wrench before being tightened to ensure materials hold together well.This hex screw is a genuine OEM part that is sold individually. It is sourced directly from the manufacturer. The hex screw is compatible with lawnmowers, wood chippers, log splitters, snowblowers, chainsaws, edgers, tillers, leaf blowers, and string trimmers by Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Broan, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Turf King, Yard-Man, and MasterCut.

More
$5.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
7
Product photo
By: Mtd
Part Number: 711-0309A

Clevis pin for lawn tractors and zero-turn mowers. Secures linkage connections in steering, deck lift, or control systems. Replace if bent, worn, or missing.

More
$13.38

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
8
Product photo
By: Mtd
Part Number: 911-04069

Replacement pin for lawn mower grass catchers. Secures grass bag to mower deck. Order a new pin if yours is lost, bent, or broken during use.

More
$9.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
9
Product photo
By: Mtd
Part Number: 711-05049

Secures the discharge chute elbow on grass catchers and lawn mowers. Replace if pin is missing, bent, or broken to properly attach the chute assembly.

More
$10.57

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
10
Product photo
By: Mtd
Part Number: 711-05063

Secures components on grass catchers and lawn equipment. Replace if pin is bent, broken, or missing to restore proper attachment and safe operation.

More
$4.70

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
11
Product photo
5.0 (1)
By: Mtd
Part Number: 712-04063

Flange lock nut secures components on mowers and outdoor power equipment. Replace if stripped, corroded, or missing to restore proper fastening.

More
$5.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
13
Product photo
By: Mtd
Part Number: 714-0117
$6.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
14
Product photo
By: Mtd
Part Number: 714-04040

Secures pins and shafts on lawn tractors and riding mowers. Replace if bent, missing, or worn. Bow-tie design inserts through pre-drilled holes.

More
$4.02

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
15
Product photo
By: Mtd
Part Number: 723-04008A

Secures the chute assembly on your grass catcher attachment. Replace if the strap is cracked, broken, or missing to properly hold the chute in place.

More
$11.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
16
Product photo
5.0 (1)
By: Mtd
Part Number: 731-06099B

Replacement discharge chute that connects your mower deck to the grass bag assembly. Needed when the original chute is cracked, broken, or missing.

More
$110.40

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
17
Product photo
By: Mtd
Part Number: 731-06610

Bagger adapter that attaches the collection chute to your mower frame. Replace if cracked, broken, or missing to restore proper grass catcher function.

More
$53.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
18
Product photo
By: Mtd
Part Number: 732-04510A

Torsion spring for lawn equipment grass catchers. Replace if spring loses tension or bag won't stay properly positioned. Verify fit with your model number.

More
$6.45

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
19
Product photo
By: Mtd
Part Number: 736-0204

Flat washer flange for lawn mowers, snow throwers, tillers, and edgers. Replace when washer is missing, damaged, or worn to ensure proper assembly.

More
$4.48

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
20
Product photo
By: Mtd
Part Number: 936-0176

Flat washer for lawn tractors and outdoor power equipment. Secures fasteners and prevents loosening. Replace if worn, damaged, or missing during repair.

More
$5.95

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
21
Product photo
By: Mtd
Part Number: 738-0754

Shield mounting screw for lawn mowers and tractors. Secures protective shields and covers. Replace if stripped, missing, or damaged during maintenance.

More
$5.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
22
By: Mtd
Part Number: 783-06156-0637

Right-side mounting bracket that secures the grass catcher assembly to your mower deck. Replace if bent, cracked, or missing to properly attach the bag.

More
$52.74

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
23
By: Mtd
Part Number: 783-06168-0637
$141.96

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
24
By: Mtd
Part Number: 783-06230-0637

Grass catcher mounting bracket secures the grass bag to your mower deck. Replace if the original bracket is bent, broken, or no longer holds the bag firmly.

More
$70.85

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
25
By: Mtd
Part Number: 783-06231-0637

Left-hand mounting support bracket for grass catcher attachment. Replaces cracked, broken, or missing support that secures catcher to mower deck.

More
$52.74

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
26
Product photo
By: Mtd
Part Number: 964-05104

Collection bag for grass catcher attachments on lawn tractors. Replaces worn, torn, or missing bags. Installs on rear-mounted grass catchers.

More
$104.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
29
Product photo
By: Mtd
Part Number: 711-04988
$13.01

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
30
Product photo
By: Mtd
Part Number: 735-0246A

This part is a replacement handle plug. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. It is intended to replace a defective or broken handle plug in tillers.This handle plug ensures that the opening at the end of the handle is sealed properly. This part can easily become worn, detached, or lost and thus will require replacement with a genuine part. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to use this handle plug, the appropriate owner's manual and equipment diagrams should be referred to. This handle plug is a genuine OEM part made of durable materials and is sold individually. It is suitable for use with tiller models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

More
$6.57

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
31
Product photo
By: Mtd
Part Number: 721-04388

Adhesive foam tape for grass catcher assembly on lawn tractors. Replaces worn, cracked, or missing tape that secures components and dampens vibrations.

More
$8.95

IN STOCK
Ships Tomorrow Guaranteed
Add to Cart
