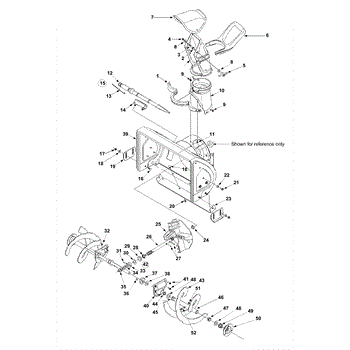

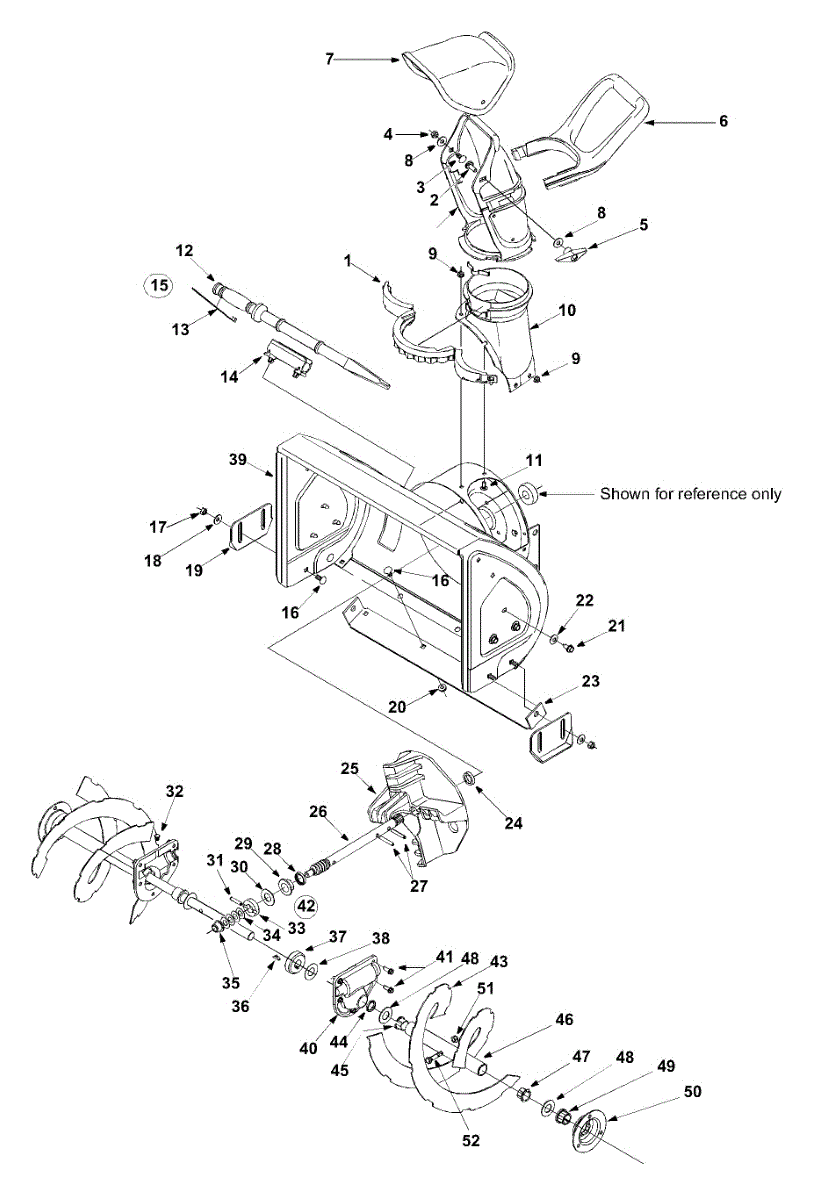

Parts for Yard Machines 31A-380D062 / 2004: General Assembly Parts

Carriage bolt for snowblower attachments and snow throwers. Secures components and panels. Replace if bolt is stripped, rusted, or missing.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

Metal carriage bolt with round head and threaded shank for lawn mowers and snow blowers. Replaces broken or missing hardware during repairs or assembly.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

Tool mounting bar clip for gas snowblowers. Secures tool holder bar to the frame. Replace if clip is cracked, bent, or missing to properly mount tools.

A carriage bolt is a type of fastener. It features a smooth rounded head and a square domed top. It has threading, which leads to up to the square shoulder. The purpose of its square is to prevent the bolt from spinning. Once the carriage bolt is inserted through the hole, using a nut and washer can provide additional security. Carriage bolts can corrode and loosen over time. Since it doesn't have a slotted head, a socket wrench is needed when replacing. This bolt carriage replacement is compatible with wood chippers, tillers, string trimmers, lawnmowers, and edgers. It is a genuine MTD product that measures 5/16x.075. It has a smooth rounded head and square shoulder underneath it. This carriage bolt is sold individually.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

Replacement skid shoe for snow blowers. Mounts to the side of the auger housing to protect surfaces and control clearing height. Replace when worn.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

Self-tapping screw for lawn mowers and garden equipment. Secures metal, wood, and plastic parts. Replace if stripped, missing, or corroded.

Bell washer adds spacing on shafts in lawn tractors, tillers, mowers, and chipper shredders. Replace if washer is missing, worn, or damaged during maintenance.

Oil seal prevents leaks on snowblower worm shaft and bearing flange. Replace when you notice oil leaking from the engine area. Verify fit with your model.

Flange bearing for snow blower auger and drive systems. Replace if you notice wobbling, grinding noise, or rough rotation. Verify fit with your model number.

This grease plug is a genuine OEM replacement part sourced directly from the manufacturer. It is found on snowblowers and other outdoor yard machines on the gearcase assembly, which houses the auger gear. The grease plug seals the oil port on the gearbox. This keeps lubrication inside the gearbox and is the access point for adding more when needed. If this plug is lost, the gearbox's oil could leak out, and contaminants could get into the gearbox.Lubricate the contents of the gearbox before installing the new grease plug. Locate and remove the two screws on the side to drain the gearbox. Install the grease plug in the bottom. Refill the oil using the vent hole. Continue filling until oil is coming out the top side screw. Close everything back up, and the machine is ready for use. To prepare the equipment for long storage, remove the grease plug and check the oil level. If it is not to the top, add more lubricant before sealing the grease plug.This grease plug is made of durable black molded plastic and is sold as an individual unit. It is compatible with snowblowers and snow throwers manufactured by Ryobi, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, Cub Cadet, and Husky.

Fixes auger drive issues and grinding noises in snow blowers. This thrust collar supports proper auger rotation and prevents metal-on-metal wear.

Flange bearing supports rotating shafts in snow blower drive systems. Replace if worn, noisy, or causing wobble. Verify fit with your model number.

This self-tapping screw is used to attach various parts to the engine housing of medium sized gasoline powered engines, in particular yard tools such as tillers, snow blowers, yard tractors, riding mowers, power vacuums, shredders, and chippers. It is used in over 150 different gasoline powered engines. Screws such as these are used particularly when a device is going to receive a great amount of vibration and stress while the engine is running and rotating tools are engaged. Such devices sustain a great deal of wear over time and the parts subject to replacement will eventually fail and need to be replaced. In such cases, it is wisest to replace the attaching hardware such as housing screws as well, because it is a self-tapping screw. Screws of this type are designed to forge a tight bond between the metal pieces they are securing together, but once loosened, they should ideally be replaced with new hardware. Make sure when replacing these screws to use genuine OEM parts like these screws. These replacement parts are manufactured to be identical to the original pieces. This hex screw is compatible with the following brands: MasterCut, Yard-Man, Yard Machine, Montgomery Wards, MTC, Murray, Bolens, Craftsman, Turf King, Troy Bilt, Cub Cadet, Huskee, Toro, and Ryobi.

Flange bushing for snow throwers and lawn equipment. Replace when worn to maintain smooth operation and prevent part damage. Verify fit with your model.

Auger won't turn or broke free from drive system? This auger shaft connects critical components for effective snow throwing operation. Moderate DIY.

Flange bushing for snow throwers and lawn equipment. Replace when worn to maintain smooth operation and prevent part damage. Verify fit with your model.

Flat washer for lawn mowers and tractors. Spreads load from bolts and screws to prevent damage. Replace if worn, cracked, or missing hardware.

Auger won't turn or broke after hitting debris? This shear bolt connects your snow blower's auger to the shaft. Quick 10-minute fix for most models.
