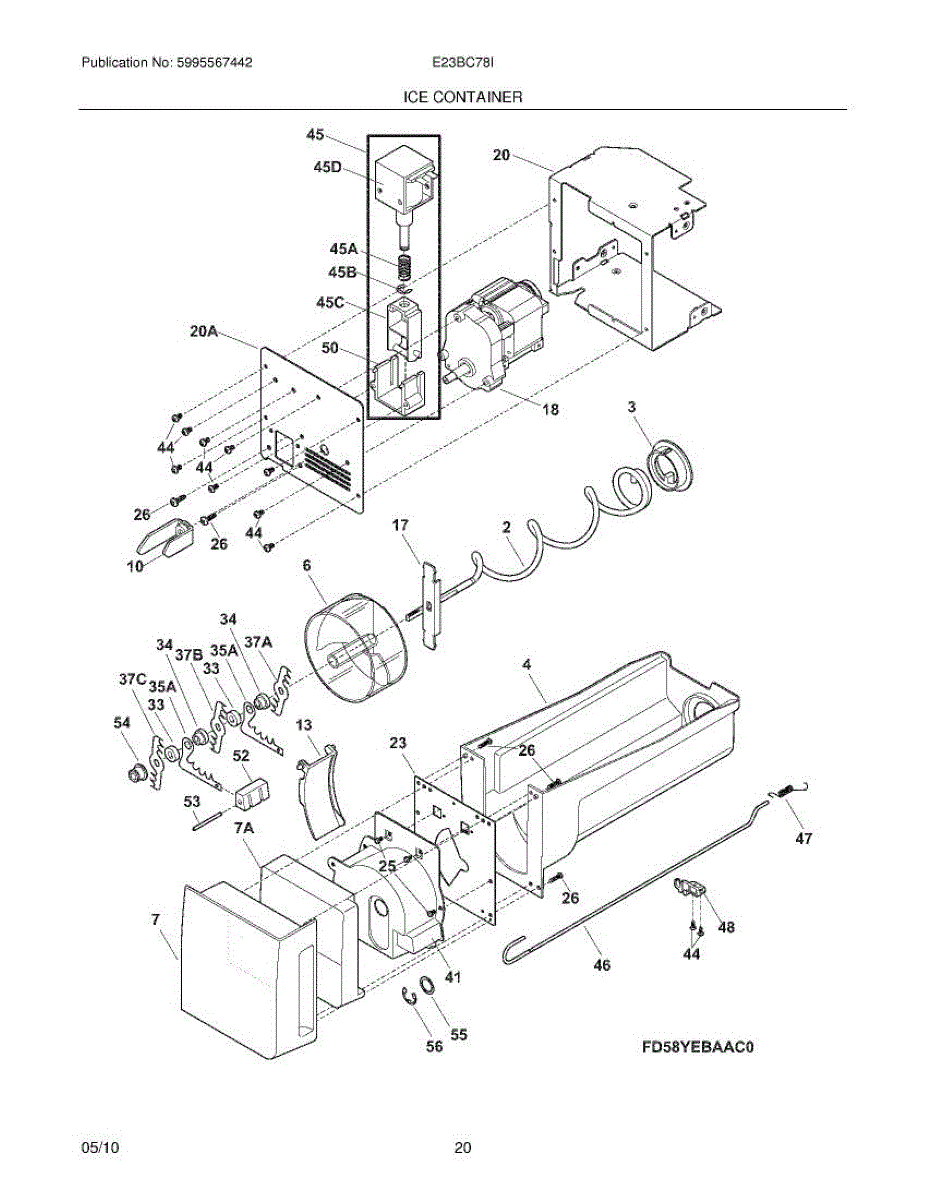

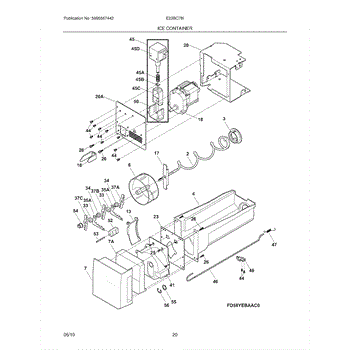

Parts for Electrolux E23BC78IPS2: 15 - Ice Container Parts

The Air Filter is an OEM part for Frigidaire refrigerators designed to enhance the air quality inside the refrigerator, ensuring that food stays fresh and odor-free.

The Air Filter helps to remove unwanted odors and impurities from the refrigerator's circulating air. It absorbs and neutralizes common food odors, keeping your fridge smelling clean and pleasant. The activated carbon filter is 7 times more effective than baking soda at removing odors.

For best results, change filter every 6 months.
Color: Black.
Measures about 7 inches wide by 5 inches deep.

Symptoms of a bad air filter include:

• Lingering food odors inside the refrigerator
• Increased presence of stale or unpleasant smells
• Decreased effectiveness in eliminating odors

Replace your Air Filter with this genuine part to ensure a clean and fresh-smelling refrigerator. This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This insulation piece fits inside the refrigerator cabinet to help maintain internal temperatures and reduce heat transfer, improving cooling stability and efficiency. It replaces worn or damaged insulation behind liners and panels. What it does:

• Provides thermal barrier between cabinet and exterior to help the cooling system maintain set temperatures
• Reduces cold-spot development and helps prevent excessive frost buildup behind liners
• Dampens vibration and minor noise from compressor and refrigerant movement
• Supports proper airflow pathways by filling gaps around panels and components

• One insulation piece as shown

• Disconnect power before beginning any work; for sealed-system safety, unplug the appliance
• Access typically requires removing interior liners or access panels—keep fasteners and clips organized
• Handle insulation gently to avoid tearing; replace any damaged retaining clips or adhesives

This auger drive bar links the dispenser motor to the ice bucket auger, transmitting torque to move cubes or crushed ice to the chute. Replacing a worn or stripped bar restores consistent, reliable ice dispensing. What it does:

• Couples the dispenser motor to the auger/crusher assembly
• Transfers rotation so ice advances to the dispenser chute
• Interfaces with the cube/crush selector mechanism
• Common symptoms include the motor running but no ice dispensing, intermittent dispensing, the auger not turning, or grinding/clicking from the dispenser

• 1 auger drive bar

• Disconnect power and remove the ice bucket before servicing
• Note the bar's orientation; remove any retainers and separate it from the yoke/coupler
• Align the new bar with the mating parts and seat it fully; transfer any reusable retainers
• Reinstall the bin and test both cube and crush selections

The Dispenser Auger Motor is an OEM part for Frigidaire refrigerators. It powers the auger that dispenses ice from the ice maker through the dispenser chute, ensuring smooth and efficient delivery of ice to the user.

Causes of a bad auger motor can include electrical issues, wear and tear from regular use, or mechanical failure. A malfunctioning auger motor can prevent ice from dispensing properly, impacting the overall functionality of the ice maker.

Symptoms of a bad dispenser auger motor include:

• The ice dispenser not dispensing ice
• The auger not turning or making unusual noises
• The dispenser motor not responding when activated
• Ice jams or blockages in the dispenser chute

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

A single replacement screw used to fasten appliance panels and components securely. This genuine-style fastener restores proper fit and helps eliminate rattles or loose parts after service or repairs. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Restores tight, stable mounting to stop rattling or vibration
• Replaces missing or stripped hardware so parts align correctly
• Works where the original appliance screw was used

• Use matching driver and apply moderate torque to avoid stripping the head or threads
• Disconnect power or unplug the appliance when accessing internal areas
• If screw threads are damaged, replace with an identical part rather than forcing

This spacer fits the refrigerator door hinge to set proper clearance and alignment so the door swings smoothly and seals correctly. Replace a worn or missing spacer to eliminate rubbing and uneven gaps at the door.

• Maintains the specified distance between hinge components for correct door height and alignment
• Helps the door open and close without rubbing or binding
• Supports consistent gasket contact for a reliable seal
• Common signs of wear: door sagging, scraping noises, uneven gaps, or the door not closing flush

• Unplug the refrigerator; remove items from the door and support the door before working on the hinge
• Note the order of any washers, cams, and spacers during disassembly for correct reassembly
• Reinstall hardware in the same sequence; do not overtighten fasteners to avoid deforming the spacer
• After reassembly, check door alignment and gasket seal; adjust as needed

This spacer is a small positioning piece used in refrigerator assemblies to maintain proper clearance and alignment between parts. Replacing a worn or missing spacer helps restore smooth operation and prevents rubbing or binding. What it does:

• Maintains the designed gap between mating parts to prevent friction and wear
• Helps keep assemblies aligned for smooth, consistent movement
• Reduces looseness, rattling, or poor fit caused by a missing or deformed spacer
• Typical signs include visible damage or a missing spacer and misalignment or scraping noises in the area it installs

• 1 spacer

• Disconnect power; if working near water components, shut off the water supply
• Use your model's parts diagram to determine exact location and orientation
• Retain and reuse original fasteners or clips unless damaged
• Do not overtighten hardware; ensure smooth operation after installation

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

This solenoid actuator is the electromechanical device that moves a latch or linkage when energized, restoring the appliance's intended mechanical action. It provides a direct replacement to re-enable reliable actuation. What it does:

• Converts electrical signal into a mechanical push or pull to operate a latch, door, dispenser or linkage
• Commonly used where a timed or motor-driven movement is needed during a cycle
• Symptoms this part can cause: appliance fails to actuate a door, latch, dispenser or similar mechanism when called for
• Replacing a worn or failed actuator restores proper mechanical response to control signals

• One solenoid actuator

• Disconnect power to the appliance before beginning work to avoid shock or unintended actuation
• Remove any panels or trim as needed to access the actuator; note wire and mounting locations for reassembly
• Reconnect wiring and test the function on a short cycle after installation

This spring solenoid is the actuator spring assembly that helps move and return a solenoid-driven mechanism, restoring reliable part movement and engagement in affected appliance systems. What it does:

• Provides return tension and controlled movement for a solenoid actuator
• Helps the solenoid plunger snap back after activation so linked components reset
• Commonly replaced when the actuator fails to move, sticks, or does not fully return
• Corrects symptoms such as intermittent engagement, sticking, or loss of actuator motion

• Disconnect power to the appliance before attempting service to avoid shock or injury
• Handle small components carefully; keep track of retaining clips, pins, or fasteners
• Replace with the exact part number to ensure fit and function
• Refer to OEM instructions for step-by-step removal and reassembly

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This control bracket secures the appliance's control console and support electronics, restoring proper alignment and stability to the front control area. It helps maintain a firm mount for the control board and fascia. What it does:

• Provides structural support for the console and control board to prevent movement or sagging
• Helps keep buttons, knobs, and display aligned for reliable operation
• Reduces stress on wiring and connectors by holding the control assembly in place
• Can resolve symptoms like a loose or wobbly control panel, misaligned fascia, or intermittent button contact

• One control bracket as shown

• Disconnect power (unplug or switch off the breaker) before beginning any repair
• Removal of the control panel/console is typically required; keep track of fasteners and retainers
• Handle the control board and display gently to avoid damage; avoid touching circuitry

This flat metal washer provides a durable spacer and load-distributing surface for a matching fastener, helping secure assemblies and reduce wear. It's a small but essential hardware piece for routine repairs and reassembly. What it does:

• Distributes fastening load to protect softer materials and prevent pull-through
• Creates a smooth bearing surface for nuts and bolts to seat evenly
• Helps reduce vibration and loosening in moving assemblies
• Commonly used on panels, brackets, and mounting hardware where a flush fit is needed

• One flat metal washer as shown

• Disconnect power and water (if applicable) and access the assembly before replacing hardware
• Use the matching bolt/nut size and washer ID/OD for correct fit; do not force oversized fasteners
• Hand-start fasteners to avoid cross-threading, then tighten to the equipment manufacturer's spec
• Keep small parts secure during disassembly to avoid loss or damage

This E-ring is a small retaining clip used in Frigidaire refrigerators to hold components on a grooved shaft or pin. It keeps assemblies secure and operating smoothly by preventing parts from sliding off during normal use. What it does:

• Retains parts on a grooved shaft or pin to prevent axial movement
• Helps keep mechanisms aligned and reduces wobble or separation
• Common symptoms when missing or damaged: loose or fallen-off parts, scraping/rattling noises, or poor operation of the affected assembly

• 1 E-ring

• Unplug the refrigerator before servicing; wear eye protection (spring clips can snap)
• Use needle-nose pliers or an E-clip tool to compress and seat the ring in the groove
• Verify the ring is fully seated and flush in the groove before reassembly
• Keep any spacers/washers in the original order during removal and reinstallation

This washer is a flat metal spacer used with fasteners to distribute load and secure appliance components, helping maintain proper alignment and reduce wear on mounting surfaces. What it does

• Provides a smooth bearing surface between a bolt or nut and a component to prevent damage
• Helps keep fasteners tight and reduces loosening from vibration
• Restores proper spacing and alignment for parts that rely on a shim or spacer
• Commonly replaced when hardware is corroded, bent, or missing

• One flat washer

• Use appropriate hand tools and avoid over-torquing fasteners
• Disconnect power and follow appliance safety guidelines before servicing
• Replace damaged or corroded fasteners when installing this washer
