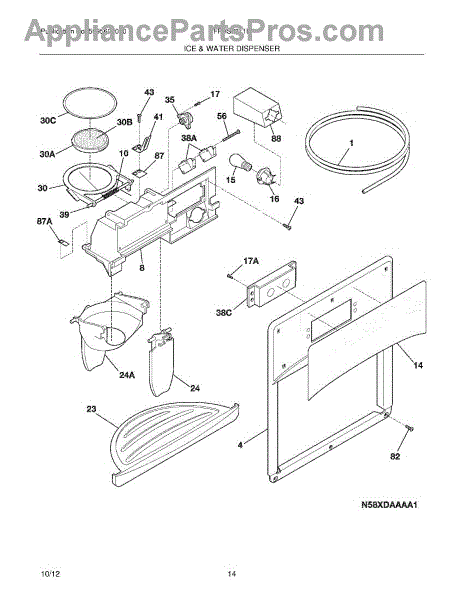

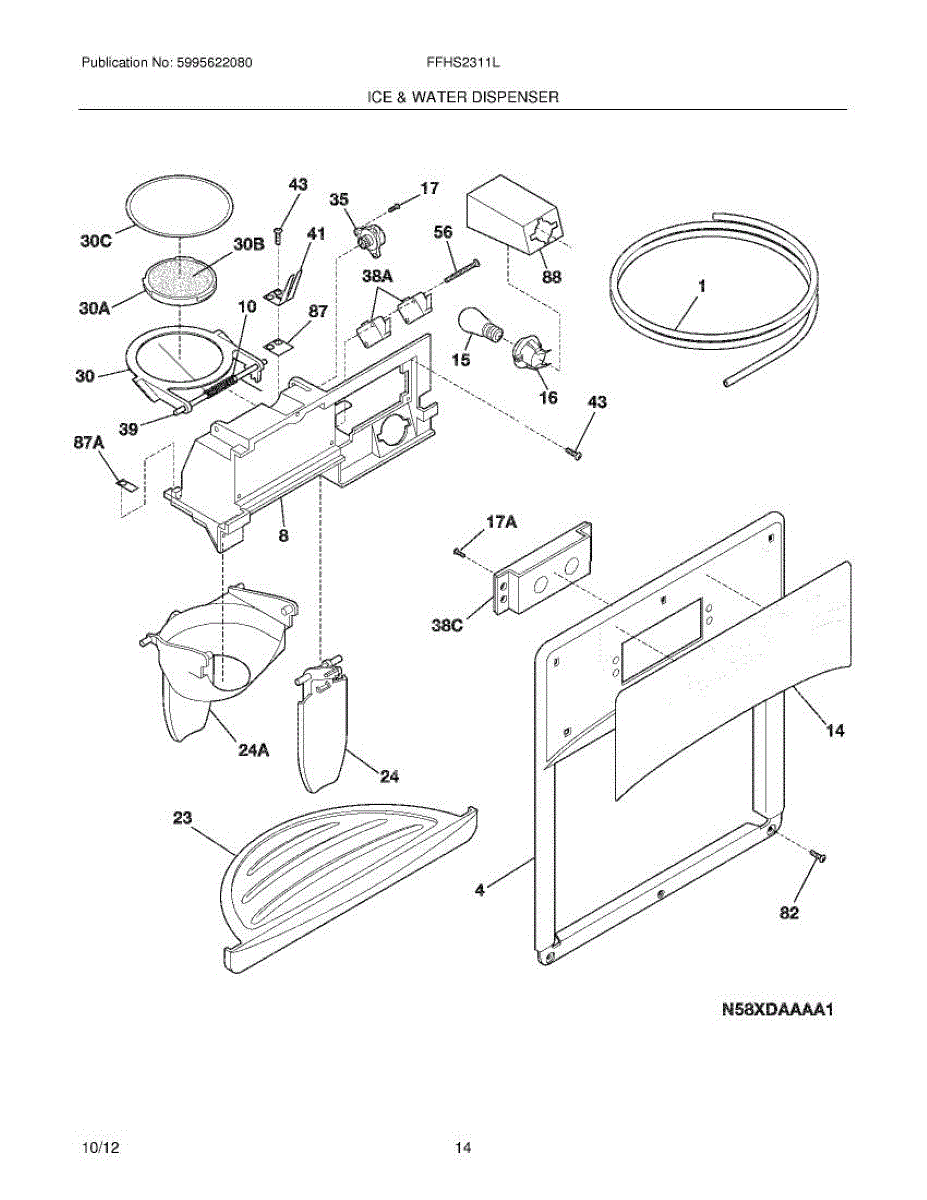

Parts for Frigidaire FFHS2311LB8: 15 - Ice Container Parts

This single-pack Frigidaire PureSource 3 WF3CB Water Filter is an OEM replacement part for Frigidaire refrigerators. It improves the quality and taste of your drinking water. It removes impurities such as lead, cysts, and mercury, as well as reduces chlorine taste and odor. The filter is NSF and WQA certified and is designed to fit specific side-by-side models after 2009 where the filter is located in the back, right top.

Specs:

• Pressure range: 30 - 100 PSIG
• Color: White
• Dimensions: Approximately 2-1/2 inches in diameter by 9-1/2 inches deep.

To ensure optimal performance, filters should be changed every 6 months or 200 gallons, depending on usage.

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Dispenser Cover is an OEM replacement part for Frigidaire side-by-side refrigerator models. Located on the refrigerator door, it provides external closure over the built-in dispenser features.

Causes of a bad cover can include cracks or chips developing from repeated use of the dispensers, and exposure to impacts/cleaning chemicals compromising plastic integrity over time.

Symptoms include:

• Water or debris accumulating in cracks or crevices
• Weakened hinges unable to maintain proper closure position
• Fading, dulling, or discoloration compared to surrounding finishes

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore refrigerators.

This torsion spring mounts in the dispenser to return the ice chute door/flapper to the closed position after dispensing. Replacing a weak or broken spring helps stop warm air leaks, frost, and ice clumping in the chute.

• Provides the closing force for the dispenser ice door
• Helps seal the ice chute to reduce frost and moisture intrusion
• Typical symptoms: ice door won't close fully, frost/ice buildup around the chute, cubes dropping after dispensing, or air leakage at the dispenser
• Replace if the spring is broken, deformed, or has lost tension

• Disconnect power before servicing; shut off water if working near the dispenser area
• Remove dispenser trim/bezel and control panel to access the ice door assembly; support wiring harnesses
• Note spring orientation and preload before removal; install the new spring on the same hinge posts in the same direction
• Manually cycle the flapper to ensure smooth return and a full seal before reassembly

The Dispenser Cover Overlay is an OEM part for Frigidaire refrigerators. This part fits over the front of the dispenser, providing a protective and decorative cover for the control panel and dispenser mechanisms.

Causes of a bad dispenser cover overlay can include physical damage from impacts, wear and tear from frequent use, or fading and discoloration from prolonged exposure to sunlight and cleaning chemicals.

Symptoms of a bad dispenser cover overlay include:

• Cracks or breaks in the cover
• Discoloration or fading of the overlay
• Difficulty using the dispenser controls
• The overlay peeling or coming loose from the dispenser

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement light bulb restores clear illumination inside your appliance, making it easy to check progress and find items. It matches the original fit and connection for dependable lighting exactly where the manufacturer intended.

• Provides appliance illumination per the original design
• Replaces bulbs that are burned out, dim, flickering, or intermittent
• Helps you monitor progress and see the compartment clearly
• Fits the original socket for straightforward replacement

What's included: 1 light bulb Install notes:

• Disconnect power to the appliance before replacing the bulb
• Allow the bulb and surrounding area to cool completely
• Handle the bulb by the base; avoid touching the glass
• Replace with the same type and wattage specified on the appliance or in the manual

A replacement refrigerator light socket that holds and connects the interior bulb so the light turns on when the door opens. Restores reliable interior lighting for easier food visibility and maintenance. What it does:

• Holds the interior refrigerator bulb and provides the electrical connection to power the lamp
• Replaces a cracked, burned, loose or intermittently working socket
• Helps stop flickering, arcing, or loss of interior light due to a damaged holder
• Works with the refrigerator's existing wiring and bulb type

• Disconnect power to the appliance before starting any repair
• Handle the bulb carefully; remove it before replacing the socket
• Verify proper wire connections and secure mounting; restore power and test the light after installation

This is a replacement screw used to secure panels, trim and other appliance components to restore proper fit and reduce rattling. It matches the OEM part form and fastening function for compatible Frigidaire appliances. What it does:

• Secures panels, brackets or trim to maintain proper alignment and appearance
• Replaces missing, stripped or damaged screws that cause loose parts or vibration
• Helps prevent rattling and keeps components seated for safe operation
• Restores original fastening where a worn or corroded screw failed

• Disconnect power to the appliance before beginning any repair to avoid electrical hazard
• Use the correct screwdriver or driver bit and hand-start threads to avoid cross-threading
• Tighten until snug; avoid overtightening which can strip threads or damage panels
• If thread damage is present, replace with the correct OEM fastener (do not force)

A single replacement mounting screw used to secure appliance panels and components. Restores proper fit and prevents rattling or loose parts so trims and panels stay aligned during normal use. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Replaces worn, stripped or missing screws that cause loose or rattling parts
• Helps restore secure alignment for doors and access panels
• Works where the OEM lists a basic machine/fastener screw

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then tighten until snug—do not overtighten
• Keep small parts away from children and pets during installation

The Dispenser Drip Tray is an OEM replacement part for Frigidaire refrigerators. It is located below the water and ice dispenser and collects any accidental spills or drips that occur during use. The drip tray helps prevent moisture accumulation on interior surfaces that could lead to mold or mess. It measures about 11 inches wide by 4 inches deep.

Symptoms of a bad dispenser drip tray include:

• Unpleasant odors emanating from unaddressed spills or drips
• Visible water staining or residue buildup below dispenser

Causes of failure are typically just general wear and tear from prolonged use.

This replacement part is also compatible with models produced by Electrolux, Gibson, Kelvinator, and Kenmore.

The Ice Dispenser Actuator Arm is an OEM part for Frigidaire refrigerators. It is designed to engage the ice dispensing mechanism when you press the lever or button on the ice dispenser. This actuator arm transfers the mechanical action needed to release ice from the dispenser into your glass or container.

You should replace the ice dispenser actuator arm if it becomes damaged, worn out, or fails to engage the ice dispensing mechanism properly. Common causes of a bad actuator arm include frequent use, mechanical wear, or accidental damage that can bend or break the arm.

Symptoms of a bad ice dispenser actuator arm include:

• The ice dispenser not releasing ice
• The dispenser lever feeling loose or unresponsive
• Ice dispenser making unusual noises
•  The actuator arm appearing bent or broken

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Water Actuator is an OEM part for Frigidaire refrigerators. It is a crucial component of the dispenser system, primarily responsible for initiating the water dispensing process when pressed. This actuator typically sits behind the water dispenser lever on the refrigerator door, acting as the mechanical link that triggers the water flow when activated by the user.

Symptoms of a faulty water actuator include:

• Inability to dispense water when the lever is pressed.
• Intermittent or inconsistent water flow.
• Unusual noises during actuation.

Causes of a bad water actuator can include mechanical wear and tear, failure of the spring mechanism that returns the lever to its original position, or electrical issues that prevent the actuator from functioning properly. Regular usage and accidental impacts can also lead to the deterioration of this part.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Chute Door Insulation is an OEM replacement part for Frigidaire refrigerators. It is installed on the ice chute door to prevent warm air infiltration and moisture buildup around the ice dispenser.

Causes may include compression or cracking of insulating foam/material from normal use stress. Spills exposing it to liquid are also damaging.

Symptoms of defective insulation consist of:

• Ice accumulating within the chute cover area
• Condensation visible on exterior chute surfaces
• Inefficient icemaker performance due to altered temperatures

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Center is an OEM part for Frigidaire refrigerators. This component is part of the ice dispenser system, managing the release of ice through the dispenser chute. It helps prevent cold air from escaping the freezer, maintaining energy efficiency and preserving the ice supply.

You should replace the ice door center if it becomes damaged or fails to seal properly. Causes of a bad ice door center can include regular wear and tear, damage from repeated use, or build-up of ice and debris obstructing its movement.

Symptoms of a bad ice door center include:

• Ice dispenser not working correctly
• Ice build-up around the dispenser area
• Warm air entering the freezer, causing ice to melt or clump
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Seal is an OEM part for Frigidaire refrigerators. This seal is designed to create an airtight barrier around the ice dispenser door, preventing warm air from entering the freezer and maintaining optimal temperature inside the ice compartment. Please note, this listing is for the seal only, other components are sold separately.

Over time, the ice door seal can become worn out or damaged due to frequent use, exposure to varying temperatures, and regular opening and closing. Causes of a bad ice door seal include cracking, tearing, or loss of elasticity, which can lead to air leaks.

Symptoms of a bad ice door seal include:

• Frost or ice buildup around the ice dispenser
• Warm air entering the freezer compartment
• Increased energy consumption
• Water or condensation around the ice dispenser area
• The ice door not closing properly or sealing tightly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Bracket is an OEM part for Frigidaire refrigerators. It is a critical component of the ice dispenser mechanism, designed to support and align the ice door properly. This bracket ensures the ice door opens and closes smoothly, maintaining an airtight seal to prevent warm air from entering the freezer compartment and causing frost buildup.

Symptoms of a bad Ice Door Bracket include:

• The ice dispenser door failing to close completely, which can lead to ice melting and freezer burn.
• Excessive frost or ice accumulation near the dispenser area.
• Unusual noise when the dispenser is activated, indicating misalignment or instability.

Causes of a bad ice door bracket can include mechanical stress from repeated use, accidental damage from impact, or wear and tear that weakens the structural integrity of the bracket.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This wiring harness routes power and signal connections between components to restore proper electrical communication and operation. It replaces a damaged or worn harness to fix intermittent or failed electrical functions. What it does:

• Reconnects power and control circuits between components so systems can receive proper voltage and signals
• Commonly used when wiring is frayed, burned, pinched, or connectors are loose or corroded
• Can resolve symptoms like no power to a component, intermittent operation, or control not responding
• Restores secure plug-and-play connections when the original harness is damaged

• Wiring harness assembly

• Always disconnect power before replacing any wiring or electrical parts
• Inspect connector fit, wire routing, and strain reliefs; route harness the same way as the original to avoid pinching
• Make sure connectors are fully seated and any locking tabs engage
• If you see damaged connectors on the appliance side, repair those before connecting the new harness

The Switch-4 Button Assembly is an OEM part for Frigidaire refrigerators. This switch assembly operates important refrigerator functions like the light controls, temperature selection, and ice/water dispenser functions. It contains four precise switches designed to last through years of use while maintaining accurate input control.

Causes of a bad switch assembly can include continuous actuations over time leading to switch wear, accidental damage or spills compromising switch integrity, or failures in electronic components.

Symptoms of a bad switch assembly include:

• Lights or temperature settings not functioning properly
• Ice/water dispenser buttons not working as expected
• Failed or improperly actuating switches
• Water leaks or electrical issues at the switch location

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Dispenser Switch is an OEM replacement part for Frigidaire refrigerators. It is a component that controls the operation of the water and ice dispenser, allowing users to conveniently access chilled water, cubed ice, or crushed ice from the refrigerator door.

Symptoms of a bad dispenser switch:

• Failure of the water or ice to dispense when the lever or button is activated
• Erratic or inconsistent dispensing behavior
• Water or ice continuously dispensing without user input
• Leaks or moisture around the dispenser area

Causes of a bad dispenser switch can include mechanical wear and tear, electrical malfunctions, or physical damage due to mishandling or impact.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

This small but critical actuator spring restores return tension in a refrigerator's actuator mechanism, helping the lever reset to neutral after use so controls feel responsive and operation stops cleanly. What it does:

• Provides the return force for an actuator or lever so it moves back to its neutral position
• Helps the mechanism engage/disengage a switch cleanly
• Common symptoms of a weak or broken spring: lever sticks, feels loose, or doesn't spring back
• Contribute to intermittent activation or failure to stop when released

• 1 actuator spring

• Disconnect power; if working near the dispenser/water system, shut off the water supply
• Access the actuator mechanism and note the spring's exact orientation (take a photo before removal)
• Use needle-nose pliers to transfer the spring; do not over-stretch or deform it
• Wear cut-resistant gloves and eye protection; test lever return action before reassembly

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This replacement tube routes water inside the refrigerator to the dispenser or ice maker, restoring proper water flow and preventing leaks when the original tubing is cracked or worn. Simple direct-fit replacement when the OEM tubing fails. What it does:

• Carries water between the refrigerator supply and the dispenser or ice maker
• Replaces cracked, split or collapsed tubing that can cause leaks
• Helps restore steady water flow and proper ice-making or dispensing
• Prevents water damage from deteriorated or pinched lines

• Designed for refrigerator models that use this exact OEM tube
• Disconnect power and shut off the water supply before replacing tubing
• Inspect connections and seals; replace any damaged clips or fittings to ensure a watertight seal

This replacement refrigerator water tube routes water or condensate between components and maintains a sealed path. Replacing cracked, kinked, or brittle tubing helps stop leaks and restore proper water movement through the system.

• Provides a sealed path to carry water within the refrigerator assembly
• Maintains proper routing to help prevent kinks and restrictions
• Typical failure signs: water leaking inside or underneath, pooling water, visible cracks/brittleness, restricted flow
• Replacing damaged tubing helps prevent water damage to surrounding parts

• Disconnect power and shut off the water supply before servicing
• Note the original routing and connection points; match the length and path during installation
• Fully seat tube ends into existing fittings; transfer any clips/ferrules from the original as required and avoid sharp bends
• Restore water and power, then run and inspect all connections for leaks

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
