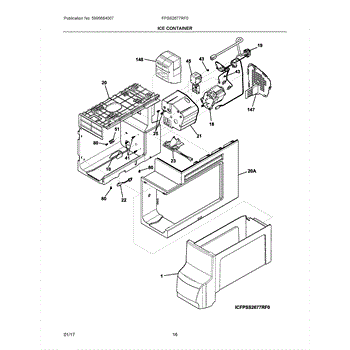

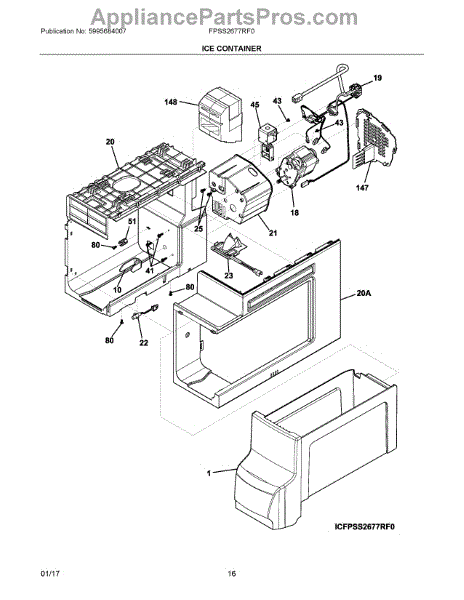

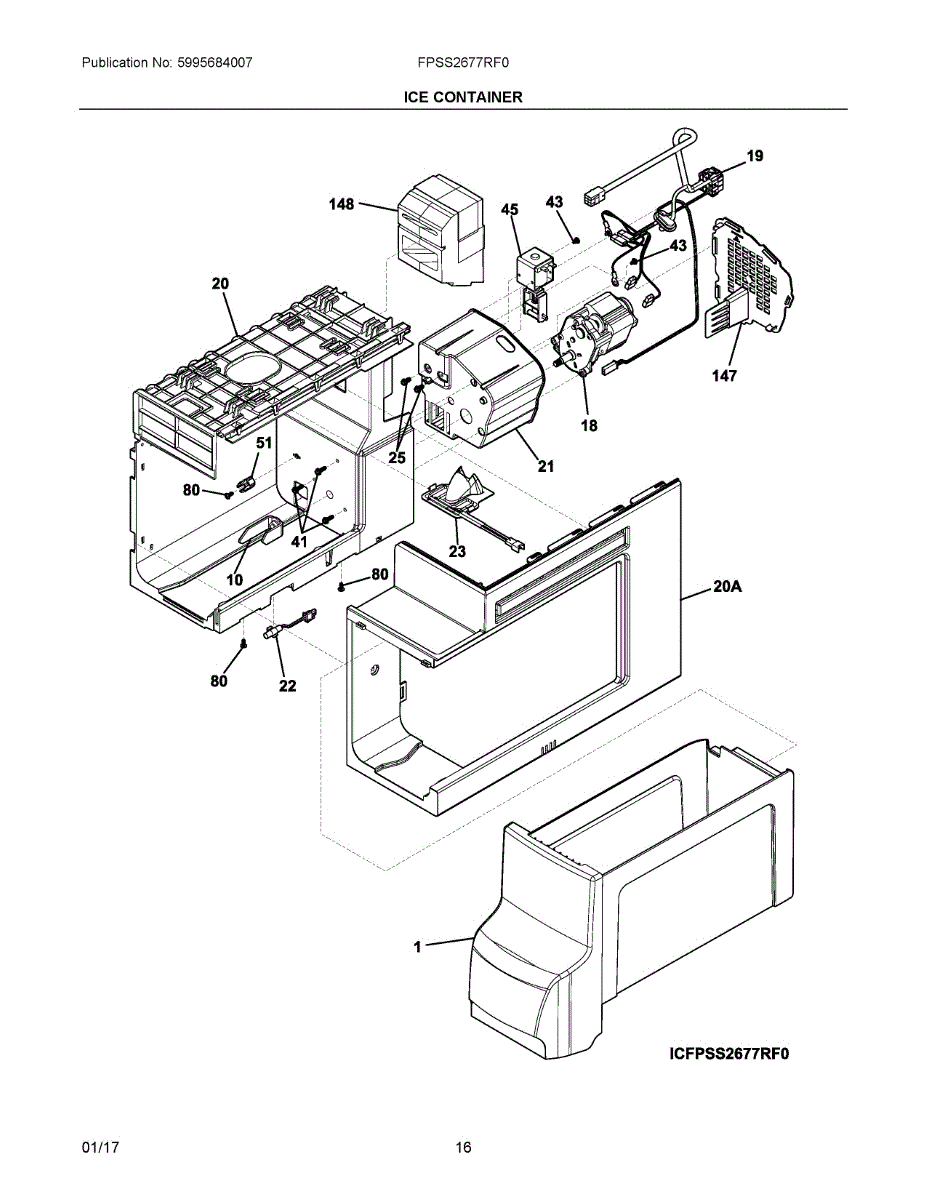

Parts for Frigidaire FPSS2677RF0: 09 - Ice Container Parts

The Ice Container Assembly is an OEM part for Frigidaire refrigerators. This assembly is responsible for storing ice that is produced by the icemaker. It fits within the freezer compartment, providing a dedicated space for ice storage, ensuring easy access and organized containment.

Causes of a bad ice container assembly can include wear and tear from regular use, physical damage from dropping or mishandling, and exposure to extreme temperatures which can make the plastic brittle over time.

Symptoms of a bad ice container assembly include:

• Cracks or holes in the container
• Ice spilling or not being contained properly
• Difficulty in inserting or removing the container from the freezer
• Ice melting or clumping due to poor insulation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This auger drive bar links the dispenser motor to the ice bucket auger, transmitting torque to move cubes or crushed ice to the chute. Replacing a worn or stripped bar restores consistent, reliable ice dispensing. What it does:

• Couples the dispenser motor to the auger/crusher assembly
• Transfers rotation so ice advances to the dispenser chute
• Interfaces with the cube/crush selector mechanism
• Common symptoms include the motor running but no ice dispensing, intermittent dispensing, the auger not turning, or grinding/clicking from the dispenser

• 1 auger drive bar

• Disconnect power and remove the ice bucket before servicing
• Note the bar's orientation; remove any retainers and separate it from the yoke/coupler
• Align the new bar with the mating parts and seat it fully; transfer any reusable retainers
• Reinstall the bin and test both cube and crush selections

The Dispenser Auger Motor is an OEM part for Frigidaire refrigerators. It powers the auger that dispenses ice from the ice maker through the dispenser chute, ensuring smooth and efficient delivery of ice to the user.

Causes of a bad auger motor can include electrical issues, wear and tear from regular use, or mechanical failure. A malfunctioning auger motor can prevent ice from dispensing properly, impacting the overall functionality of the ice maker.

Symptoms of a bad dispenser auger motor include:

• The ice dispenser not dispensing ice
• The auger not turning or making unusual noises
• The dispenser motor not responding when activated
• Ice jams or blockages in the dispenser chute

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This wiring harness connects the appliance's control and power circuits so switches, controls and components receive reliable electrical signals. Replacing a damaged harness restores proper electrical routing and helps prevent intermittent operation or shorts. What it does:

• Transfers power and control signals between the control board, switches and components
• Replaces worn, cracked or damaged wiring that can cause intermittent function or failure
• Addresses symptoms like unresponsive controls, intermittent operation, blown fuses or visible wire damage
• Helps prevent arcing or short circuits from frayed or melted conductors

• Disconnect power before beginning work to avoid shock or damage
• Inspect connectors and routing; secure harness away from heat or moving parts
• Replace only if the part matches the original; compare connector count and routing

This housing is the outer structural shell that supports and protects internal components, helping keep assemblies aligned and reducing vibration for reliable operation. It restores proper fit and enclosure after damage or wear. What it does:

• Provides structural support and mounting points for internal components
• Protects motors, fans, and wiring from debris and impact
• Helps maintain airflow paths and reduces vibration and noise
• Restores proper door/cover fit when the original housing is cracked or warped
• Can prevent rubbing or interference that can cause unusual sounds or performance issues

• Disconnect power (unplug or shut off circuit breaker) before starting any repair
• Handle carefully; edges may be sharp and surrounding parts can be fragile
• Basic hand tools required; some disassembly of surrounding panels may be needed
• Follow the manufacturer's service manual for proper alignment and torque specifications

This housing cover protects and secures the motor and solenoid assembly, helping maintain proper alignment and safe operation. Restores the cabinet fit where the original cover is cracked, missing, or worn. What it does

• Provides a protective enclosure for the motor and solenoid assembly to prevent debris and moisture intrusion
• Keeps motor/solenoid components properly positioned for reliable engagement
• Helps reduce vibration noise caused by loose or damaged covers
• Commonly replaced when the cover is cracked, broken, or no longer holds fasteners

• Verify power is disconnected before beginning service to avoid electrical shock
• Handle fasteners and mounting tangs carefully; replace any damaged clips or screws as needed
• Basic disassembly of the appliance access panel may be required;

The Temperature Sensor (10K NTC) is an OEM replacement part for Frigidaire refrigerators. This sensor monitors the internal temperature of the refrigerator or freezer compartment, sending signals to the control board to regulate cooling cycles. It ensures the appliance maintains the correct temperature for optimal food preservation.

Temperature sensors can fail due to wear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can cause inaccurate temperature readings, leading to improper cooling or freezing.

Symptoms of a bad temperature sensor include:

• Fluctuating or incorrect temperatures in the refrigerator or freezer
• Food spoiling faster than expected or freezing inappropriately
• Error codes related to temperature regulation
• The refrigerator running continuously or cycling too often

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This water fill cup directs the incoming water from the valve into the ice maker mold so the ice tray fills cleanly. It helps restore reliable ice production by guiding water where it's needed and reducing spills. What it does:

• Funnels water from the fill valve into the ice maker mold for even fills
• Prevents water from splashing or leaking inside the ice maker cavity
• Helps stop underfilled or overflowing ice trays that cause poor ice production
• Works with the ice maker's fill cycle to maintain consistent ice sizes

• One fill cup

• Disconnect power to the refrigerator and shut off the water supply before starting
• Handle the cup gently; align tabs/slots and press into place until it snaps securely
• Inspect and replace any worn seals or gaskets you encounter during installation

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This factory replacement screw secures panels, brackets, or trim on your appliance so parts stay tight and aligned. Swap in a new screw when one is missing or stripped to restore a solid, rattle-free fit.

• Fastens compatible panels, brackets, handles, or internal hardware
• Helps maintain proper alignment and stability
• Common fix for loose or wobbly handles/trim, rattling noises, or missing hardware
• Replace if threads are stripped, head is damaged, or corrosion is present

• Disconnect power before servicing; wear cut-resistant gloves
• Use the correct screwdriver or nut driver to avoid stripping
• Start threads by hand to prevent cross-threading
• Tighten until snug; do not overtighten

The Solenoid and Yoke Assembly is an OEM part for Frigidaire refrigerators. It is used in the ice dispensing system to control the movement of the ice chute, allowing ice to be dispensed from the refrigerator door.

Causes of a bad solenoid and yoke assembly can include electrical issues such as a burnt-out solenoid, wear and tear from regular use, or physical damage due to mishandling or impact.

Symptoms of a bad solenoid and yoke assembly include:

• Ice not dispensing or dispensing intermittently
• Strange noises when attempting to dispense ice
• The ice chute not opening or closing properly
• Error codes related to the ice dispensing system

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This anti-twist pin secures mating parts to stop unwanted rotation and keeps linked components aligned for reliable operation. Replace a worn or broken pin to restore proper fit and reduce twisting, rubbing and noise. What it does:

• Keeps connected components from rotating or shifting, preserving alignment and part engagement.
• Helps prevent rubbing, scraping, or noisy operation caused by a loose or missing pin.
• Replaces a damaged or worn locating/retention pin that can allow assemblies to bind or move out of position.
• Simple mechanical replacement that restores intended part geometry and fit.

• Disconnect power to the appliance before servicing to avoid electrical or motion hazards.
• Remove any covers or panels as needed to access the pin; keep track of fasteners and orientation.
• Install the pin in the same orientation as the original; components move freely and are properly engaged before reassembly.

This genuine replacement clip secures appliance components to keep panels and small parts aligned and stable, restoring fit and function. It's a small, durable fastener used where a simple snap or hold is required. What it does

• Holds trim, panels, or small components in place to prevent rattling or misalignment
• Restores secure fit where a damaged or missing clip causes loose parts
• Helps stop vibration noise caused by unsecured pieces
• Small, direct-fit part—replaces a single broken or lost clip

• Disconnect power to the appliance before starting any repair.
• Access may require removing trim or panels; keep track of fasteners.
• Press or snap the clip into place; do not force beyond fit—if it won't seat, recheck alignment.
• Wear gloves and eye protection to avoid cuts from sharp edges.
