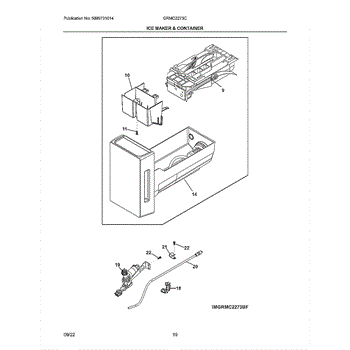

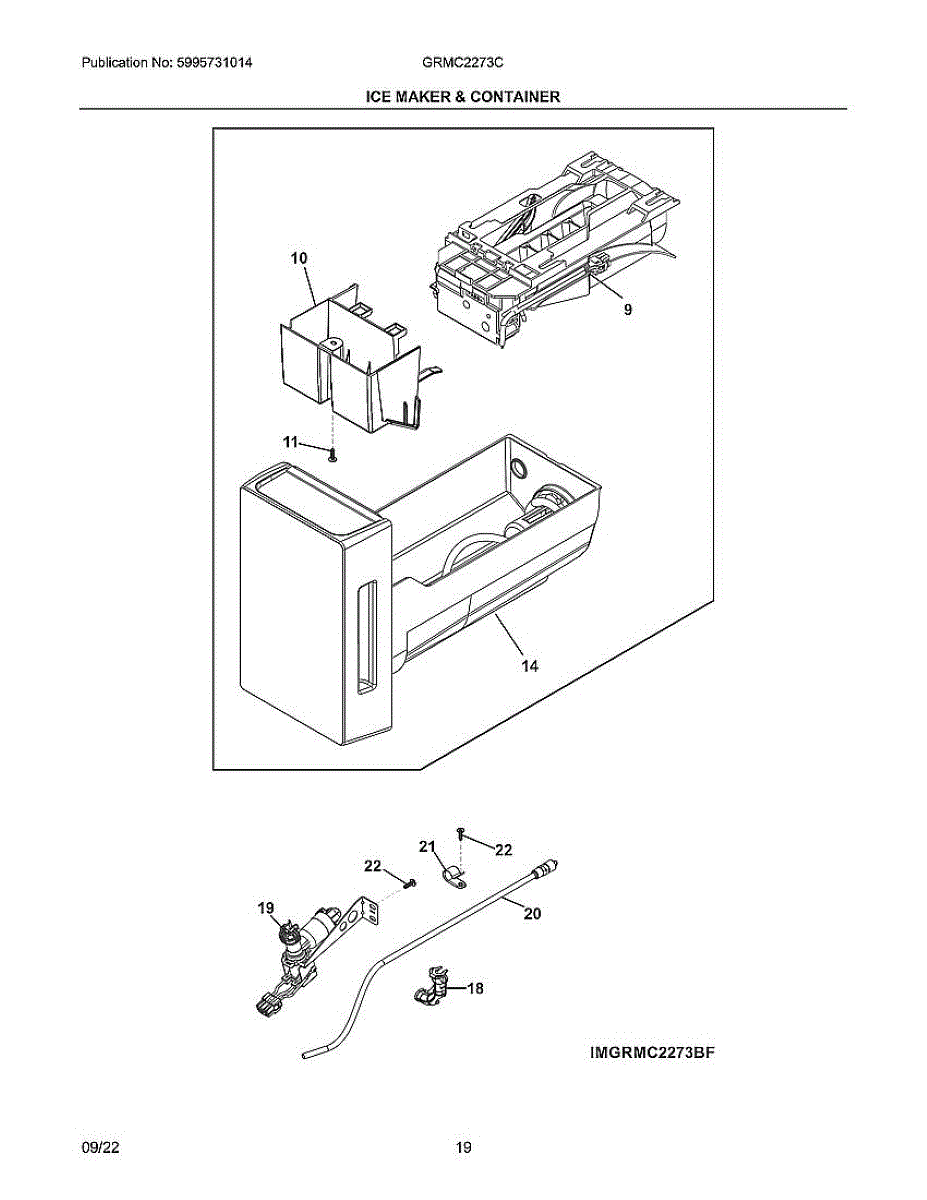

Parts for Frigidaire GRMC2273CD00: Ice Maker & Container|Imgrmc2273bf.Svg Parts

The ICE MAKER is an OEM part for Frigidaire refrigerators. It automatically produces batches of ice cubes which are then dispensed through the freezer door. The icemaker is designed to work with the refrigerator's water supply and cooling system to efficiently freeze water into usable ice cubes.

Causes of a bad icemaker may include mineral or limescale buildup affecting components over time, or wear and damage to parts like the mold heating element or water valve.

Symptoms of a bad icemaker include:

• Failure to produce ice cubes or inconsistent ice cube sizes
• Leaks or water spillage around the icemaker area
• Loud buzzing or grinding noises during the operation
• Errors codes displayed on control panels related to icemaker functions

This OEM Frigidaire replacement icemaker is also compatible with French door and bottom-mount freezer configurations by brands including KitchenAid, Maytag, Jenn-Air, and select Kenmore designs.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This bucket assembly is the removable ice container that stores and dispenses cubed ice from the refrigerator's icemaker, making ice removal and storage simple and sanitary. Fits the icemaker area and slides in for secure holding. What it does:

• Holds and stores ice produced by the refrigerator icemaker
• Guides ice into the dispenser area and helps keep cubes contained
• Replaces cracked, warped or damaged ice bins that cause leaks or spills
• Restores proper seating so ice feeds and dispenses reliably

• Remove ice and slide the old bucket straight out before installing the replacement
• Handle edges carefully; avoid forcing the bucket to prevent damage
• Clean the bucket with mild soap and water before first use; dry thoroughly
• Disconnect power to the appliance first

This refrigerator clip is a small retainer that secures a component in place so it stays properly seated during use. Replacing a worn or missing clip restores a snug fit and helps eliminate looseness, rattling, or misalignment.

• Holds a part, panel, tube, or wire securely in its mounting point
• Maintains alignment to prevent shifting or vibration
• Helps preserve proper fit and airflow when components are correctly seated
• Symptoms can include loose or sagging pieces, rattling noises, or parts that won't stay attached

• Unplug the refrigerator; if working near water lines, shut off the water supply
• Note the clip's orientation before removal; take a photo for reference
• Use needle-nose pliers to release/install; avoid over-flexing the clip
• After installation, tug-test gently to confirm a secure fit before reassembling

This single water inlet valve regulates water flow into your refrigerator. When energized, it opens to supply water and closes to stop it—restoring consistent filling for ice production and any water dispensing your model supports.

• Controls on/off water flow to the ice maker and/or dispenser (model dependent)
• May resolve no ice, slow or hollow cubes, or a dispenser that won't dispense or is weak
• Can correct intermittent dripping or leaks at the rear caused by a valve that won't fully close
• A humming valve with little or no water flow can indicate a failed solenoid or internal blockage

• Unplug the refrigerator and shut off the household water supply before servicing
• Place a towel/container to catch residual water; relieve line pressure if possible
• Note wire and tube locations; transfer to the new valve and seat/tighten fittings securely
• Restore water and power, then check all connections for leaks and run a test fill

This replacement tube restores proper fluid routing inside compatible Frigidaire appliances, helping stop leaks and return correct flow to affected components. Use when original tubing is cracked, clogged, or damaged. What it does:

• Routes fluid between internal components so systems like dispensers or ice makers can receive water or allow drainage
• Replaces cracked, split, or deteriorated tubing that causes visible leaks or pooling
• Helps resolve intermittent or weak water flow when the tubing is blocked or pinched
• Restores sealed connections when clamps or fittings no longer hold the original tube

• Disconnect power and shut off the water supply before starting any repair
• Inspect fittings and clamps; replace clamps if they are corroded or damaged
• Trim tubing squarely and seat fully on barbed fittings; secure with the correct clamp type
• After installation, restore power/water and check all connections for leaks

Color: Black/natural. Nylon

This is a replacement mounting screw used to secure appliance panels and small components so parts stay firmly in place during normal use. Installing the correct screw restores proper fit and reduces rattles or loose trim. What it does:

• Fastens panels, brackets, or trim to the appliance frame
• Keeps components aligned to prevent vibration and noise
• Replaces a lost or stripped screw to restore secure attachment
• Helps maintain safe, stable operation by holding parts where they belong

• One replacement mounting screw

• Disconnect power and water before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-tightening which can damage threads or panels
• Keep removed fasteners organized so you reinstall them in the original locations

This is a replacement clamp that secures flexible hoses and tubing to fittings to help maintain a tight connection and reduce the chance of leaks. It's a small yet essential fastener for appliance fluid lines. What it does:

• Holds a hose or tube securely to a barb, nipple, or fitting to help prevent leaks
• Keeps drain, water, or coolant lines from slipping off during operation
• Restores a secure connection if the original clamp is corroded or damaged
• Works wherever a matching-size spring/ear-style clamp is specified

• Disconnect power and water before working on appliances to avoid shock or flooding
• Use appropriate pliers or clamp tool to open/install; avoid sharp tools that can damage the hose
• Inspect the hose and fitting for damage and replace if necessary
