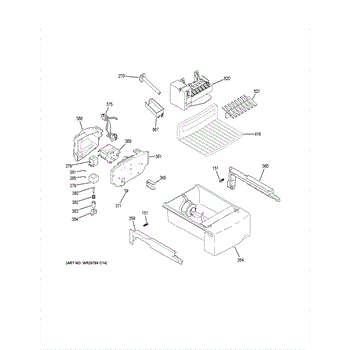

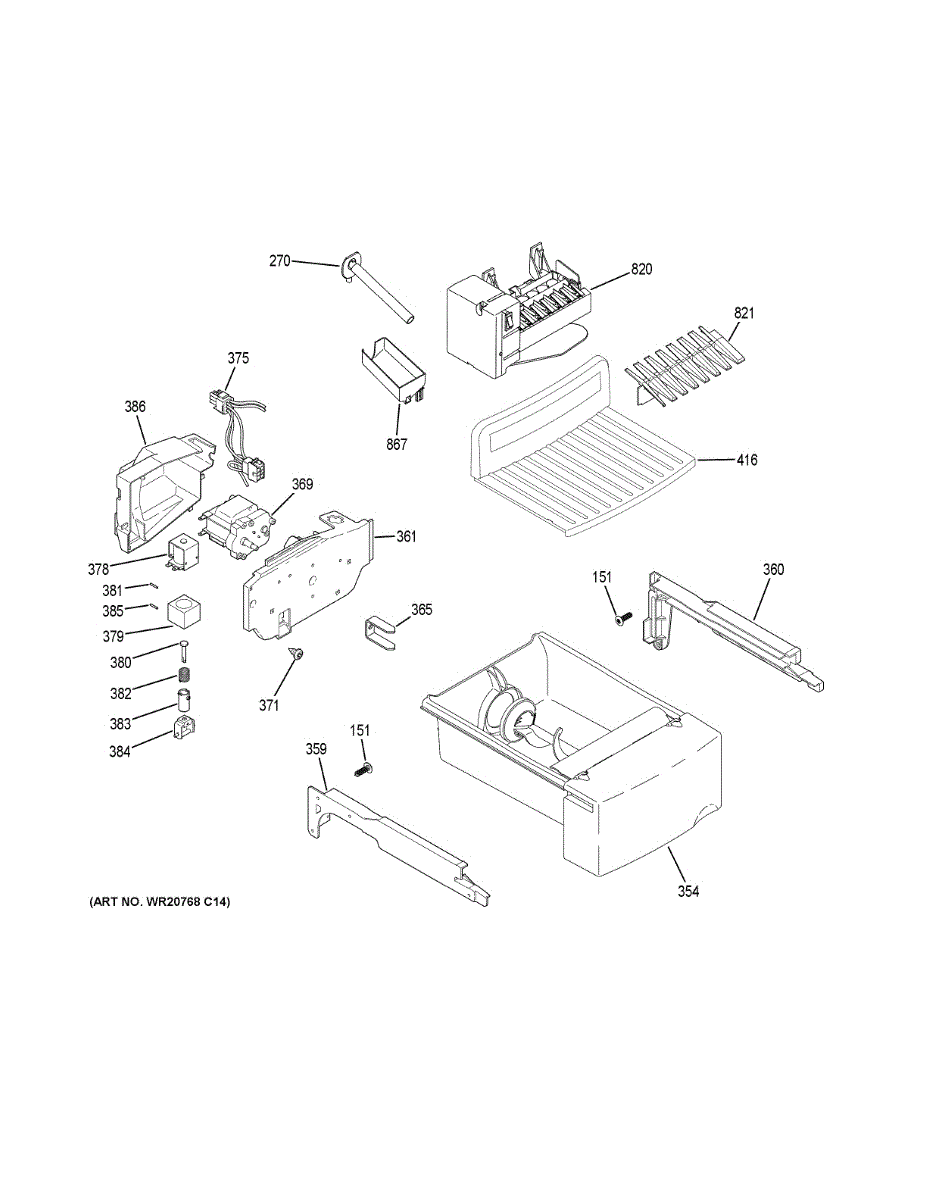

Parts for Ge GZS22DGJCFBB: Ice Maker & Dispenser Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Bucket & Auger is an OEM replacement part for GE refrigerators. This assembly includes both the ice bucket and the auger, which work together to store and dispense ice. The ice bucket holds the ice, while the auger moves the ice from the bucket to the dispenser when you request ice from the refrigerator's front panel.

Symptoms of a bad Ice Bucket & Auger include:

• Inability to dispense ice
• Unusual noises when attempting to dispense ice
• Ice clumping together in the bucket
• Visible damage to the bucket or auger

Causes for a malfunctioning Ice Bucket & Auger can include wear and tear from regular use, mechanical issues with the auger's rotation, or damage to the bucket from impact or mishandling.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This left-side glide bucket replaces a worn or damaged dispenser bucket to restore smooth sliding and secure storage on the dispenser assembly. It provides a stable, easy-to-slide container so items move in and out without catching or falling. What it does:

• Replaces a cracked, broken, or warped left glide bucket that won't slide properly
• Restores smooth glide action along the dispenser track for reliable operation
• Helps contain spills and prevents items from falling into the dispenser cavity
• Supports normal loading/unloading of the dispenser area

• One left glide bucket

• Disconnect power or unplug the appliance before servicing
• Remove the old bucket by sliding it out of the track per your model's instructions
• Align the new bucket with the glide track and slide into place until it seats
• If fasteners are present, re-install them securely and test glide before use

This is the rear motor cover used in select GE refrigerators. It shields the motor area at the back of the compartment, helping direct airflow and protect the fan/motor assembly for reliable cooling performance.

• Protects the motor/fan area from debris and damage
• Helps channel air correctly through the compartment
• Cracks, broken tabs, or missing cover can lead to noise, poor airflow, frost, or temperature swings
• Restores proper fit and finish inside the compartment

• Unplug the refrigerator before servicing
• Remove shelves/bins obstructing access; retain screws/clips
• Carefully release locking tabs and transfer any reusable hardware
• Ensure the cover seats fully and resecure all fasteners before powering on

The Ice Maker Auger Drive Coupler is an OEM replacement part for GE refrigerators. It is located inside the automatic icemaker assembly. The coupler works together with the auger motor shaft to drive the rotation of the ice transport auger.

Over time, the drive coupler can wear out or become damaged due to regular use, jamming, or improper handling. If the coupler is compromised, it can hinder the ice dispensing process.

Symptoms of a bad Auger Dispenser Drive Coupler include:

• Ice not dispensing properly
• Grinding or unusual noises from the dispenser
• The auger not rotating when the dispenser is activated
• Loose or wobbly coupler connection

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Ice Auger Motor is an OEM part for GE refrigerators. It powers the auger that moves ice from the ice maker into the dispenser, allowing for smooth and efficient ice dispensing. Functioning at 115V, 60 Hz, and 3.2 Amps, it is crucial for the operation of the ice dispenser.

You should replace this ice auger motor if it fails due to wear and tear, electrical issues, or mechanical damage. A malfunctioning motor can result in the ice not dispensing properly, or the motor may make unusual noises indicating it’s struggling to function.

Symptoms of a bad ice auger motor include:

• Ice not dispensing from the refrigerator
• Grinding or buzzing noises from the ice dispenser
• Auger not turning or moving ice
• Intermittent or no ice flow

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-18 Hi/Lo hex-washer screw is a direct-use replacement fastener for appliance panels, brackets and components. It restores secure mounting and helps stop loose trim, rattling or parts that shift during use. What it does:

• Secures panels, trim pieces, mounting brackets and similar components that use a 10-18 thread with a hex-washer head
• Restores proper fit where screws are missing, stripped, or corroded
• Helps eliminate rattling, vibration noise, and misaligned parts caused by loose fasteners
• Matches OEM head and thread style for a correct mechanical fit in specified locations

• Turn power or gas to the appliance off before working on electrical or gas-equipped units; unplug when applicable
• Use the correct sized hex driver or socket to avoid rounding the head
• Tighten until snug—do not overtighten to avoid stripping threads or damaging thin sheet metal
• If replacing multiple fasteners in a load-bearing area, replace all to ensure even fit and alignment

This wiring harness connects and supplies power to the dispenser motor so the dispenser operates reliably. It replaces a worn or damaged dispenser motor harness to restore electrical continuity and dependable dispenser function. What it does:

• Carries voltage and signals between the control and the dispenser motor
• Restores power when a broken or frayed harness prevents the motor from running
• Helps stop intermittent dispenser operation caused by loose or damaged wiring
• Provides proper connector fit to maintain a secure electrical connection

• Disconnect power to the appliance before inspecting or replacing the harness
• Handle connectors gently and verify correct orientation before mating
• Route harness following original wire paths and secure with existing clips to avoid pinching
• If corrosion or other damaged components are present, inspect surrounding parts and replace as needed

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

The Solenoid Valve Kit is an OEM part for GE refrigerators. This kit includes the solenoid valve, which is responsible for regulating the flow of refrigerant in the cooling system.

Causes of a bad solenoid valve kit include electrical malfunctions, physical damage, refrigerant leaks, or general wear and tear over time.

Symptoms of a faulty solenoid valve kit:

• Refrigerator not cooling properly or not maintaining consistent temperatures
• Compressor running constantly or cycling too frequently
• Frost buildup or ice accumulation in the freezer compartment

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This armature kit is the moving plunger and linkage operated by the dispenser solenoid. It opens and closes the ice chute door during dispensing and helps it seal when idle to reduce frost and warm-air leaks.

• Converts the solenoid's electrical action into mechanical movement for the dispenser ice chute door
• Helps maintain a proper seal to limit frost and moisture around the dispenser
• Typical symptoms: ice won't dispense; chute door won't open/close; frost/ice buildup at the chute; loud buzzing or clicking from the dispenser area
• Wear or sticking of the armature/spring can hinder movement and affect dispenser operation

• Unplug the refrigerator and shut off water to the dispenser before servicing
• Access the dispenser mechanism in the door; remove trim/control panel per your model's service information
• Note the orientation of the armature, spring, and linkage; transfer components one-for-one to the new kit and secure hardware
• Verify the solenoid plunger moves freely, reassemble, restore power, and test dispenser operation

This cover fits over the refrigerator auger motor to protect internal components and help guide ice through the dispenser. It keeps the motor area enclosed to reduce debris intrusion and supports smooth auger movement. What it does

• Protects the auger motor and gearbox from ice, frost, and debris
• Helps guide ice from the bin into the auger for consistent dispensing
• Common symptom: reduced or intermittent ice dispensing, unusual noises from the dispenser area

• One cover

• High-level replacement — remove power to the refrigerator before starting
• Handle components gently to avoid damaging the auger or wiring
• If the auger still doesn't turn after replacement, check the motor, wiring, and control components

This chiller shelf is the removable storage shelf for the refrigerator's chiller area, providing a level surface and preserving designed airflow. Replace a cracked, damaged, or missing shelf to restore safe storage and consistent cooling performance.

• Provides a stable, weight-bearing surface for food and beverages in the chiller section
• Helps maintain intended airflow through the compartment
• Direct replacement when the original shelf is cracked, warped, or missing
• Common signs of failure: broken tabs, shelf won't seat or stay level, items tip or fall

• Disconnect power to the appliance before servicing; remove contents from the area.
• Lift or tilt the old shelf to release it from side supports and slide it out carefully.
• If your original shelf used removable trim or supports, transfer them as required by your model.
• Align the new shelf with the support rails or tabs and slide/lock it fully into place.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker stripper is the front comb that helps release cubes from the ejector during harvest. It guides ice cleanly into the bin to reduce jams and keep ice production running smoothly. What it does

• Strips ice cubes off the ejector fingers as the ice maker cycles
• Directs cubes into the bucket, helping prevent jams and cube bridging
• Wear, cracks, or warping can cause cubes to stick, spill, or clump
• Symptoms include cubes piling at the front, clicking during harvest, or reduced/no ice

• 1 ice maker stripper

• Disconnect power and shut off water before servicing
• Remove the ice bin and access the ice maker front (remove cover if present)
• Release the old stripper (tabs/screws), align the new stripper with the ejector fingers, and seat it fully
• Reinstall cover and bin; restore power and allow a full cycle to verify operation

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.
