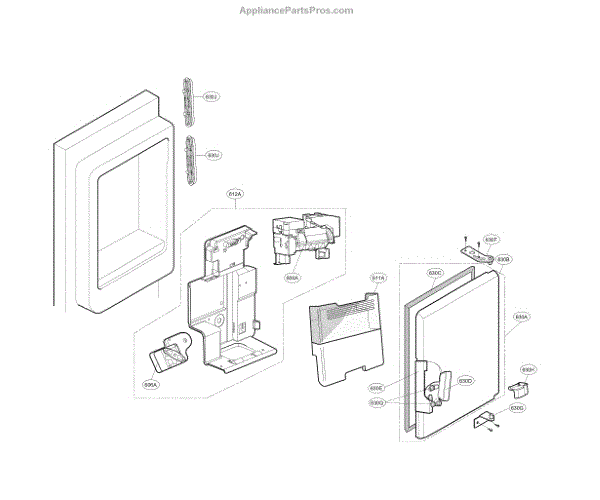

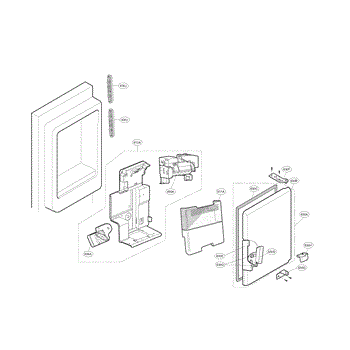

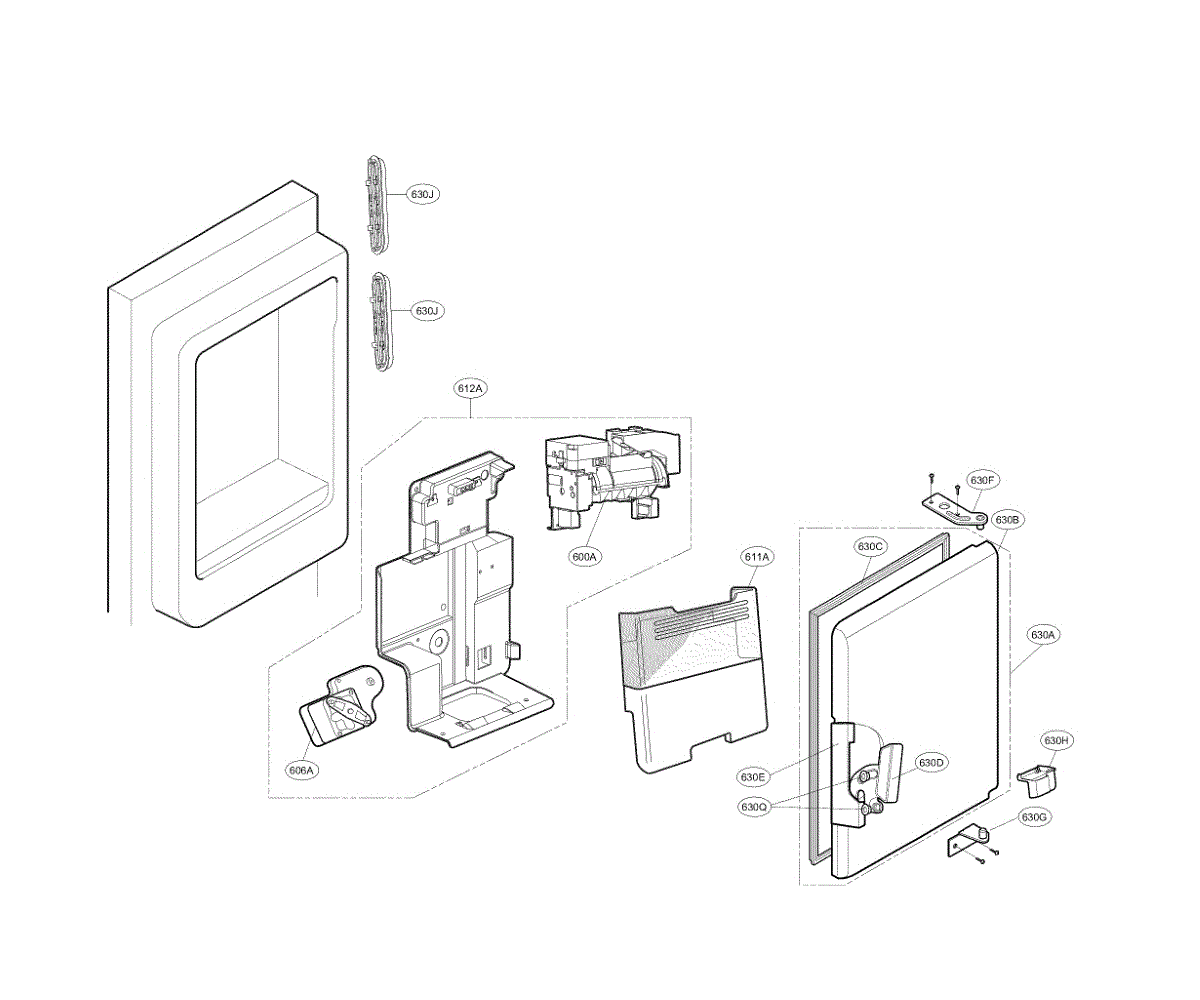

Parts for Kenmore 795.71039011 (79571039011, 795 71039011): Ice Maker And Ice Bin Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

The Ice Maker Assembly Kit is an OEM replacement part for LG refrigerators. This kit includes the ice maker assembly and installation mounting hardware. For the ice maker to function correctly, it is important to set the temperature of the freezer within the range of 0 to 5 degrees Fahrenheit (-18 to -15 degrees Celsius).

Over time, the ice maker can wear out or malfunction due to continuous use, mineral buildup from hard water, or electrical issues. These problems can hinder its ability to produce and dispense ice efficiently.

Symptoms of a bad ice maker assembly include:

• Ice maker not producing ice
• Ice cubes jamming or backing up inside the maker
• Leaks or wetness under the refrigerator
• Ice dispenser not functioning properly

This OEM LG replacement is also compatible with Sears/Kenmore refrigerators.

This is an ice bucket assembly that is used on refrigerator and freezer units. This part stores the ice that has been made so that it can be dispensed. The auger is attached to this, which is the piece that moves the ice into the dispenser chute. Additional parts may also be included with this component.Over time, the bucket assembly may begin to crack or break. This can happen due to exposure to extreme temperatures over time. If this is the case, it will need to be replaced. If the auger itself is no longer working, the whole ice bucket assembly will need to be replaced because it is attached. Wear work gloves when replacing this part.This ice bucket is compatible with refrigerator and freezer units that have been manufactured by Kenmore Elite and LG. It is sold individually. This part is sourced straight from the manufacturer.

This is the condenser fan motor for select LG-built refrigerators. It drives the outside rear fan that pulls air across the condenser coils and over the compressor to remove heat so the refrigerator can cool efficiently.

• Circulates air through the condenser section to dissipate heat
• Helps prevent overheating of the compressor
• Common failure symptoms: fridge not cooling well, compressor running hot, loud or grinding noise from rear bottom, fan not spinning
• May run intermittently or seize when failing

• Disconnect power before servicing; use cut-resistant gloves
• Access from the rear lower service panel near the compressor
• Note wire orientation and fan blade position before removal
• After replacement, ensure the fan spins freely and no wiring contacts the blade

This lower ice bank door hinge secures and pivots the freezer's ice bank door so it opens and closes smoothly, helping maintain proper sealing and ice dispensing alignment. Designed as a direct replacement for the original hinge. What it does:

• Supports the ice bank door, providing a stable pivot point for opening and closing
• Keeps the ice bank door aligned to maintain an effective seal and proper operation
• Prevents sagging or binding that can interfere with ice dispensing or door function
• Restores correct door movement after hinge wear or damage

• Use basic hand tools; keep power to the appliance off and unplug before starting
• Handle the ice bank and door carefully to avoid damaging the trim or ice chute
• Reuse original fasteners only if undamaged; replace damaged screws to ensure secure mounting

This cover assembly replaces the top cover for an ice maker bucket, protecting ice from contamination and helping the dispenser operate cleanly. It restores the proper enclosure for stored ice and supports correct ice dispensing. What it does

• Replaces a cracked, warped or missing ice bucket cover that lets ice become exposed or contaminated
• Helps maintain proper ice containment so the dispenser and auger can move ice without obstruction
• Reduces ice spillage and prevents debris from entering the ice storage area
• Supports normal operation of the ice bucket and dispenser when used with the original bucket assembly

• One cover assembly for the ice bucket

• High-level, typically user-serviceable: remove the ice bucket, unhook the old cover, and snap or screw the new cover into place
• Power/disconnect: turn off dispenser power or unplug refrigerator before starting to avoid moving parts during install
• Handle gently: plastic parts can crack if forced; align tabs and fasteners before pressing into place

This door gasket seals the refrigerator door to the cabinet to keep cold air in and moisture out. Replacing a worn or deformed gasket restores a tight seal for proper cooling and helps reduce frost and condensation around the door opening. What it does:

• Forms an airtight seal between the door and cabinet frame
• Helps maintain stable internal temperature and humidity
• Helps prevent frost, icing, and condensation near the door
• Helps with symptoms like visible tears, gaps, poor door sealing, or warm spots/frost near the gasket

• 1 refrigerator door gasket

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or gently heat) to improve flexibility
• Remove the old gasket and clean the mounting groove/sealing surface
• Press the new gasket fully into the groove/retainer; adjust door alignment if needed

The Ice Door Handle is an OEM replacement part for LG refrigerators. It allows users to easily access ice and water from the external ice/water dispenser. Handles experience substantial daily use as people frequently obtain water/ice. Over the years, plastic hinges can degrade from repeated opening/closing stresses.

Causes include fatigue cracks along hinge points from perpetual flexing. General wear and tear as well as occasional impacts also deteriorate structure.

Symptoms of a bad ice door handle include:

• Loose, wobbly, or dysfunctional opening/closing capability
• Cracks around mounting brackets compromise integrity
• Detached handle pieces preventing access to ice/water dispenser
• Excessive opening force required or inability to fully open/close

This OEM LG replacement is also compatible with select Sears/Kenmore refrigerators.

The Ice Door Handle Roller is an OEM replacement part for LG and some Kenmore refrigerators. Each handle contains two rollers and they help the handle move smoothly and prevent any unnecessary wear and tear. Please note, this is for one (1) door handle roller. It is recommended to replace both at the same time.

Symptoms of a bad Ice Door Handle Roller include:

• Difficulty in dispensing ice, with the chute door sticking or not opening properly.
• Noises such as squeaking or grinding when the ice door is activated.
• Increased effort needed to operate the ice dispenser handle.
• Visible wear or damage to the roller, affecting its movement.

Causes of a bad ice door handle roller can include mechanical wear from regular use, debris accumulation that impedes the roller’s movement, or damage from excessive force used on the dispenser handle.

This OEM LG part is also compatible with Sears/Kenmore models.
