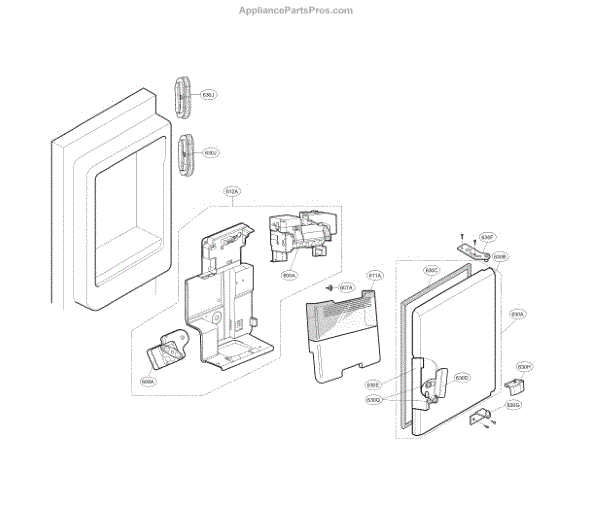

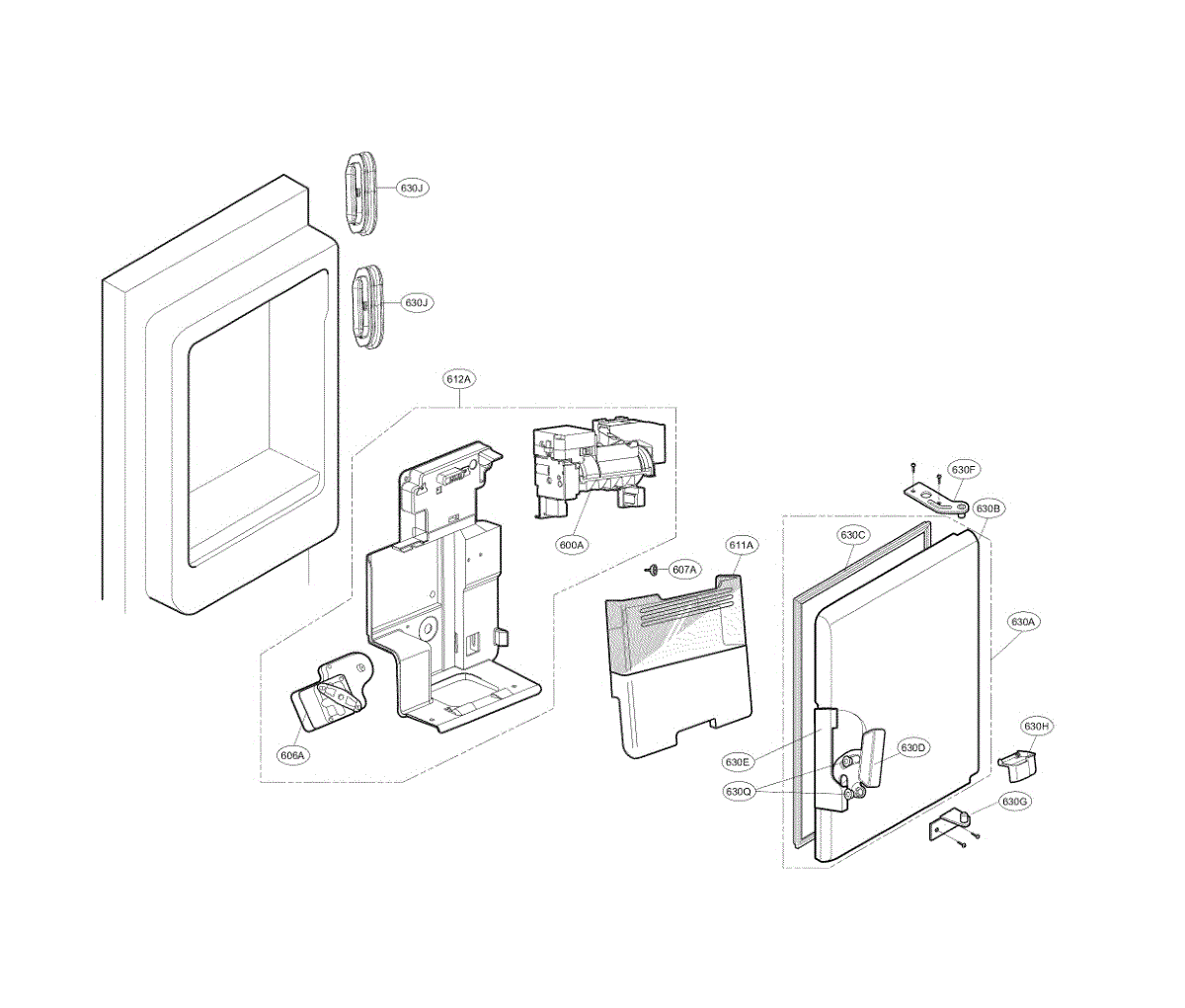

Parts for Kenmore 795.72063113 (79572063113, 795 72063113): Ice Maker And Ice Bin Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

NOTE: The small wire connector features three wires for easy setup. If your original ice maker has 6 wires then order part number AEQ73110205.

The Ice Maker Assembly Kit is an OEM replacement part for LG French door refrigerators. As a comprehensive repair solution, it includes the ice maker, drive motor, assembly, and all necessary mounting hardware.

Symptoms of a bad ice maker assembly include:

• Inability to produce cube ice automatically
• Grinding noise coming from the ice maker area
• Ice not dispensing when the oven is engaged
• Error codes or malfunctions shown on the display

Causes relate to high demand on icemaker parts like mold heating elements or drive motors which cycle 100 times per day. Constant use exceeding 10 years contributes to breakdown in precise fit and function of components.

This assembly stores ice and delivers it from the ice maker to the dispenser. Replace it when the bin is cracked, warped, or its drive components are damaged, causing weak dispensing, jams, or being stuck on one ice type.

• Stores ice and interfaces with the dispenser system to deliver cubes or crushed ice
• Resolves no or weak ice dispensing
• Corrects grinding/clicking noises or auger jamming from a damaged bin
• Addresses visible cracks, broken tabs, or a bucket that won't seat securely

• Disconnect power to the refrigerator before servicing
• Open the door and pull the old bucket straight out; depress any release tab if equipped
• Align and seat the new assembly fully so the drive coupling engages—do not force it
• Restore power and test the dispenser (cube and crush selections)

The Ice Maker and Auger Motor Assembly is an OEM part for LG refrigerators. This assembly is responsible for both producing ice and dispensing it from the ice maker. The ice maker produces ice cubes, while the auger motor drives the auger to move ice from the ice bin to the dispenser chute, ensuring a steady flow of ice whenever needed.

Causes of a bad assembly can include electrical issues, wear and tear from regular use, or damage to the motor or ice-making components. A malfunctioning assembly can lead to inconsistent ice production and dispensing problems.

Symptoms of a bad ice maker and auger motor assembly include:

• No ice production or insufficient ice
• The auger not dispensing ice properly
• Unusual noises from the ice maker area
• Ice jams or clumps in the ice bin

This OEM LG part is also compatible with Sears/Kenmore models.

The Ice Door Handle is an OEM replacement part for LG refrigerators. It allows users to easily access ice and water from the external ice/water dispenser. Handles experience substantial daily use as people frequently obtain water/ice. Over the years, plastic hinges can degrade from repeated opening/closing stresses.

Causes include fatigue cracks along hinge points from perpetual flexing. General wear and tear as well as occasional impacts also deteriorate structure.

Symptoms of a bad ice door handle include:

• Loose, wobbly, or dysfunctional opening/closing capability
• Cracks around mounting brackets compromise integrity
• Detached handle pieces preventing access to ice/water dispenser
• Excessive opening force required or inability to fully open/close

This OEM LG replacement is also compatible with select Sears/Kenmore refrigerators.

The Ice Door Handle Roller is an OEM replacement part for LG and some Kenmore refrigerators. Each handle contains two rollers and they help the handle move smoothly and prevent any unnecessary wear and tear. Please note, this is for one (1) door handle roller. It is recommended to replace both at the same time.

Symptoms of a bad Ice Door Handle Roller include:

• Difficulty in dispensing ice, with the chute door sticking or not opening properly.
• Noises such as squeaking or grinding when the ice door is activated.
• Increased effort needed to operate the ice dispenser handle.
• Visible wear or damage to the roller, affecting its movement.

Causes of a bad ice door handle roller can include mechanical wear from regular use, debris accumulation that impedes the roller’s movement, or damage from excessive force used on the dispenser handle.

This OEM LG part is also compatible with Sears/Kenmore models.

The Ice Bank Door Gasket is an OEM part for LG refrigerators. This gasket is designed to seal the ice bank door, ensuring a tight closure to maintain optimal temperatures inside the ice compartment. By preventing warm air from entering, it helps preserve the quality and quantity of ice produced by the icemaker.

Causes of a bad gasket can include wear and tear from frequent opening and closing of the door, physical damage from cleaning or mishandling, or degradation over time due to exposure to temperature changes.

Symptoms of a bad Ice Bank Door Gasket include:

• Ice melting or clumping in the ice compartment
• Frost buildup around the ice bank door
• Increased energy consumption
• The gasket appearing cracked, brittle, or deformed

This OEM LG part is also compatible with Sears/Kenmore.
