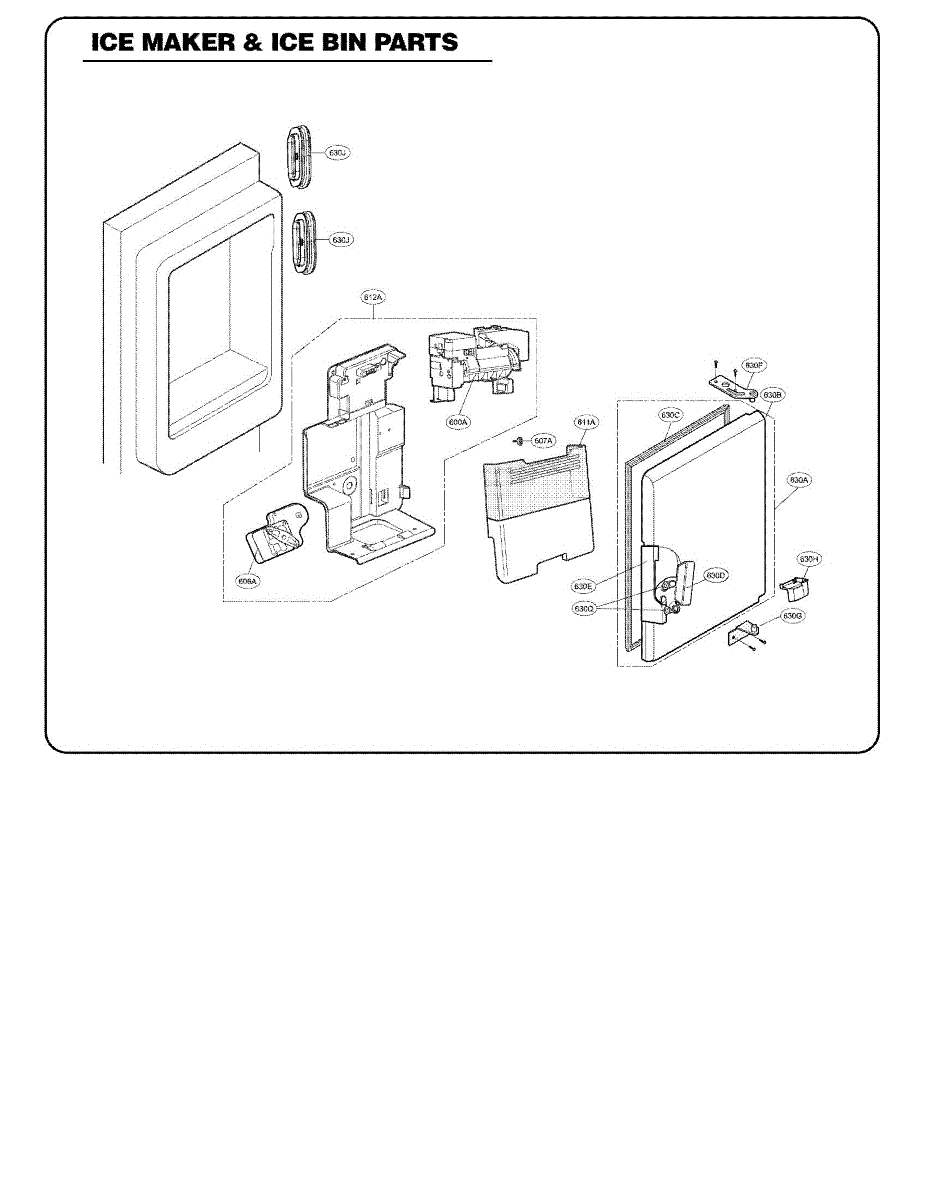

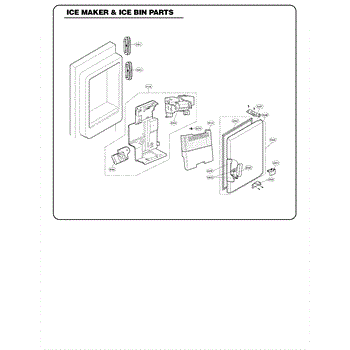

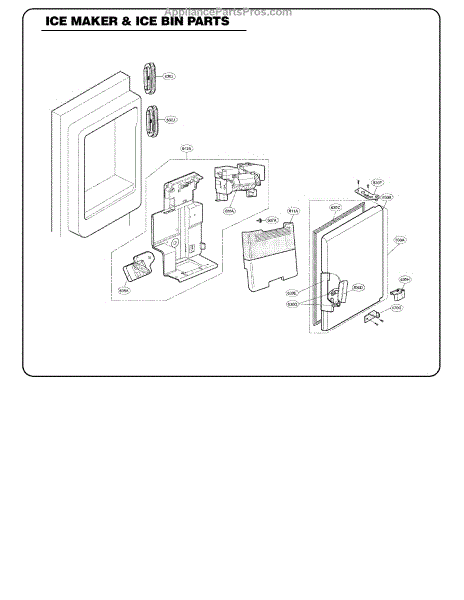

Parts for Kenmore 795.72353310 (79572353310, 795 72353310): Ice Maker And Ice Bin Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

NOTE: The small wire connector features three wires for easy setup. If your original ice maker has 6 wires then order part number AEQ73110205.

The Ice Maker Assembly Kit is an OEM replacement part for LG French door refrigerators. As a comprehensive repair solution, it includes the ice maker, drive motor, assembly, and all necessary mounting hardware.

Symptoms of a bad ice maker assembly include:

• Inability to produce cube ice automatically
• Grinding noise coming from the ice maker area
• Ice not dispensing when the oven is engaged
• Error codes or malfunctions shown on the display

Causes relate to high demand on icemaker parts like mold heating elements or drive motors which cycle 100 times per day. Constant use exceeding 10 years contributes to breakdown in precise fit and function of components.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

This assembly stores ice and delivers it from the ice maker to the dispenser. Replace it when the bin is cracked, warped, or its drive components are damaged, causing weak dispensing, jams, or being stuck on one ice type.

• Stores ice and interfaces with the dispenser system to deliver cubes or crushed ice
• Resolves no or weak ice dispensing
• Corrects grinding/clicking noises or auger jamming from a damaged bin
• Addresses visible cracks, broken tabs, or a bucket that won't seat securely

• Disconnect power to the refrigerator before servicing
• Open the door and pull the old bucket straight out; depress any release tab if equipped
• Align and seat the new assembly fully so the drive coupling engages—do not force it
• Restore power and test the dispenser (cube and crush selections)

The Ice Maker and Auger Motor Assembly is an OEM part for LG refrigerators. This assembly is responsible for both producing ice and dispensing it from the ice maker. The ice maker produces ice cubes, while the auger motor drives the auger to move ice from the ice bin to the dispenser chute, ensuring a steady flow of ice whenever needed.

Causes of a bad assembly can include electrical issues, wear and tear from regular use, or damage to the motor or ice-making components. A malfunctioning assembly can lead to inconsistent ice production and dispensing problems.

Symptoms of a bad ice maker and auger motor assembly include:

• No ice production or insufficient ice
• The auger not dispensing ice properly
• Unusual noises from the ice maker area
• Ice jams or clumps in the ice bin

This OEM LG part is also compatible with Sears/Kenmore models.

This lower hinge assembly secures and supports the refrigerator door pivot, restoring proper door alignment and smooth opening/closing. Replace a worn or damaged lower hinge to stop sagging, help seal performance, and reduce rubbing or binding. What it does:

• Provides a stable pivot point for the lower side of the refrigerator door.
• Corrects door sagging or misalignment that can cause poor sealing or uneven gaps.
• Reduces rubbing, scraping, or binding when opening and closing the door.
• Restores proper door operation after impact damage or worn hinge components.

• One lower hinge assembly

• Disconnect power and remove food from the door area before starting; support the door to prevent dropping during removal.
• Keep all original fasteners if they are undamaged; some models may reuse screws or pins.
• Use appropriate tools and take care not to damage the door finish or gasket; wear gloves to protect hands.

This is the Home Bar cover — the molded door shelf cover that protects and conceals the refrigerator's door-in-door/home bar compartment for organized storage and a finished appearance. It restores a secure, clean barrier for items stored in the home bar. What it does:

• Replaces a cracked, chipped or missing home-bar/door-in-door shelf cover
• Keeps small bottles and items contained when the home bar is opened and closed
• Restores the proper fit and appearance of the door-in-door/home bar area
• Helps prevent items from falling out of the home bar compartment

• One Home Bar cover

• High-level replacement: usually removes and snaps into the door-in-door shelf housing; some models may require removing the inner door panel or a few fasteners
• Use basic hand tools; keep track of small screws and clips during reassembly
• Inspect surrounding clips and supports; replace any damaged fasteners for a secure fit
• For safety, close the door fully and check smooth opening/closing after install

The Dispenser Gasket is an OEM part for LG refrigerators. It is a seal that helps create an airtight barrier around the dispenser area, preventing air leaks and maintaining the desired temperature and humidity levels inside the refrigerator.

Causes of a bad dispenser gasket can include wear and tear over time, exposure to extreme temperatures or UV light, or physical damage from mishandling or improper installation.

Symptoms of a faulty dispenser gasket include:

• Air leaks or drafts around the dispenser area
• Condensation or frost buildup near the dispenser
• Higher than normal energy consumption due to the fridge working harder to maintain the desired temperature
• Difficulty in opening or closing the dispenser door

This OEM LG part is also compatible with some Sears/Kenmore refrigerator models

The Ice Door Handle is an OEM replacement part for LG refrigerators. It allows users to easily access ice and water from the external ice/water dispenser. Handles experience substantial daily use as people frequently obtain water/ice. Over the years, plastic hinges can degrade from repeated opening/closing stresses.

Causes include fatigue cracks along hinge points from perpetual flexing. General wear and tear as well as occasional impacts also deteriorate structure.

Symptoms of a bad ice door handle include:

• Loose, wobbly, or dysfunctional opening/closing capability
• Cracks around mounting brackets compromise integrity
• Detached handle pieces preventing access to ice/water dispenser
• Excessive opening force required or inability to fully open/close

This OEM LG replacement is also compatible with select Sears/Kenmore refrigerators.

The Ice Door Handle Roller is an OEM replacement part for LG and some Kenmore refrigerators. Each handle contains two rollers and they help the handle move smoothly and prevent any unnecessary wear and tear. Please note, this is for one (1) door handle roller. It is recommended to replace both at the same time.

Symptoms of a bad Ice Door Handle Roller include:

• Difficulty in dispensing ice, with the chute door sticking or not opening properly.
• Noises such as squeaking or grinding when the ice door is activated.
• Increased effort needed to operate the ice dispenser handle.
• Visible wear or damage to the roller, affecting its movement.

Causes of a bad ice door handle roller can include mechanical wear from regular use, debris accumulation that impedes the roller’s movement, or damage from excessive force used on the dispenser handle.

This OEM LG part is also compatible with Sears/Kenmore models.

The Ice Bank Door Gasket is an OEM part for LG refrigerators. This gasket is designed to seal the ice bank door, ensuring a tight closure to maintain optimal temperatures inside the ice compartment. By preventing warm air from entering, it helps preserve the quality and quantity of ice produced by the icemaker.

Causes of a bad gasket can include wear and tear from frequent opening and closing of the door, physical damage from cleaning or mishandling, or degradation over time due to exposure to temperature changes.

Symptoms of a bad Ice Bank Door Gasket include:

• Ice melting or clumping in the ice compartment
• Frost buildup around the ice bank door
• Increased energy consumption
• The gasket appearing cracked, brittle, or deformed

This OEM LG part is also compatible with Sears/Kenmore.
