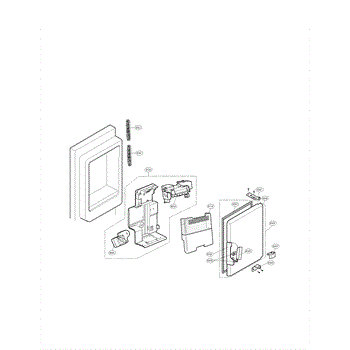

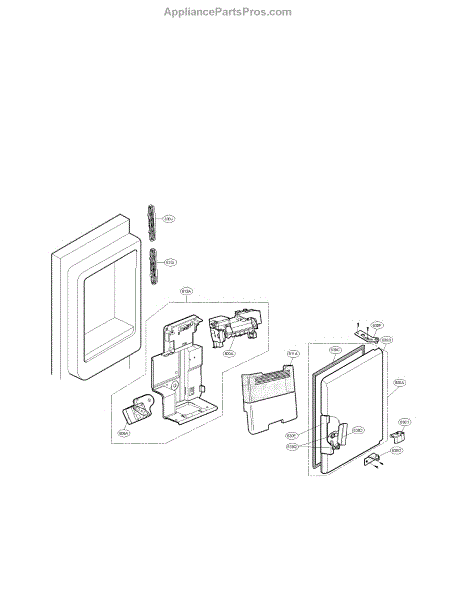

Parts for Lg LMX28994ST/00: Ice Maker And Ice Bin Parts

NOTE: For 3 wire connectors, see part number AEQ73110203

The 14 Cube Ice Maker is an OEM part for LG refrigerators. This ice maker is responsible for automatically producing batches of cube ice on demand to keep extra ice readily available in the freezer.

Causes of a bad ice maker can include failures from usage over time, clogged lines preventing proper water flow, or impaired mechanical components.

Symptoms of a bad ice maker include:

• Reduced or no ice production at all
• Water buildup or overflowing due to malfunctioning fill valves
• Grinding or crunching noises from impaired mechanical parts
• Error codes or fault messages for ice production issues

This OEM LG replacement is also compatible with Sears/Kenmore refrigerator models.

The Ice Bucket Assembly is an OEM part for LG refrigerators. It is designed to collect and store ice produced by the icemaker, ensuring a convenient and organized storage solution within the freezer.

Causes of a bad ice bucket assembly can include damage from frequent handling, cracks or breaks due to impact, or issues with the internal components such as the auger or motor. Over time, these issues can impair the functionality of the ice bucket, leading to inefficient ice storage or dispensing problems.

Symptoms of a bad ice bucket assembly include:

• Cracks or visible damage to the bucket
• Ice not dispensing properly
• The bucket not fitting securely in place
• Excessive noise during ice dispensing

This OEM LG part is also compatible with Sears/Kenmore.

This AC fan motor drives the cooling fan that moves air through your appliance's heat-exchange coils, helping maintain stable temperatures. Replace a failed motor to restore reliable airflow and reduce noise or inconsistent cooling.

• Powers the fan blade to move air across the coils for efficient heat transfer
• Helps maintain steady compartment temperatures and overall cooling performance
• Common symptoms include: fan not running, weak or no airflow, loud humming/squealing, or intermittent cooling
• Replaces a seized, slow, or burnt-out motor to restore proper circulation

• Disconnect power before servicing; allow moving parts to stop completely
• Access the fan assembly; note wire positions and mounting orientation
• Transfer the fan blade, bracket, and grommets from the old motor if required
• Secure the motor, route wiring as original, ensure the blade spins freely, then restore power and verify operation

This complete freezer door assembly replaces a damaged or worn freezer door to restore proper closure and cold retention. It fits the freezer compartment and includes the door shell and attached inner components for a like-for-like replacement. What it does:

• Replaces a cracked, dented, or warped freezer door to help prevent cold air loss
• Restores proper door alignment and sealing to reduce frost buildup and temperature issues
• Provides the original mounting points and inner components for easy fitment
• Helps the freezer maintain consistent performance when the old door can't close or seal properly

• Disconnect power to the appliance before starting any repair
• Remove food and shelves from the freezer area for access and safe handling
• Installation typically requires basic hand tools; support the door during removal/installation to avoid injury or damage
• If the door contains glass or trim, handle carefully.

This complete freezer door assembly replaces a damaged or worn freezer door to restore proper closure and cold retention. It fits the freezer compartment and includes the door shell and attached inner components for a like-for-like replacement. What it does:

• Replaces a cracked, dented, or warped freezer door to help prevent cold air loss
• Restores proper door alignment and sealing to reduce frost buildup and temperature issues
• Provides the original mounting points and inner components for easy fitment
• Helps the freezer maintain consistent performance when the old door can't close or seal properly

• Disconnect power to the appliance before starting any repair
• Remove food and shelves from the freezer area for access and safe handling
• Installation typically requires basic hand tools; support the door during removal/installation to avoid injury or damage
• If the door contains glass or trim, handle carefully.

This lower ice bank door hinge secures and pivots the freezer's ice bank door so it opens and closes smoothly, helping maintain proper sealing and ice dispensing alignment. Designed as a direct replacement for the original hinge. What it does:

• Supports the ice bank door, providing a stable pivot point for opening and closing
• Keeps the ice bank door aligned to maintain an effective seal and proper operation
• Prevents sagging or binding that can interfere with ice dispensing or door function
• Restores correct door movement after hinge wear or damage

• Use basic hand tools; keep power to the appliance off and unplug before starting
• Handle the ice bank and door carefully to avoid damaging the trim or ice chute
• Reuse original fasteners only if undamaged; replace damaged screws to ensure secure mounting

This door gasket seals the refrigerator door to the cabinet to keep cold air in and moisture out. Replacing a worn or deformed gasket restores a tight seal for proper cooling and helps reduce frost and condensation around the door opening. What it does:

• Forms an airtight seal between the door and cabinet frame
• Helps maintain stable internal temperature and humidity
• Helps prevent frost, icing, and condensation near the door
• Helps with symptoms like visible tears, gaps, poor door sealing, or warm spots/frost near the gasket

• 1 refrigerator door gasket

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or gently heat) to improve flexibility
• Remove the old gasket and clean the mounting groove/sealing surface
• Press the new gasket fully into the groove/retainer; adjust door alignment if needed

The Ice Door Handle Roller is an OEM replacement part for LG and some Kenmore refrigerators. Each handle contains two rollers and they help the handle move smoothly and prevent any unnecessary wear and tear. Please note, this is for one (1) door handle roller. It is recommended to replace both at the same time.

Symptoms of a bad Ice Door Handle Roller include:

• Difficulty in dispensing ice, with the chute door sticking or not opening properly.
• Noises such as squeaking or grinding when the ice door is activated.
• Increased effort needed to operate the ice dispenser handle.
• Visible wear or damage to the roller, affecting its movement.

Causes of a bad ice door handle roller can include mechanical wear from regular use, debris accumulation that impedes the roller’s movement, or damage from excessive force used on the dispenser handle.

This OEM LG part is also compatible with Sears/Kenmore models.

The Ice Bank Door Gasket is an OEM part for LG refrigerators. This gasket is designed to seal the ice bank door, ensuring a tight closure to maintain optimal temperatures inside the ice compartment. By preventing warm air from entering, it helps preserve the quality and quantity of ice produced by the icemaker.

Causes of a bad gasket can include wear and tear from frequent opening and closing of the door, physical damage from cleaning or mishandling, or degradation over time due to exposure to temperature changes.

Symptoms of a bad Ice Bank Door Gasket include:

• Ice melting or clumping in the ice compartment
• Frost buildup around the ice bank door
• Increased energy consumption
• The gasket appearing cracked, brittle, or deformed

This OEM LG part is also compatible with Sears/Kenmore.
