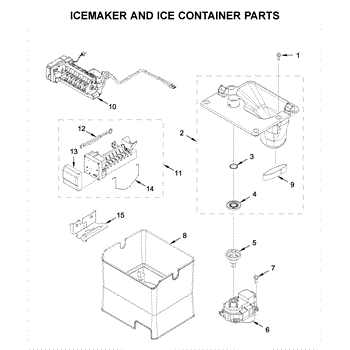

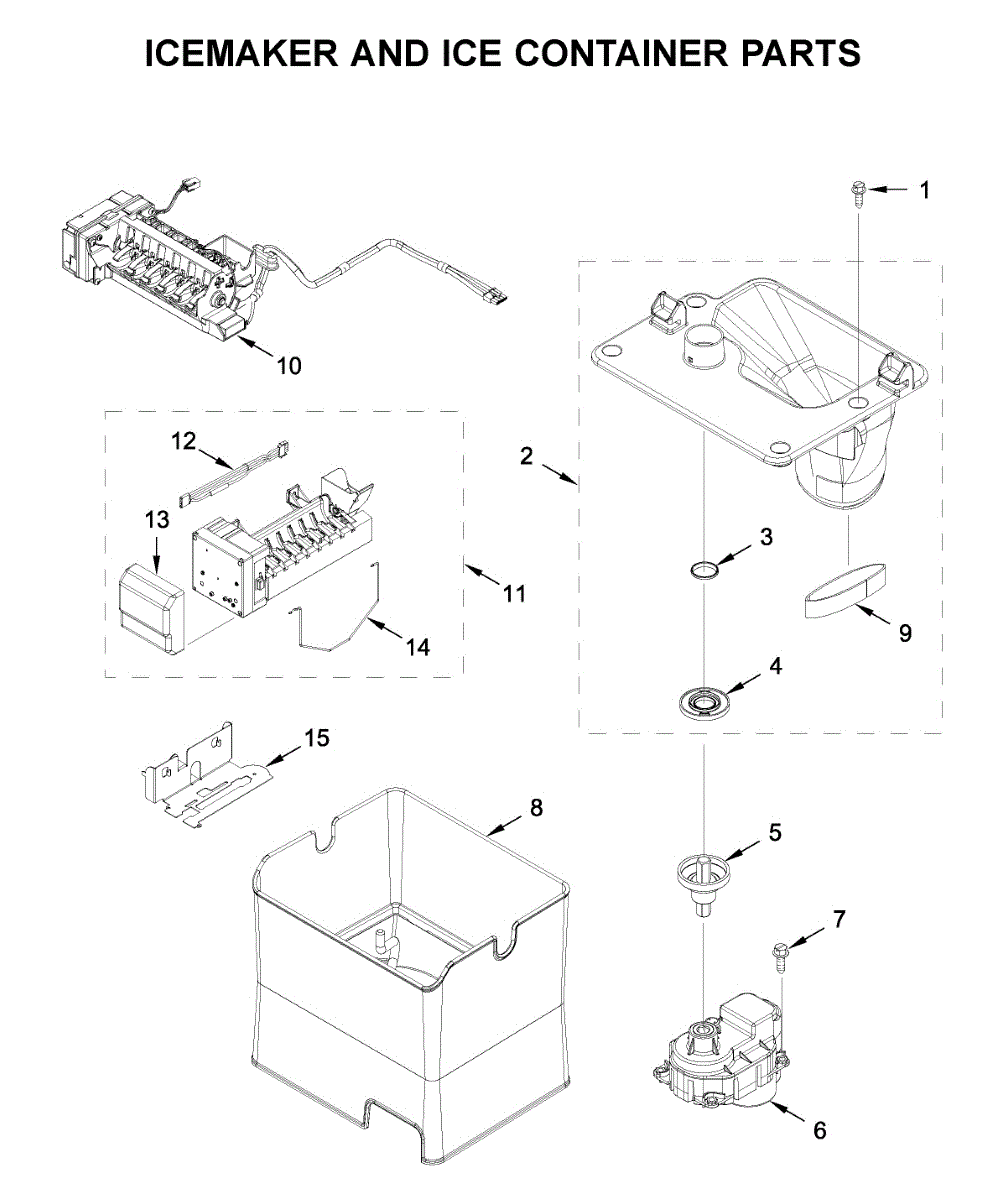

Parts for Whirlpool WRF767SDHV02: Icemaker And Ice Container Parts

This 10-16 screw secures panels, brackets, and internal components in your appliance. Replacing a missing or stripped fastener restores a snug fit, reduces vibration and rattling, and keeps parts properly anchored for reliable operation.

• Provides 10-16-thread fastening for sheet metal, plastic, and bracket assemblies
• Direct replacement for a missing, worn, or stripped factory screw
• Helps address loose or rattling panels or covers that won't stay secured
• Supports proper alignment and retention of internal components

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original location and length; replace like-for-like
• Start threads by hand to avoid cross-threading; use the correct driver for the head style
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Ice Chute Plate is an OEM part for Whirlpool side-by-side refrigerators featuring an internal automatic icemaker. It provides the mounting location and base for the ice chute assembly.

Causes of a bad ice chute plate can include cracks or deformities preventing a tight seal, stripped mounting holes compromising stability over time, or damage blocking ice from traveling smoothly through the chute assembly.

Symptoms of a bad ice chute plate include:

• Inability to dispense ice or intermittent jams
• Scattered ice or cubes collecting outside the dispenser bucket
• Excessive noise or vibration during the icemaking process
• Dampness or water leaks around the icemaker area

This plate also fits refrigerators made for Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This small but critical clip secures a component or panel within the appliance. Replacing a cracked or missing clip restores a tight fit and helps prevent looseness, rattling, and premature wear over time. What it does:

• Holds a component, trim piece, or panel firmly in place
• Maintains proper alignment to reduce vibration and noise
• Helps prevent rubbing or wiring abrasion caused by loose parts
• Typical symptoms include a loose/sagging piece, rattling, or a visibly broken/missing clip

• 1 clip

• Disconnect power (and shut off water or gas, if applicable) before servicing
• Note the original clip orientation and location for correct reassembly
• Align parts carefully; do not force the clip into place
• Replace any additional damaged fasteners or clips found during service

The Auger Drive Shaft is an OEM part for Whirlpool refrigerators. This part transfers power from the motor to the ice auger, enabling the movement and dispensing of ice from the ice maker.

Causes of a bad auger drive shaft can include wear and tear from regular use, damage due to overloading or jamming, or corrosion over time.

Symptoms of a bad Auger Drive Shaft include:

• Ice not dispensing or dispensing slowly
• Grinding or unusual noises when trying to dispense ice
• The auger not rotating or moving as expected
• Ice build-up around the auger mechanism

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Auger Drive Motor is an OEM part for Whirlpool refrigerators. It is responsible for powering the auger mechanism that dispenses ice from the ice maker into the ice bucket or directly through the door dispenser. This motor ensures that ice is delivered smoothly and efficiently whenever needed.

Over time, the auger drive motor can wear out or fail due to constant use or electrical issues. Causes of a bad auger drive motor can include motor burnout, electrical malfunctions, or damage from ice buildup.

Symptoms of a bad auger drive motor include:

• The ice dispenser not dispensing ice
• Unusual noises coming from the ice maker area
• The auger not turning or moving slowly
• Intermittent operation of the ice dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

The Ice Container is an OEM part for Whirlpool refrigerators. It is designed to store ice produced by the icemaker, providing a convenient and organized way to keep ice accessible in the freezer compartment. The container measures approximately 12 x 9 inches.

Common causes of a bad ice container include cracks or breaks due to dropping or mishandling, wear and tear from regular use, or warping caused by prolonged exposure to freezer conditions.

Symptoms of a bad ice container include:

• Cracks or visible damage to the container
• Ice spilling or not staying contained
• Difficulty fitting the container properly in the freezer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ice chute gasket seals the dispenser funnel opening to the freezer door. A tight seal keeps warm air and moisture out of the chute, helping prevent frost buildup, condensation, and drips around the dispenser. What it does:

• Seals the ice dispenser chute/funnel to prevent air leaks
• Helps reduce frost and ice buildup in the chute area
• Minimizes condensation and water droplets at the dispenser opening
• Supports consistent ice flow by limiting clumping from warm air intrusion

• 1 ice chute gasket

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control and funnel to access the gasket
• Note orientation; press the new gasket evenly into place without stretching
• Reassemble and verify the ice door closes and seals properly

The Icemaker is an OEM component for Whirlpool refrigerators. It is responsible for automatically producing batches of ice using a process of freezing water into cube form. The icemaker works closely with the freezer compartment and water supply line to fulfill its ice-making function.

Causes of a bad icemaker can include issues with the refrigeration system like improper temperatures, clogging or damage preventing water flow, or component malfunctions within the icemaker itself.

Symptoms of a faulty icemaker are:

• Failure to produce ice cubes
• Sparse or chunky/oddly shaped ice output
• Leaks or water pools in the freezer
• Strange noises or smells coming from the icemaker area
• Error codes displayed regarding icemaker performance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.


This wire harness routes power and signals between your appliance's control and its components so controls and motors operate reliably. It replaces a damaged or worn harness to restore proper electrical connections and reduce intermittent faults. What it does:

• Provides the main electrical connections between the control, switches, and motors
• Restores power and signal continuity to affected components
• Helps eliminate intermittent operation, failure to start, or controls that don't respond
• Reduces the risk of shorts from frayed or damaged wiring when installed correctly

• One complete wire harness assembly as shown

• Always disconnect power (unplug or switch off circuit breaker) before servicing
• Match connector shapes and wire colors; take photos before removal to ensure correct reassembly
• Route and secure the harness away from moving parts and sharp edges to prevent wear
• If terminals are corroded or connectors damaged, replace them or the harness to ensure a reliable repair

This front cover replaces a damaged or worn cabinet front panel to restore the appliance's appearance and protect internal components. It provides a clean, finished look and secures the front of the appliance. What it does:

• Replaces cracked, dented, or warped cabinet front panels to improve cosmetic appearance
• Covers and protects internal parts from dust and debris
• Helps maintain proper alignment of the front assembly
• Reduces gaps that can collect lint or moisture around the appliance opening

• One front cover

• Disconnect power (and gas, if applicable) before beginning any repair
• Removal typically requires unscrewing the old front panel and detaching any connected trim or brackets
• Handle panel carefully to avoid scratching paint or bending mounting tabs

The Shut Off Arm is an OEM part for Whirlpool ice makers in refrigerators. This component plays a critical role in regulating ice production by signaling the ice maker to stop producing ice once the ice bin is full. It ensures that the ice maker does not overflow, maintaining efficient ice production and storage.

Over time, wear and tear, accidental impacts, or mechanical failures can impair its ability to accurately detect the ice level.

Symptoms of a bad Shut Off Arm include:

• Ice maker continuously producing ice even when full
• Ice maker not producing ice at all
• Ice overflowing from the ice bin
• Unusual noises from the ice maker mechanism

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
