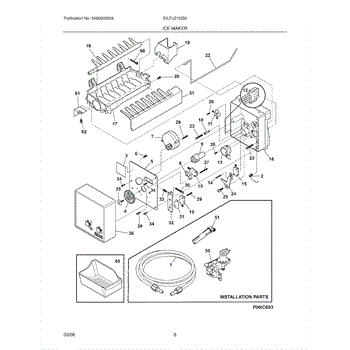

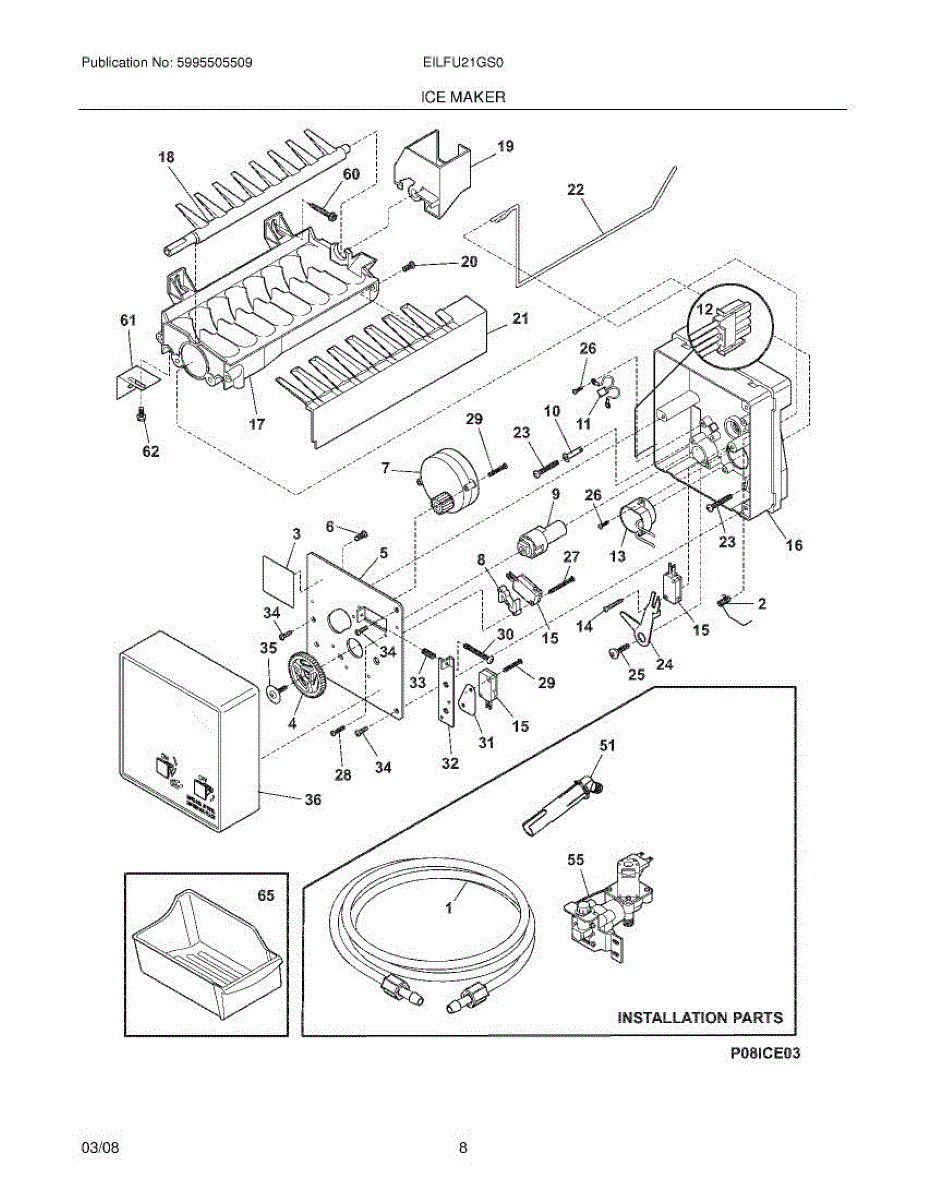

Parts for Electrolux EILFU21GS0: 09 - Ice Maker Parts

Water inlet tube routes incoming water from the refrigerator's supply line to the dispenser and ice maker, restoring proper water flow and helping stop leaks when a cracked or damaged inlet tube is the problem. What it does:

• Directs incoming water to the ice maker and dispenser; a damaged tube can cause weak or no water flow and reduced ice production.
• Cracks, splits, kinks or loose connections commonly produce visible leaks under or behind the refrigerator.
• Replacing the inlet tube restores reliable water delivery and helps prevent continued water damage from a compromised line.
• Inspect nearby fittings and clamps during replacement — loose or corroded fittings are a common related cause of leaks.

• Turn off the water supply and disconnect power before starting — uncontrolled water or live electrical parts create safety hazards.
• Relieve residual water pressure and catch any drips; have towels or a shallow pan ready.
• Replace any damaged clamps, seals, or fittings and tighten connections to factory torque; inspect surrounding tubing for additional damage.

This name plate is the replacement identification label that mounts to the appliance exterior to display model, rating and manufacturing information — making it easier to identify and service the unit. What it does:

• Provides the factory identification label with model and rating details for accurate appliance identification
• Restores legibility when the original plate is scratched, faded or missing
• Helps technicians confirm correct replacement parts and service information
• Supports resale value and safety by ensuring required labeling is visible

• One replacement name plate

• Always disconnect power and shut off gas or water supply before servicing
• Clean and dry the mounting surface before installing to ensure proper adhesion or fit
• This part replaces the visible identification plate only; the part number on the plate matches your unit before installation
• If mounting hardware or adhesive is required, use the method specified by your model's service instructions

This is the drive gear for the ice maker module. It transfers motor power to the ejector/harvest mechanism so cubes release consistently; worn or stripped teeth can cause clicking, stalls, or little to no ice production.

• Transfers motor torque to rotate the ejector and complete the harvest cycle
• Replaces a cracked, stripped, or worn gear that prevents proper ice ejection
• Typical symptoms: no ice production, icemaker stuck mid-cycle, clicking or grinding from the module
• Helps restore reliable ice maker cycling

• Unplug the refrigerator before service; turn off the water supply if moving the icemaker
• Remove the icemaker assembly for access; note the original gear's orientation before removal
• Align the new gear with the shaft; do not force it—inspect mating parts for wear
• After reassembly, verify the ejector turns freely; restore power and run a test cycle

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This mechanical temperature control thermostat replaces the factory temperature sensing switch to restore proper refrigerator temperature regulation. It helps the appliance maintain set temperatures for safe food storage and normal cooling performance. What it does:

• Senses cabinet temperature and opens/closes the cooling circuit to regulate compressor run time.
• Commonly used when the refrigerator runs constantly or cycles too quickly.
• Works as the user-adjustable temperature control for manual-style refrigerator controls.

• Disconnect power to the appliance before starting any repair.
• Handle the sensing bulb/capillary tube gently; avoid kinks or sharp bends.
• Verify correct placement of the sensing bulb in the evaporator/probe clip per OEM location.

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Note: The ice stripper is no longer available. Order complete icemaker by model number.

This replacement screw secures appliance components so panels, trim, or brackets stay fastened and aligned. Use it to replace lost or stripped fasteners and stop rattling, loose panels, or parts that won't sit flush. What it does

• Fastens panels, trim pieces, brackets, and small components to the appliance frame
• Replaces worn, stripped, or missing screws that cause rattling or gaps
• Restores secure mounting and alignment for doors, controls, or interior parts
• Works wherever the OEM screw 5304456677 is specified

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Compare new screw to the original to ensure correct fit before installation
• Disconnect power to the appliance if working near electrical components

This is a replacement screw used to secure panels, trim and other appliance components to restore proper fit and reduce rattling. It matches the OEM part form and fastening function for compatible Frigidaire appliances. What it does:

• Secures panels, brackets or trim to maintain proper alignment and appearance
• Replaces missing, stripped or damaged screws that cause loose parts or vibration
• Helps prevent rattling and keeps components seated for safe operation
• Restores original fastening where a worn or corroded screw failed

• Disconnect power to the appliance before beginning any repair to avoid electrical hazard
• Use the correct screwdriver or driver bit and hand-start threads to avoid cross-threading
• Tighten until snug; avoid overtightening which can strip threads or damage panels
• If thread damage is present, replace with the correct OEM fastener (do not force)

This replacement tube restores a secure, leak-resistant fluid path in your refrigerator/freezer. Replacing a damaged or brittle tube helps prevent water where it shouldn't be and keeps the system flowing as designed.

• Provides a dedicated pathway for fluid movement within the appliance
• Helps prevent leaks caused by cracks, splits, or loose connections
• Replaces kinked or clogged tubing that can restrict flow
• Common symptoms include water leaking inside or under the unit and visible damage to the existing tube

• Disconnect power and, if applicable, shut off the water supply before servicing
• Note the original routing and connection points to ensure proper reinstallation
• Transfer and reuse any original clamps, grommets, or fittings if not supplied with the part
• Push connections fully home, secure clamps, and check for leaks after reassembly

The Water Valve is an OEM part for Frigidaire refrigerators. It is crucial for controlling the flow of water to the ice maker and water dispenser. This solenoid-operated valve responds to commands from the refrigerator's electronic control to supply water when needed, ensuring efficient operation and reliable delivery of ice and water.

Symptoms of a bad Water Valve include:

• No water being dispensed
• The ice maker not producing ice or producing very small ice cubes
• Water leaking from the valve

Causes of a bad water valve can include mineral deposits blocking the valve, electrical failures preventing the valve from opening, or wear and tear from normal use leading to leaks or operational failures.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

The Ice Container is an OEM replacement part for Frigidaire refrigerators. It is responsible for storing ice produced by the ice maker.

Causes of a bad ice container can include wear and cracks that develop over repeated use and cleaning. Minerals or scale deposits may also accumulate inside over time.

Symptoms of a bad ice container include:

• Ice spilling or leaking out of the container
• Cracks or breaks that compromise the storage cavity
• Chipping of the plastic coating inside the container

This OEM Frigidaire replacement part is compatible with refrigerators from Electrolux, Gibson, and Kelvinator as well.

This replacement label provides the appliance's identification and rating information so you can restore clear model, serial, and safety marking visibility. It helps owners specifications and service details at a glance. What it does:

• Displays model, serial, and electrical rating information for the appliance
• Restores worn or missing safety and regulatory markings
• Keeps identification visible for warranty and service calls

• One replacement identification/rating label

• Clean and dry the mounting surface before applying; remove any dirt, grease, or old adhesive
• Align carefully and press firmly to ensure full adhesion; allow adhesive to set per room temperature conditions
• Do not place over vents, moving parts, or control openings
• For safety, disconnect power to the appliance before accessing internal areas to reach the original label location

This Icemaker assembly replaces the refrigerator freezer icemaker to restore automatic ice production and delivery to the ice bin. It installs where the original icemaker mounts and reconnects to the existing water supply and wiring. What it does:

• Cycles through fill, freeze and harvest stages to form ice cubes and drop them into the bin
• Receives water from the inlet and meters fill volume to produce properly sized cubes
• Stops producing ice when the bin is full to prevent overflow or ice buildup
• Resolves common symptoms like no ice production, few or misshapen cubes, or an icemaker that won't cycle

• One icemaker assembly

• Disconnect power and water supply before starting any work
• Handle the ice bin and harness carefully; use basic hand tools for removal and reinstallation
• Follow model-specific service manual or OEM instructions for wiring and alignment
• After installation, restore power/water and run a test cycle to ensure proper operation

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

The Icemaker Kit is an OEM part for Frigidaire refrigerators. This kit includes everything needed to install or replace the icemaker in the freezer, ensuring a steady supply of ice.

Causes of a bad icemaker can include wear and tear over time, water line blockages, electrical failures, or mechanical issues within the icemaker components. Regular use and exposure to hard water can also contribute to the icemaker's decline.

Symptoms of a bad icemaker include:

• No ice production
• Low ice output
• Ice cubes that are smaller than usual or misshapen
• Leaks around the icemaker area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Note: The icemaker used in this kit is 241798231 and the water valve is 242252603.
