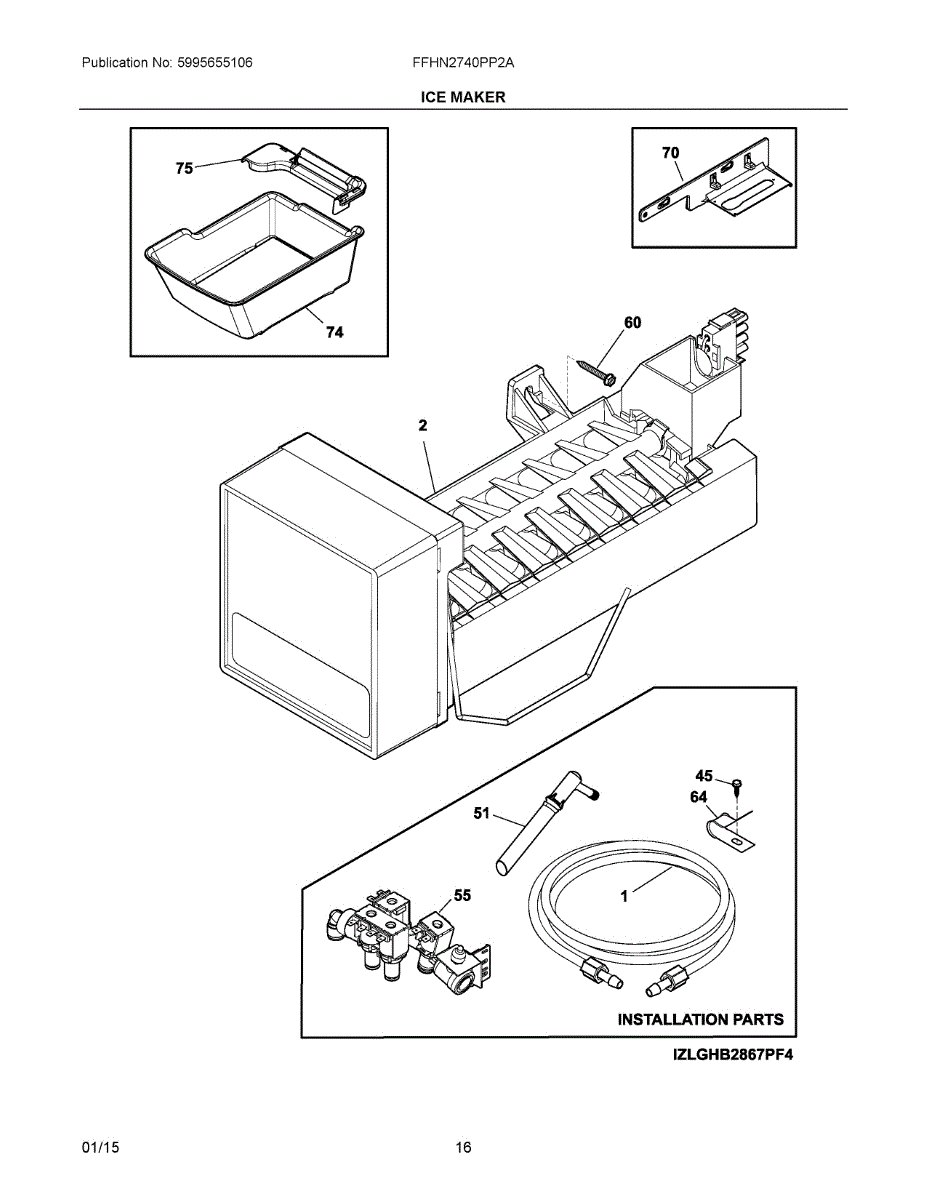

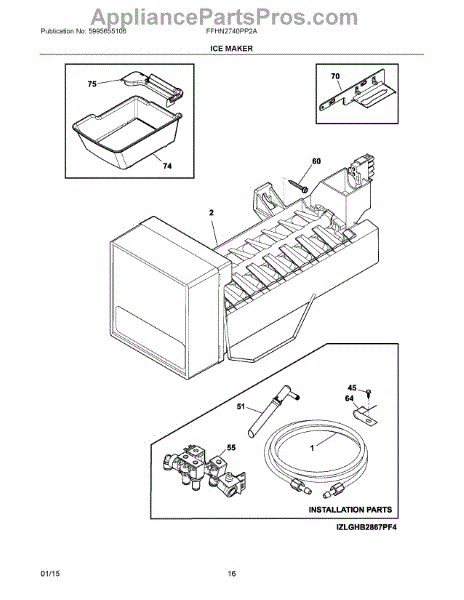

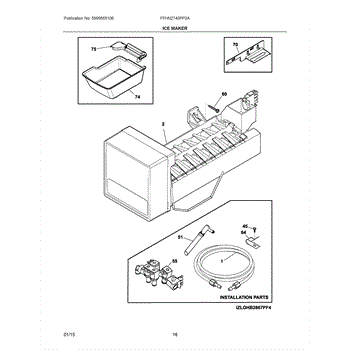

Parts for Frigidaire FFHN2740PP2A: 08 - Ice Maker Parts

The Freezer Ice Maker is an OEM part for Frigidaire freezers. It is responsible for producing ice within the freezer compartment, providing a steady supply of ice cubes.

Causes of a bad ice maker can include wear and tear over time, issues with the water supply line, or electrical problems affecting the ice-making cycle.

Symptoms of a bad ice maker include:

• The ice maker not producing ice
• Ice cubes being smaller or misshapen
• Unusual noises coming from the ice maker
• Water leaks around the ice maker area

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This water tube kit restores the refrigerator's water path. Replacing damaged or brittle tubing helps stop leaks and brings back reliable water flow to the dispenser and/or ice maker.

• Provides a secure route for water from the inlet valve through the refrigerator
• Replaces kinked, cracked, or leaking tubing that can restrict flow
• Helps resolve little/no water dispensing, slow/no ice production, or water drips/leaks
• Matches original routing and connection style on applicable units

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel to catch residual water and depressurize the line
• Note tube routing; cut ends square and fully seat tubing into fittings; avoid kinks
• Restore water and power, then check all connections for leaks and purge air by dispensing water

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This ice maker mounting bracket secures the ice maker assembly inside the refrigerator so it stays stable and correctly aligned with the water fill tube. Replace a damaged bracket to prevent looseness and restore consistent ice production.

• Supports and positions the ice maker assembly
• Maintains proper alignment with the water fill tube for correct filling
• Damage can cause a loose/sagging ice maker, rattling, water drips near the ice maker, or intermittent/no ice
• Replace if the bracket is cracked, bent, or missing

• Unplug the refrigerator and shut off the water supply before service
• Remove the ice bin and ice maker to access the bracket; reuse existing mounting hardware
• Ensure the fill tube seats correctly and the ice maker sits level before tightening fasteners
• Restore power and water; check for leaks and proper ice maker operation

This snap bucket is the removable ice collection bin that holds and delivers cubed ice from the ice maker. It restores a secure, easy-to-remove ice storage that keeps ice contained and ready for dispensing. What it does:

• Collects and stores ice produced by the refrigerator ice maker
• Snaps into the ice maker housing for a secure fit and easy removal
• Helps prevent ice from spilling inside the freezer compartment
• Can be replaced if cracked, warped, or if ice does not properly collect

• Disconnect power to the appliance before servicing to avoid injury
• Remove any remaining ice and slide the old bucket out, then snap the new bucket into the ice maker housing
• Handle carefully to avoid damaging the ice maker components or surrounding trim
• No special tools are typically required;

Color: Black/natural. Nylon

The Screw is an OEM part for Frigidaire refrigerators. As a common fastener used throughout the appliance, screws hold panels, handles, components and more securely in place. Reliable performance depends on intact assemblies.

Causes of a bad screw can include wear and corrosion over time from constant vibration, as well as stripping or shearing from repeated securing and removal of parts during repairs.

Symptoms of a loose, damaged, or missing screw include:

• Rattling noises and vibration
• Doors, handles, or panels that are no longer flush or tightened securely
• Internal components that have shifted position

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks

This refrigerator water inlet tube routes water from the supply/valve into the appliance's water system. Replacing a cracked or kinked tube restores proper flow to the dispenser and ice maker while helping prevent leaks.

• Directs water from the inlet valve to internal components for dispensing and ice production
• Maintains a sealed, food-grade water path
• Replace if you notice leaks under/behind the unit, visible cracks/kinks, reduced or intermittent dispenser flow, or ice maker not filling
• Normal wear, brittleness, or damage during moves can lead to failures

• Disconnect power and shut off the water supply before servicing
• Place a towel or tray to catch residual water when disconnecting lines
• Note the original routing; release any retaining clips and disconnect the tube from fittings
• Route the new tube exactly like the original and fully seat tube ends in connectors; restore water and check for leaks
