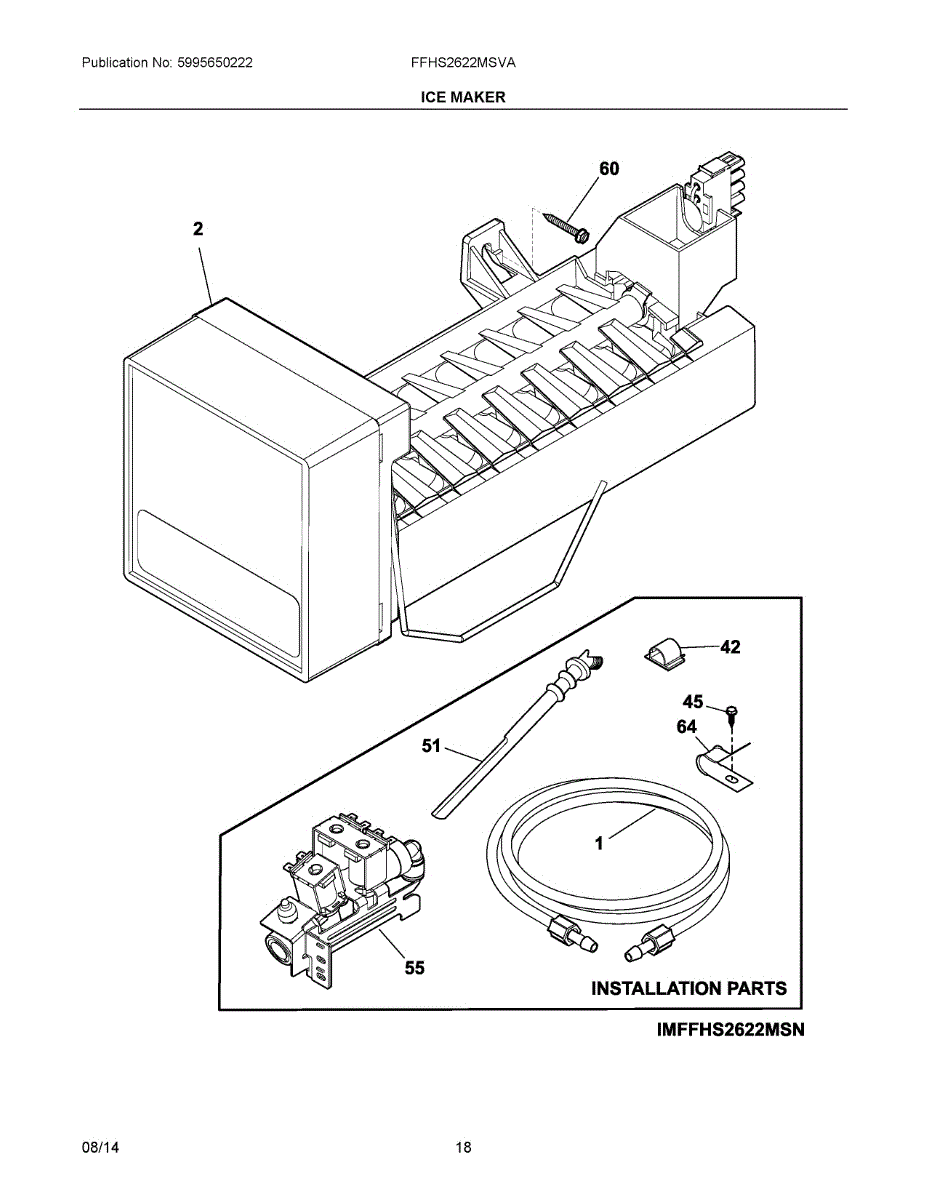

Parts for Frigidaire FFHS2622MSVA: 10 - Ice Maker Parts

This refrigerator water tube carries water between internal components such as the inlet valve, filter/reservoir, dispenser, or ice maker. Replacing a brittle, kinked, or leaking tube helps restore proper water flow and prevents messy leaks. What it does:

• Routes water within the refrigerator's water and ice system
• Helps deliver water to the dispenser and/or ice maker
• Common symptoms of a bad tube: leaks, poor dispenser flow, no ice production, visible cracks/kinks, or dripping at connections
• Restores dependable water delivery when tubing is damaged

• 1 water tube

• Unplug the refrigerator and shut off the water supply before servicing
• Note the tube's routing and connection points; take photos for reference
• Cut tubing ends squarely if trimming and fully seat into existing fittings
• Turn water back on and check all connections for leaks; flush the system to clear air

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This factory fastener secures appliance panels and components. Replace a missing, stripped, or corroded screw to restore a tight, rattle-free fit and keep brackets and covers properly aligned.

• Fastens panels, brackets, and internal parts as specified by the manufacturer
• Helps maintain alignment and reduces vibration/rattling
• Replace if the head is stripped, threads are damaged, or corrosion is present
• Symptoms include loose/missing hardware, gaps, or rattling during operation

• Disconnect power; shut off gas/water if applicable before servicing
• Use the correct driver/bit size to avoid stripping the head
• Start threads by hand to prevent cross-threading; do not overtighten
• Match screw length/thread to the location; replace in sets when required

The Icemaker Fill Tube is an OEM part for Frigidaire refrigerators. This tube is responsible for directing water from the water supply line to the icemaker, allowing for the production of ice. It ensures that water is efficiently delivered to the icemaker without leaks or blockages.

You should replace the icemaker fill tube if it becomes damaged or blocked. Causes of a bad fill tube can include mineral deposits or debris clogging the tube, cracks or leaks from wear and tear, or damage from mishandling during maintenance.

Symptoms of a bad icemaker fill tube include:

• No ice production
• Leaks around the icemaker area
• Ice cubes being smaller than usual
• Water overflowing or not reaching the icemaker

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Refrigerator Water Valve is a genuine OEM replacement part for Frigidaire refrigerators. It is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser. This part ensures a steady and reliable water supply for ice production and water dispensing.

Causes of a bad water valve can include a faulty solenoid, clogged or blocked water lines, or a malfunctioning water pressure regulator. These issues can result in a variety of problems, such as slow or no ice production, weak water flow from the dispenser, or leaks around the valve.

Symptoms of a bad water valve include:

• No ice cubes being produced
• Low water pressure or weak water flow from the dispenser
• Leaks around the water valve or water lines
• Inconsistent ice production or dispensing

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This is a factory-style replacement screw used to secure appliance components. It restores proper fastening where the original screw is missing, stripped, or damaged so panels and assemblies stay firmly attached. What it does:

• Fastens panels, brackets, or components to the appliance frame or assemblies
• Replaces missing or damaged mounting hardware that can cause rattles or loose parts
• Provides the correct fit and thread engagement for a secure connection
• Helps maintain appliance alignment and safe operation

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not over-torque to prevent thread or part damage
• Turn off power and remove any access panels before working on electrical components

This spring-style hose clamp secures flexible appliance hoses and helps prevent leaks by holding hose ends tightly to fittings. Reliable, low-profile design for use on drain, water, or vent hoses where a strong, consistent grip is needed. What it does:

• Provides a spring-tensioned grip to keep hoses seated on fittings and reduce leaks
• Commonly used on flexible drain or water hoses and small vent lines
• Helps maintain proper connection under normal vibration and thermal cycling
• Replaces worn, stretched, or corroded clamps that no longer hold tension

• One spring hose clamp (exact quantity as sold)

• Use pliers to expand the clamp, slide into position, then release to seat on the fitting
• Inspect hose ends and fittings for wear; replace hose if damaged before installing clamp
• Wear eye protection when compressing the clamp; keep fingers clear of the clamp's edges
• Tighten only as needed—over-compressing can damage the hose

This water inlet tube routes potable water from the refrigerator's inlet/valve to the dispenser and ice-making components, helping restore normal water delivery and prevent leaks when damaged. What it does

• Channels water from the inlet valve to the dispenser/ice maker assembly.
• Replaces cracked, kinked, or clogged tubing that can cause leaks or reduced flow.
• Helps stop visible dripping, puddling, or intermittent water flow at the dispenser.
• Works as a direct-fit plumbing replacement when the original tube is damaged.

• One water inlet tube

• Turn off refrigerator power and shut off the water supply before starting.
• Inspect fittings and seals; replace any damaged ferrules or gaskets for a watertight connection.
• Use basic hand tools; avoid sharp bends or kinks when routing the tube.
• After installation, restore water and power, then check all connections for leaks.

This refrigerator water inlet tube channels water from the valve into the internal dispensing/ice system. Replace a cracked, kinked, or clogged tube to restore proper flow and help stop leaks at the rear or inside the cabinet.

• Routes water from the inlet valve to the refrigerator's water system
• Helps resolve leaks, weak/no dispenser flow, or no ice production due to damaged or restricted tubing
• Replaces brittle, cracked, or kinked tubing that can cause drips or water damage
• Maintains a sealed path when properly seated in the existing fittings

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure; place a towel/pan to catch residual water
• Note the original routing; transfer any reusable clips/fittings from the old tube
• Cut ends square if required, push fully into couplers, restore water, and check carefully for leaks before reconnecting power

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
