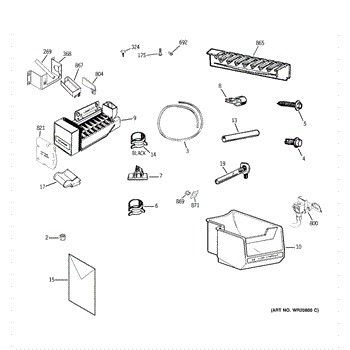

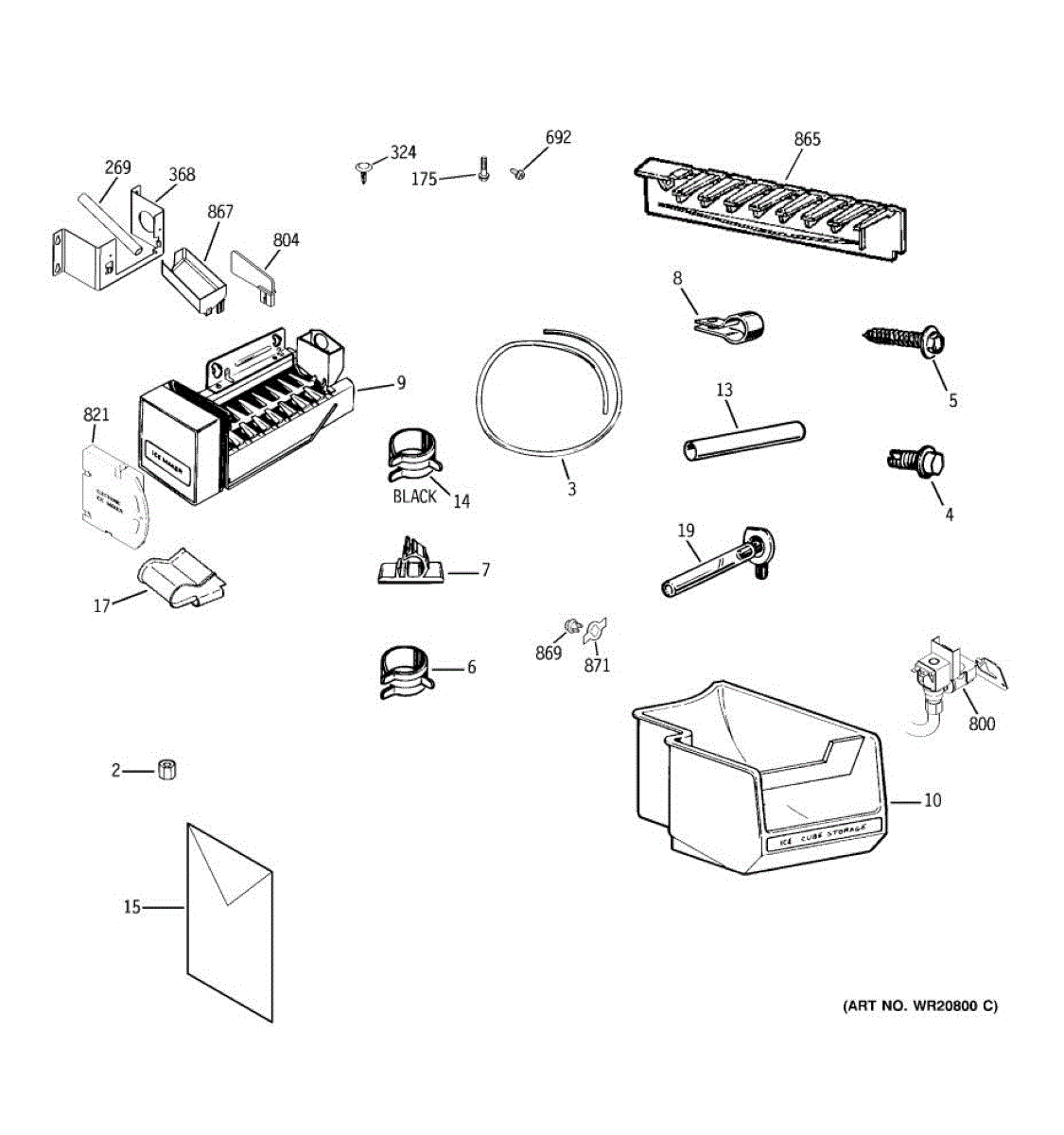

Parts for Ge IM6: 01 - Ice Maker Parts

The Ice Maker Water Line is an OEM replacement part for GE refrigerators. It is an important supply line that delivers water from the main water source to the icemaker component. The water line allows water to flow smoothly, facilitating the icemaking process.

Causes of a bad water line can include cracks or punctures from impact or bending, mineral deposits and corrosion building up inside the line restricting flow, or improper connection fittings causing leakage.

Symptoms of a bad ice maker water line include:

• Irregular or insufficient ice production
• No water delivery to the icemaker despite activation
• Noticeable leaks or drips near the water line attachment points
• Strange knocking or hammering sounds are heard when the icemaker is running

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components and panels where an 8-36 threaded fastener is required. Durable and ready for repair, it restores proper fit and reduces rattles or loose parts. What it does:

• Fastens panels, brackets, or components that use an 8-36 threaded screw
• Replaces stripped, lost, or damaged screws that cause vibration or loose parts
• Restores secure mechanical connections to help maintain normal operation

• One screw

• Disconnect power and follow appliance safety procedures before starting repairs
• Use the correct driver and match thread engagement; do not force or cross-thread
• Tighten to snug; avoid overtightening which can strip threads or damage parts

This clamp secures small hoses or tubing and nearby wiring inside the appliance to keep lines held in place and reduce rubbing, leaks, or vibration noise. It's a direct-fit replacement designed to restore proper hose routing and stability. What it does:

• Holds water, drain or vent tubing securely to prevent sagging and rubbing that can cause leaks or wear
• Keeps hoses and wires aligned to reduce vibration and rattling during operation
• Helps maintain proper connections at fittings so seals stay seated and drip risk is minimized
• Simple mechanical clip action — no special tools or adhesives required

• Disconnect power and shut off the water supply before starting any repair
• Remove the old clamp and install this clamp in the same orientation; tubing sits fully in the fitting
• Use standard pliers (or the OEM-recommended tool) to compress/seat the clamp; avoid twisting or pinching the tubing
• Inspect surrounding tubing and fittings for wear; replace damaged hoses or seals if found

This small hardware clamp is used on select refrigerators to secure tubing or wiring to the cabinet or frame. Replaces a missing or damaged clamp to keep lines stable, reduce vibration, and help prevent rubbing or leaks.

• Secures small water tubing or electrical harnesses along the cabinet/frame
• Helps prevent vibration, rattling, and abrasion of lines
• Maintains correct routing to keep lines clear of moving or hot components
• Common clues: loose or noisy lines, chafing marks, or moisture near tubing connections

• Unplug the appliance and shut off the water supply before servicing
• Note the original location and routing; take a photo for reference
• Reuse the existing mounting screw/fastener if required; tighten only enough to hold without crushing tubing
• Restore power and water, then run and inspect for vibration and leaks

This cable clamp secures refrigerator wiring to the cabinet, keeping harnesses organized and protected. Replacing a missing or damaged clamp helps prevent chafing and vibration noise while maintaining proper clearance from fans and other moving components.

• Anchors wire harnesses in their designed routing
• Helps prevent insulation wear from rubbing or vibration
• Keeps wires clear of sharp edges and moving parts
• Common signs it's needed: missing/broken clamp, loose or dangling wires, or new rattling/buzzing noises

• Disconnect power before servicing
• Access the clamp location and note original wire routing
• Position the clamp and secure with the existing fastener; do not overtighten
• Ensure wires aren't pinched and have clearance from the fan/compressor before restoring power

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Ice Bucket is an OEM replacement part for GE refrigerator-freezers. It collects and stores freshly produced ice within the freezer compartment.  This bucket is made of white plastic and is approximately 13 inches in length and 9 inches wide at the widest point.

Causes of a bad ice bucket can include wear and tear over time, or damage to the bucket or its components due to mishandling or impact. Please note, this is just the ice bucket and does not include the auger or auger motor.

Symptoms of a bad ice bucket include:

• Cracks or breakage in the bucket
• Ice not dispensing properly
• Bucket not fitting securely in its compartment
• Visible damage or wear to the bucket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement clamp secures lines or components inside the refrigerator, keeping them properly routed and stable. Replacing a broken or missing clamp helps reduce vibration and prevents rubbing damage or leaks from loose tubing. What it does:

• Holds tubing or wiring harnesses securely in place inside the refrigerator
• Maintains correct routing and clearance to prevent chafing and wear
• Helps reduce vibration and rattling noises from unsecured lines
• Can help prevent drips or leaks when used to retain water tubing

• 1 clamp

• Unplug the refrigerator and, if working with water lines, shut off the water supply
• Note the original clamp orientation and routing; take a photo before removal
• Install the new clamp in the same location, securing lines without pinching or over-stressing them
• Restore power (and water if applicable) and check that lines are secure; inspect for leaks if used on water tubing

This U-shaped clip secures trim and components in place on compatible GE appliances, helping keep panels and assemblies aligned for reliable operation. Simple replacement when a broken or missing clip causes loose trim or rattling. What it does:

• Holds trim, panels or small assemblies in position to prevent movement
• Restores secure fit where a worn or broken clip allows gaps or vibration
• Helps eliminate rattling, misaligned doors, or loose internal components
• Works as a direct-fit replacement for the same OEM clip design

• One U-shaped retaining clip

• Turn power off and unplug the appliance before accessing panels or parts
• Remove any trim or screws carefully to reach the clip location; retain fasteners
• Clip typically snaps into place; replace any damaged surrounding hardware

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Specs: 8-18 AB IHW 5/8 S

The Fill Tube & Grommet Assembly is an OEM part for GE refrigerators. This part ensures that water is efficiently and accurately delivered to the ice maker, where it's frozen into ice.

Causes of a bad Fill Tube & Grommet Assembly can include freezing within the tube, which blocks water flow, physical damage or wear that creates leaks, and deterioration of the grommet, leading to improper sealing and potential water damage.

Symptoms of a bad Fill Tube & Grommet Assembly include:

• Ice maker not producing ice due to lack of water supply
• Water leaking inside the freezer compartment
• Frost or ice formation on the back of the appliance due to leaking water
• Unusual noises as the refrigerator attempts to fill the ice maker

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Replacement screw that secures panels, trim and internal brackets to keep appliance components stable and rattle-free. Use when originals are missing, stripped, or broken to restore proper fit and safe operation. What it does:

• Secures panels, control housings, trim and small brackets so parts stay aligned and stable.
• Replaces missing or damaged fasteners that cause rattling, vibration, or loose assemblies.
• Keeps electrical and mechanical components properly positioned for reliable operation.
• Intended as a direct replacement where the OEM screw specified for the application is required.

• Disconnect power and unplug the appliance before starting any repair.
• Use the correct screwdriver or bit and seat the screw squarely to avoid stripping the head or threads.
• Do not overtighten—stop when snug to prevent damage to panels or plastic components.
• Keep removed screws organized; replace only with the identical OEM screw for proper fit.

The Water Inlet Valve is an OEM part for GE refrigerators. It is responsible for controlling the flow of water into the refrigerator’s ice maker and water dispenser. The valve opens and closes to allow the right amount of water to fill the ice maker tray or to dispense water from the refrigerator door.

Over time, the water inlet valve can wear out or become damaged due to mineral deposits, corrosion, or electrical issues. A faulty valve can lead to problems with the water supply, affecting the refrigerator’s ability to produce ice or dispense water properly.

Symptoms of a bad water inlet valve include:

• No water or ice production
• Water dispenser not working
• Leaks or drips around the valve or inside the refrigeratorStrange noises coming from the valve area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This ice maker guardrail secures and guides the ice maker/ice bin assembly so cubes dispense and stay aligned. It helps restore proper ice flow and prevents the ice bin from shifting or rubbing during harvest cycles. What it does:

• Holds the ice maker/ice bin in place to prevent movement and misalignment
• Guides ice cubes during ejection for smoother dispensing
• Reduces rubbing or contact that can cause noise or wear
• Helps maintain consistent ice delivery to the bin

• One ice maker guardrail/rail

• Disconnect power (and water supply if applicable) before beginning service
• Remove shelves or ice bin as needed for clear access; keep fasteners for reinstallation
• Install using existing mounting points and hardware; inspect surrounding parts for wear

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

This ice maker stripper is the front comb that helps release cubes from the ejector during harvest. It guides ice cleanly into the bin to reduce jams and keep ice production running smoothly. What it does

• Strips ice cubes off the ejector fingers as the ice maker cycles
• Directs cubes into the bucket, helping prevent jams and cube bridging
• Wear, cracks, or warping can cause cubes to stick, spill, or clump
• Symptoms include cubes piling at the front, clicking during harvest, or reduced/no ice

• 1 ice maker stripper

• Disconnect power and shut off water before servicing
• Remove the ice bin and access the ice maker front (remove cover if present)
• Release the old stripper (tabs/screws), align the new stripper with the ejector fingers, and seat it fully
• Reinstall cover and bin; restore power and allow a full cycle to verify operation

The Icemaker Fill Cup is an OEM replacement part for GE refrigerators. This component is specifically designed to channel water from the fill tube into the ice mold.

Symptoms of a bad Icemaker Fill Cup include:

• Water leakage inside the freezer, leading to ice accumulation
• Inadequate or irregular ice production
• The presence of unusual sounds during the ice-making process

Causes for a malfunctioning Icemaker Fill Cup can range from physical damage, such as cracks or warping due to temperature fluctuations, to blockages that impede the flow of water into the ice mold.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerators.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.

The Electromechanical Icemaker Kit is an OEM replacement part for GE refrigerators. It includes the ice maker assembly components responsible for harvesting, ejecting, and monitoring the ice-making process.

Symptoms of a faulty electromechanical kit include:

• Ice not being produced or dispensing properly
• The ice maker failing to turn on or stop automatically
• Strange noises emanating from the ice maker

Causes can be worn parts like the ejector assembly or drive motor, as well as electrical malfunctions. Continued use puts wear on components that regulate ice production.

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today for reliable ice on demand.
